Applications of Metal 3D Printing

I hope you are doing well and exploring new things daily. Today's topic is various applications of Metal 3D Printing. This is a new state-of-the-art form of additive manufacturing- metal 3D printing. Hence, the objects will be created by building layers directly from digital models. This means unmatched design flexibility - geometries in areas that traditional means of manufacture could not quite accomplish and would have structures of minimum weight achievable thus creating the most. This does not waste as much material, so this might be an environmentally friendly process.

Aerospace, health care, automobile, and construction industries have implemented metal 3D printing for producing customized, high-performance components of exceptional precision. Applications range from intricate medical implants and aerospace parts to automotive prototypes and architectural elements.

Developments in metal alloy and composite material, as well as hybrid manufacturing systems, such as all metal 3D printing systems, lead to increased applicability of metal additive manufacturing. Technological innovations will play a critical role in answering the most complex industrial challenges, stimulating innovation, and defining the future of manufacturing.

This article will look into the extensive applications of metal 3D printing, its advantages, and its impacts on various sectors.

What is Metal 3D Printing?

It is a kind of metal printing that creates very complex metal parts layer by layer through additive manufacturing techniques. Starting with a digital 3D model, the process involves depositing or fusing metal material like powders or filaments by using heat sources such as lasers, electron beams, or binders.

With this technology, it is easy to create more intricate designs while not wasting much of the material in production; besides, its products can be fully customized. Highly popular in aerospace, healthcare, automobiles, and even energy sectors as a production methodology for lightweight high-performance, resistant parts, transformative technology is remolding the fabric of manufacturing towards innovative solutions in faster production cycles.

Applications:

1. Aeronautics and Aerospace:

Weight Reduction and Fuel Efficiency:

Metal 3D printing, companies in this sector are front runners in this process because their light yet durable products can offer reduced weight means the aircraft carries lesser weight with an increased fuel economy, lower exhausts, and lesser operating expense. For instance:

• GE Aviation builds its LEAP engine nozzles using the Selective Laser Melting Process (SLM), which gave them a saving of 25% of their original weight.

• Airbus uses 3D-printed brackets and other structural parts in its aircraft, saving weight without any loss to the overall structural integrity.

Complex Geometries and Functionality:

With metal 3D printing, intricate geometries such as turbine blades that contain internal cooling channels or duct systems that ensure optimal airflow can be created easily. In general, traditional manufacturing methods are challenged by such complexities, whereas 3D printing makes them easily feasible.

Rapid Prototyping and Customization:

Prototyping new designs in the aerospace industry is expensive and time-consuming. Metal 3D printing accelerates this process, reducing lead times and costs. Moreover, components can be customized for specific applications, such as parts tailored for individual spacecraft.

2. Healthcare and Medical Applications:

Patient-Specific Implants:

Producing patient-specific implants as well as prosthetics, metal 3D printing offers benefits in comfort as well as functionality. Some of the popular material includes titanium because it is biocompatible, corrosion-resistant, and lightweight. Some of the common examples include:

• Skull structure-based personal cranioplasty plates.

• Custom hip and knee replacements with precise fitting.

Dental use:

In dentistry, metal 3D printing offers accurate and rapid crowns, bridges, and orthodontic parts with the technology enabling such precision accuracy that the components fit perfectly. Thus, the dentistry provided brings about minimal to no patient discomfort and pain.

Surgical Instruments:

With the technology, 3D printing, a lightweight and ergonomic surgical instrument, that can be sterilized for use was produced using metal printing. These instruments can be customized for specific procedures, thus enhancing surgical accuracy and reducing operating time.

3. Automotive Industry:

Prototyping and Product Development:

Car makers use metal 3D printing to make rapid prototypes so that engineers can quickly test and iterate designs. For example:

• Ford has used 3D-printed parts in the development of new engines and chassis.

• BMW uses metal 3D printing to prototype complex engine components.

Lightweight Components for Performance:

Lightweight 3D-printed metal components provide a huge performance advantage for high-performance vehicles. For example:

• Bugatti designed a titanium brake caliper that is printed through 3D printing which can provide such high strength along with reduced weight.

• Additive manufacturing is used for optimizing exhaust systems and suspension parts so that fuel consumption and performance are reduced.

Custom and Legacy Parts:

Metal 3D printing resolves the challenge of finding hard-to-find or unavailable components for antique and specialty cars. It will enable manufacturers to create on-demand replacement parts using digitized designs, which in turn minimizes cost and time spent.

4. Energy and Power Generation:

Turbine Components:

The energy sector requires extreme temperature and pressure tolerance parts, and metal 3D printing fulfills that demand by generating:

Optimized cooling channels of gas turbine blades that reduce wear and increase efficiency.

Lightweight yet stronger wind turbine components to achieve higher performances.

Oil and Gas Applications:

Customized tools for drilling, explorations, and extraction, among others, use metal 3D printing, reducing downtime as well as giving the equipment a much longer life span.

Sustainability Initiatives:

Metal 3D printing encourages sustainability in the energy sector through a reduction in material waste by providing a faster route to efficient components.

5. Defense and Military:

On-Demand Manufacturing:

The production of replacement parts on-site is priceless in military operations. Metal 3D printing allows for decentralized manufacturing, thus cutting down on supply chain dependencies and ensuring operational readiness.

Lightweight and Durable Components:

Drones, armor, and weapon components are manufactured using metal 3D printing. These parts are lightweight, durable, and designed according to specific mission requirements.

Prototyping Advanced Technologies:

Defense organizations use additive manufacturing to speed up the quick prototyping and testing of sophisticated technologies, pushing forward the development process of cutting-edge systems.

6. Tooling and Manufacturing:

Custom Molds and Dies:

Metal-based 3D printing technology enables the rapid creation of high-precision, conformal-cooled injection molds and dies. This offers the potential of more efficient production time with reduced cycle times. Precision jigs and fixtures

Manufacturing lines benefit from customized jigs and fixtures that help increase the precision of assembly and minimize errors. The tools are designed to perform specific tasks, which generally increases productivity.

Cost-Effective Tooling:

Compared to traditional methods, metal 3D printing has significantly reduced the cost of tooling, especially in low-volume production or highly specialized tools.

6. Tooling and Manufacturing:

Custom Molds and Dies:

Metal 3D printing, injection molds, and dies, by having conformal cooling channels enhance production efficiency and reduce the time of the cycle. High-quality tooling with precision is derived from additive manufacturing.

Precision Jigs and Fixtures:

Manufacturing lines can harness customized jigs and fixtures that enhance assembly precision and reduce errors. The tools are fitted and dedicated to specific tasks which lead to the maximization of productivity.

Cost-Effective Tooling:

For such a low volume of output or unique tools, 3D metal saving is different from the tooling cost as seen in conventional procedures.

7. Jewelry and Fashion:

Detailed and Customized Designs:

Metal 3D printing allows designers to create jewelry items that would not be possible at all with the most conventional methods available. This kind of technology affords a person-centered approach because it offers very unique designs in line with everybody's preference.

Efficiency and Sustainability:

The output material is minimal since metal 3D printing avoids much material wastage. The process allows fashion designers to create new shapes and materials, opening a wider scope for creativity.

8. Architecture and Construction:

Custom Structural Elements:

Innovative architectural designs, especially in connectors and brackets, apply metal 3D printing to create custom structural elements optimized for strength and efficiency.

Artistic and Decorative Elements:

Architects and artists create unique one-time sculptures, facades, and ornaments by using metal 3D printing. The approach does complex designs without manufacturing any waste.

Sustainable Construction:

Lightweight structures and efficient ones that would be created through metal 3D printing minimize material use and transport prices during sustainable construction.

9. Electronics and Robotics:

Conductive Components:

Metal 3D printing is used extensively in the manufacture of conductive parts in electronic devices, including antennas, heat sinks, and circuit boards.

Robotics:

Lightweight yet high-strength components for the robotic system are manufactured through 3D printing. These components enhance the functionality, agility, and efficiency of the robots.

Emerging Applications and Future Prospects:

Space Exploration:

In space exploration, metal 3D printing saves the costs of being able to have on-demand part production in space, which reduces the payload requirements of the mission and accommodates mission flexibility.

Medical:

The future medicine application includes bio-printing of metal-based scaffolds and advanced implants, integrating sensors.

Hybrid Manufacturing:

New applications will become available by marrying traditional manufacturing methods with metal 3D printing for hybrid component development with extraordinary properties.

AI and Machine Learning:

With its optimized 3D printing, artificial intelligence capabilities, efficiency, as well as material usage concerning production output are optimized.

Challenges and Limitations:

Despite this, some challenges also metallic 3D printing faces:

• High Costs: The equipment and materials are still costly, making them unattainable to small businesses.

• Material Constraints: The number of metals that can be 3D printed is growing.

• Post-Processing: More steps are sometimes necessary to achieve a good surface finish and mechanical properties.

Advantages of Metal 3D Printing:

Here are the benefits of metal 3D printing in a nutshell:

• Complex Geometries: Complex designs with complex inner structures that cannot be easily manufactured or are simply impossible in traditional manufacturing.

• Material Efficiency: Material is used precisely to print the part. No waste pis produced and therefore, lesser costs.

• Customization: Makes very customized components such as medical implants, and aerospace parts possible.

• Rapid Prototyping: The process is hastened because it enables rapid production of functional prototypes for designing and developing a product.

• Lightweight Designs: Lightweight parts with optimal strength can be easily designed for applications in the aerospace and automotive industries.

• Reduced Tooling: There is no requirement for specialized tooling or molds, thus reducing upfront costs for small production runs.

• On-Demand Manufacturing: It enables just-in-time production, which helps reduce the costs of inventory and offers flexibility in supply chains.

• Superior Performance: Manufactures parts with better mechanical properties, such as increased strength or thermal resistance, by using advanced metal alloys.

• Eco-Friendly: Saves energy and promotes sustainability by recycling unused metal powder. Hybrid Integration: It integrates with traditional methods to achieve both complex designs and superior surface finishes.

Metal 3D printing has transformative benefits for industries and is a vital technology in modern manufacturing.

Conclusion:

Metal 3D printing is transforming industries because of its capacity to produce very complex, lightweight, and highly customized parts with outstanding efficiency. Material waste reduction, the acceleration of prototyping, and the creation of complex geometries are great advantages in fields like aerospace, healthcare, automotive, and energy. Rapid production means on-demand cost-effective solutions that are greatly appreciated in such fields as industries for high-performance parts, for instance, turbine blades or medical implants.

Despite the challenges involved in this technology, such as high costs, material limitations, and post-processing issues, ongoing developments in materials and processes are expected to overcome these problems. Metal 3D printing is changing traditional manufacturing methods because of its ability to create stronger, stronger parts than ever before. Therefore, rapid development in technology, it is going to transform the future of production in numerous sectors towards sustainability and also propel the next industrial revolution.

Working Principle of Metal 3D Printing

I hope you are doing well and exploring new things daily. Today's topic is the working of Metal 3D Printing. It refers to the technique of creating a metal part directly from a digital design layer by layer.

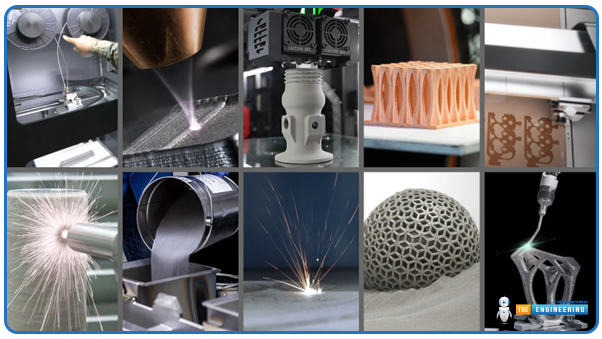

Instead of subtractive material from a solid block like conventional manufacturing, metal additive manufacturing or metal 3D printing involves additive material addition in building up the object. This can give geometries with intricate designs and internal structures not easily achieved using traditional methods or impossible-to-manufacture conventionally.

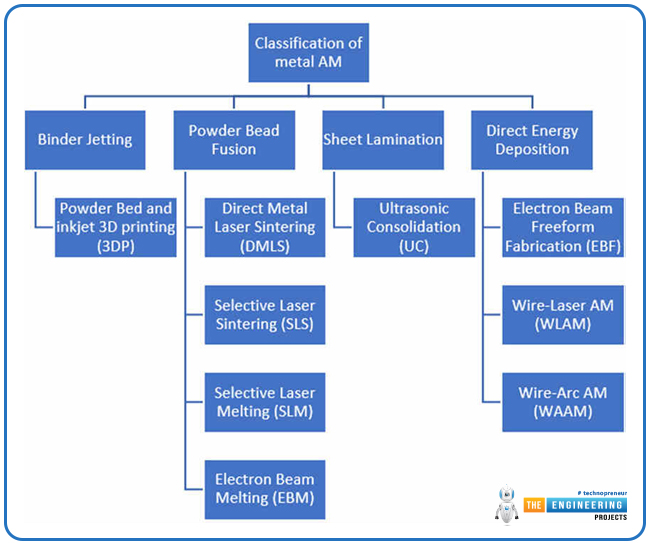

Several technologies exist within metal 3D printing. The popular methods include Selective Laser Melting (SLM), Direct Metal Laser Sintering (DMLS), and Electron Beam Melting (EBM). These methods melt metal powders with lasers or electron beams. Other techniques, Binder Jetting and Metal Extrusion were based on the combination of metal powders or filaments with binders to construct the component followed by baking in furnaces.

Key industries utilizing metal 3D printing involve aerospace, automotive, health care, and manufacturing. They enable the lightening of their products with lower waste, faster production, improved performance, and customized components. It is especially useful in developing complex aerospace parts, medical implants, and automobile prototypes. Advanced technology continues to bring innovative cost-effective solutions using metal 3D printing and its alternatives against traditional manufacturing techniques.

In this article, you will learn the complete working metal 3D printing. Let’s start.

1. Designing the 3D Model:

Metal 3D printing starts from designing the object that shall be printed. Many software packages use computer-aided design in developing such models, mostly in producing a very intricate model of any parts, structure, or part of anything in 3D. A highly critical design in 3D metal printing determines the kind of finishing on the part after it's done printing since this will depict its material characteristics and geometry.

After the completion, the 3D model can be exported in one of these digital file formats: STL or AMF (Additive Manufacturing File). The STL or AMF file formats will break the 3D model into extremely thin horizontal layers, essentially describing how the 3D printer should create the part, layer by layer. The resolution of the model is defined during this stage. It determines how precisely the final part will be. They also include lattice structures, channels, and moving parts in a model, things that cannot be possible or are nearly impossible to build with traditional subtractive manufacturing.

2. Choice of Suitable Metallurgical Materials:

Metal 3D printing has an extensive range of metallurgical materials, each of which possesses properties desirable for particular applications. The basic choice criteria typically rely on what mechanical properties of the part are needed, the environmental conditions under which the part will be operated, and the performance that is desired.

Yet some of the most widely used metals in metal 3D printing are:

Titanium Alloys:

Titanium and its alloys including the Ti-6Al-4V grade have a hardness, strength-to-weight ratio, corrosion resistance, and biocompatibility that make it suitable for most industries. In aerospace industrial applications and automotive, and generally, where light-weight and high strength is essential as in medical applications as in implants and prosthetic uses, titanium alloys are ideal.

Stainless Steel:

Stainless steel is a multi-purpose material having acceptable mechanical characteristics and resistance to corrosion. It is applied in many fields especially in industries manufacturing industries also in the making of medical equipment. Among the alternatives, the two typical alloys that are used in 3D printing are stainless steel 316L and 17-4PH.

Aluminum Alloys:

Aluminum has a relatively high strength-to-weight ratio, and good thermal conductivity and will therefore undergo all automotive and aerospace industries. Some of them include; AlSi10Mg, which is popular in the creation of light duty high strength components through 3D printing.

Inconel:

Inconel is an austenitic superalloy that has been used in reinforced operating situations such as in jet engines or gas turbines. It has kept away from sudden temperatures and corrosion for it to fit in the aerospace and energy markets.

Cobalt-Chrome Alloys:

The alloys are primarily used in the medical field to create implants and other dental-related parts. Cobalt-chromium gives strength, exhibits high wear resistance, and is biocompatible.

Copper and Nickel Alloys:

These are used in situations that necessitate maximum thermal conductivity like heat exchangers and critical corrosion resistance settings.

All the above types possess their benefits along with compromises of mechanical properties, cost, printability, and post-processing requirements. One of the significant strides toward optimal performance is the proper choice of the application-specific material.

3. Layer by Layer Printing:

Additive manufacturing forms the crux of metallic 3D printing, meaning depositing or creating material upon itself layer-wise, thus gradually constructing a full part. Differences abound in methodologies taken to deliver that layerwise building process from a variety of available technologies and those are now mentioned below-

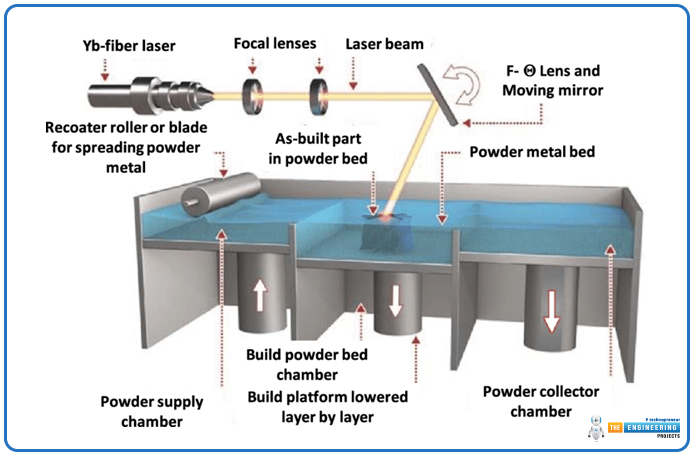

Powder Bed Fusion:

Powder Bed Fusion forms part of a popular and applied methodology for making a metal product by 3D printing technology. In PBF, a thin layer of metal powder is spread across a build platform. A high-powered energy source, including lasers or electron beams, is used to selectively melt or sinter the powder. The energy source scans across the powder bed, following the contours of the part's first layer, melting the powder in precise areas. This first layer is completed, and the platform will be moved downwards to a specific length while another metal powder layer is spread upon it, so the layer on top will get repeated from above until all the parts.

Here are some versions of Powder Bed Fusion:

• Selective Laser Melting (SLM): In this process, the high-powered laser melts metal powder completely. Thus, it gives parts that exhibit excellent mechanical properties. The main application areas include aerospace, automotive, and medical applications in making complex high-performance parts.

• DMLS: Similar to SLM, it uses a laser but works by sintering the metal powder, and partially melting it to bond the particles. DMLS is particularly useful in intricate designs and small-scale production.

• EBM, or Electron Beam Melting: This, melts metal powders using an electron beam instead of a laser beam and occurs in a vacuum that helps to avoid oxidation. This is the most desirable application for this process in aerospace or medical implants, as some reactive metals fall into the category of titanium alloys and nickel ones.

The application areas for the PBF technology include high accuracy and resolution, such as those related to complex geometry and high-strength applications.

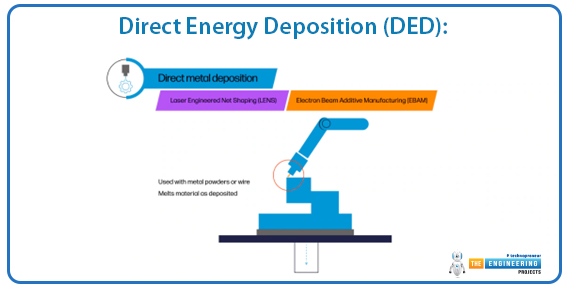

Direct Energy Deposition (DED):

Direct Energy Deposition (DED) is another type of 3D printing technology in which metals are printed as parts or additive material to the component. In this process, a nozzle feeds a metal powder or wire, and the energy source heats it in a laser, electron beam, or plasma arc. This hot material then hardens as it cools upon coming into contact with a substrate or part and repeats the layer-building process.

DED is significantly advantageous for huge applications such as repairing worn-out parts or deposition of material on an existing part. This technique is ideal for aerospace, defense, and heavy machinery industries.

• Though DED has a higher speed of production as compared to PBF, it cannot be used in terms of resolution and surface finish. The output produced by the DED technology is usually sent for some post-processing to get an excellent finish.

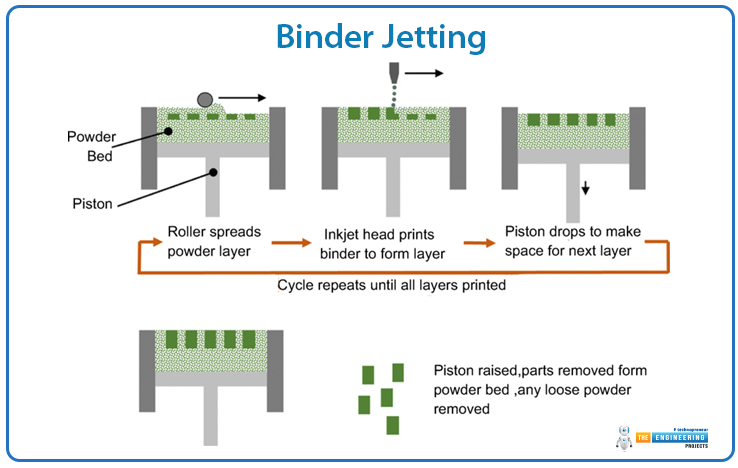

Binder Jetting:

Binder Jetting is an indirect process of metal 3D printing where a binder material is deposited on metal powder particles to form a part. Unlike PBF, the process of binder jetting does not melt the powder. Instead, it acts as a glue to attach the powder particles to make a "green part." Following this, a post-processing furnace burns out the binder and sinks the metal powder particles in such a manner that it ultimately forms a solid part.

Binder Jetting is faster and more affordable than PBF, but it produces parts with lower mechanical strength; therefore, most practical uses are for prototypes or low-run production of parts.

Metal Extrusion (Bound Metal Deposition):

In Bound Metal Deposition (BMD), which is also referred to as metal extrusion, a metal powder-polymer binder-based filament is used to create a hot, extruded product from which material is laid down layer after layer in creating the part. This product, after printing is completed, has to undergo debonding in which the polymer binder is removed and the metal part gets submitted for sintering in a furnace, to remove the binder residue and then densify the part.

This method is generally applied for prototype creation and low-volume production parts. Metal extrusion is a cost-effective and easy-to-handle process that can be implemented by desktop 3D printers in small manufacturing environments.

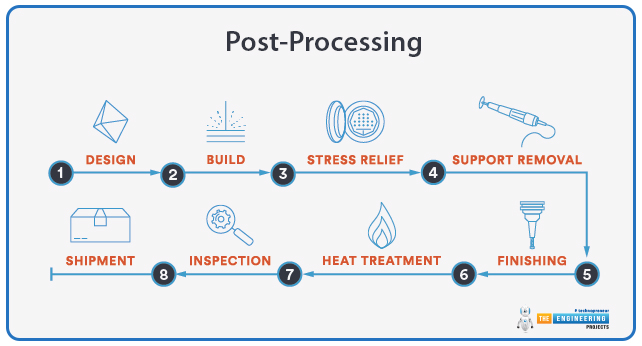

4. Post-Processing:

After printing, the metal part would often undergo post-processing steps to achieve increased mechanical properties, surface finish, and accuracy.

The primary post-processing steps are the following:

• Sintering: the binder jetting and metal extrusion process requires sintering of the printed part where a furnace heats the part to join together the metal particles at increased density in the part.

• Heat Treatment: This method makes use of annealing, hardening, and stress-relieving heat treatments to make the mechanical properties, hardness, toughness, and fatigue strength of the part better.

• Machining: After printing and sintering, there are still several additional machining processes involved in completing milling, grinding, or turning, depending on achieving the desired dimension and finish surface.

• Support Removal: The majority of metal 3D printing technologies, especially PBF and DED, require support structures for overhanging or complex geometries to print over the printed feature. These have to be removed post-print, either manually or utilizing automation.

5. Quality Control and Testing:

This quality control and testing ensure that the metal 3D printed parts meet the required specifications and perform their intended functions. The part then undergoes various tests after being printed and post-processed to prove its integrity and functionality.

Dimensional inspection:

The measured and tolerable dimensions of the printed part will be verified against the precision of measuring tools, like micrometers, calipers, or even 3D scanners. Any difference made in the measurement will be adjusted with additional machining or adjustments for the part until it meets its design specifications.

Mechanical Testing:

To gauge the ability of the part to behave under load, tensile strength, hardness, fatigue, and elongation are made. These give assurance that a part has acquired the right kind of mechanical property for its intended function, including survivability under given operational conditions.

Non-Destructive Testing:

In NDT, X-rays, ultrasonic testing, and CT scans are used to scan the inner structure of the part for porosity or other flaws. The above tests do not damage the part and show any hidden flaw within the inner part, so it is always reliable and durable.

6. Applications of Metal 3D Printing:

This process has become widely used, as it may now be feasible to produce such extremely complex and customized parts with reasonable mechanical properties. Major applications of metal 3D printing are:

Aerospace:

Metal 3D printing is also applied in aerospace to design lightweight, high-strength parts for items including turbine blades, engine components, and structural elements. Rather it is a very important process in aerospace as it will enable complex geometries that have reduced part weight so far.

Medical:

Metal 3D printing is implemented in the medical sector to have custom implants, prosthetics, and surgical instruments. This happens because titanium alloys are biocompatible and quite strong.

Automotive:

In the automotive manufacturing area, metal 3D printing is applied in the manufacture of lightweight parts, a metamorphosis that encompasses efficient fuel consumption and minimal emission. It is also applied in the production of prototyping of a small number of highly specialized parts.

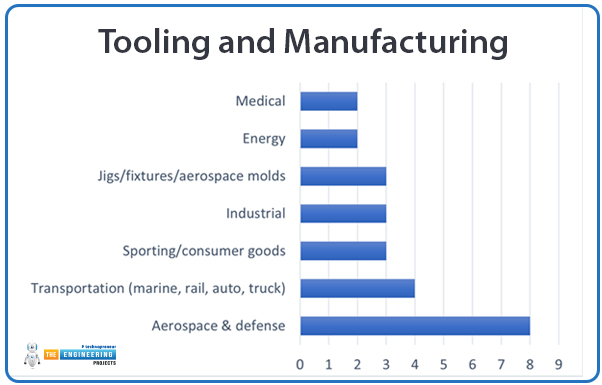

Tooling and Manufacturing:

end-use parts in tooling and jigs that would be employed in production are made from metal 3D printing. This is most often used for putting together models in the production line as well as manufacturing special parts in every field.

Conclusion:

It is revolutionizing manufacturing with the possibility of developing complex, customizable metal components. There is a design of a 3D model on CAD software before the selection of an appropriate material. Deposition techniques used for layer-by-layer deposition are Powder Bed Fusion, Direct Energy Deposition, Binder Jetting, or Metal Extrusion. After getting printed, the parts have to go through some post-processing steps to enhance both their mechanical properties and surface finishes. The final product will be absolutely by the specifications and strict quality control with testing. The applications of metal 3D printing range incredibly wide from the aerospace to automotive and health industries, such as design flexibility, lightweight components, and fast prototyping. We expect even more efficient and precise printing methods and new materials and applications as technology advances. This will further stretch the potential for additive manufacturing, continue transforming industries, and create new avenues in product design and production.

Metal 3D Printing: Future of Tech World

I hope you are doing well and exploring new things daily. Today's topic is Metal 3D Printing and its future in the world of technology.

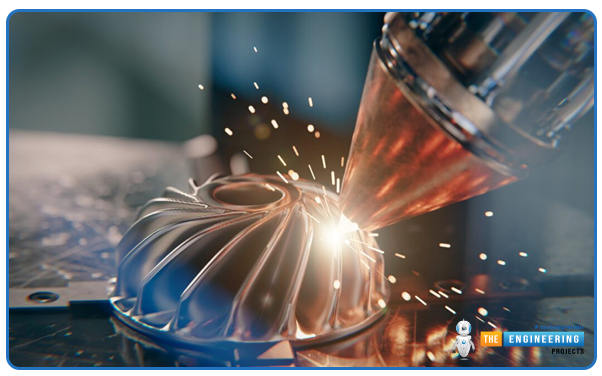

Metal 3D printing, or metal additive manufacturing, refers to adding parts layer by layer, processes of which include laser melting, electron beam fusion, and binder jetting. This method requires less waste and usually comes out with direct production from digital designs while producing lightweight structures and complex geometries. Its application is widespread: Aerospace, automotive, and healthcare industries continuously make functional prototypes for production parts, tooling, and repairs.

Innovations in materials, processes, and scalability are driving the future of metal 3D printing.

Specialized metal alloys and composites are expanding applications, while hybrid systems combining additive and subtractive methods improve precision and reduce post-processing. Multi-laser systems and faster deposition rates enhance production speeds, making mass production feasible. This transformative technology would reconfigure manufacturing entirely by optimizing the designs and quality control through artificial intelligence and machine learning, ensuring sustainability at all costs.

This article will cover the future trends of metal 3D printing. Let’s start.

How Metal 3D Printing Works:

• Design: An appropriate CAD is taken and further modelled into 3D format, and exported appropriately into the required format.

• Material Selection: Depending on desired properties, the metal powders could be either titanium or stainless steel.

• Printing Process: Methods include Powder Bed Fusion (laser melting powder), Directed Energy Deposition (laser deposition), and Binder Jetting (binder bonding followed by sintering).

• Layering: Metal layers are melted and solidified layer by layer.

• Post-processing: Heat treatment, surface finishing, and machining enhance properties and accuracy.

Metal 3D printing makes it possible to print parts that are otherwise impossible to be printed using conventional manufacturing methods.

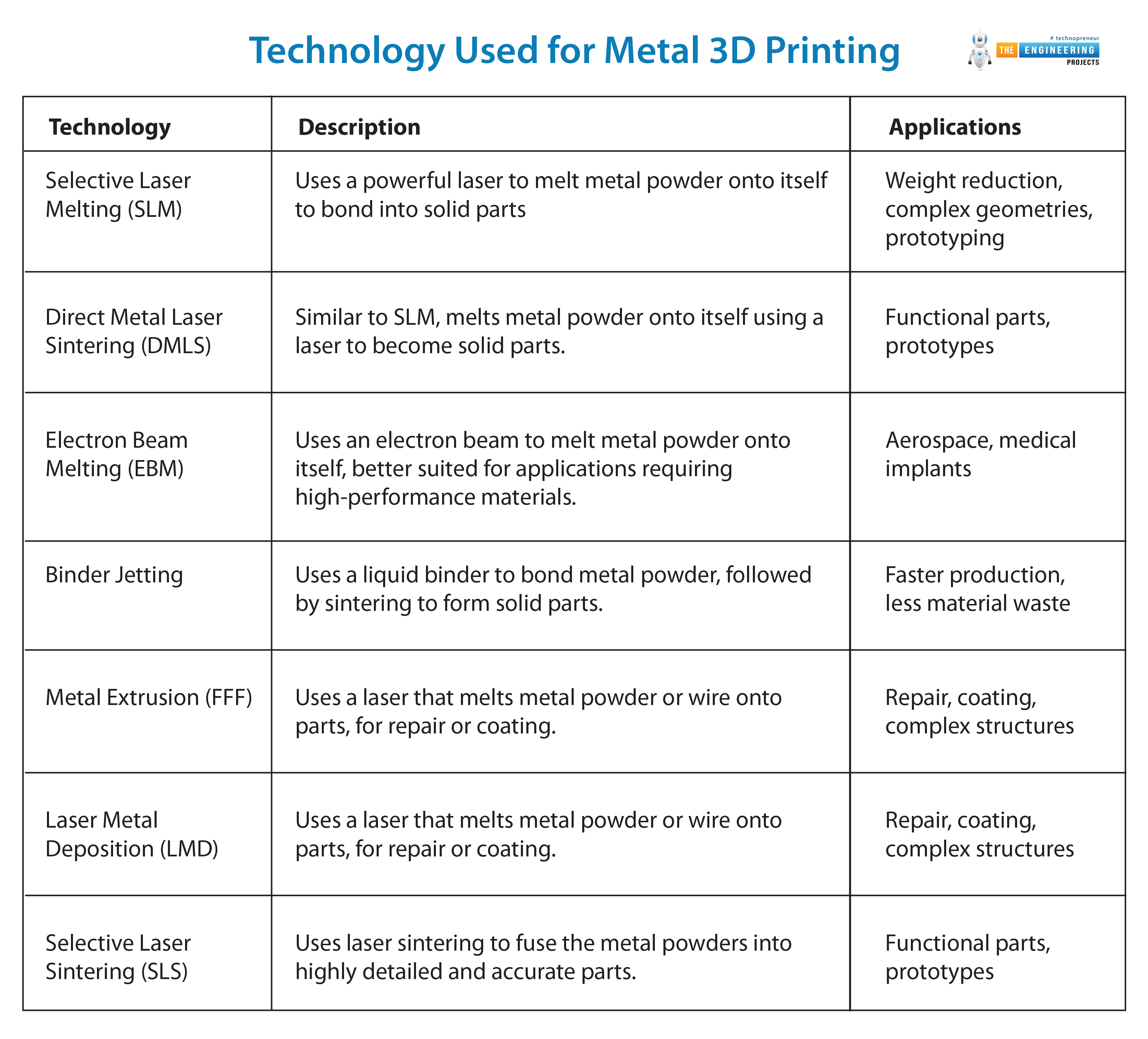

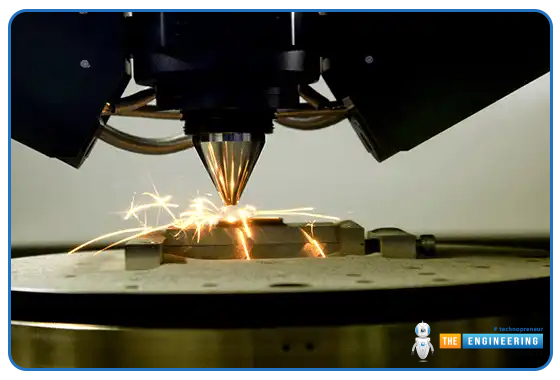

Technology Used for Metal 3D Printing:

Emerging Trends in Metal 3D Printing:

Several new drivers for its future include material development, hybrid systems, and AI integration combined with higher printing speeds as well as continued improvements in sustainability.

New Metal Alloys and Composites Development:

A big advance will be the generation of special alloys and metal matrix composites. Inconel 718 and Ti-6Al-4V are the most utilized alloys for metal 3D printing in making high-performance lightweight, strong components. These kinds of alloys have found wide usage in aerospace and healthcare industries that have extreme demands in terms of exceptional properties required from the material. The second area of metal matrix composites, wherein metals are bonded to ceramic particles, offers better strength, thermal stability, and resistance to wear for metals so that the entire range of applications for 3D printed metals is becoming increasingly applicable.

Hybrid Manufacturing Systems:

Hybrid manufacturing systems, which embrace additive and subtractive processes, are gradually gaining acceptance in the market. A hybrid manufacturing system combines the capabilities of 3D printing, mainly design freedom with conventional machining and accuracy. Such hybrid systems, for instance in aerospace and car manufacturing, allowed the production of complex geometries with fine surface finishes. Indeed, switching the process between additive and subtractive processes in the same system is revolutionizing production speed and precision.

AI and Machine Learning Integration:

AI and machine learning are transforming metal 3D printing through the optimization of real-time process monitoring, defect detection, and print parameter optimization. AI algorithms can predict and correct issues like warping or under-extrusion before they occur, which would ensure constant quality and efficiency in the print. Machine learning systems can also process huge amounts of data to optimize the printing parameters, thereby maintaining better control over the production process.

Enhanced Printing Speed and Efficiency:

It enables improved speed and efficiency of printing metal: metal 3D printing can go much faster because of developments in high-power lasers and electron beams. Therefore, reduced production time can be ensured while ensuring good output. With HSS and CLIP technologies that improve on printing speed and efficiency, there's even prototyping, up to mass production that could be very practical in metal 3D printing in terms of large-scale industrial use.

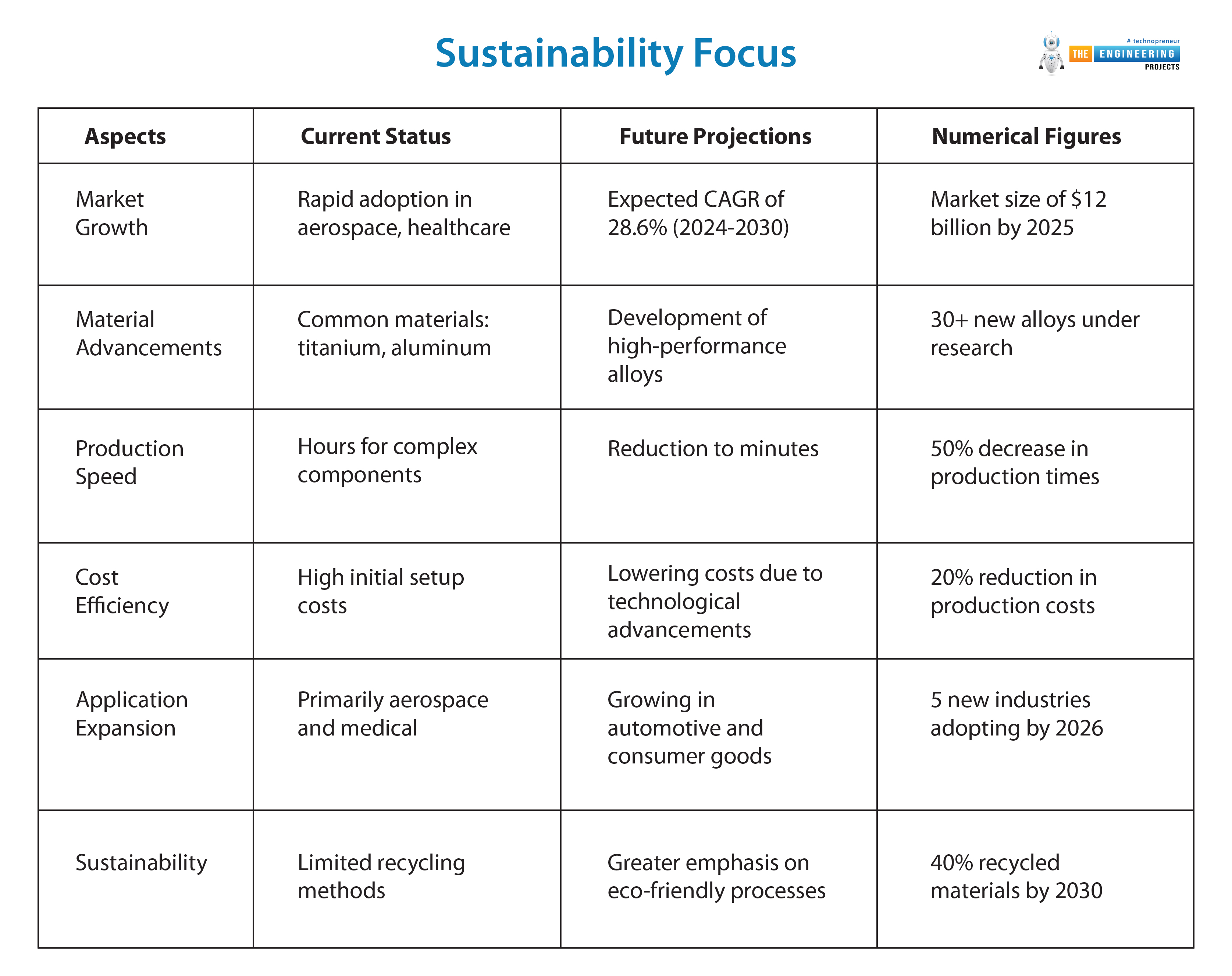

Sustainability in Metal 3D Printing:

Sustainability in Metal 3D Printing Sustainability has always been a focus area, and there is marked progress in material efficiency and energy usage. Metal 3D printing doesn't waste much because it collects its used metal powders and further limits the material required for production. Additive manufacturing requires only so much material that is required to produce each part. This means that the waste generated is even less than in subtractive manufacturing. All these developments help create more sustainable, resource-efficient manufacturing practices.

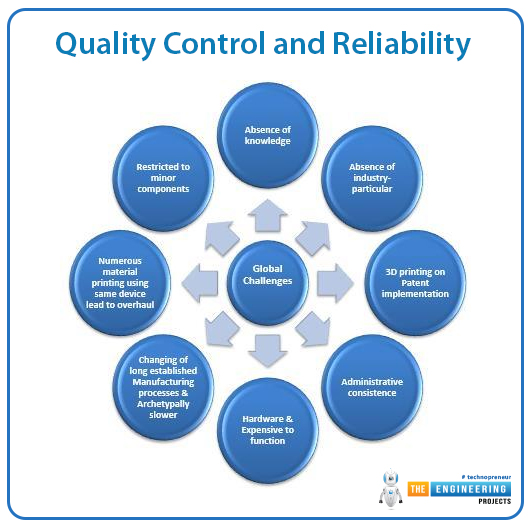

Challenges of Metal 3D Printing:

High Initial Costs:

The highest investment in metal 3D printing is due to equipment and materials. SLM and DED machines that are used in metal additive manufacturing cost hundreds of thousands of dollars. The powder used for such processes is very expensive, and most small-scale businesses cannot afford such technology.

Material limitations and availability:

Metal 3D printing is limited to the number of available metals for use. Alloys, for example, titanium, aluminum, and stainless steel are more commonly used; yet, metal varieties are not as extensive as conventional manufacturing methods. Also, high-quality metal powders are less consistent and may lead to inferior printed parts with less than optimal performance.

Post-processing needs:

Often, parts printed through metal 3D printing have to undergo major post-processing to acquire the desired surface finishes, dimensional accuracy, and mechanical properties. Among these processes include the removal of supports, heat treatment, and machining. This increases cost and production time. Post-processing steps may even eliminate some of the cost advantages that 3D printing affords.

Size and Scalability Limitations:

Metal 3D printers have smaller build sizes, thus making it unfeasible to print large parts in one process. Production scaling for a high volume in manufacturing is hard because metal 3D printing is a better fit for low volumes with high complexities rather than a mass production item.

Speed and Throughput:

PBF is one of the metal 3D printing processes that are much slower than conventional manufacturing. Layer by layer is one of the methods that take the most time; this is less desirable for high throughput applications where speed is of great importance.

Quality Control and Reliability:

Quality parts may be hard to ensure when there is variability in machine parameters, material inconsistency, or design flaws. Variability could result in defects and may affect the strength and performance of the part.

Future of Metal 3D Printing:

The future of metal 3D printing is going to be tremendous with immense change in its approach and processes. A whole new evolution in the production of metals for use in diverse industries like aerospace, automotive, healthcare, and manufacturing will unfold.

Advanced Material Development:

New materials are the heart of the drivers for more growth in the future for metal 3D printing. New superalloys and composites for high-performance applications, metal alloys, will always be found. The expansion into new materials provides new opportunities, where unique properties exhibit higher strength, as well as an increased level of resistance to corrosion and even heating. It will be expanded even further into a particular industry requirement like performance requirement.

AI and Machine Learning Integration:

This will change the game for the design and manufacturing process in metal 3D printing, integrating AI and machine learning into metal 3D printing. AI and machine learning could further enhance optimization to include real-time adjustments for improving print quality, speed, and efficiency. AI-based solutions can help in predicting part failure, material waste reduction, and increasing consistency in production.

More Automation and Hybrid Systems:

The increasing demand for efficiency will mark the increased automation in design and production in the future of metal 3D printing. Hybrid systems will merge traditional process manufacturing with additive processes, and larger, complex parts will be produced with significantly higher precision. This will lead to streamlining the workflow, reduce human errors, and increase the cost-effectiveness associated with metal 3D printing.

On-Demand and Decentralized Manufacturing:

Decentralization in manufacturing will happen through the development of metal 3D printing in the future. On-demand parts can be printed at not-too-large local 3D printing facilities without needing a long supply chain and huge factories. A more sustainable, agile manufacturing model will have fewer carbon footprints, shipping costs, and lead times associated with the traditional method.

Mass Customization:

The extremely customized, complex geometries that can be produced with metal 3D printing will make the mass customization concept very popular in all industries, especially for health and custom implants, as well as in aerospace with one-off bespoke parts. The capability to mass manufacture low-cost, high-precision custom components on demand will revolutionize the industries that rely on such complex designs.

Shaping the Future of Metal 3D Printing:

In shaping the future of metal 3D printing, the research community and industry have to take a series of steps:

Investment in Research and Development:

Continuing investment in R&D will be required to develop metal 3D printing. New materials, higher print speeds, and seamless integration into traditional manufacturing processes should be drivers of adoption. Expectations around innovation will be fueled by cooperation among industry leaders, universities, and government agencies.

Standardization and Quality Control:

Before it becomes a standard manufacturing process, the most important thing to be established is the standardization of processes and certifications for quality control. This will include benchmarks in material properties, build quality, and performance for printed parts. Clear standards would increase industry confidence and facilitate wider adoption.

Education and Skill Development:

With the growth of the 3D printing industry, with various metals being used in it, upgrading the skills of the workforce is a must. Universities, technical institutes, and companies have to take up the challenge of introducing specialized training programs for engineers, designers, and operators for additive manufacturing.

Encourage industry collaboration:

The collaboration of industries will speed up the development of metal 3D printing technologies. Companies can share best practices, optimize production methods, and expand the range of applications for 3D printing in various sectors by working together.

Sustainability Focus:

Sustainability will rule the future of metal 3D printing. It is that aspect that will determine the sustainable nature of technology, which gives much importance to recycling metal powders, generates very little waste in terms of material, and works on renewable sources of energy. Sustainability will play a key role in combating the environmental degradation associated with the process of production.

Conclusion:

This revolutionizes the world of tech in opening new horizons into innovation, personalization, and sustainability with 3D metal printing capabilities for creating complex geometries with low waste generation while promoting on-demand production for various applications across the sectors of aerospace, automotive, and healthcare. Nevertheless, such opportunities cannot come for free; one encounters huge cost pressures, limitations of the types of materials being developed, and calls for standardization in practice. It offers greater design flexibility and rapid prototyping, thus improving product development cycles and shortening time-to-market.

Further drive is in efforts regarding metallic alloys, hybrid manufacturing systems, and AI integration, further enhancing the efficiency and precision of 3D printing. With these developments, metal 3D printing will increasingly substitute the traditional methods of manufacturing in many scenarios, thus increasing efficiency and decreasing costs while making it more sustainable for production. Metal 3D printing holds immense promise for changing global industries and pushing the technology envelope.
