I hope you are doing well and exploring new things daily. Today's topic is various applications of Metal 3D Printing. This is a new state-of-the-art form of additive manufacturing- metal 3D printing. Hence, the objects will be created by building layers directly from digital models. This means unmatched design flexibility - geometries in areas that traditional means of manufacture could not quite accomplish and would have structures of minimum weight achievable thus creating the most. This does not waste as much material, so this might be an environmentally friendly process.
Aerospace, health care, automobile, and construction industries have implemented metal 3D printing for producing customized, high-performance components of exceptional precision. Applications range from intricate medical implants and aerospace parts to automotive prototypes and architectural elements.
Developments in metal alloy and composite material, as well as hybrid manufacturing systems, such as all metal 3D printing systems, lead to increased applicability of metal additive manufacturing. Technological innovations will play a critical role in answering the most complex industrial challenges, stimulating innovation, and defining the future of manufacturing.
This article will look into the extensive applications of metal 3D printing, its advantages, and its impacts on various sectors.
It is a kind of metal printing that creates very complex metal parts layer by layer through additive manufacturing techniques. Starting with a digital 3D model, the process involves depositing or fusing metal material like powders or filaments by using heat sources such as lasers, electron beams, or binders.
With this technology, it is easy to create more intricate designs while not wasting much of the material in production; besides, its products can be fully customized. Highly popular in aerospace, healthcare, automobiles, and even energy sectors as a production methodology for lightweight high-performance, resistant parts, transformative technology is remolding the fabric of manufacturing towards innovative solutions in faster production cycles.
Industry |
Key Applications |
Benefits |
Impact |
|---|---|---|---|
Aerospace |
Weight reduction, complex geometries, prototyping |
Reduced fuel consumption, increased efficiency |
25% weight reduction (GE) |
Healthcare |
Implants, prosthetics |
Better comfort, precision, faster production |
30% faster production (implants) |
Automotive |
Prototyping, lightweight components |
Faster prototyping, improved performance |
40% cost reduction (prototypes) |
Energy and Power |
Turbine components, oil & gas tools |
Higher efficiency, longer lifespan |
15-20% efficiency increase (turbines) |
Defense and Military |
On-demand manufacturing, lightweight components |
Faster repairs, reduced supply chain reliance |
50% faster prototyping |
Tooling & Manufacturing |
Custom molds, jigs, cost-effective tooling |
Increased productivity, reduced costs |
25-30% cost reduction (tooling) |
Jewelry and Fashion |
Custom designs, sustainability |
Unique, reduced waste, customizable designs |
40% material savings |
Architecture & Construction |
Custom elements, sustainable designs |
Reduced material use, optimized structure |
20% reduced material usage |
Electronics & Robotics |
Conductive parts, robotics components |
Improved functionality, lighter components |
30% efficiency increase (robotics) |
Metal 3D printing, companies in this sector are front runners in this process because their light yet durable products can offer reduced weight means the aircraft carries lesser weight with an increased fuel economy, lower exhausts, and lesser operating expense. For instance:
GE Aviation builds its LEAP engine nozzles using the Selective Laser Melting Process (SLM), which gave them a saving of 25% of their original weight.
Airbus uses 3D-printed brackets and other structural parts in its aircraft, saving weight without any loss to the overall structural integrity.
With metal 3D printing, intricate geometries such as turbine blades that contain internal cooling channels or duct systems that ensure optimal airflow can be created easily. In general, traditional manufacturing methods are challenged by such complexities, whereas 3D printing makes them easily feasible.
Prototyping new designs in the aerospace industry is expensive and time-consuming. Metal 3D printing accelerates this process, reducing lead times and costs. Moreover, components can be customized for specific applications, such as parts tailored for individual spacecraft.
Producing patient-specific implants as well as prosthetics, metal 3D printing offers benefits in comfort as well as functionality. Some of the popular material includes titanium because it is biocompatible, corrosion-resistant, and lightweight. Some of the common examples include:
Skull structure-based personal cranioplasty plates.
Custom hip and knee replacements with precise fitting.
In dentistry, metal 3D printing offers accurate and rapid crowns, bridges, and orthodontic parts with the technology enabling such precision accuracy that the components fit perfectly. Thus, the dentistry provided brings about minimal to no patient discomfort and pain.
With the technology, 3D printing, a lightweight and ergonomic surgical instrument, that can be sterilized for use was produced using metal printing. These instruments can be customized for specific procedures, thus enhancing surgical accuracy and reducing operating time.
Car makers use metal 3D printing to make rapid prototypes so that engineers can quickly test and iterate designs. For example:
Ford has used 3D-printed parts in the development of new engines and chassis.
BMW uses metal 3D printing to prototype complex engine components.
Lightweight 3D-printed metal components provide a huge performance advantage for high-performance vehicles. For example:
Bugatti designed a titanium brake caliper that is printed through 3D printing which can provide such high strength along with reduced weight.
Additive manufacturing is used for optimizing exhaust systems and suspension parts so that fuel consumption and performance are reduced.
Metal 3D printing resolves the challenge of finding hard-to-find or unavailable components for antique and specialty cars. It will enable manufacturers to create on-demand replacement parts using digitized designs, which in turn minimizes cost and time spent.
The energy sector requires extreme temperature and pressure tolerance parts, and metal 3D printing fulfills that demand by generating:
Optimized cooling channels of gas turbine blades that reduce wear and increase efficiency.
Lightweight yet stronger wind turbine components to achieve higher performances.
Customized tools for drilling, explorations, and extraction, among others, use metal 3D printing, reducing downtime as well as giving the equipment a much longer life span.
Metal 3D printing encourages sustainability in the energy sector through a reduction in material waste by providing a faster route to efficient components.
The production of replacement parts on-site is priceless in military operations. Metal 3D printing allows for decentralized manufacturing, thus cutting down on supply chain dependencies and ensuring operational readiness.
Drones, armor, and weapon components are manufactured using metal 3D printing. These parts are lightweight, durable, and designed according to specific mission requirements.
Defense organizations use additive manufacturing to speed up the quick prototyping and testing of sophisticated technologies, pushing forward the development process of cutting-edge systems.
Metal-based 3D printing technology enables the rapid creation of high-precision, conformal-cooled injection molds and dies. This offers the potential of more efficient production time with reduced cycle times. Precision jigs and fixtures
Manufacturing lines benefit from customized jigs and fixtures that help increase the precision of assembly and minimize errors. The tools are designed to perform specific tasks, which generally increases productivity.
Compared to traditional methods, metal 3D printing has significantly reduced the cost of tooling, especially in low-volume production or highly specialized tools.
Metal 3D printing, injection molds, and dies, by having conformal cooling channels enhance production efficiency and reduce the time of the cycle. High-quality tooling with precision is derived from additive manufacturing.
Manufacturing lines can harness customized jigs and fixtures that enhance assembly precision and reduce errors. The tools are fitted and dedicated to specific tasks which lead to the maximization of productivity.
For such a low volume of output or unique tools, 3D metal saving is different from the tooling cost as seen in conventional procedures.
Metal 3D printing allows designers to create jewelry items that would not be possible at all with the most conventional methods available. This kind of technology affords a person-centered approach because it offers very unique designs in line with everybody's preference.
The output material is minimal since metal 3D printing avoids much material wastage. The process allows fashion designers to create new shapes and materials, opening a wider scope for creativity.
Innovative architectural designs, especially in connectors and brackets, apply metal 3D printing to create custom structural elements optimized for strength and efficiency.
Architects and artists create unique one-time sculptures, facades, and ornaments by using metal 3D printing. The approach does complex designs without manufacturing any waste.
Lightweight structures and efficient ones that would be created through metal 3D printing minimize material use and transport prices during sustainable construction.
Metal 3D printing is used extensively in the manufacture of conductive parts in electronic devices, including antennas, heat sinks, and circuit boards.
Lightweight yet high-strength components for the robotic system are manufactured through 3D printing. These components enhance the functionality, agility, and efficiency of the robots.
In space exploration, metal 3D printing saves the costs of being able to have on-demand part production in space, which reduces the payload requirements of the mission and accommodates mission flexibility.
The future medicine application includes bio-printing of metal-based scaffolds and advanced implants, integrating sensors.
New applications will become available by marrying traditional manufacturing methods with metal 3D printing for hybrid component development with extraordinary properties.
With its optimized 3D printing, artificial intelligence capabilities, efficiency, as well as material usage concerning production output are optimized.
Despite this, some challenges also metallic 3D printing faces:
High Costs: The equipment and materials are still costly, making them unattainable to small businesses.
Material Constraints: The number of metals that can be 3D printed is growing.
Post-Processing: More steps are sometimes necessary to achieve a good surface finish and mechanical properties.
Here are the benefits of metal 3D printing in a nutshell:
Complex Geometries: Complex designs with complex inner structures that cannot be easily manufactured or are simply impossible in traditional manufacturing.
Material Efficiency: Material is used precisely to print the part. No waste pis produced and therefore, lesser costs.
Customization: Makes very customized components such as medical implants, and aerospace parts possible.
Rapid Prototyping: The process is hastened because it enables rapid production of functional prototypes for designing and developing a product.
Lightweight Designs: Lightweight parts with optimal strength can be easily designed for applications in the aerospace and automotive industries.
Reduced Tooling: There is no requirement for specialized tooling or molds, thus reducing upfront costs for small production runs.
On-Demand Manufacturing: It enables just-in-time production, which helps reduce the costs of inventory and offers flexibility in supply chains.
Superior Performance: Manufactures parts with better mechanical properties, such as increased strength or thermal resistance, by using advanced metal alloys.
Eco-Friendly: Saves energy and promotes sustainability by recycling unused metal powder. Hybrid Integration: It integrates with traditional methods to achieve both complex designs and superior surface finishes.
Metal 3D printing has transformative benefits for industries and is a vital technology in modern manufacturing.
Metal 3D printing is transforming industries because of its capacity to produce very complex, lightweight, and highly customized parts with outstanding efficiency. Material waste reduction, the acceleration of prototyping, and the creation of complex geometries are great advantages in fields like aerospace, healthcare, automotive, and energy. Rapid production means on-demand cost-effective solutions that are greatly appreciated in such fields as industries for high-performance parts, for instance, turbine blades or medical implants.
Despite the challenges involved in this technology, such as high costs, material limitations, and post-processing issues, ongoing developments in materials and processes are expected to overcome these problems. Metal 3D printing is changing traditional manufacturing methods because of its ability to create stronger, stronger parts than ever before. Therefore, rapid development in technology, it is going to transform the future of production in numerous sectors towards sustainability and also propel the next industrial revolution.
I hope you are doing well and exploring new things daily. Today's topic is the working of Metal 3D Printing. It refers to the technique of creating a metal part directly from a digital design layer by layer.
Instead of subtractive material from a solid block like conventional manufacturing, metal additive manufacturing or metal 3D printing involves additive material addition in building up the object. This can give geometries with intricate designs and internal structures not easily achieved using traditional methods or impossible-to-manufacture conventionally.
Several technologies exist within metal 3D printing. The popular methods include Selective Laser Melting (SLM), Direct Metal Laser Sintering (DMLS), and Electron Beam Melting (EBM). These methods melt metal powders with lasers or electron beams. Other techniques, Binder Jetting and Metal Extrusion were based on the combination of metal powders or filaments with binders to construct the component followed by baking in furnaces.
Key industries utilizing metal 3D printing involve aerospace, automotive, health care, and manufacturing. They enable the lightening of their products with lower waste, faster production, improved performance, and customized components. It is especially useful in developing complex aerospace parts, medical implants, and automobile prototypes. Advanced technology continues to bring innovative cost-effective solutions using metal 3D printing and its alternatives against traditional manufacturing techniques.
In this article, you will learn the complete working metal 3D printing. Let’s start.
Metal 3D printing starts from designing the object that shall be printed. Many software packages use computer-aided design in developing such models, mostly in producing a very intricate model of any parts, structure, or part of anything in 3D. A highly critical design in 3D metal printing determines the kind of finishing on the part after it's done printing since this will depict its material characteristics and geometry.
After the completion, the 3D model can be exported in one of these digital file formats: STL or AMF (Additive Manufacturing File). The STL or AMF file formats will break the 3D model into extremely thin horizontal layers, essentially describing how the 3D printer should create the part, layer by layer. The resolution of the model is defined during this stage. It determines how precisely the final part will be. They also include lattice structures, channels, and moving parts in a model, things that cannot be possible or are nearly impossible to build with traditional subtractive manufacturing.
Metal 3D printing has an extensive range of metallurgical materials, each of which possesses properties desirable for particular applications. The basic choice criteria typically rely on what mechanical properties of the part are needed, the environmental conditions under which the part will be operated, and the performance that is desired.
Yet some of the most widely used metals in metal 3D printing are:
Titanium and its alloys including the Ti-6Al-4V grade have a hardness, strength-to-weight ratio, corrosion resistance, and biocompatibility that make it suitable for most industries. In aerospace industrial applications and automotive, and generally, where light-weight and high strength is essential as in medical applications as in implants and prosthetic uses, titanium alloys are ideal.
Stainless steel is a multi-purpose material having acceptable mechanical characteristics and resistance to corrosion. It is applied in many fields especially in industries manufacturing industries also in the making of medical equipment. Among the alternatives, the two typical alloys that are used in 3D printing are stainless steel 316L and 17-4PH.
Aluminum has a relatively high strength-to-weight ratio, and good thermal conductivity and will therefore undergo all automotive and aerospace industries. Some of them include; AlSi10Mg, which is popular in the creation of light duty high strength components through 3D printing.
Inconel is an austenitic superalloy that has been used in reinforced operating situations such as in jet engines or gas turbines. It has kept away from sudden temperatures and corrosion for it to fit in the aerospace and energy markets.
The alloys are primarily used in the medical field to create implants and other dental-related parts. Cobalt-chromium gives strength, exhibits high wear resistance, and is biocompatible.
These are used in situations that necessitate maximum thermal conductivity like heat exchangers and critical corrosion resistance settings.
All the above types possess their benefits along with compromises of mechanical properties, cost, printability, and post-processing requirements. One of the significant strides toward optimal performance is the proper choice of the application-specific material.
Additive manufacturing forms the crux of metallic 3D printing, meaning depositing or creating material upon itself layer-wise, thus gradually constructing a full part. Differences abound in methodologies taken to deliver that layerwise building process from a variety of available technologies and those are now mentioned below-
Powder Bed Fusion forms part of a popular and applied methodology for making a metal product by 3D printing technology. In PBF, a thin layer of metal powder is spread across a build platform. A high-powered energy source, including lasers or electron beams, is used to selectively melt or sinter the powder. The energy source scans across the powder bed, following the contours of the part's first layer, melting the powder in precise areas. This first layer is completed, and the platform will be moved downwards to a specific length while another metal powder layer is spread upon it, so the layer on top will get repeated from above until all the parts.
Here are some versions of Powder Bed Fusion:
Selective Laser Melting (SLM): In this process, the high-powered laser melts metal powder completely. Thus, it gives parts that exhibit excellent mechanical properties. The main application areas include aerospace, automotive, and medical applications in making complex high-performance parts.
DMLS: Similar to SLM, it uses a laser but works by sintering the metal powder, and partially melting it to bond the particles. DMLS is particularly useful in intricate designs and small-scale production.
EBM, or Electron Beam Melting: This, melts metal powders using an electron beam instead of a laser beam and occurs in a vacuum that helps to avoid oxidation. This is the most desirable application for this process in aerospace or medical implants, as some reactive metals fall into the category of titanium alloys and nickel ones.
The application areas for the PBF technology include high accuracy and resolution, such as those related to complex geometry and high-strength applications.
Direct Energy Deposition (DED) is another type of 3D printing technology in which metals are printed as parts or additive material to the component. In this process, a nozzle feeds a metal powder or wire, and the energy source heats it in a laser, electron beam, or plasma arc. This hot material then hardens as it cools upon coming into contact with a substrate or part and repeats the layer-building process.
DED is significantly advantageous for huge applications such as repairing worn-out parts or deposition of material on an existing part. This technique is ideal for aerospace, defense, and heavy machinery industries.
Though DED has a higher speed of production as compared to PBF, it cannot be used in terms of resolution and surface finish. The output produced by the DED technology is usually sent for some post-processing to get an excellent finish.
Binder Jetting is an indirect process of metal 3D printing where a binder material is deposited on metal powder particles to form a part. Unlike PBF, the process of binder jetting does not melt the powder. Instead, it acts as a glue to attach the powder particles to make a "green part." Following this, a post-processing furnace burns out the binder and sinks the metal powder particles in such a manner that it ultimately forms a solid part.
Binder Jetting is faster and more affordable than PBF, but it produces parts with lower mechanical strength; therefore, most practical uses are for prototypes or low-run production of parts.
In Bound Metal Deposition (BMD), which is also referred to as metal extrusion, a metal powder-polymer binder-based filament is used to create a hot, extruded product from which material is laid down layer after layer in creating the part. This product, after printing is completed, has to undergo debonding in which the polymer binder is removed and the metal part gets submitted for sintering in a furnace, to remove the binder residue and then densify the part.
This method is generally applied for prototype creation and low-volume production parts. Metal extrusion is a cost-effective and easy-to-handle process that can be implemented by desktop 3D printers in small manufacturing environments.
After printing, the metal part would often undergo post-processing steps to achieve increased mechanical properties, surface finish, and accuracy.
The primary post-processing steps are the following:
Sintering: the binder jetting and metal extrusion process requires sintering of the printed part where a furnace heats the part to join together the metal particles at increased density in the part.
Heat Treatment: This method makes use of annealing, hardening, and stress-relieving heat treatments to make the mechanical properties, hardness, toughness, and fatigue strength of the part better.
Machining: After printing and sintering, there are still several additional machining processes involved in completing milling, grinding, or turning, depending on achieving the desired dimension and finish surface.
Support Removal: The majority of metal 3D printing technologies, especially PBF and DED, require support structures for overhanging or complex geometries to print over the printed feature. These have to be removed post-print, either manually or utilizing automation.
This quality control and testing ensure that the metal 3D printed parts meet the required specifications and perform their intended functions. The part then undergoes various tests after being printed and post-processed to prove its integrity and functionality.
The measured and tolerable dimensions of the printed part will be verified against the precision of measuring tools, like micrometers, calipers, or even 3D scanners. Any difference made in the measurement will be adjusted with additional machining or adjustments for the part until it meets its design specifications.
To gauge the ability of the part to behave under load, tensile strength, hardness, fatigue, and elongation are made. These give assurance that a part has acquired the right kind of mechanical property for its intended function, including survivability under given operational conditions.
In NDT, X-rays, ultrasonic testing, and CT scans are used to scan the inner structure of the part for porosity or other flaws. The above tests do not damage the part and show any hidden flaw within the inner part, so it is always reliable and durable.
This process has become widely used, as it may now be feasible to produce such extremely complex and customized parts with reasonable mechanical properties. Major applications of metal 3D printing are:
Metal 3D printing is also applied in aerospace to design lightweight, high-strength parts for items including turbine blades, engine components, and structural elements. Rather it is a very important process in aerospace as it will enable complex geometries that have reduced part weight so far.
Metal 3D printing is implemented in the medical sector to have custom implants, prosthetics, and surgical instruments. This happens because titanium alloys are biocompatible and quite strong.
In the automotive manufacturing area, metal 3D printing is applied in the manufacture of lightweight parts, a metamorphosis that encompasses efficient fuel consumption and minimal emission. It is also applied in the production of prototyping of a small number of highly specialized parts.
end-use parts in tooling and jigs that would be employed in production are made from metal 3D printing. This is most often used for putting together models in the production line as well as manufacturing special parts in every field.
It is revolutionizing manufacturing with the possibility of developing complex, customizable metal components. There is a design of a 3D model on CAD software before the selection of an appropriate material. Deposition techniques used for layer-by-layer deposition are Powder Bed Fusion, Direct Energy Deposition, Binder Jetting, or Metal Extrusion. After getting printed, the parts have to go through some post-processing steps to enhance both their mechanical properties and surface finishes. The final product will be absolutely by the specifications and strict quality control with testing. The applications of metal 3D printing range incredibly wide from the aerospace to automotive and health industries, such as design flexibility, lightweight components, and fast prototyping. We expect even more efficient and precise printing methods and new materials and applications as technology advances. This will further stretch the potential for additive manufacturing, continue transforming industries, and create new avenues in product design and production.
I hope you are doing well and exploring new things daily. Today's topic is Metal 3D Printing and its future in the world of technology.
Metal 3D printing, or metal additive manufacturing, refers to adding parts layer by layer, processes of which include laser melting, electron beam fusion, and binder jetting. This method requires less waste and usually comes out with direct production from digital designs while producing lightweight structures and complex geometries. Its application is widespread: Aerospace, automotive, and healthcare industries continuously make functional prototypes for production parts, tooling, and repairs.
Innovations in materials, processes, and scalability are driving the future of metal 3D printing.
Specialized metal alloys and composites are expanding applications, while hybrid systems combining additive and subtractive methods improve precision and reduce post-processing. Multi-laser systems and faster deposition rates enhance production speeds, making mass production feasible. This transformative technology would reconfigure manufacturing entirely by optimizing the designs and quality control through artificial intelligence and machine learning, ensuring sustainability at all costs.
This article will cover the future trends of metal 3D printing. Let’s start.
Design: An appropriate CAD is taken and further modelled into 3D format, and exported appropriately into the required format.
Material Selection: Depending on desired properties, the metal powders could be either titanium or stainless steel.
Printing Process: Methods include Powder Bed Fusion (laser melting powder), Directed Energy Deposition (laser deposition), and Binder Jetting (binder bonding followed by sintering).
Layering: Metal layers are melted and solidified layer by layer.
Post-processing: Heat treatment, surface finishing, and machining enhance properties and accuracy.
Metal 3D printing makes it possible to print parts that are otherwise impossible to be printed using conventional manufacturing methods.
Technology |
Description |
Applications |
Selective Laser Melting (SLM) |
Uses a powerful laser to melt metal powder onto itself to bond into solid parts |
Aerospace, medical, automotive |
Direct Metal Laser Sintering (DMLS) |
Similar to SLM, melts metal powder onto itself using a laser to become solid parts. |
Functional parts, prototypes |
Electron Beam Melting (EBM) |
Uses an electron beam to melt metal powder onto itself, better suited for applications requiring high-performance materials. |
Aerospace, medical implants |
Binder Jetting |
Uses a liquid binder to bond metal powder, followed by sintering to form solid parts. |
Faster production, less material waste |
Metal Extrusion (FFF) |
Uses powders of metal mixed with plastic filament, heated, and extruded to shape parts. |
Prototypes, low-volume parts |
Laser Metal Deposition (LMD) |
Uses a laser that melts metal powder or wire onto parts, for repair or coating. |
Repair, coating, complex structures |
Selective Laser Sintering (SLS) |
Uses laser sintering to fuse the metal powders into highly detailed and accurate parts. |
Functional parts, prototypes |
Several new drivers for its future include material development, hybrid systems, and AI integration combined with higher printing speeds as well as continued improvements in sustainability.
A big advance will be the generation of special alloys and metal matrix composites. Inconel 718 and Ti-6Al-4V are the most utilized alloys for metal 3D printing in making high-performance lightweight, strong components. These kinds of alloys have found wide usage in aerospace and healthcare industries that have extreme demands in terms of exceptional properties required from the material. The second area of metal matrix composites, wherein metals are bonded to ceramic particles, offers better strength, thermal stability, and resistance to wear for metals so that the entire range of applications for 3D printed metals is becoming increasingly applicable.
Hybrid manufacturing systems, which embrace additive and subtractive processes, are gradually gaining acceptance in the market. A hybrid manufacturing system combines the capabilities of 3D printing, mainly design freedom with conventional machining and accuracy. Such hybrid systems, for instance in aerospace and car manufacturing, allowed the production of complex geometries with fine surface finishes. Indeed, switching the process between additive and subtractive processes in the same system is revolutionizing production speed and precision.
AI and machine learning are transforming metal 3D printing through the optimization of real-time process monitoring, defect detection, and print parameter optimization. AI algorithms can predict and correct issues like warping or under-extrusion before they occur, which would ensure constant quality and efficiency in the print. Machine learning systems can also process huge amounts of data to optimize the printing parameters, thereby maintaining better control over the production process.
It enables improved speed and efficiency of printing metal: metal 3D printing can go much faster because of developments in high-power lasers and electron beams. Therefore, reduced production time can be ensured while ensuring good output. With HSS and CLIP technologies that improve on printing speed and efficiency, there's even prototyping, up to mass production that could be very practical in metal 3D printing in terms of large-scale industrial use.
Sustainability in Metal 3D Printing Sustainability has always been a focus area, and there is marked progress in material efficiency and energy usage. Metal 3D printing doesn't waste much because it collects its used metal powders and further limits the material required for production. Additive manufacturing requires only so much material that is required to produce each part. This means that the waste generated is even less than in subtractive manufacturing. All these developments help create more sustainable, resource-efficient manufacturing practices.
The highest investment in metal 3D printing is due to equipment and materials. SLM and DED machines that are used in metal additive manufacturing cost hundreds of thousands of dollars. The powder used for such processes is very expensive, and most small-scale businesses cannot afford such technology.
Metal 3D printing is limited to the number of available metals for use. Alloys, for example, titanium, aluminum, and stainless steel are more commonly used; yet, metal varieties are not as extensive as conventional manufacturing methods. Also, high-quality metal powders are less consistent and may lead to inferior printed parts with less than optimal performance.
Often, parts printed through metal 3D printing have to undergo major post-processing to acquire the desired surface finishes, dimensional accuracy, and mechanical properties. Among these processes include the removal of supports, heat treatment, and machining. This increases cost and production time. Post-processing steps may even eliminate some of the cost advantages that 3D printing affords.
Metal 3D printers have smaller build sizes, thus making it unfeasible to print large parts in one process. Production scaling for a high volume in manufacturing is hard because metal 3D printing is a better fit for low volumes with high complexities rather than a mass production item.
PBF is one of the metal 3D printing processes that are much slower than conventional manufacturing. Layer by layer is one of the methods that take the most time; this is less desirable for high throughput applications where speed is of great importance.
Quality parts may be hard to ensure when there is variability in machine parameters, material inconsistency, or design flaws. Variability could result in defects and may affect the strength and performance of the part.
The future of metal 3D printing is going to be tremendous with immense change in its approach and processes. A whole new evolution in the production of metals for use in diverse industries like aerospace, automotive, healthcare, and manufacturing will unfold.
New materials are the heart of the drivers for more growth in the future for metal 3D printing. New superalloys and composites for high-performance applications, metal alloys, will always be found. The expansion into new materials provides new opportunities, where unique properties exhibit higher strength, as well as an increased level of resistance to corrosion and even heating. It will be expanded even further into a particular industry requirement like performance requirement.
This will change the game for the design and manufacturing process in metal 3D printing, integrating AI and machine learning into metal 3D printing. AI and machine learning could further enhance optimization to include real-time adjustments for improving print quality, speed, and efficiency. AI-based solutions can help in predicting part failure, material waste reduction, and increasing consistency in production.
The increasing demand for efficiency will mark the increased automation in design and production in the future of metal 3D printing. Hybrid systems will merge traditional process manufacturing with additive processes, and larger, complex parts will be produced with significantly higher precision. This will lead to streamlining the workflow, reduce human errors, and increase the cost-effectiveness associated with metal 3D printing.
Decentralization in manufacturing will happen through the development of metal 3D printing in the future. On-demand parts can be printed at not-too-large local 3D printing facilities without needing a long supply chain and huge factories. A more sustainable, agile manufacturing model will have fewer carbon footprints, shipping costs, and lead times associated with the traditional method.
The extremely customized, complex geometries that can be produced with metal 3D printing will make the mass customization concept very popular in all industries, especially for health and custom implants, as well as in aerospace with one-off bespoke parts. The capability to mass manufacture low-cost, high-precision custom components on demand will revolutionize the industries that rely on such complex designs.
In shaping the future of metal 3D printing, the research community and industry have to take a series of steps:
Continuing investment in R&D will be required to develop metal 3D printing. New materials, higher print speeds, and seamless integration into traditional manufacturing processes should be drivers of adoption. Expectations around innovation will be fueled by cooperation among industry leaders, universities, and government agencies.
Before it becomes a standard manufacturing process, the most important thing to be established is the standardization of processes and certifications for quality control. This will include benchmarks in material properties, build quality, and performance for printed parts. Clear standards would increase industry confidence and facilitate wider adoption.
With the growth of the 3D printing industry, with various metals being used in it, upgrading the skills of the workforce is a must. Universities, technical institutes, and companies have to take up the challenge of introducing specialized training programs for engineers, designers, and operators for additive manufacturing.
The collaboration of industries will speed up the development of metal 3D printing technologies. Companies can share best practices, optimize production methods, and expand the range of applications for 3D printing in various sectors by working together.
Sustainability will rule the future of metal 3D printing. It is that aspect that will determine the sustainable nature of technology, which gives much importance to recycling metal powders, generates very little waste in terms of material, and works on renewable sources of energy. Sustainability will play a key role in combating the environmental degradation associated with the process of production.
Aspects |
Current Status |
Future Projections |
Numerical Figures |
Market Growth |
Rapid adoption in aerospace, healthcare |
Expected CAGR of 28.6% (2024-2030) |
Market size of $12 billion by 2025 |
Material Advancements |
Common materials: titanium, aluminum |
Development of high-performance alloys |
30+ new alloys under research |
Production Speed |
Hours for complex components |
Reduction to minutes |
50% decrease in production times |
Cost Efficiency |
High initial setup costs |
Lowering costs due to technological advancements |
20% reduction in production costs |
Application Expansion |
Primarily aerospace and medical |
Growing in automotive and consumer goods |
5 new industries adopting by 2026 |
Sustainability |
Limited recycling methods |
Greater emphasis on eco-friendly processes |
40% recycled materials by 2030 |
This revolutionizes the world of tech in opening new horizons into innovation, personalization, and sustainability with 3D metal printing capabilities for creating complex geometries with low waste generation while promoting on-demand production for various applications across the sectors of aerospace, automotive, and healthcare. Nevertheless, such opportunities cannot come for free; one encounters huge cost pressures, limitations of the types of materials being developed, and calls for standardization in practice. It offers greater design flexibility and rapid prototyping, thus improving product development cycles and shortening time-to-market.
Further drive is in efforts regarding metallic alloys, hybrid manufacturing systems, and AI integration, further enhancing the efficiency and precision of 3D printing. With these developments, metal 3D printing will increasingly substitute the traditional methods of manufacturing in many scenarios, thus increasing efficiency and decreasing costs while making it more sustainable for production. Metal 3D printing holds immense promise for changing global industries and pushing the technology envelope.
Hi readers! I hope you are doing well and finding something new. Today the topic to be discussed is – Types of metal 3D Printing. Metal 3D printing is a modern method of manufacturing in which solid metal parts are built up from a succession of thin metal layers of powder, wire, or sheet materials.
It has been widely used in aerospace, medical, automobile, and construction parts like this aerospace bracket, which is an implant customized for a particular patient, and high-performance automobile components. Metal 3D printing is not a subtractive manufacturing process and brings no waste of the material during the production process while it gives the designer full design control.
Among those key technologies are Powder Bed Fusion, or PBF, which fuses metal powder using lasers or electron beams for parts of the highest precision, and Directed Energy Deposition, or DED, which creates and fuses material simultaneously and is suited for very large components and repairs. Binder Jetting offers affordable and high-speed production of non-load-bearing parts, and Bound Powder Extrusion and Sheet Lamination comprise methods good for entry-level applications and prototypes. Both methods serve particular purposes in terms of precision, material suitability, and viability making the metal 3D printing an essential technology within the existing manufacturing industry.
Here in this article, you will learn various diverse forms of metal 3D printing.
Let’s dive into the details.
Powder Bed Fusion (PBF) is one of the most common metal-added manufacturing processes which allows for top accuracy and great flexibility, the components produced are of extremely high strength. In its work, it employs a concept often referred to as spreading the metal powder and creating layers on the build platform. This process utilizes a source of heat such as a laser or electron beam. In SLM and PBF, it is a method of selective melting and sintering the layer by layer of a powder bed.
This technique, because of the formation of highly intricate geometries, has huge utility across several sectors including aerospace, automotive, and health.
This variant uses a high-powered laser to fully melt metal powder, layer by layer. SLM produces parts with excellent mechanical properties comparable to forged metals. It is utilized particularly in all high-performance industries like aerospace for cases and medical for fixtures.
DMLS also shares many similarities with SLM but instead of the material being melted and bonded, the particles are sintered, or partially melted to ‘weld’. It is ideal for creating designs with high geometric density and microstructures from alloyed metals.
As a heat source, EBM makes use of electron beam irradiation, accelerated in a vacuum to avoid surface oxidation. It excels with reactive metals such as titanium and nickel alloys, often used in aerospace components and biocompatible medical implants.
Excellent precision and fine details.
High mechanical strength and density.
Supports intricate designs and lattice structures.
High costs for equipment and materials.
It is post-processed rigorously, to have finishing and support removal on its surface.
It cannot exceed the dimension of a build by a powder bed size.
PBF keeps manufacturing developing; there will never be designs without their intended functions.
Directed Energy Deposition is an open-platform metal 3D print-based technology where a metal stream is melted at the same time through a heat source such as a laser, an electron beam, or a plasma arc. It can be opted for in large component production, in the repair of parts that have been affected by elements, and in the strengthening of structures.
The metal material is fed through the nozzle of the feeder, and it's in the form of powder or wire. During the deposition of the material, the layers are melted using an energy source. Unlike Powder Bed Fusion, DED employs multi-axis motion systems, by which complicated geometries can be created and there is an opportunity to make repairs on pre-existing components.
Repair and Maintenance: It is typically applied for repairing worn-out parts in aerospace, defense, and heavy machinery.
Massive Production: This is suitable for large-sized parts that cannot be accommodated in a powder bed.
Cladding: Applying surface-to-protection layers or functionalities to extend the service life of the part.
High Deposition Rates: It can produce faster than most of the other 3D printing technologies.
Material Versatility: It can be used with many types of metals, including titanium, steel, and nickel alloys.
Part Repair: It is an excellent option to repair expensive or critical parts.
Lower Resolution: Parts may not have the finer detail possible in Powder Bed Fusion.
Post-processing: Required as surfaces are mostly machined for smoothness to precise dimensions.
Binder Jetting is a fast and low-cost metal 3D printing process for building parts by bonding together layers of metal powder with a liquid binding agent. In contrast to direct-fusion-based methods, Binder Jetting generates a "green part," which then needs post-processing to reach its final strength and density.
A thin layer of metal powder is spread evenly across the build platform.
A print head selectively deposits a binder to bond particles in defined regions.
The process is repeated layer upon layer until the part is fully formed.
The "green part" is removed and post-processed through processes like sintering or infiltration by another metal for increased property
Prototypes and Decorative Parts: The part has good use for making complicated geometries with finer details.
Functional Parts: These are applicable when average strength is required.
Mold Production: Suitable for mold and lightweight parts.
Build speed is faster than Powder Bed Fusion.
No support structures are required, thus enabling more complex geometries.
Cost-effective for high-volume production of parts.
Lower density and mechanical strength compared to fusion-based methods.
Extensive post-processing is required for functionality.
Not suitable for high-performance applications.
Bound Metal Deposition, or metal extrusion, is a more affordable and secure alternative to metal 3D printing methods based on metal powders. BMD uses an extruded filament made of a polymer matrix binding metal powder for the layer-by-layer creation of parts. The technology is most valuable for low-volume production and prototyping.
The metal filament that includes the polymer matrix that binds the metal powder is melted and pressed through a nozzle to produce a "green part".
The part goes through debonding, where the polymer binder is removed from the part, leaving behind a metal framework.
Finally, the part is sintered within a furnace, where the metal particles fuse to increase the density and acquire the needed mechanical properties of the final product.
Functional Prototypes: Ideal for the manufacture of components that are meant to be utilized during an early design phase as well as when testing them.
Tooling and Jigs: Best suited for low-run productions with special tooling and fixtures of production.
Costlier than powder-based methods like SLM and DMLS
Handling is safer and easier due to its filament form, which enables it to be used in a desktop or office environment
Application to small-run or functional part manufacturing in areas like automotive and aerospace
Parts will have lower density and mechanical strength than other methods.
Shrinkage during sintering may cause problems in terms of dimensional accuracy, requiring changes in design.
Sheet Lamination is a 3D metal printing process that involves the stacking and bonding of thin sheets of metal for building a part layer by layer. This is often used for parts made from the selective cutting and joining of metal sheets. The sheets can be bonded with methods such as laser cutting, ultrasonic welding, or adhesive bonding, hence allowing the development of complex shapes.
Thin sheets of metal are stacked on the build platform.
A laser or ultrasonic welding system cuts and bonds each layer to form the desired geometry.
The process is repeated, with each new sheet being cut and bonded to the previous layer until the part is fully formed.
Prototyping and Low-Cost Manufacturing: Sheet lamination is very effective for rapid prototyping and low-volume manufacturing because it is both efficient and cost-effective.
Decorative and Structural Components: It is also suitable for the creation of components that require basic structural integrity or aesthetic appeal. For example, decorative parts for automotive and architecture can be manufactured quickly.
Minimal Waste: Sheet Lamination generates significantly less material waste compared to traditional machining or powder-based methods.
Fast Production Times: The process is quick, making it ideal for short turnaround times.
Material Versatility: It can handle multiple materials, including combinations of metals and non-metallic sheets.
Limited Geometries: The main disadvantage of the process is that is based on flat sheets, Sheet Lamination can accommodate only rather simple shapes of cross-section and does not allow the creation of, for example, tightly spiraled coils with a large number of turns.
Heat Sensitivity: Adhesively bonded parts are not standardized in terms of heat resistance their performance can deteriorate when exposed to high temperatures.
Cold Spray is one of the leading high-speed deposition techniques that are developed by accelerating through a nozzle of metallic powders carried by compressed gases and then depositing on a substrate. Unlike common metal deposition technologies, Cold Spray does not depend on melting down the metal but simply relies on kinetic energy to merge the particles onto the substrate.
The metal powders are then pelted into a high-velocity gas stream where the gas may be nitrogen or helium.
The powder attains velocity higher than the speed of sound, and due to the high energy acquired the particles stick to the substrate at impact.
The sprayed layers generated have minimal thermal distortion and, therefore, retain the properties of the material to be processed.
Coating Applications: Cold Spray is mainly used for protection layers, which include anti-corrosion, wear, and anti-erosion protection. It is applied earliest for aerospace applications, automotive, and marine applications.
Repairing Damaged Components: The process is best suited for reconstructing worn or damaged parts because it allows it to add material to substrates without compromising its characteristics. It is especially helpful in repairing turbine blades and other engine components.
Dense Parts with No Melting: Since Cold Spray does not melt the metal during deposition, parts have excellent density and mechanical properties, with minimal porosity.
Preservation of Material Properties: It avoids thermal distortion that may otherwise degrade material properties in traditional melting-based processes. This makes it highly suitable for the preservation of the cut high-performance components.
Energy-Efficient and Environment-Friendly Process: Unlike the traditional pyrolysis process, there is no use of high temperature and a chemical reactor. Therefore, the process is energy-efficient effective, and also friendly to the environment
Limited to Ductile Metals: The cold Spray Process is not suitable for metals that need higher temperatures to develop bonds among them. This is because freet can be operated effectively on fully ductile materials such as copper, some titanium alloys as well as aluminum.
Post-Machining Requirements: Nonetheless, the process results in the density of a large part that calls for post-machining to achieve the required dimensional accuracy and surface finish.
A brief comparison between the various contemporary methods of metal 3D printing is given below.
Technology |
Precision |
Part Strength |
Speed |
Applications |
Powder Bed Fusion |
High |
Very High |
Moderate |
Aerospace, medical, and industrial components. |
Direct Energy Deposition |
Moderate |
High |
High |
Repairs, large-scale manufacturing. |
Binder Jetting |
Moderate |
Moderate |
High |
Prototypes, molds, and lightweight parts. |
Metal Extrusion |
Moderate |
Low to Moderate |
Moderate |
Prototypes, functional tooling. |
Sheet Lamination |
Low |
Low |
High |
Decorative and low-cost components. |
Cold Spray |
Low |
Low |
High |
Repairs, coatings, and dense metal parts. |
Metal Jetting |
High |
High |
High |
Small, detailed prototypes or decorative items. |
Metal 3D printing covers a broad spectrum of technologies, each providing a unique solution to specific industrial needs. Powder Bed Fusion (PBF), including Selective Laser Melting (SLM) and Direct Metal Laser Sintering (DMLS), provides high precision and mechanical strength, ideal for aerospace, automotive, and medical applications. Direct Energy Deposition (DED) allows flexibility in repairing and enhancing parts and also enables large-scale production, while Binder Jetting is known for its rapid build speed and cost-effectiveness, making it very popular for prototyping and lightweight components. Metal Extrusion (Bound Metal Deposition) offers a safer and more economical way of creating functional prototypes and tooling. Sheet Lamination allows for fast, low-cost manufacturing but is only feasible for simpler designs.
Furthermore, Cold Spray is one of the critical technologies that create dense, hard parts through high-speed deposition. This technology has significant applications in coating and repair in the aerospace and automotive industries. Each of these methods has advantages that depend on the requirements of material properties, part complexity, and production speed. As new materials and techniques continue to evolve, metal 3D printing will be even more versatile, accessible, and integrated into various industries, revolutionizing manufacturing and design processes across sectors.
Hi readers! I hope you are doing well and finding something new. Today the topic of discussion is “What is Metal 3D Printing? Its types, processes, and materials”. In today’s hi-tech world, one of the disruptive technologies that have gained attraction is metal 3D printing also known as metal additive manufacturing. Whereas most traditional manufacturing methods are mostly deductive, fabricating a product by first eliminating material to arrive at the desired shape and form, 3D printing systems deposit material and meticulously create the designed, high-performance parts that benefit the aerospace and healthcare industries as well as many others.
Take-up of metal 3D printing is already increasing – and rightly so – because it tackles targets such as material waste, production problems, and design constraints. Since organizations are searching for approaches that may help them retain competitiveness, it is an ideal enabling tool to transform manufacturing strategies and provide tailored solutions.
In this article, you will find information on metal 3D printing, the types of processes used in metal 3D printing, and the materials used. Let’s start.
Precision and durability are key to manufacturing for all developers, groundbreakers, innovators, and companies. These qualities ensure high-quality results, reliability, and performance across various industries and applications. But where can you find expert Metal 3D Printing services?
JustWay offers Metal 3D Printing Services with high precision and efficiency at a low cost to bring your designs to life with great accuracy and strength. The advanced technology that we use can provide superior mechanical properties, and complex geometries, and ensure durability in your parts, making them functional. We specialize in aerospace, consumer electronics, robotics, automotive, and medical fields, offering fine surface finishes and rapid production time. Whether you need functional prototypes or end-use metal components, our Metal 3D Printing service offers the perfect balance of quality, speed, and affordability, enabling you to stay ahead in competitive markets.
Justway gives you 3D metal printing services with advanced technology. They use Stereolithography (SLA), Selective Laser Sintering (SLS), Digital Light Processing (DLP), Multi Jet Fusion (MJF), Fused Deposition Modeling (FDM), and Selective Laser Melting (SLM) to print and deliver the best services. They print products in all metals like aluminum, stainless steel, titanium, and tool steel. They offer high quality and a variety of finishing options which include spray painting-high gloss paint, spray painting-matt paint, vacuum plating-high gloss paint, vacuum plating-matt paint, #1000 sanding, silkscreen, laser engraving, and dyeing.
Justway offers 3D Printing not only in metals but also gives service of plastic 3D Printing with high quality and finishing. They make products in all plastic types including ABS, Resin, POM, PEEK, Nylon, PETG, ASA, PC, and PALA. Moreover, Justway offers a wide range of services to its customers. They offer CNC Machining, 3D Printing, Sheet Metal Fabrication, Injection Modeling, and Utherane Casting. It offers seamless prototyping and production solutions.
Rapid Prototyping and Scalable Production
Versatile Materials and Advanced Processes
High-Precision, Cost-Effective Manufacturing
Fast Turnaround for Faster Market Entry
Whether you’re shaping the future of aerospace, robotics, automotive, medical, or consumer products, JustWay turns vision into reality. Innovate with JustWay—your trusted partner in manufacturing excellence! Contact us today!
Metal 3D printing is additive manufacturing that makes parts from metal using digital designs as a guide. In this process layers of the part are added to create a part. The manufacturing technology provides for complex geometries, lightweight structures, and well-defined variations in geometrical features, depending on desire. It is applied in the aerospace, automotive, and medical industries with zero material waste, thereby being very efficient in modern manufacturing.
Metal-based 3D printing emerged from the earlier additive manufacturing technology that had emerged with plastics in the 1980s, including SLA and FDM. Material science and laser technologies improved steadily to enable adaptation of these principles to metals. By the early 2000s, technologies like Selective Laser Melting (SLM) and Electron Beam Melting (EBM) started gaining commercial maturity, ushering in industrial metal 3D printing.
The usage of metal 3D printing has been on the rise in the recent past, and the projected market growth rate is 28.1% while the market size is said to be $19.2 billion in 2030. Auto, aerospace, healthcare, and energy sectors have been stratum front runners in adopting this technology because of the excellent production of lightweight, strong, and complex parts.
Metal-based 3D printing technology is the most widely practiced technique out of all which comes under the Powder Bed Fusion category. In an additive process, it works through a highly concentrated beam of light or electricity a laser or electron beam to fuse fine metal powder that is deposited in each layer of the build. Once a layer is melted, the pattern repeats, with one layer laid down at a time, adding up to the complete build. The core PBF technologies are:
As a final step selective laser melting lets the metal powder melt and joining the layers deposit to create the parts solid. It has the capacity for high-strength materials namely titanium and stainless steel. The results are very strong, dense parts with great accuracy. Thus it is used suitably in aero and biomedical applications.
DMLS is quite similar to SLM but the metals used and the parts built are less dense. DMLS is used for aerospace and medical applications and provides strong parts with good mechanical properties.
Binder Jetting is where metal powder is spread layer by layer and the part’s powder is selectively bonded by a binding agent. Once the part is printed, it has to be exposed to a furnace used to sinter the part. This process strengthens and consolidates the metal further into a solid part. Binder Jetting produces parts much faster and is used extensively for prototypes and low- to medium-volume parts. It is also cheaper in certain applications but has slightly lower mechanical properties than PBF.
Directed energy deposition utilizes energy beams, including lasers to deposit energy that melts the metal powder or wire onto the substrate of the part. It particularly applies in the repair and generation of work material on existing part fabrication along with difficult contours. Most importantly, these processes can find excellent applications in the aerospace industry to repair turbines and other structures that have blade edges and components for which repair in the field is often desired. DED has the capability of making parts larger than most methods and has greater material deposition rates.
Another approach to 3D printing is metal extrusion, which consists of melted and pushed metal filaments through a nozzle and solidifies by forming layers due to cooling and sticking together. Generally, the printing of a part is usually sintered within a furnace so that the whole strength of the material can be attained. Metal extrusion is very useful for prototyping and also cheap when high accuracy or specific properties of materials do not come into play when it's just for some cheaper applications.
Electron Beam Melting is closely comparable to Selective Laser Melting but the latter employs an electron beam for fusion of metal powder. The most widely used EBM technique has been practiced on titanium and cobalt-chrome alloys. It is common in aerospace and medical implants. It works under vacuum, so parts produced using EBM can have high density and strength.
It begins with making a 3D digital model of the part to be manufactured. In most cases, this is created using CAD, or Computer Aided Design, software. The model then gets translated into an STL file in fact or a similar file format readable by the 3D printer. A design for 3D printing should be optimized for printing with the geometry, support structures, and properties of the material to be taken into consideration.
After the 3D model is prepared, the metallic powder starts preparing the metal 3D printer. This involves:
Metallic powder 3D printers usually utilize metal powders, metal filaments, or wire as the material. These are loaded into the chamber of the printer based on the process that is being applied.
The printing parameters, such as layer thickness, print speed, and temperature, are set according to the material used and the desired final part properties.
The actual printing process varies depending on the metal 3D printing technology, but generally follows these steps:
Here, the energy source in the case of a laser or electron beam print head for a printer selects the metal powder, wire, or filament and melt-fuses it onto the substrate by layer. Part-by-part builds are created starting from the bottom upward with each deposit accurately bonded upon the previous.
The metal is either melted (in processes such as Selective Laser Melting (SLM)) or sintered (in Direct Metal Laser Sintering (DMLS)), where metal powder particles are fused without fully melting them.
This section then cools after every layer is deposited and set. In some processes, cooling rates are controlled to reduce internal stresses that may cause the product to warp. For example, in EBM, or Electron Beam Melting, cooling is done in a vacuum to prevent oxidation and obtain optimal material properties.
The printed metal part undergoes post-processing to fine-tune its mechanical properties and finish:
Most metal 3D printing processes require support to be printed during the process itself. These are usually made of the same material but should be removed from the part when printed.
In some processes like Binder Jetting, parts are sintered in a furnace to remove binders and fuse the metal powder into a dense, solid part. Heat treatment can also be used to alter material properties like hardness or strength.
Depending on the application, some metal parts would require additional surface finishing operations, such as polishing, sanding, or coating, to improve the texture and appearance of the part.
The post-processing part then undergoes tight quality control and testing to satisfy the standards and specifications required. This may include the following:
A measurement of the part to get its dimensions and tolerances.
Test whether it is stiff, flexible, or of whatever kind the part is.
Methods in this category include techniques like X-ray inspection or ultrasonic testing to discover inner flaws or holes that can impair performance.
Stainless steel is also expected to be one of the most widely used materials for 3D Printing because of its versatility, strength, and corrosion resistance. Good for uses where it will be applied in the aerospace business, automobile, and in the health sector.
Common Grades: 316L, 17-4 PH
Properties: These characteristics include high strength, high corrosion resistance, heat resistance, and good formability.
Applications: For medical implants tooling aerospace and automotive combined and many other parts.
Titanium is famous for its high strength-to-weight ratio and has excellent corrosion resistance in oysters, high-performance surroundings, and conditions. It is very light but very highly tensile and compatible with living tissues.
Common Grades: Ti-6Al-4V and Ti-6Al-4V ELI (extra low interstitials).
Properties: High mechanical strength, low weight, better corrosion resistance, and suitability for biomedical applications.
Applications: Engine Aerostructures, Medical Prosthetics, and Orthopedic implants like total hip replacements, various high-performance Engineering application Parts, and OEM auto components.
Aluminum is light and has relatively strong strength though it is highly resistant to corrosive materials. It is applied in sectors where the product’s weight is most important.
Common Grades: AlSi10Mg, Al-6061
Properties: Non-ferrous material: It is light in weight, has a good strength-to-weight ratio, does not get corroded easily, have good machinability.
Applications: Airplane manufacturers, automobile manufacturers, and power, and other mechanical parts (composites) industries.
Cobalt chrome demonstrates high strength, excellent wear, and extreme temperature resistance. Its alloy is found in medical implants and aerospace applications.
Properties: It has strong strength, wearing resistance, anticorrosive properties, and good high-temperature stability.
Application: It contains applications such as medical implants and aerospace components together with industrial ones where wearing is needed.
Nickel-based alloys are mainly for high-temperature applications and are generally for those application conditions that reach extremes. In principle, the material is used within the gas turbine, jet engines, and chemical processing areas.
Common Alloys: Inconel 625, Inconel 718
Properties: Excellent strength against a high-temperature environment, resistance to corrosive action, and excellent mechanical characteristics.
Applications: Aerospace (blade in turbine); gas turbines of the high-end performance engineering field.
Copper possesses excellent electrical and thermal conductivity, which is one of the prime reasons why copper is very useful for 3D printing. In those applications, where dissipation of heat is critical, it is very specifically useful.
Properties: Good electrical and thermal conductivity, corrosion-resistant.
Applications: Heat exchangers, electrical parts, and components demanding efficient heat transfer.
Bronze Alloy contains copper with tin or other metals. It shows mechanical strength, resistance to corrosion, and aesthetic appearance. They are widely used for decorative or artistic objects.
Properties: Corrosion resistance, strength, aesthetic look
Applications: Decorative items, jewelry, and industrial components.
In metal 3D printing, high-utilization steel alloys, especially tool steels and other strong alloys are used to make strong, high-performance parts.
Common Grades: Maraging steel, H13 steel
Properties: High strength, durability, resistant to wear
Application: Tooling, car parts, molds, or any industrial use where high strength is required
Other precious metals like gold and silver are printable especially used in jewelry and high-end, custom production.
Properties: Aesthetics, corrosion resistance, excellent formability.
Applications: Jewelry, luxury goods, and ornaments.
Maraging steel is an ultra-high-strength steel alloy, used for printing metal in 3D for pieces that need extreme tensile strength, not easily deformed when stressed.
Properties: Ultrahigh tensile strength and toughness with little tendency to crack.
Applications: Aerospace, tooling, and very high performance in mechanical parts
This is a Ni-Fe alloy that is held to be the best alloy material for extremely low expansions with heat.
Properties: Small thermal expansion but high tensile strength and modulus.
Applications: Aerospace, metrology, and precision instrumentation.
Metal 3D printing changed the game in manufacturing. That meant complex, high-performance parts for aerospace, automotive, medical industries and more could be produced. Stainless steel and titanium, nickel alloys, and precious metals like gold are the metals that can be chosen to meet the designer's specific needs.
Because of each metal's unique properties, metal 3D printing offers solutions ranging from lightweight aerospace components to more durable tooling and biocompatible medical implants. Its ability to minimize waste and optimize designs makes it an important part of modern manufacturing today. The coming years will see the inclusion of new materials and better process development that expands its possibilities toward more innovative, effective, and sustainable modes of production.
Hi readers! I hope you all are doing well and learning and exploring new things. We live in an era where technology is growing faster every day. Prototyping is the rough and simple model of the product that innovators want to introduce into the market. They perform tests, and if the results are unsatisfactory they fix the problem and reprocess them faster to beat the competition in the market. Rapid prototyping becomes crucial for the foundation of the development of modern products. Rapid prototyping sped up the path from the initial steps to the formation of the product. Rapid prototyping is highly demanded as compared to traditional methods because it is cost-effective, saves time, consumes fewer resources, and produces several products rapidly and efficiently.
In the early days, the process of manufacturing products took time, was costly, and used high resources. Little modification in the product was not easy because it consumed more resources and was costly. Rapid prototyping solved all these issues efficiently when it evolved in the early 20th century. It has become advanced in computer-aided designs (CAD) and 3D printing. It allows companies to bring new products into the market rapidly. It has diverse applications in industry, automation, health care, electronics, aeroscopes, and software development.
In this article, we will learn about its development, importance, expertise, tech, professional attitude, and online help. We will also come to know where to order rapid prototyping. Let’s start!
All innovators and companies want to benefit from prototyping to launch their new products into the market. The question arises “Where to order rapid prototyping?”
Justway offers an array of services with high quality and finishing, which help companies reduce cycles in the development process, accelerating the marketing time. It gives us services like CNC machining, CNC milling, CNC tutoring, and Electrical Discharge Machining. They manufacture products in all metals(aluminum, stainless steel, brass, copper, mild steel, titanium, alloy steel, tool steel, spring steel) and all plastics like ABS, rubber, POM, PEEK, Polycarbonate, Nylon, PTFE Teflon, PMMA Acrylic, Bakelite, Carbon fiber, PP, and FR4.
Justway offers many finishing options with high quality like Black oxide, Brushed, bead blast, Spray paint in matt and high gloss, Anodized, Power-coat matt, etc. It has wide applications in consumer electronics, automotive, medical, robotics, aerospace, and industrial machinery.
3D printing is the most common prototyping technique. Home 3D printers can only use some basic materials, while JUSTWAY's 3D printing is able to use some higher-end materials, and JUSTWAY's 3D printing is able to print all the products that home printers can't print. If your home 3D printer can't print more complex products, feel free to come to JUSTWAY to find a way. Its techniques are:
The molten thermoplastic filament is squeezed out through the nozzle, developing parts layer by layer. This technique is quite popular for functional prototyping because of its processing speed and material variety.
This technique uses UV rays to form solid plastic from liquid resin. This is used to make prototypes with a smooth surface. This technique is beneficial in making detailed prototypes with high accuracy.
In this technique, developers use a laser to mix up powered form material into solid structures. It is best for functional testing and for complex geometries.
CNC or Computer Numerical Control machining takes material from a solid block to manufacture parts. It is used for very high precision and is used for:
Based on the mechanical properties required for their prototypes, CNC machining is a good option for prototypes that require mechanical strength, using metal, plastic, and composite materials.
CNC machining can be used to achieve very tight tolerances, and therefore, parts that must fit well in assemblies.
Vacuum casting is a process for producing small batches of parts quickly. This process is only used to create a silicone cast from the master and then pour liquid plastic into it. Key features include:
Vacuum casting yields optimal surface finish prototypes suitable for visual and functional testing.
It is the best solution for small-volume production, making it best for market testing.
we use CAD to create virtual models to test how a product will behave and operate before we create physical prototypes. Key advantages include:
Simulations can discover risks early before investing a lot of time and resources.
Using digital tools, rapid prototyping methods allow stakeholders to experience the product in a virtual environment, respond, and provide feedback before physical production.
This technique uses a laser to cut material. Laser cutting has many perks making it a top pick in different industries. It shines in accuracy cutting complex shapes with tight tolerances. This method works on lots of stuff, from wood and plastic to metal, glass, and fabric. It also cuts down on wasted material compared to old-school methods saving money and helping the environment. People love that they can tweak designs making products just right for their needs. What's more, laser cutting can run on its own boosting output and keeping things consistent in factories. As a final plus, it leaves clean edges that usually don't need much touch-up saving time and effort.
In rapid prototyping, its professional attitude has the following features that are mentioned below:
Staying open to fresh ideas new approaches, and feedback plays a key role. This boosts creativity and can result in improved solutions.
Quick prototyping often needs teams with different skills. A pro should work well with others value different viewpoints, and help create a supportive team setting.
It is a must that a pro be able to change direction quickly based on test results or stakeholder input. A pro should feel at ease with change and be ready to tweak their method as needed.
While speed matters, keeping an eye on quality and accuracy in prototypes is key. A pro attitude includes a commitment to deliver top-notch work.
Quick prototyping requires meeting tight deadlines. Being organized and ranking tasks well is crucial for success.
Taking action to spot and tackle issues as they come up helps keep things moving in the prototyping process.
Talking well with team members, stakeholders, and clients is key to making sure everyone stays on the same page and knows what's going on during prototyping.
Being open to learning from wins and losses, plus always trying to get better, is crucial for growing as a pro in quick prototyping.
Rapid prototyping has numerous benefits that allow companies to make new products efficiently. The following benefits are described below.
In early times, traditional methods were used for manufacturing products with many costly steps. Any flaw in product, testing, and remanufacturing required heavy investment. However rapid prototyping is beneficial for new and smaller companies to limit the budget, which reduces the financial risk. With the help of raid prototyping innovators can test, experiment, and remodel the product on a low budget with high quality, efficiency, and accuracy.
Rapid prototyping efficiently speeds up manufacturing time which reduces time to market. It allows manufacturers to design, manufacture, test, and reshape the product faster. It is beneficial for highly competitive industries to launch their product in the market earlier, to gain significant advantage. It also supports extreme programming and focuses on creating the minimal viable product(MVP) quickly. MVP is examined and refined continuously based on real-time feedback from users.
Rapid prototyping allows manufacturers to reshape and refine it continuously, with flexible feedback in the developmental process. This allows companies to modify their products with the changing trend to get benefits and in demand. This makes products updated and competitive.
Rapid prototyping allows experiments and creativity because it makes prototypes faster and on a friendly budget. Manufacturer teams are willing to develop new products and try new ideas because rapid prototyping makes it possible for them at affordable prices and in a short time. It supports the culture of innovation, as developers make original and breakthrough products with numerous designs, ideas, and innovations.
Prototyping allows developers from different teams like designers, engineering, marketing, and sales to work together resulting in a more accurate and unique product. This allows developers to collaborate on ideas and innovations, and making visual products helps them to prevent misunderstandings.
Rapid prototyping experts are skilled in transforming their ideas into physical products easily.
They know how to use CAD for detailed products, representing their dimensions, components, and functionality. Experts can easily decide on fidelity (medium, low, or high). It is based on the project stage. Experts are skilled in making products effectively in a short time with crucial details.
Experts are skilled in developing, testing, gathering feedback, and remodeling the product continuously and easily. Expertise includes:
Design creative ideas for prototypes to evaluate their characteristics like usability, durability, and ergonomics.
Collect feedback from different sources like team members, users, and stakeholders to know its flaws and refine them.
Quickly refine the prototype model based on real-time insight.
Selecting the appropriate method and material is a significant skill in developing a desired prototype. They are skilled in:
Experts know which methods are suitable for development such as 3D printing (additive manufacturing), CNC machining (subtractive manufacturing), laser cutting, and digital simulations. Each procedure has specific and unique benefits. 3D printing is used for complex models. CNC machine is used to make the product more durable and high-fidelity.
Material matching of the prototype with its goal is known as material selection. Plastic is used for lightweight, and cheap prototypes while metal is used for strength. Resin is used for high-fidelity prototypes. Ensuring the material matches the prototype will meet the needs of its development.
Rapid prototyping experts usually work closely with other teams, ensuring their prototypes bridge across departments and meet the department's guidelines. Some of their collaboration abilities include:
Team Makes it easy for a non-technical team to understand design alternatives and technical limitations which helps the stakeholder to understand the intention of the prototype as well as the limitations.
They gather feedback from design, engineering, marketing, and sales teams to ensure the prototype represents a compromise between functional, aesthetic, and market needs.
Creating thorough notes, describing specifications, and visual presentations, that detail the functionalities and developments of the prototype throughout the design process provides all departments with the information they need to be on the same page.
This method is fast-paced, and the prototyping comes with uncertainties to show you flexibility and your problem-solving skills when the unexpected happens. Skills in this area include:
Identifying and investigating design, material, or manufacturing issues revealed during testing and developing immediate corrective actions.
Iterate to redesign and redesign to iterate – Prototypes need to be improved based on feedback, test result and evolution in the product requirements.
Trade speed and quality, make the right decisions on methods and materials, and try to reach the fastest way to a working model that is ready for the test but contains all the basic functionalities.
Acquaintance with the newest tools, software, and processes in prototyping (e.g. new CAD software, materials for 3D printing, and AR/VR applications in prototyping).
Utilizing consumer expectations and behavior models to develop prototypes, the best chance of being market-ready.
Wherever we can choose sustainable materials or practices as our industries begin to move towards minimizing waste and environmental degradation.
Some online resources that help in rapid prototyping are listed below:
Online courses for learning rapid prototyping are available on:
Udemy
Coursera
edx
Online tools that allow users to design and prototype are the following:
Figma
Adobe XD
InVision
Online communities for rapid prototyping are:
Designer Hangout
Rapid prototyping plays a significant role in product manufacturing, encourages collaboration, and enhances communication. It requires highly skilled experts who can not compromise on quality and finishing. A flexible, positive, and adopting attitude is essential to handling feedback and refining the product. Online resources like courses, communities, and tools help build prototyping skills.
Choosing between 3D printing and CNC machining can be pivotal for manufacturers, designers, and engineers. Each method has distinct advantages, depending on factors like production volume, material requirements, and the complexity of the design. 3D printing offers unparalleled flexibility. It allows for rapid prototyping and intricate geometries that are difficult to achieve with traditional methods.
On the other hand, custom CNC machining is known for its precision and ability to work with a wide range of materials, making it ideal for producing high-quality parts with tight tolerances. Understanding these differences is crucial for selecting the right technique for your project, whether looking to innovate quickly or produce durable, high-quality components.
This article will look at the key aspects of 3D printing and CNC machining. It will help you determine which method best suits your needs.
3D printing, or additive manufacturing, is a cutting-edge process to create three-dimensional objects from a digital model. This technique involves building the object layer by layer, which sets it apart from traditional subtractive manufacturing methods that remove material from a larger block. The digital model, typically created using Computer-Aided Design (CAD) software, serves as a blueprint for the object, guiding the printer through each layer's construction.
CNC machining, short for Computer Numerical Control machining, is a versatile manufacturing process involving automated machine tool control using computer programs. This subtractive manufacturing technique removes material from a solid block or workpiece to create a highly precise and accurate finished part.
Below are some of the key differences between 3D printing and CNC machining:
3D printing offers nearly limitless design flexibility, allowing for the creation of complex geometries and intricate details that would be difficult or impossible to achieve with traditional manufacturing methods. This freedom is due to the addictive nature of the process, which builds parts layer by layer without the need for specific tooling or support for internal features. As a result, designers can focus on optimizing the functionality and aesthetics of the part without being constrained by the manufacturing process itself.
On the other hand, CNC machining is limited by certain design constraints inherent to the subtractive process. These constraints include tool access, tool path, and the need to avoid undercuts and internal geometries that are difficult to reach with cutting tools. Additionally, CNC machining requires careful planning of tool paths. It may also involve multiple setups and repositioning of the workpiece to achieve the desired shape. This method can restrict the complexity of parts that can be efficiently produced.
The precision of 3D printing varies depending on the specific technology used. Generally, the resolution can range from 0.016 mm to over 1 mm, with typical consumer-grade 3D printers achieving around 0.2 mm precision. While this is sufficient for many applications, achieving high precision consistently across different geometries and materials can be challenging.
CNC machining produces parts with high precision and tight tolerances. It can achieve precision levels as fine as 0.005 mm by employing slow feeds, new cutters, and shallow cuts. This makes CNC machining ideal for applications with critical dimensional accuracy and surface finish, such as aerospace and medical device manufacturing.
Operating a 3D printer generally requires less specialized skill compared to CNC machining. The process involves preparing a digital file, selecting orientation, and adding necessary support. Once the setup is complete, the printer performs the build with minimal human intervention, making it accessible to users with basic technical knowledge.
CNC machining demands a higher level of operator skill due to the complexity of setting up the machine, programming tool paths, and selecting appropriate cutting tools. Operators need to have a deep understanding of the machining process, material properties, and the capabilities of the equipment to consistently produce high-quality parts. This expertise is critical for achieving the desired precision and surface finish.
3D printing typically has a low setup time, but the actual build time can be lengthy. It often takes several hours or even days to complete, depending on the size and complexity of the part. This makes it suitable for prototyping and low-volume production, where quick iteration and design flexibility are prioritized.
CNC machining can have high setup and programming times, particularly for complex parts. However, once the setup is complete, the cutting stages are very fast, allowing for rapid part production. This makes CNC machining well-suited for high-volume production runs where speed and efficiency are essential.
The surface finish of 3D-printed parts can vary widely based on the technology used. Common issues include graininess, rough textures, and visible layer lines. Post-processing methods such as sanding, polishing, and media blasting can improve the finish. However, achieving a smooth, high-quality surface can be challenging without additional work.
CNC machining can produce excellent surface-quality parts, particularly when using longer cut times and finer cutting tools. The process can achieve a highly uniform and precise finish, making it ideal for applications where aesthetic and functional surface properties are important. Various post-processing techniques, such as anodizing and powder coating, can further enhance the surface finish of machined parts.
The strength of 3D-printed parts is often lower than that of their machined counterparts. Depending on the printing process and material, the strength can range from 10% to 20% of the native material's properties. This is due to the layer-by-layer construction, which can introduce weaknesses and inconsistencies in the final part.
CNC machining produces parts with the full strength of the native material, as the process involves removing material from a solid block. It results in parts with superior mechanical properties and durability, making CNC machining the preferred choice for applications where strength and reliability are critical.
Choosing between 3D printing and CNC machining is influenced by your specific needs. 3D printing is ideal for rapid prototyping, complex geometries, and low-volume production with diverse material options like plastics and metals. It offers customization and reduced waste but may require post-processing for a smooth finish.
CNC machining excels in high precision, consistency, and the ability to work with a wide range of materials, including metals and composites. It's best for producing parts with tight tolerances and in larger volumes. Ultimately, the choice depends on the project's complexity, material requirements, and production scale.
Hi readers! I hope are doing well and searching something thrilling. Do you ever think AutoCAD becomes reality? From a sketch of a high-rise structure to the machine design, AutoCAD is truly where creative design ideas turn into reality. For today we will discuss AutoCAD.
AutoCAD, a creative design software created by Autodesk, is designed primarily for use in architecture, engineering, construction, and manufacturing sectors. AutoCAD has changed the way technical drawings are created. From 1982, it has emphasized methods that were fast and effective rather than traditional hand-drawn ones. Overall, it is now essential in the world of designing because it can be adapted easily and is very accurate.
The program AutoCAD includes many objects such as lines, shapes, dimensions, hatching, layers and blocks which can be reused. 3D models can be made in AutoCAD and different colors and textures can be applied to them. You can work easily in VS Code, since it offers a ribbon toolbar, an instant access command line and customizable palettes.
Also, the software stores files as DWG and DXF, so they can be easily exchanged and opened by various design applications. Because of cloud support and mobile devices, team members can work from anywhere and at the same time.
As technology grows, so will AutoCAD, with intelligent capabilities such as automation, cloud tools, and artificial intelligence. AutoCAD, for making building plans, circuits, or parts for machines, serves as a fast, accurate, and smart design tool.
Here, you will find the evolution of AutoCAD, its features, AutoCAD interference, skills, applications, and advantages. Let’s start.
AutoCAD first came out in December 1982 as a desktop program for execution on microcomputers based on internal graphics controllers.
It was one of the first CAD software programs to come into use on personal computers and thus was a revolutionary invention for designers and engineers working previously either with hand drafting or costly mainframe CAD systems..
During the 1980s and 1990s, AutoCAD was made available from time to time by Autodesk to refine drawing skills, accuracy, and functionality.
New features were introduced in the form of layers, blocks, hatching, and external references, or Xrefs.
Windows-based operating systems offered better ease of use through graphical user interfaces.
At the beginning of the 2000s, AutoCAD was upgraded with functions for 3D models, rendering, and visualization.
Autodesk introduced software for architects, electricians, and mechanical engineers known as AutoCAD Architecture, AutoCAD Electrical, and AutoCAD Mechanical.
Using the cloud, mobile applications, and a subscription plan made it possible for everyone to team up and work on files across many devices.

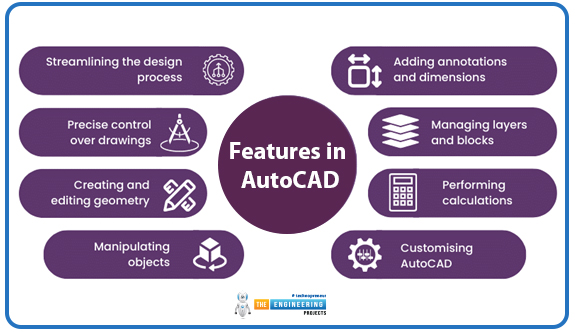

Both new and more advanced CAD users can draw detailed technical drawings precisely with AutoCAD’s 2D drafting tools. The essential drawing tools are lines, polylines, arcs, circles, and ellipses. You can edit your drawing using trim, extend, fillet, chamfer, or array tools. The users can snap to a precise location, use object tracking, and use grid and ortho modes to achieve precision. These are required in building design, electrical diagrams, mechanical components, and civil structures design.

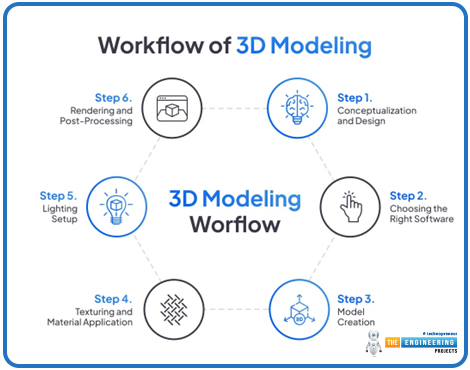

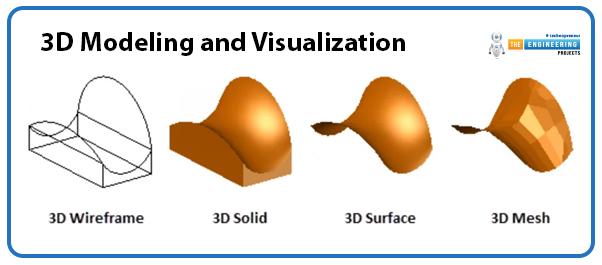

With AutoCAD, you can create 3D models using solid, surface, and mesh techniques. Designers can build 3D objects from the real world, apply materials like wood, metal, or glass, and replicate lighting to produce lifelike images. This function makes product and architecture design more useful since it allows stakeholders to see the result before anything is made or built. AutoCAD also has 3D navigation tools such as orbit, viewcube, and walkthrough to study models from various aspects. The workflow of 3D modeling is mentioned below in the image.
Effective communication is achieved through annotations such as text, multileaders, dimensions, and tables. AutoCAD supports dynamic text styles, dimension styles, and multiline annotations that automatically size. Associative dimensions automatically update when the geometry changes. All aspects of the design are therefore properly documented and ready for fabrication or construction.
Layers form an important part of AutoCAD drawing organization. Layers may be assigned certain properties such as color, line weight, and line type. This comes in handy when differentiating such elements as walls, pipes, and electrical wiring within a building plan. Layers can be locked, hidden, or isolated so they can be edited freely. Layer filters and states allow for effective management of very complex drawings with many objects.

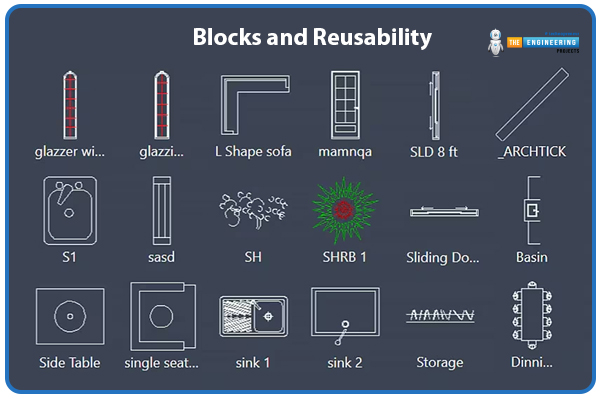

AutoCAD permits the definition of predefined, reusable items such as doors, windows, bolts, symbols, or logos. Blocks enhance efficiency in drawing and guarantee consistency among projects. The user can also define dynamic blocks that resize, rotate, or reconfigure according to defined parameters. This reuse saves time while drawing and enhances standardization.
External references allow users to bring in other DWG files or images into the present drawing. This is useful for collaborative projects where various team members work on diverse sections, including big architectural or infrastructure projects. Xrefs will hold a live link, so any change to the reference file will be updated automatically. This will encourage collaborative working without modifying the master file directly.
Parametric constraints allow the establishment of relationships among drawing objects. Geometric constraints govern the shape and orientation, and dimensional constraints govern the size and distance. A designer can, for instance, ensure that two lines are always perpendicular or ensure that a rectangle always has equal opposite sides. This keeps design integrity intact in case of modifications.
AutoCAD accommodates industry-standard formats like DWG (native), DXF (for interoperability), and PDF (for sharing). AutoCAD also accommodates support for DGN (employed by MicroStation) and image formats including JPG and PNG. The feature of exporting and importing numerous file types guarantees communication across various software environments and project stakeholders without any hiccups.
AutoCAD integration with cloud storage allows the storage of drawings directly to services such as Autodesk Drive, Google Drive, Dropbox, and OneDrive. The AutoCAD web and mobile app make it possible to view, edit, and mark up drawings from any device connected to the internet. This is particularly convenient for professionals operating on-site, in meetings with clients, or remotely.

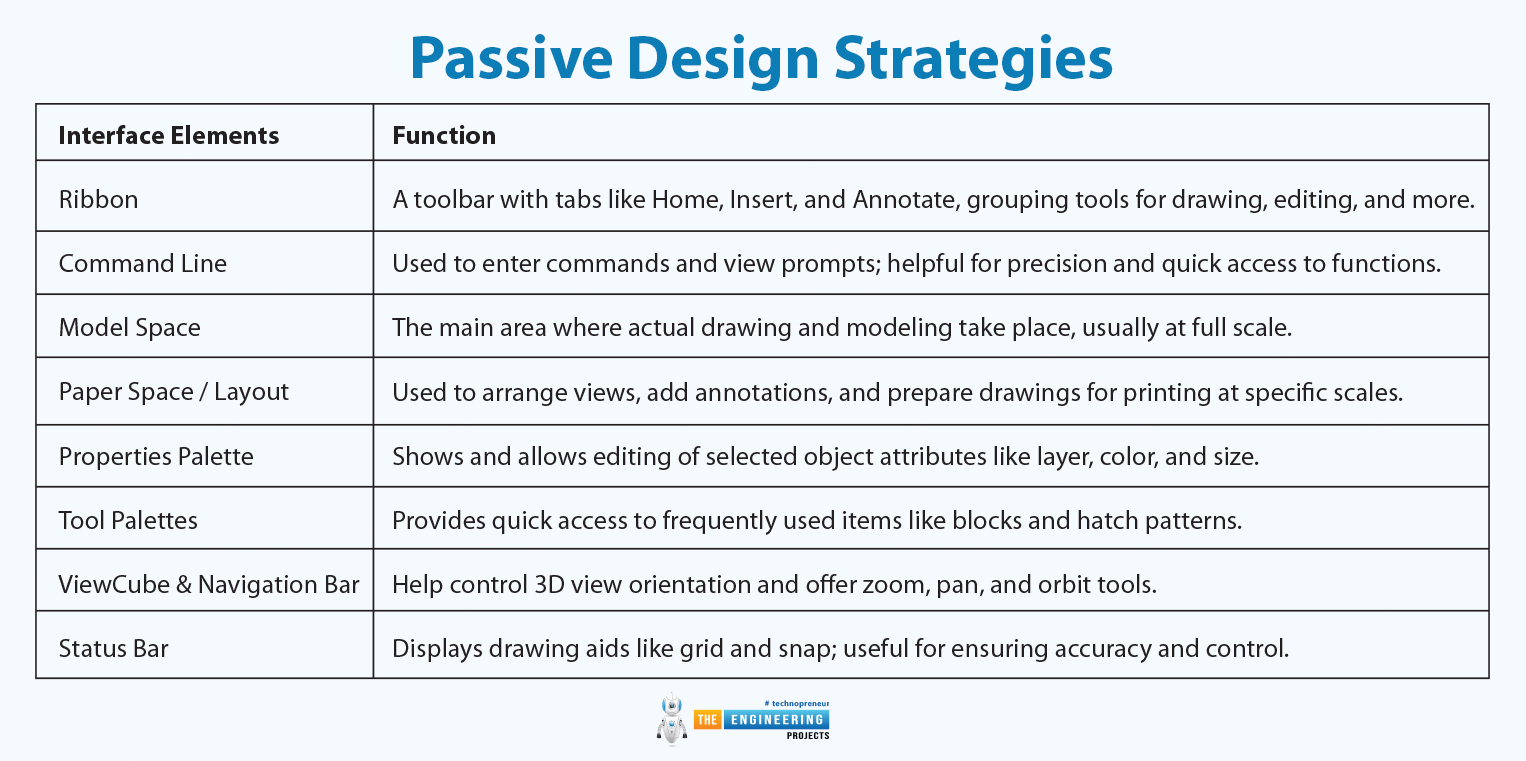

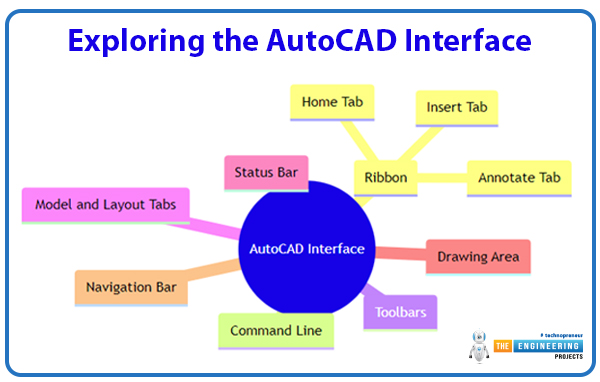

Interface Elements |
Function |
Ribbon |
A toolbar with tabs like Home, Insert, and Annotate, grouping tools for drawing, editing, and more. |
Command Line |
Used to enter commands and view prompts; helpful for precision and quick access to functions. |
Model Space |
The main area where actual drawing and modeling take place, usually at full scale. |
Paper Space / Layout |
Used to arrange views, add annotations, and prepare drawings for printing at specific scales. |
Properties Palette |
Shows and allows editing of selected object attributes like layer, color, and size. |
Tool Palettes |
Provides quick access to frequently used items like blocks and hatch patterns. |
ViewCube & Navigation Bar |
Help control 3D view orientation and offer zoom, pan, and orbit tools. |
Status Bar |
Displays drawing aids like grid and snap; useful for ensuring accuracy and control. |
Learning AutoCAD can be approached step-by-step. Here are some core skills and tips for mastering it.
Navigating the interface and using the command line
Creating and editing basic shapes
Understanding model space vs. paper space
Using object snaps and tracking for precision
Layer management and object properties
Dimensioning and annotation
Creating and inserting blocks
Working with external references
3D modeling and rendering
Creating dynamic blocks and attributes
Customizing tool palettes and ribbon
Writing macros and using AutoLISP
Practice using keyboard shortcuts (e.g., L for Line, C for Circle)
Use “Help” and command suggestions for unfamiliar tools
Save often and use version backups
Learn through tutorials, courses, and community forums
AutoCAD is a popular design and drafting software used in various industries. It is precise, efficient, and can handle 2D as well as 3D designs, making it ready for use in the majority of professional industries.

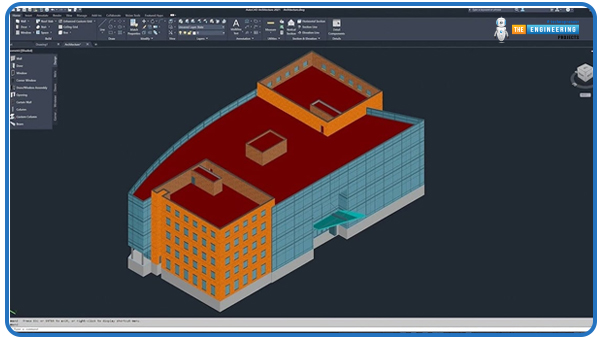

In building design, AutoCAD is a fundamental application for creating building elevations, plans, and sections. Architects utilize it to create accurate floor layouts, create site plans, and develop zoning layouts. It also supports integration with Building Information Modeling (BIM) systems for more intelligent design and collaboration. Special blocks like furniture, windows, and doors provide standardization of designs and reduce drafting time.
AutoCAD is utilized by civil engineers in the planning of infrastructure projects including roads, bridges, and sewerage systems. It is particularly efficient in planning topographic maps, grading plans of sites, and piping and utility layouts. AutoCAD with Civil 3D offers enhanced terrain modeling and corridor modeling, hence being well suited for intricate civil projects with multiple land heights and environmental conditions.

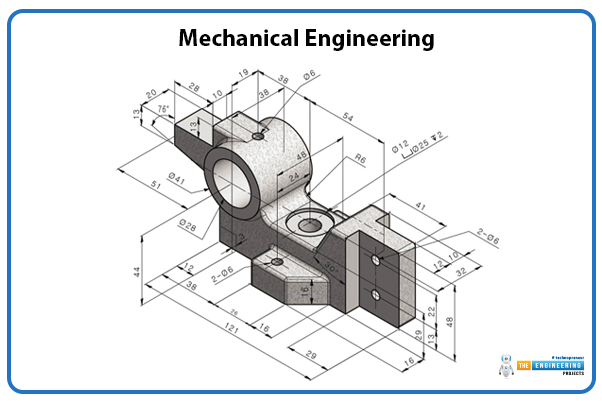

AutoCAD is used by mechanical engineers in designing and developing machine components and assemblies. AutoCAD enables 2D and 3D modeling, allowing parts to be viewed and fit checked. It enables detailing tolerances, fit, and finish. AutoCAD is also capable of being used to develop a Bill of Materials (BOM), which finds great importance during production and inventory planning.
AutoCAD Electrical is a software release dedicated to designing electrical systems. It can assist in the design of schematic diagrams, wiring schematics, and control panel layouts. Engineers can do circuit simulation, generate cable schedules, and utilize pre-defined electrical symbols to assist with precision and consistency in documentation. This minimizes error and maximizes efficiency in the design process.
Interior designers utilize AutoCAD to design room space planning, furniture, and lighting. It is used to generate material schedules and color scheme coordination. 3D modeling capabilities are used by industrial designers for product and package design. Visualization of ergonomic components and spatial relationships is critical when designing products and spaces that are easy to use.
Landscape architects and urban planners apply AutoCAD to produce detailed zoning maps, traffic flow plans, and parkland layouts. AutoCAD supports the incorporation of GIS data and satellite imagery for realistic and accurate planning of public spaces, parks, and natural features.

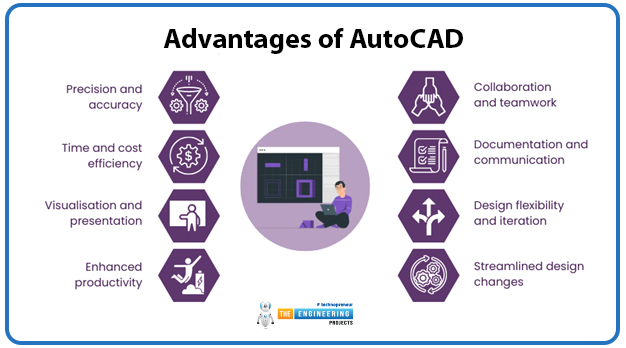

AutoCAD offers extremely accurate technical drawings; you can use eight digits of decimal and geometric constraints will give you a very accurate result. This means a lot in engineering usage, architectural use, and manufacturing applications.
Productivity by users can increase while using AutoCAD via user-defined tool palettes, command aliases and scripting. The automation of busy work saves users time, it reduced errors in large quantity projects.
AutoCAD will create consistency by using layers, blocks, templates, and annotation styles. This means consistency in design standards across teams and organizations, especially when working on collaborative projects.
AutoCAD files can be opened in many file formats. These include DWG, DXF, PDF, DGN, and STL. AutoCAD also works with other Autodesk programs and third-party products to improve data transfer and cross-platform capability.
AutoCAD is successfully used for 2D drafting and 3D modeling. It can cover a wide range of design projects from floor plans and electrical schematics to mechanical parts and architectural presentations.
With AutoCAD Web and AutoCAD Mobile cloud connectivity users can access, modify, and share drawings from any device. Shared views and markups helps communication and coordination within teams.
AutoCAD is more than simple drafting software. Professionals in architecture, engineering, construction, manufacturing or planning can use it as a useful and flexible design tool. It is valuable to use AutoCAD to create design plans for 2D and 3D drawings since the software guarantees that both types are done without sacrificing quality. With AutoCAD, you can draw up plans for a building and also model mechanical elements for any design project.
What also separates AutoCAD from other products is its constant improvement. Each new release of the software always has new features that add usability, performance, and compatibility with new technologies: cloud storage, mobile integration, and collaborative software have all made it easier to work at home, or anywhere for that matter, and to collaborate with teams around the world.
AutoCAD training not only helps improve one’s technical skill level, but can lead to jobs in many different sectors. Although industries are heading in the direction of efficiency and smarter design processes, having a command of tools such as AutoCAD will always be in demand. In this regard, for everyone involved in design, AutoCAD plays an essential role in the technical and creative path.
Although 3D printing feels like a relatively new development, there are lots of promising projects underway. A scheme to build 46 eco-homes has been approved in the UK’s first 3D printed development , for example, and the same is happening in Australia to provide housing for remote indigenous communities in rural areas .
But how can 3D printing be applied in business? Here’s a breakdown on how it can be used and the opportunities it creates.
3D printing refers to technology that can form materials using computer designs. The earliest signs of 3D printing came about in 1981. Dr. Hideo Kodama created a rapid prototyping machine that built solid parts using a resin and a layer-by-layer system.
Using a bottom-up technique, the material is layered until a tangible item is created. We are still in very early days when it comes to 3D printing, but engineers are optimistic about how it can be applied on a large scale across industries. There’s great potential for using 3D printing in manufacturing and home building.
3D printing begins with a design stage. This is the 3D modelling stage where you can uncover the best path to follow to get the most out of the design, such as the materials used. You will also be able to use this information to determine the cost and speed of your project, adjusting where necessary.
3D printing equipment is powered by a system of control cables such as those from RS to facilitate autonomous 3D printing applications. Data connections are also used to transmit the design to printing equipment.
3D printing is commonly used for prototyping ahead of launching major manufacturing projects. It allows product designers to get a life-size glimpse at the proposed product, enabling them to identify any faults or improvements before going ahead with more expensive resources and materials. While 3D printing can be done to a large scale, it can be done to a much smaller scale too to create smaller, cost-effective prototype models.
The attention that is given to the design process and modelling stage means companies can analyse the production method used to create the desired output. Sometimes there will be limitations such as the fact that 3D printing can only work when adding layers on top of one another, which means features like overhangs can’t be catered towards in a simple manner. Regardless, 3D printing can still cater to things that traditional manufacturing can’t.
3D printing can be used to minimise demand on time and manpower. It can be used to tackle more intricate tasks at a larger scale. Aerospace was one of the first industries to utilise this, as well as biomedical and mechanical engineering. In some cases, conventional manufacturing simply can’t replicate the detail at such a large scale.
The world of large format 3D printing is dominated by a few key players who have emerged as the pioneers in this rapidly growing industry. Below are some of the biggest large format 3D printing companies and how they stand to benefit from this revolution:
Stratasys: Stratasys is a leading provider of large format 3D printing solutions, offering a range of industrial-grade printers that are capable of producing high-quality prototypes and end-use parts. With its powerful proprietary Fused Deposition Modeling (FDM) technology, Stratasys is well positioned to capitalize on the growing demand for large format 3D Printing solutions.
HP: HP is one of the largest and most well-known technology companies in the world, and it has recently entered the large format 3D printing market with its HP Jet Fusion technology. With its proven track record in the technology industry, HP has the resources and expertise to quickly establish itself as a leader in the large format 3D printing market.
Massivit3D: Massivit3D is a leading provider of large format 3D printing solutions for the Engineering, Visual Communications, Entertainment, Academia, Interior Design, and Architectural markets. Leveraging its proprietary Gel Dispensing Printing (GDP) technology, the company’s solutions enable rapid and cost-effective production of scale 1 models and parts.
Carbon: Carbon is a leading provider of large format 3D printing solutions that use Digital Light Synthesis (DLS) technology to produce high-quality, end-use parts. With its cutting-edge technology and strong focus on customer satisfaction, Carbon is well positioned to continue to grow and expand its presence in the large format 3D printing market.
These companies stand to benefit greatly from the continued growth of the large format 3D printing market as more and more engineers, manufacturers, and other businesses adopt this innovative technology. By providing high-quality, cost-effective solutions for large format 3D Printing, these companies are helping to drive the growth of the industry and revolutionize the way products are designed and manufactured.
Large format 3D printing has revolutionized the engineering world by allowing engineers to quickly and easily create prototypes, designs, and finished products. By streamlining the manufacturing process, engineers can now focus on developing the best designs and products possible, instead of being bogged down by the time-consuming task of building prototypes by hand.
One of the biggest advantages of large format 3D printing is the ability to produce parts and prototypes at a much faster rate than traditional manufacturing methods. This means that engineers can test and refine their designs in a fraction of the time it would take using traditional methods. In addition, large format 3D printing can be performed on a much larger scale, making it easier to produce large or complex parts and prototypes that would be difficult or impossible to produce using traditional methods.
Another advantage of large format 3D printing is its ability to produce high-quality, precise parts and prototypes. This is because 3D printing uses computer-aided design (CAD) software to create detailed, accurate models. This precision and accuracy is essential for engineers, who need to ensure that their designs are functional and fit for purpose.
In addition, large format 3D printing is incredibly versatile and flexible. Engineers can print parts in a variety of materials, including plastic, metal, and composites, to produce prototypes that are representative of the final product. This means that they can test their designs in real-world conditions, which is essential for ensuring that their designs are robust and reliable.
Finally, large format 3D printing is also cost-effective. Traditional manufacturing methods can be expensive, especially when it comes to producing large or complex parts. With 3D printing, engineers can produce prototypes and parts at a much lower cost, which means they can focus their resources on developing the best possible designs and products.
But, the above are just advantages to the world of engineering on a macro-level. How does large format 3D printing help engineers specifically? Here are just several concise examples:
Design Verification: Large format 3D printing allows engineers to produce prototypes of their designs in a matter of hours. This enables engineers to quickly verify the design’s form, fit, and function, leading to faster product development cycles.
Reduced Costs: By producing prototypes in-house, engineers can significantly reduce the costs associated with traditional prototype development processes such as tooling, shipping, and storage.
Improved Accuracy: Large format 3D printing provides engineers with highly accurate and precise parts. This level of precision can lead to better-performing and longer-lasting products, as well as reduced production time and costs.
Material Options: Large format 3D printing technology offers a wide range of material options, including plastics, metals, ceramics, and composites. This diversity of materials enables engineers to choose the best material for their specific applications, leading to improved performance and durability.
Customization: Large format 3D printing allows engineers to produce highly customized and complex parts, which are not possible to produce through traditional manufacturing processes. This level of customization can lead to improved product performance and increased customer satisfaction.
Increased Productivity: Large format 3D printing can significantly increase the productivity of engineers, as it enables them to quickly produce and test prototypes, reducing the overall time required to bring a product to market.
Sustainability: Large format 3D printing is a more sustainable manufacturing method compared to traditional methods as it reduces waste and energy consumption. Additionally, it enables engineers to produce only the parts they need, reducing the overall carbon footprint associated with the production process.
In conclusion, large format 3D printing is a powerful tool that can help engineers streamline their work. By allowing them to quickly and easily produce high-quality, precise parts and prototypes, engineers can focus on developing the best designs and products possible. Whether it's reducing time-to-market, improving product quality, or reducing costs, large format 3D printing is a valuable tool that should be considered by all engineers looking to improve their workflow.
