LM2596150 kHz buck regulator
Switch, store and smooth: a lower DC voltage with less wasted heat.
LM2596 is a five-pin step-down switching regulator. This reference follows TI’s fixed 5 V versions in TO-220 and D²PAK packages; 3.3 V, 12 V and adjustable versions are separate ordering options. An internal 150 kHz controller switches the input into an external inductor. A Schottky catch diode carries current while the switch is off, and the output capacitor smooths the filtered DC rail. The regulator can support up to 3 A with suitable external parts and cooling. Pin 2 is the switching node, pin 4 senses the filtered output, and pin 3 and the metal tab are ground.
DC inputSwitching outputGround & tabFeedback senseEnable / shutdown

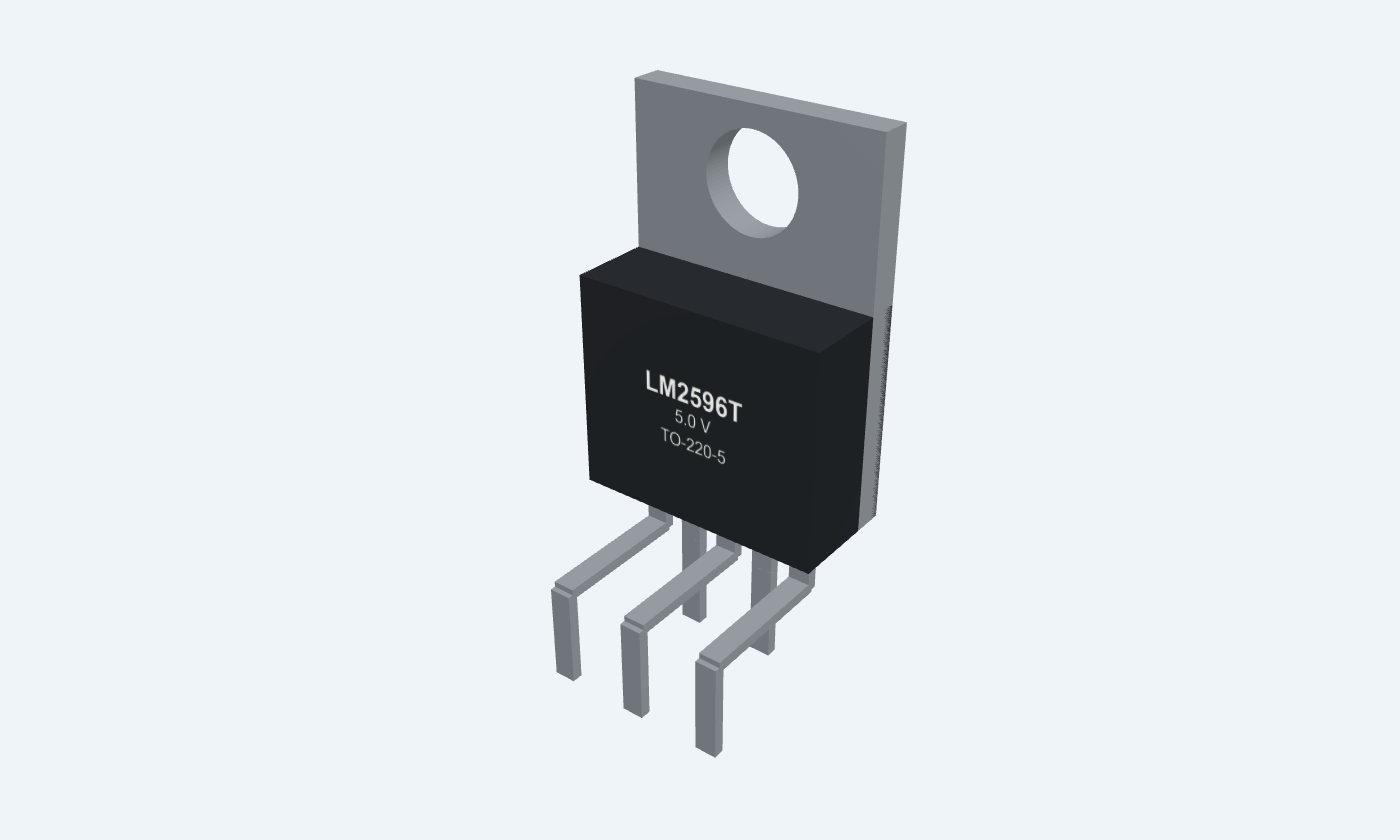

LM2596T-5.0/NOPBTO-220-5Front view · leads down · pin 3 and tab are GND

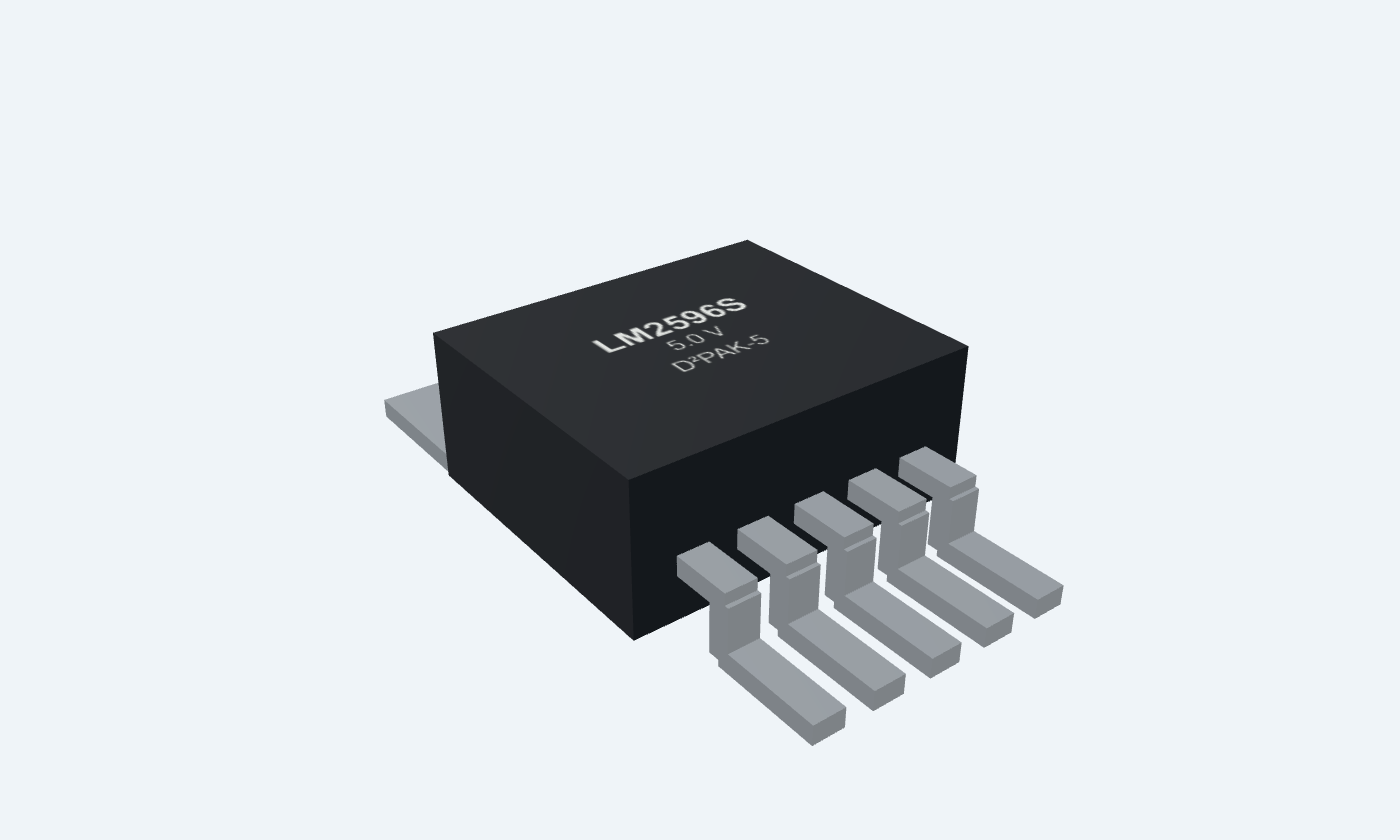

LM2596S-5.0/NOPBD²PAK-5Top view · leads down · pin 3 and tab are GND
Click a lead or use the arrow keys. Front view · leads down · pin 3 and tab are GND
PIN 1 · DC input
Supply inputVIN
Function
Supplies the internal power switch, control circuit and bias current.
How to connect
Connect the positive DC supply and a short, local input bypass to ground.
Electrical note
The 5 V version is specified with 7–40 V input under its stated load conditions; 45 V is an absolute maximum, not an operating target.
PIN 2 · Switching output
Switch nodeSW
Function
Pulsed output of the internal high-side switch. This node drives the external inductor.
How to connect
Connect to the inductor input and Schottky cathode. The diode anode returns to GND.
Electrical note
This is not the filtered 5 V rail. Keep switch-node copper compact and away from feedback wiring.
PIN 3 · Ground & tab
Ground and metal tabGND
Function
Common return for the controller and power stage. The exposed metal tab is also ground.
How to connect
Connect to the input-capacitor return, catch-diode anode and output-capacitor return with short power paths.
Electrical note
On the SMD footprint, pin 3 and the thermal-pad sections have the same electrical pad number.
PIN 4 · Feedback sense
Output senseFB
Function
Senses the filtered output and closes the regulation loop. The fixed 5 V device includes its feedback divider internally.
How to connect
For the fixed 5 V example, connect directly to the output after the inductor, near COUT.
Electrical note
The adjustable variant instead needs an external divider referenced to approximately 1.23 V. Do not mix the two circuits.
PIN 5 · Enable / shutdown
Shutdown inputON/OFF
Function
Low enables switching; high shuts the regulator down.
How to connect
Connect to ground for an always-on converter.
Electrical note
Logic ON is guaranteed at 0.6 V or below and OFF at 2 V or above over the specified temperature range. The typical switching threshold is approximately 1.3 V.
At a glance
150 kHz buck regulator
Use an inductor, catch diode and suitable input/output capacitors. The filtered output—not the switch node—feeds the load and feedback pin.
5 V · fixed versionSelected output
150 kHz typicalSwitching frequency
−40–125 °CJunction operation
3 A · design-dependentOutput capability
Operating profile
LM2596T-5.0/NOPB
Operating envelope
Key parameters and their test conditions
- Nominal output
- 5 VConditions / notes: LM2596T-5.0 / LM2596S-5.0
- Specified input for 5 V regulation
- 7–40 VConditions / notes: 0.2–3 A output load
- Output at 25°C
- 4.8–5.2 VConditions / notes: VIN = 7–40 V; ILOAD = 0.2–3 A
- Output over temperature
- 4.75–5.25 VConditions / notes: Same input/load range; TJ = −40–125°C
- Output current
- Up to 3 AConditions / notes: Inductor, diode, capacitors, layout and cooling must support the load
- General supply operating range
- 4.5–40 VConditions / notes: Does not imply a regulated 5 V output from 4.5 V input
Package details
Follows the selected physical package
- Manufacturer
- Texas Instruments
- Part number
- LM2596T-5.0/NOPB
- Package
- TO-220-5
- Connections
- 5 pins
- Mounting
- Through-hole
- Lead pitch
- 1.70 mm
- Package code
- NDH
- Thermal reference
- Grounded tab; thermal performance depends on board copper and cooling
Connections by function
Select a pin to open its function, electrical notes and wiring guidance.
DC input1 pins
Switching output1 pins
Ground & tab1 pins
Feedback sense1 pins
Enable / shutdown1 pins
DC input1 pins
Switching output1 pins
Ground & tab1 pins
Feedback sense1 pins
Enable / shutdown1 pins
Switch ON: charge the inductor
The internal transistor connects VIN to pin 2. Inductor current rises while energy flows toward the load.
Switch OFF: keep current flowing
The catch diode conducts from ground into the switch node. Inductor current continues toward the load and falls gradually.
Close the control loop
Feedback senses the filtered output. The controller adjusts pulse width, while current limiting and thermal shutdown handle abnormal conditions.
The 12 V to 5 V, 1 A example has an ideal duty ratio of 41.7%. At 150 kHz and 47 µH, ideal inductor ripple is about 0.414 A peak-to-peak. These are calculated illustrations, not live measurements.
Pin reference
Select a pin to explore its function and connection.
5 pins
| Pin | Signal | Type | Function |
|---|---|---|---|
| VIN | Supply input | Supplies the internal power switch, control circuit and bias current. | |
| SW | Switch node | Pulsed output of the internal high-side switch. This node drives the external inductor. | |
| GND | Ground and metal tab | Common return for the controller and power stage. The exposed metal tab is also ground. | |
| FB | Output sense | Senses the filtered output and closes the regulation loop. The fixed 5 V device includes its feedback divider internally. | |
| ON/OFF | Shutdown input | Low enables switching; high shuts the regulator down. |
No pins match. Try a signal name or choose All pins.
Operating envelope
Fixed 5 V option · TI SNVS124G
Manufacturer specifications 6 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Nominal output | 5 V | LM2596T-5.0 / LM2596S-5.0 |
| Specified input for 5 V regulation | 7–40 V | 0.2–3 A output load |
| Output at 25°C | 4.8–5.2 V | VIN = 7–40 V; ILOAD = 0.2–3 A |
| Output over temperature | 4.75–5.25 V | Same input/load range; TJ = −40–125°C |
| Output current | Up to 3 A | Inductor, diode, capacitors, layout and cooling must support the load |
| General supply operating range | 4.5–40 V | Does not imply a regulated 5 V output from 4.5 V input |
No specifications match. Try a parameter name or a unit.
Output accuracy includes the manufacturer’s stated conditions; do not use a headline current rating without thermal review.
Switching and control
Typical values retain their test conditions
Manufacturer specifications 6 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Oscillator | 150 kHz typical | 127–173 kHz at 25°C; 110–173 kHz over temperature |
| Switch saturation | 1.16 V typical | 3 A switch current; 1.4 V maximum at 25°C |
| Peak switch-current limit | 4.5 A typical | Protection threshold; not a continuous output rating |
| Shutdown threshold | 1.3 V typical | High = OFF; low = ON |
| Guaranteed enable / shutdown | ≤ 0.6 V / ≥ 2 V | Logic thresholds over specified temperature range |
| Standby supply current | 80 µA typical | VIN = 40 V, ON/OFF = 5 V; 200 µA maximum at 25°C |
No specifications match. Try a parameter name or a unit.
The internal switch and diode have losses; the actual duty ratio is above the ideal VOUT/VIN estimate.

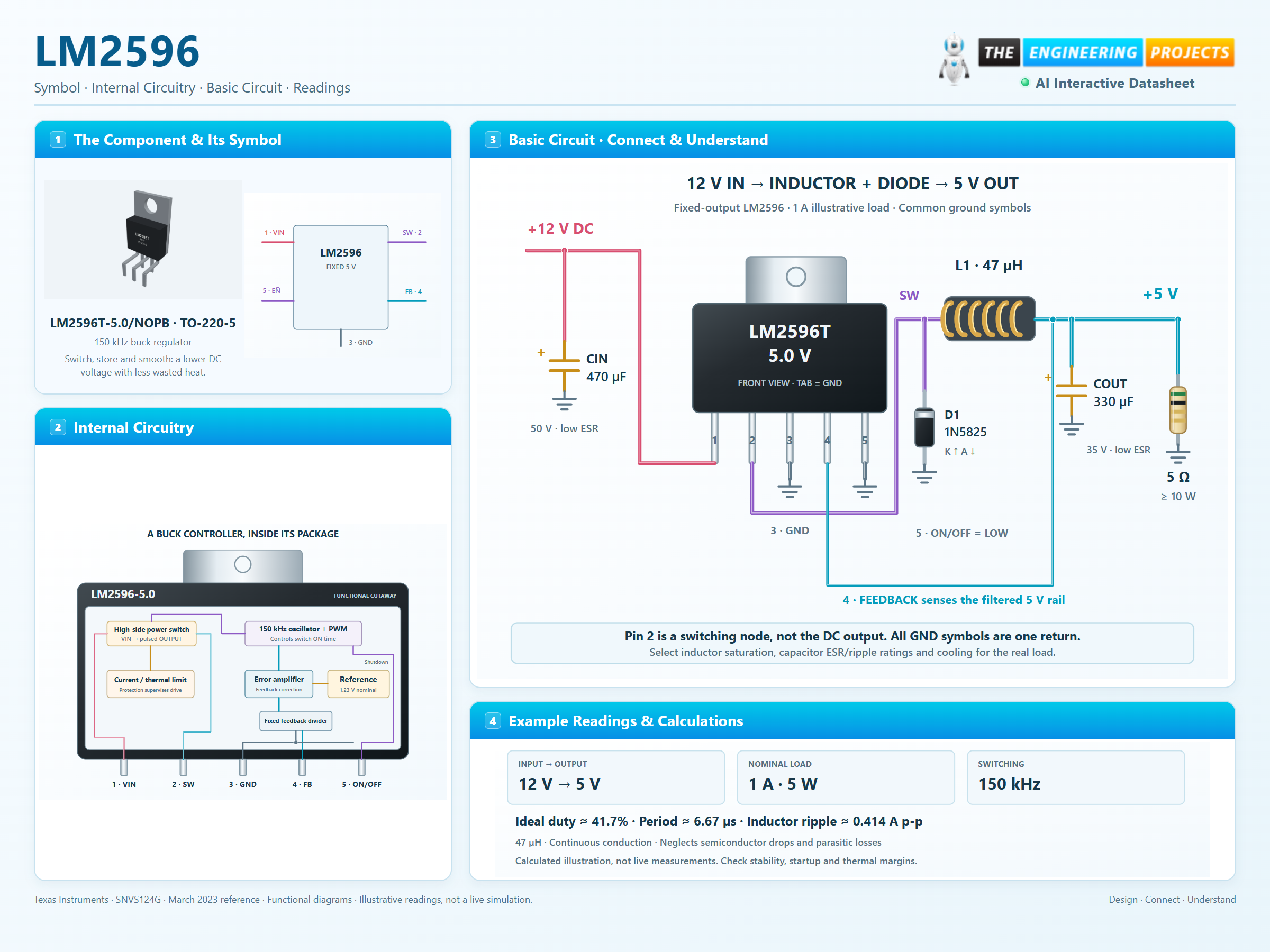

12 V to 5 V example
