LM386Low-voltage audio power amplifier
Take a small audio signal all the way to a speaker.
LM386 is an 8-pin mono audio power amplifier that can drive a small speaker from a low-voltage supply. Unlike a general-purpose op-amp, its internal feedback gives a useful audio gain with very few external parts. With pins 1 and 8 open, the voltage gain is approximately 20. A capacitor across those pins can raise AC gain to 200, while the output capacitor keeps the amplifier’s DC bias out of the speaker. This page uses LM386N-1 in PDIP-8 and LM386M-1 in SOIC-8. Both use a 4–12 V supply range; the higher-voltage LM386N-4 limits must not be applied to these parts.
Gain & bypassAudio inputsSupply & returnSpeaker drive

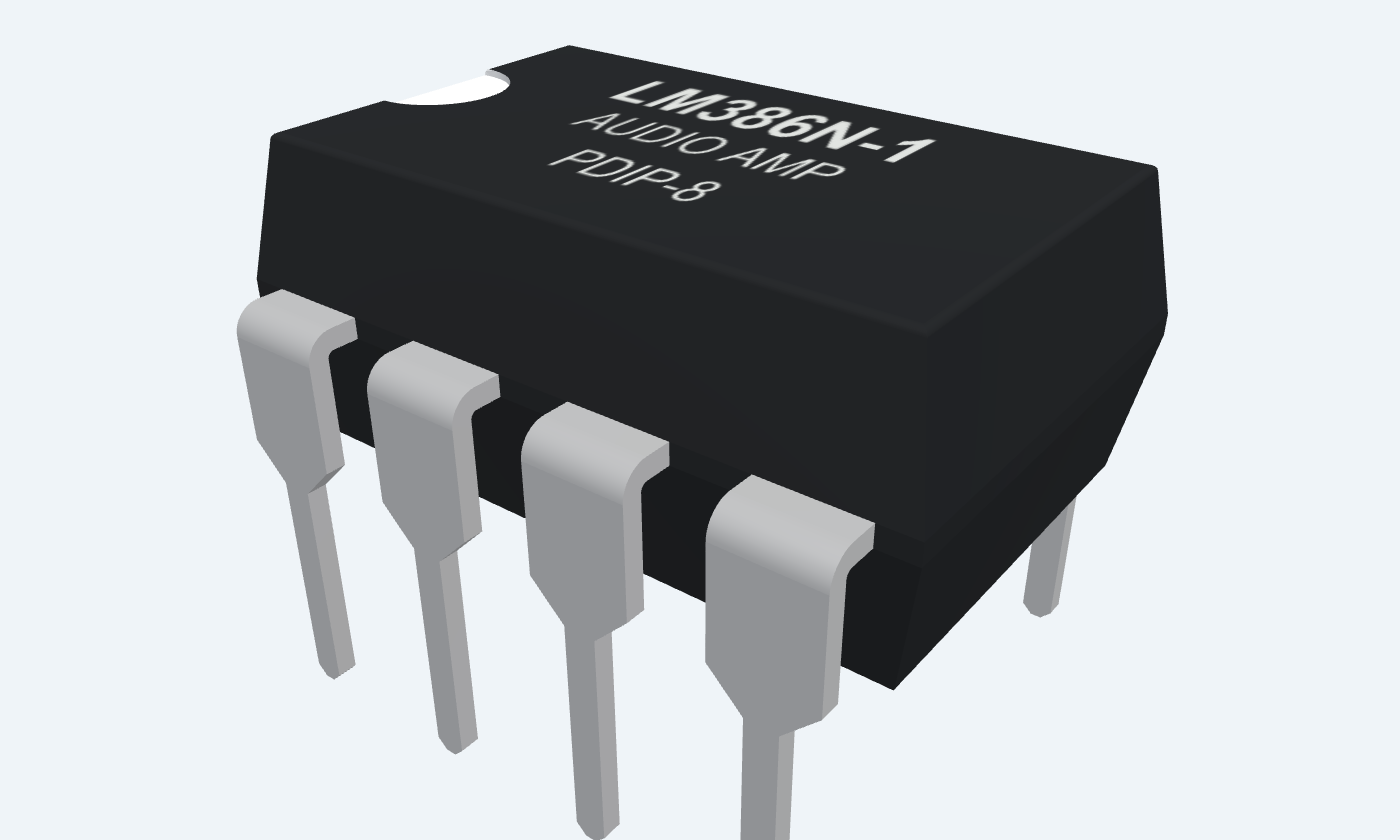

LM386N-1PDIP-8Top view

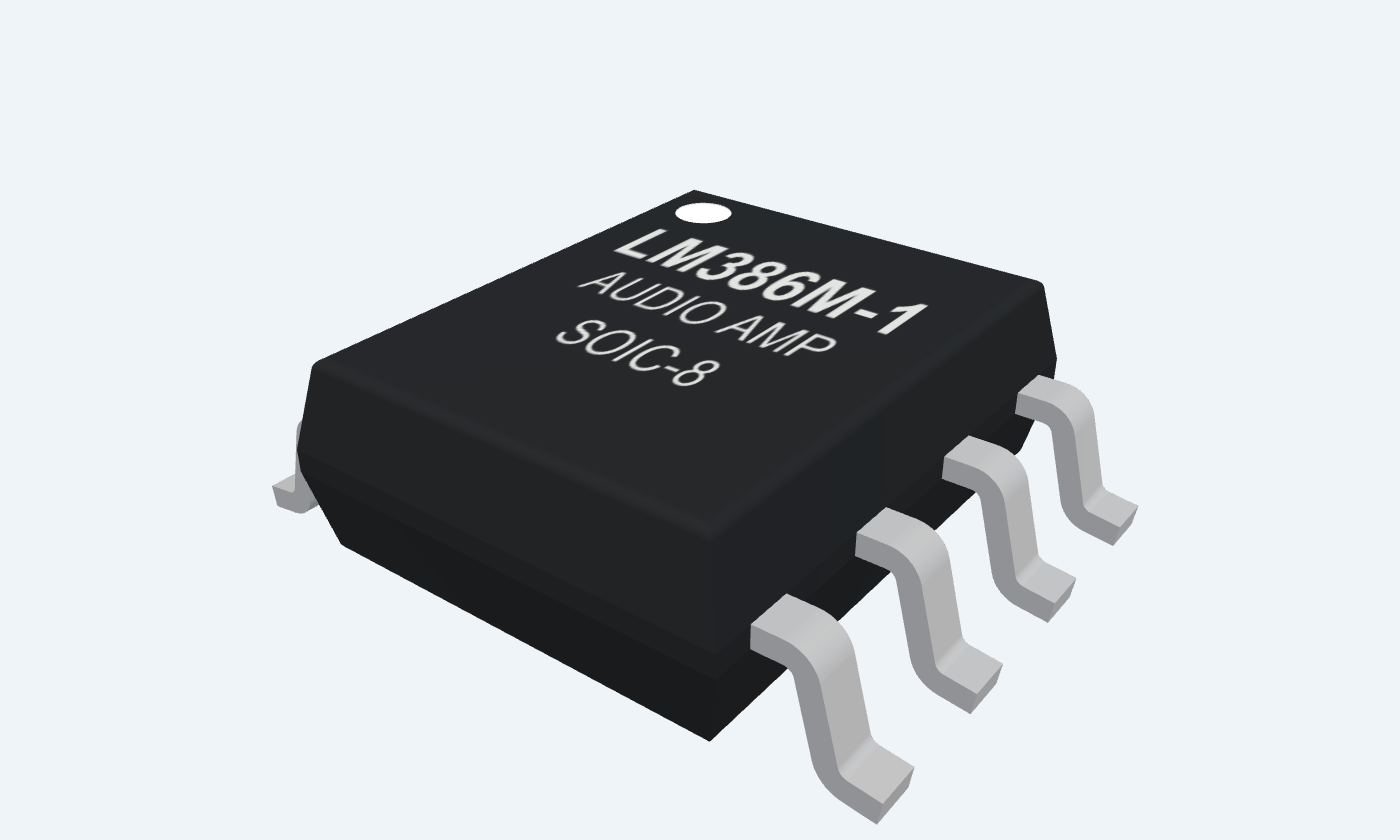

LM386M-1SOIC-8Top view
Click a lead or use the arrow keys. Top view
PIN 1 · Gain & bypass
Gain adjustmentGAIN
Function
One end of the internal gain-setting network.
How to connect
Leave open for gain 20; a 10 µF capacitor from pin 1 to pin 8 raises AC gain to about 200.
Electrical note
Positive capacitor terminal at pin 1.
PIN 2 · Audio inputs
Inverting input−INPUT
Function
Ground-referenced inverting signal input.
How to connect
Connect to signal ground in the non-inverting speaker example.
PIN 3 · Audio inputs
Non-inverting input+INPUT
Function
Ground-referenced audio input.
How to connect
Feed a small AC signal through the input coupling capacitor.
Electrical note
Keep input excursions inside ±0.4 V.
PIN 4 · Supply & return
GroundGND
Function
Input, bypass and power return reference.
How to connect
Connect to supply negative; keep input returns away from speaker-current paths.
PIN 5 · Speaker drive
Audio outputVOUT
Function
Output sits near half the supply at rest; the audio waveform rides on this DC level.
How to connect
Use a series output capacitor before the speaker. Connect a 10 Ω + 47 nF series network from output to GND.
Electrical note
Do not connect an ordinary low-impedance speaker directly between this pin and GND.
PIN 6 · Supply & return
Positive supplyVS
Function
Supply for the amplifier output and bias circuits.
How to connect
Use +6 V in this example with local 100 nF and 100 µF bypass capacitors.
Electrical note
4–12 V for the selected -1 variants.
PIN 7 · Gain & bypass
Bias bypassBYPASS
Function
Decoupling access to the internal bias network.
How to connect
An optional 10 µF capacitor to GND improves supply rejection.
Electrical note
Capacitor positive at pin 7.
PIN 8 · Gain & bypass
Gain adjustmentGAIN
Function
The second end of the gain-setting network.
How to connect
Leave open with pin 1 for gain 20.
Electrical note
A capacitor or series RC between 1 and 8 changes gain; it is not a supply pin.
At a glance
Low-voltage audio power amplifier
A ground-referenced input, internally set gain and a biased power output make a compact mono amplifier. The speaker needs AC coupling.
4–12 VSelected -1 supply range
20–200 Set with pins 1 and 8Voltage gain
0–70 °CAmbient range
325 mW · 8 Ω · 10% THDTypical power at 6 V
Operating profile
LM386N-1
Operating conditions
Key parameters and their test conditions
- Supply voltage
- 4–12 VConditions / notes: Selected -1 variants
- Ambient temperature
- 0 to 70°CConditions / notes: Operating range
- Speaker impedance
- 4 Ω minimumConditions / notes: Use the power curves for the selected supply and load
- Input range
- −0.4 to +0.4 VConditions / notes: Relative to GND
- Quiescent current
- 4 mA typical; 8 mA maximumConditions / notes: VS = 6 V; VIN = 0
Package details
Follows the selected physical package
- Manufacturer
- Texas Instruments
- Part number
- LM386N-1
- Package
- PDIP-8
- Connections
- 8 pins
- Mounting
- Through-hole
- Lead pitch
- 2.54 mm
- Package code
- dip
- Thermal reference
- Board and package dependent; see manufacturer data
Connections by function
Select a pin to open its function, electrical notes and wiring guidance.
Gain & bypass3 pins
Audio inputs2 pins
Supply & return2 pins
Speaker drive1 pins
Gain & bypass3 pins
Audio inputs2 pins
Supply & return2 pins
Speaker drive1 pins
Feed a ground-referenced signal
The input stage accepts a small audio waveform around ground. Coupling and volume control keep the applied level appropriate.
Set the AC gain
Internal feedback sets gain 20. Bypassing the gain network with a capacitor between pins 1 and 8 increases gain; higher gain also amplifies noise.
Remove the DC before the speaker
The output rests near half the supply. A large series capacitor blocks this DC level while passing the changing audio signal.
Gain is a voltage ratio, not an output-power rating. Actual speaker power depends on supply, load, clipping, distortion and package heating.
From millivolts to speaker power
Change gain and frequency to explore amplification and output coupling.
Requested IC peak—
Speaker power—
Coupling corner—
Enable JavaScript to explore audio gain.
Teaching model: ideal gain, an RC output coupling network and an illustrative ±2 V peak output limit. The limit is not a guaranteed LM386 clipping specification. Speaker impedance, bandwidth, noise, distortion and thermal effects are not simulated.
Pin reference
Select a pin to explore its function and connection.
8 pins
| Pin | Signal | Type | Function |
|---|---|---|---|
| GAIN | Gain adjustment | One end of the internal gain-setting network. | |
| −INPUT | Inverting input | Ground-referenced inverting signal input. | |
| +INPUT | Non-inverting input | Ground-referenced audio input. | |
| GND | Ground | Input, bypass and power return reference. | |
| VOUT | Audio output | Output sits near half the supply at rest; the audio waveform rides on this DC level. | |
| VS | Positive supply | Supply for the amplifier output and bias circuits. | |
| BYPASS | Bias bypass | Decoupling access to the internal bias network. | |
| GAIN | Gain adjustment | The second end of the gain-setting network. |
No pins match. Try a signal name or choose All pins.
Operating conditions
LM386N-1 / LM386M-1
Manufacturer specifications 5 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Supply voltage | 4–12 V | Selected -1 variants |
| Ambient temperature | 0 to 70°C | Operating range |
| Speaker impedance | 4 Ω minimum | Use the power curves for the selected supply and load |
| Input range | −0.4 to +0.4 V | Relative to GND |
| Quiescent current | 4 mA typical; 8 mA maximum | VS = 6 V; VIN = 0 |
No specifications match. Try a parameter name or a unit.
The LM386N-4 is a different option with a 5–18 V operating range.
Audio performance
Conditions matter
Manufacturer specifications 8 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Default voltage gain | 20 V/V · 26 dB | 6 V; 1 kHz; pins 1 and 8 open |
| High-gain configuration | 200 V/V · 46 dB | 10 µF between pins 1 and 8 |
| Bandwidth | 300 kHz typical | 6 V; gain 20 |
| Output power | 250 mW minimum; 325 mW typical | 6 V; 8 Ω; 10% THD; selected -1 variants |
| Distortion | 0.2% typical | 6 V; 8 Ω; 125 mW; 1 kHz; gain 20 |
| Input resistance | 50 kΩ typical | Small-signal input |
| Input bias current | 250 nA typical | 6 V; inputs open |
| Supply rejection | 50 dB typical | 6 V; 1 kHz; 10 µF bypass; gain pins open |
No specifications match. Try a parameter name or a unit.
The 10% THD power rating is not a low-distortion listening target.

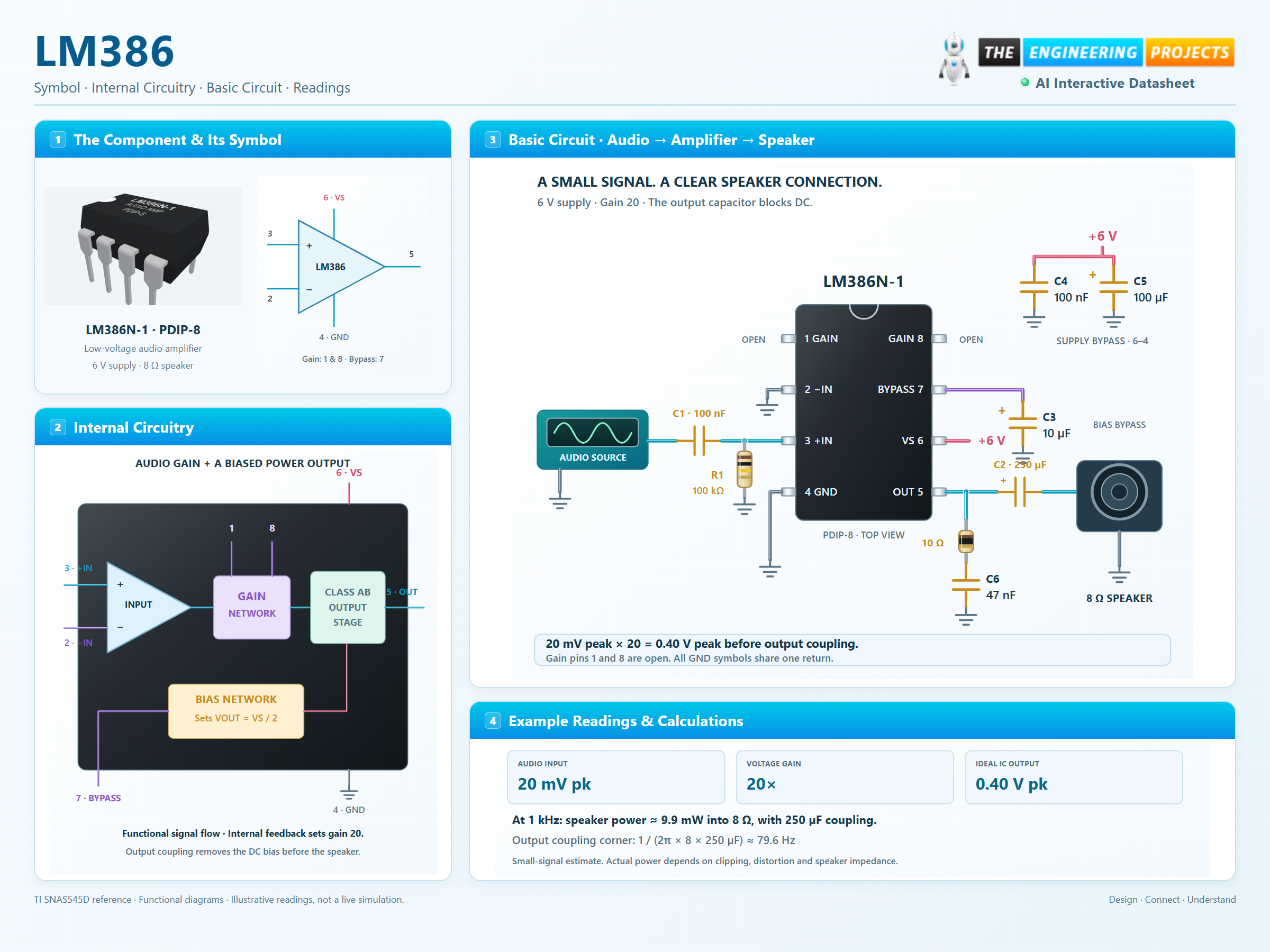

Speaker circuit
6 V · gain 20 · 8 Ω
Manufacturer specifications 8 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Input coupling C1 | 100 nF | Audio source to input3; 100 kΩ input return |
| Input return R1 | 100 kΩ | Input3 to GND; internal input resistance also loads it |
| Output coupling C2 | 250 µF | Positive side at output5; speaker side near 0 V DC |
| Output stability network | 10 Ω in series with 47 nF | Output5 to GND; place close to the IC |
| Supply bypass | 100 nF + 100 µF | VS6 to GND4 |
| Bias bypass | 10 µF optional | Pin7 to GND; positive at pin7 |
| Gain pins | 1 and 8 open | Gain approximately 20 |
| Speaker high-pass corner | 79.6 Hz nominal | 1 / (2π × 8 Ω × 250 µF) |
No specifications match. Try a parameter name or a unit.
Speaker impedance varies with frequency; the calculator treats it as an 8 Ω resistor.
Gain configurations
Pins 1 and 8
Manufacturer specifications 5 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Open pins | Gain ≈ 20 | Fewest external parts |
| 10 µF capacitor | Gain ≈ 200 | Positive at pin1; negative at pin8 |
| 10 µF + 1.2 kΩ in series | Gain ≈ 50 | Manufacturer example |
| More gain | More sensitivity and amplified noise | Reduce source level to avoid clipping |
| Output at rest | Approximately VS / 2 | Not a ground-referenced DC output |
No specifications match. Try a parameter name or a unit.
These are AC gain configurations; they do not turn the device into a rail-to-rail precision op-amp.
Package and stress limits
LM386N-1 · PDIP-8
Manufacturer specifications 5 parameters
| Parameter | Value | Conditions / notes |
|---|---|---|
| Lead pitch | 2.54 mm | Through-hole; top view |
| Supply absolute maximum | 15 V | Selected -1 variants; stress rating only |
| Input absolute maximum | ±0.4 V | Respect signal amplitude and transients |
| Storage temperature | −65 to +150°C | Unpowered |
| Thermal design | Package and PCB dependent | Check dissipation and thermal resistance for the actual layout |
No specifications match. Try a parameter name or a unit.
Absolute maximum limits are not recommended operating targets.
Small radios
Amplify a receiver’s audio into a compact speaker.
Manufacturer application guideIntercoms
Use a suitable microphone preamplifier, then the LM386 as a speaker output stage.
Manufacturer application guidePortable audio experiments
Demonstrate gain, clipping, AC coupling and the effect of speaker impedance.
Manufacturer application guideTake it into ProTech
Find LM386 in the Components Library to place its schematic symbol and connect its pins.
