Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ringHello friends, I hope you all are doing great. In today’s tutorial, we will discuss the Types and Usage of the Slip Rings. Slip rings are an essential part of any system that has or does rotation as a part of working. At the center of any automation system, an electric slip ring is responsible for the transmission of current from a static device to a rotating one. They are used almost with every machine that requires power and data connectivity. It is because of this reason slip rings have a significant impact on equipment consistency, action, and performance.
Slip rings enrich the mechanical-performance of the mechanism, modernize system utility, and eliminate damage-prone wires dangling from revolving joints. Slip rings are also known as rotatory linkages, swivels, and commutates. A slip ring encompasses brush blocks, which are coordinated and available as a pair of the ring and a brush.
These days almost every product has a slip ring in them. There are all kinds of the slip rings available in the market like collecting ring, high-speed slip ring, disk electric conduction slip ring and many more. Each slip ring has a different purpose and use. In today’s post, we will have a look at different types of slip rings and their uses. So let’s get started with the Types and Usage of the Slip Rings.

Types and Usage of the Slip Rings

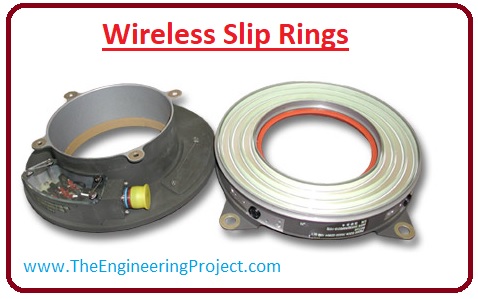

Wireless Slip Rings

  • They don’t rely on procedures approved using carbon contact brush and resistance based metal in slip rings.
  • As an alternative, they rely on the transformation of data and power wirelessly utilizing the electromagnetic field.
  • It is produced using the coils that are positioned in a revolving receiver and immobile receiver.
  • They are considered as an additional for traditional slip ring they are easy to conserve and can withstand in an unforgiving environment.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

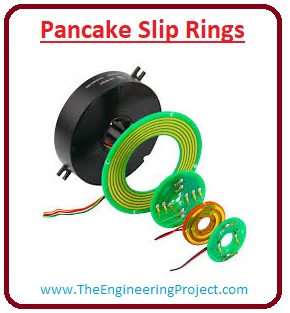

Pancake Slip Rings

  • In the pancake slip ring, electrodes are located on the flat disc. They are the kind of concentric rings that are positioned at the inner of the rotating shaft.
  • This arrangement possesses a high burden and advanced capacitance and gathers wear remain on its vertical axis proficiently.
  • In some situations, it has condensed axial length which is demonstrated to be suitable for some applications.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

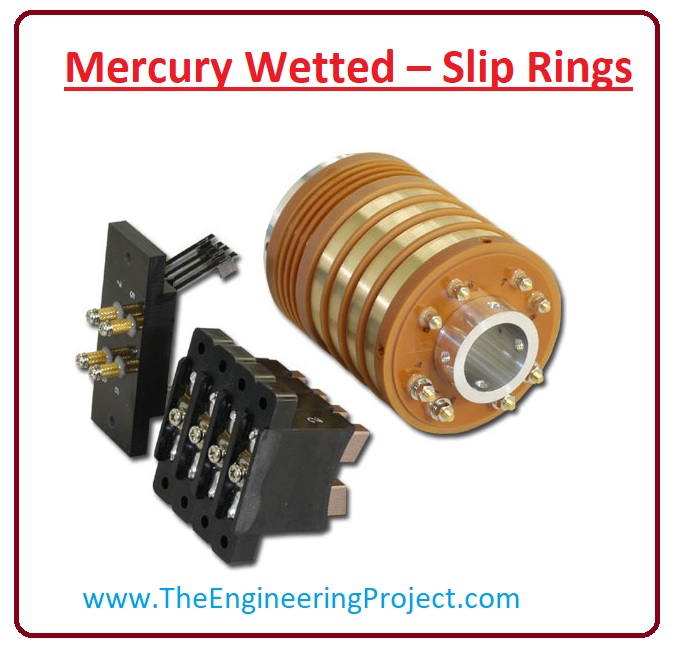

Mercury Wetted – Slip Rings

  • They are distinguished for their steady connection and their low-slung resistance.
  • Here sliding brush contact is substituted by a pool of liquid metal that is confined to links.
  • During the spin, the liquid metal starts a linkage amongst a rotating and immobile contact.




  • The decision has to be made sensibly while choosing valuable metal contacts when slip ring applications contain food manufacturing goods and pharm equipment.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

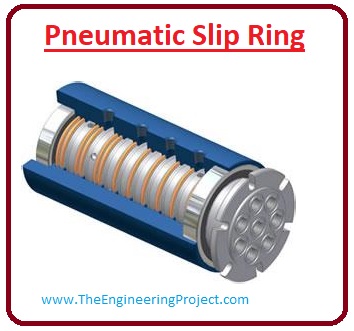

Pneumatic slip ring

  • This slip ring is used to transport pneumatic pressure or void from a static inlet to a rotating outlet. Meanwhile stabilizing and separating the liquid connection while rotating 360.
  • Pneumatic slip rings mostly used in commercial and industrial plants equipment, off-shore drilling rigs and geotechnical tools.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

Fiber Optic Slip Rings

  • Also known as Fiber Optic Rotatory Joints, they are to pass signals across spinning interfaces when a large amount of data is being transmitted.



  • Fiber optic Rotatory Joints maintain essential benefits of fiber from end to end.
  • They are mainly used to transmit two way and four-way fiber optic connectors. Because of this, the design should be carefully crafted as the fiber’s diameter is small moreover single-mode fiber’s diameter is just 9nm.
  • Hence the design should maintain precision which makes it challenging to process the structure of the product.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

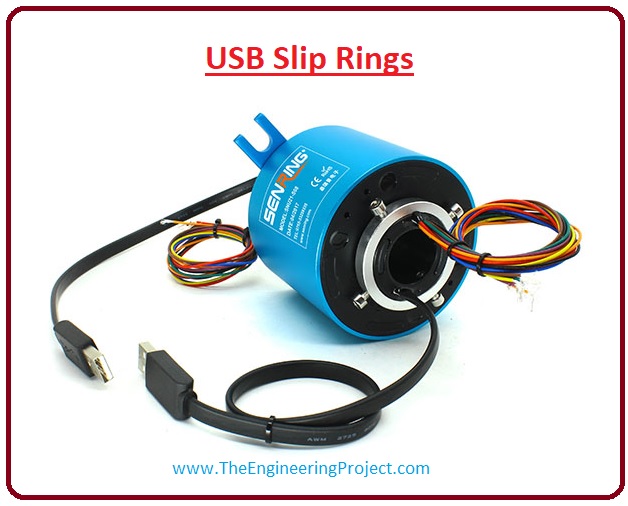

USB Slip Rings

  • USB slip rings are used to get a USB signal from the static part to the moving part when it is moving 360 continuously.
  • At the same time, it also assures that the USB wires don’t become twisted with each other.
  • These USB slip rings are used in King USB device, equipment of USB among many other things.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

Ethernet Slip Rings

  • Ethernet slip rings are a revolving electrical device the purpose of which is to transfer power while controlling circuits or data from static inlets to revolving outlets.
  • Their innovative design meets the requirements of matching impedance, reducing losses and controlling crosstalk.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

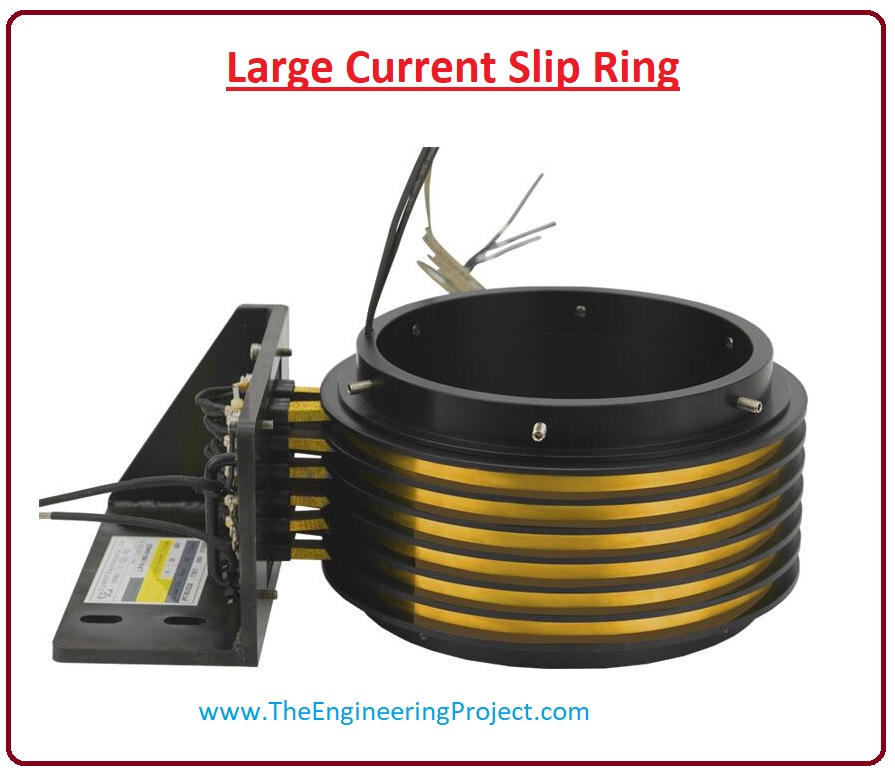

Large Current Slip Ring

  • Large current slip rings are used to transmit high power and large current from a static part to a revolving one.
  • While doing that they preserve and isolate the electrical connection. They also function as revolving connectors when a high amount of current it requires.
  • Also, they are well suited when used as heating elements.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

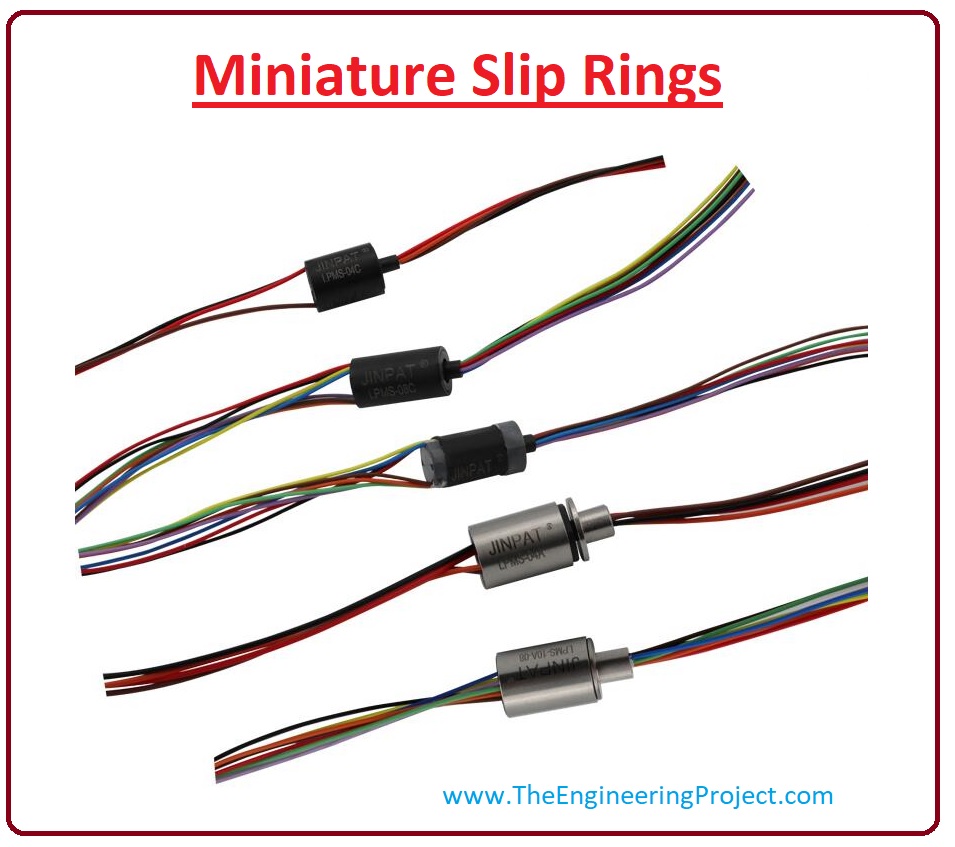

Miniature Slip Rings

  • These are small slip rings designed to meet the requirements of small devices in which there is a need to transfer power and signal from an immobile to the revolving component.
  • Given their small size they are ideal for electrical devices like sensors, video transmitters, and control panels.
  • They are especially fit for rotating systems which require low controlling signals.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

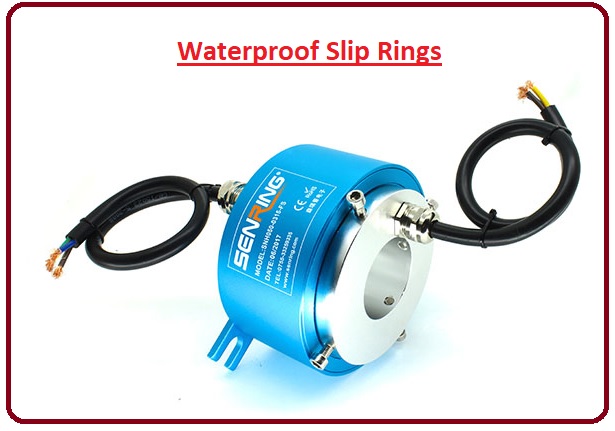

Waterproof Slip Rings

  • The waterproof slip rings are used in an environment where there is a presence of moisture, corrosion and in underwater systems.
  • Conferring to the operational environment, the waterproof slip ring could be classified into various fortification grades, such as IP65, IP67, IP68 and many more.
  • The protective design and material assortment for the slip ring is connected with usage in an environment where there are liquid ingredients, such as seawater, freshwater, oil, etc.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

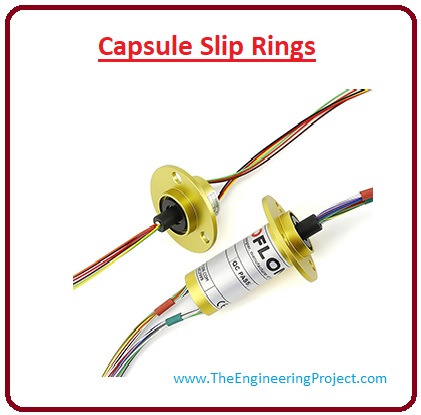

Capsule Slip Rings

  • They are best used for applications where signal and power transmission is required. Also where a compressed footprint along with the low cost is essential.
  • They are a blend of concentrated scope and high function making them perfect for video and other stimulating transmissions in which space is critical.
  • They use gold-on gold connects to assure longer-lasting, low noise and reduced interference which makes them perfect for transmitting video signals in applications like CCTV.Types and Usage of the Slip Rings,, Wireless Slip Rings,, Pancake Slip Rings, Mercury Wetted – Slip Rings, Pneumatic slip ring, Fiber optic slip rings, USB slip rings, Ethernet slip rings slip ring

Slip rings are one of the most crucial parts of an automatic system that has a rotating motion. Hence their performance directly relates to the consistency of the whole system which runs even during routine operations.

So, it is the detailed article on the types and usage of the slip ring, if you have any question about slip ring ask in comments. Thanks for reading. Take care until the next tutorial.
