Hello friends, I hope you all are in good health. Today we will discuss a detailed overview of flexible PCB, its definition, types, advantages and manufacturing. We will also discuss why we need flexible PCB? We will discuss its uses and the reason for its high price, as it’s expensive than other PCB types. I will try to deliver you my best knowledge about flexible PCB so you will clear understanding of flexible PCB. So let’s try to absorb everything about flexible PCB.

Flexible PCB overview

  • For irregular-shaped locations, it was difficult to place hard substrate PCBs. So, as necessity is the mother of invention similarly difficult locations and irregular surfaces are the mother of flexible PCB invention.
  • Before the 1950s flexible PCBs are not in common use but now they are used everywhere like in ATM keypads and smartwatches. Now let us have a look at the proper definition of FPCB.

Flexible PCB definition

  • The board that is made up of flexible plastic substrate usually polyester, polyimide or thin sheets of glass are called flexible printed circuit boards or FPCBs.
  • FPCBs have the ability to change their shape because they can twist and bend easily. In some devices, both rigid and flexible PCBs are incorporated to produce the desired functionality.
  • FPCB should not be so flexible that the board breaks down during folding or twisting.

Flexible PCB Pricing

Let’s discuss the pricing of Flexible PCB and here I am going to take the example of an online PCB Fabrication House named PCBWay. It’s a well-renowned PCB house and provides competitive rates with a quality product.

  • If you open the PCB Calculator of PCBWay and select Rigid-Flex PCB at the top, you will get a similar result:

Why Flexible PCB are expensive, flexible pcb expensive, flex pcb cost, flexible pcb, pcbway flexible pcb

  • Now, here I am going to select Flexible PCB and I am going to place an order of 10 PCBs, each of size 10x10mm.
  • In order to get the quote, we need to click on the Calculate Button and here’s the price:

Why Flexible PCB are expensive, flexible pcb expensive, flex pcb cost, flexible pcb, pcbway flexible pcb

  • Now you can see the price for 10 pcs is $125 and it’s quite expensive as compared to normal rigid PCB.
  • PCBWay provides the best rates for PCB manufacturing and if you check on any other site, you will get even higher rates.

Types of FPCB

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends

  • FPCB has a few common types listed below:
    1. Single-sided FPCB
    2. Double-sided FPCB
    3. Multi-layer FFPCB
    4. Rigid-flex PCB( RFPCB)
    5. High Density interconnects FPCB.

Single-sided FPCB

  • It contains a conductive layer of copper on only one side of the PCB.
  • They are used in applications that need highly flexible circuits.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Single sided FPCB

Double-sided FPCB:

  • It contains a copper layer on both sides of the PCB. The layers are made connected by vias or by plate through holes( PTH).
  • Double-sided FPCB is popular for its ease of manufacturing.

Multilayer FPCB:

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Double sided FPCB

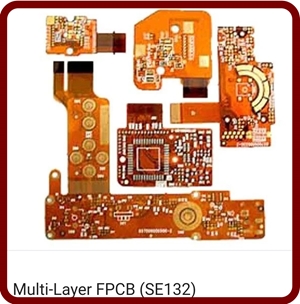

  • In the multi-layer FPCBs, multi-layer PCBs are connected by vias or PTH.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Multi-layer FPCB

  • It may contain more than 10 conductive layers of copper.
  • They are used in designs that require PCBs with high-density connectors.
  • Using more layers in flexible PCB design adds to the cost of FPCB.

Rigid-flex printed circuit board:

  • In RFPCB, flexible layers are integrated with the rigid layers and PTH technology is used to assemble circuit boards.
  • Small Interconnect areas are created by using both rigid and flexible layers so the chances of failure of PCB are reduced in an application.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Rigid flex printed circuit board

High-Density flexible FPCB:

  • HDI are flexible circuit boards having microvias and precise features.
  • They are used to provide more technical solutions interesting of layout, design and construction.
  • HDI are known for their improved usage of ICs, greater reliability and high electrical performance.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, High density flexible FPCB

Materials used in FPCB

  • We use flexible materials for both substrate and adhesive.
  • The substrate is basically made up of polyimide(PI) film. The PI film does not soften on heating but remains flexible.
  • Normally used PI film does not show the best resistance against humidity and tears but upgraded PI can overcome this problem.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends

  • To attach layers adhesives are used. This adhesive should also be flexible but it is difficult to attain so now PI without adhesives are used that attach copper layers without any adhesive.
  • Now coverlay film created with PI is used instead of solder mask. To make areas hard staffers are used instead of solder masks.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Material requirements of high-density flexible PCB

Manufacturing Process of FPCB

The manufacturing process for FPCB is procedural and structural. that’s the main reason for its high cost. The manufacturing process of Flexible PCB is too lengthy, complex and needs a special environment, which makes it too expensive to design. Let us try to understand three major steps involved in the manufacturing of FPCB.

Step 1: Build up flexible PCB

The material used as a substrate is polyimide and in this step, the main focus is to save the base material because it is expensive than FR- 4. So to avoid wastage of polyimide circuits are placed close to each other. It includes the following steps:

  • CAD designing: first of all design is prepared using CAD software.
  • Drilling: holes are drilled and the size of holes is tried to make small.
  • Looping: adding a slight amount of extra material for servicing circuit assembly.
  • Sizing conductor: use the thinnest amount of copper.
  • Etching: To compensate losses especially line width losses etching is done.
  • Routing: the conductor is held perpendicular to the bend and fold. Folding and bending are improved by reducing stress and by helping the conductor perpendicular stress is reduced.
  • Ground planes: creating ground areas will improve the flexibility of the circuit by reducing the weight of the circuit board.

Step 2: FPCB fabrication process:

Depending on the design and application the diameter of the hole in FPCB may vary.

  • Size of the hole: small holes are best for flexible PCBs. Small size holes are difficult to drill. So the no of holes and size of holes determines as the cost control factors.
  • Filleting: filleting is necessary for joining pads and land termination points. By filleting area is multiplied and stress is reduced so flexibility improves.
  • PTH: Nowadays, copper is used for preparing vias and plated through holes.

Step 3: focus on physical constraints/ testing:

  • Layers and coating problems are dealt with in this step. So the testing of these cover layers is necessary.
  • Adhesive-backed films: these films are used for overcoating or at the areas where the adhesive is missing.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, FPCB design guideline

  • Screen printable liquid overcoats: these are used with polymer films that are thick.
  • Photo imaginable liquid and film polymer: It is the modern method used for overcoating because it avoids circuiting traces by acting as a solder mask. It avoids external and internal damages to the board.
  • Overlay: After testing, FPCBs are laminated which is called an overlay. For best quality overlay, the budget of flexible PCB increases.
  • Packing: FPCBs are packed and delivery is made.

Advantages or benefits of flexible PCB

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends

  1. It can be twisted, bent, folded, and shaped in various dimensions, unlike rigid PCB.
  2. It overcomes other technologies like wire harnesses, rigid PCBs, and connectors.
  3. It can be arranged in various stacked configurations.
  4. Very easy to install.
  5. For high flexible applications, single-sided FPCBs are used. As the spaces are generated to make them flexible so they are light in weight and small in size.
  6. FPCBs are more durable than PCBs and rigid PCBs.
  7. Using FPCBs the capability of the product is enhanced.

Disadvantages or drawbacks of FPCBs

  1. Their cost is high than other PCBs because of the poor utilization of panels.
  2. They can be damaged easily because of their flexibility and poor handling.
  3. A complex assembly process is used in their manufacturing.
  4. In case of any fault or problem, they can not be repaired easily. High-quality machinery is required to repair them and the repairing price is also very high.
  5. For the manufacturing of FPCB highly professional designers with a lot of time are required.

FPCB Market Costs

  • The market for the flexible printed circuit board is raising day by day.
  • It was $ 200 million in the past and crossed $800 million till 2020.
  • High demand is expected in the future.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends

Applications of flexible printed circuit boards

  • FPCBs have diverse applications almost in every industry. They are designed in such a way to meet all the requirements of any kind of flexibility.
  • Flexible printed circuit boards are used in both static and dynamic applications based on the requirement.
  • Material use varies in static and dynamic applications. So before the manufacturing, their type and requirement should be confirmed.

Static application:

  • These applications are also known as flex-to-fit or flex-to-install applications.
  • Only a small amount of flexibility is produced in boards for these applications.
  • Inexpensive electrodeposited (ED) copper is used to make minimal flexible boards for static applications.

Dynamic applications:

  • For dynamic applications, the flexibility of built-in boards is set as high as possible.
  • Rolled Annealed (RA) copper is used for making highly flexible printed circuit boards for dynamic industrial applications.

Diverse FPCB industrial applications:

  • The applications of flexible printed circuit boards in different industries are listed below
  • Electronics: flexible PCBs are used in laptops, cameras, calculators, printer heads, flip cell phones, computers keyboards…etc. Moving the print head of printers and plotters uses flexible PCBs to draw prints. Now flexible solar cells are made which can bend easily. Flexible wristwatches are also becoming popular in young generations.

Flexible PCB overview, Flexible PCB definition, Types of flexible PCB, Materials used in FPCB, Manufacturing Process of FPCB in steps, Applications of flexible printed circuit boards, FPCB Market, Advantages or benefits of flexible PCB, Disadvantages or drawbacks of FPCB, Development prospect of flexible PCB, Parameters on which the cost of FPCB depends, Diverse FPCB industrial application

  • Manufacturing: flexible PCBs are also used in robotic arms, sensors equipment, processing machines, bar code equipment, and human-machine interface equipment In the manufacturing industry.
  • Automotive: in the automotive industry, flexible printed circuit boards are used in airbag systems, anti-lock brakes, Global positioning systems( GPS), in engine controls.
  • Medical: in the medical industry, flexible printed circuit boards are used 8n pacemakers, hearing aid devices, heart monitoring devices, and exercise monitors.
  • Miscellaneous: flexible PCBs are also used in resistors, satellites, capacitors, Tower lights, LCD fabrication, light and motion systems.

Development prospects of flexible PCBs

Flexible printed circuit boards should have to be improved in the following aspects:

  • Thickness:

In the future flexible printed circuit board should be thinner and more flexible. They should have the flexibility of complete 360°.

  • Folding resistance

Improved and developed substrates should be used to overcome the folding resistance.

  • Price

At this time flexible printed circuit boards are too much costly. In the future, their price should be reduced to increase their market growth rate.

  • Process level

It is very difficult to make flexible PCBs because they required highly qualified personals, high machinery, and a lot of time. In the future, their process level should be upgraded and minimum line width and minimum aperture must meet higher requirements.

Parameters on which the cost of FPCB depends

Many factors affect the cost of the flexible printed circuit board. But I am here to categorize these parameters into these cost drivers.

  • Physical size:

The size of the flexible PCB is measured in a square inch and the price is calculated as price/ square inch.

So for large flexible printed circuit boards having the vast size, the price will be high than the smaller one.

  • Circuit construction:

When the no of layers increases the price of flexible PCB increases. So double-layer FPCB has high price than the single-layer FPCB and multi-layer FPCB must be high in price than single and double layer FPCB. Price also depends upon the material used in the construction. Price also depends upon the no of pads, for more pads used in flexible PCB price will be high.

  • Volume:

Price also depends upon the volume of flexible PCB. For greater volume price will be high.

  • Finishing

Finishing determines the shelf life of the flexible printed circuit board. With good quality, the finishing price is affected.

  • No. Of the holes and size of the holes

It is difficult to make small holes, and for small holes, which are normally drilled in the flexible printed circuit boards, the price will be high than the big holes.

For more holes price will also be high.

  • Custom or unique specification

When the custom specification is required that will add to the price of the flexible printed circuit board. Examples of custom specifications are contoured edges, side plating, and solder mask clearance.

Conclusion

In the future, flexible printed circuit boards will play a major role in security and entertainment dynamics.

The demand for flexible printed circuit boards is not high till 2016 but now their demand is increasing day by day. In future preference will be given to the flexible products in the market.

In short, the future belongs to flexible products.
