Multiple LED Flasher Project using 555 Timer in Proteus ISIS

Hello friends! Today we will extend our single and double LED flasher into a multiple-LED display using a 555 timer in Proteus ISIS. Two groups of LEDs will alternate, making a repeating pattern without a microcontroller.

Adding LEDs looks simple in a simulator, but it changes the electrical load. We will therefore calculate the current in each branch, add the branch currents to find the load on the timer, and use a standard astable circuit whose timing is easier to predict.

The original decorative arrangement and download remain below. We will keep its visual idea while explaining the changes needed for a sensible physical build. In particular, do not copy the original 10 Ω LED resistors without evaluating the supply voltage and current.

What This Circuit Does

The display has two LED banks. One bank conducts when the 555 output is high, and the other conducts when the output is low. All branches belonging to one bank change together. The circuit does not select each LED individually or move a single illuminated point along the row.

That distinction separates an alternating flasher from an LED chaser. A chaser needs additional sequencing logic, such as a counter or microcontroller. Here the timer provides only two output states, and the wiring determines which bank belongs to each state.

You can arrange the branches as letters, a border or another pattern. Their physical position does not change the underlying circuit. Label the two banks before wiring so that a decorative layout does not obscure the current paths.

Review the Original Components and Layout

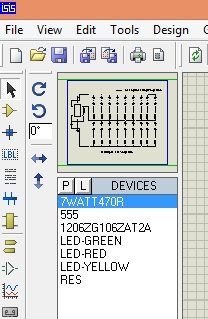

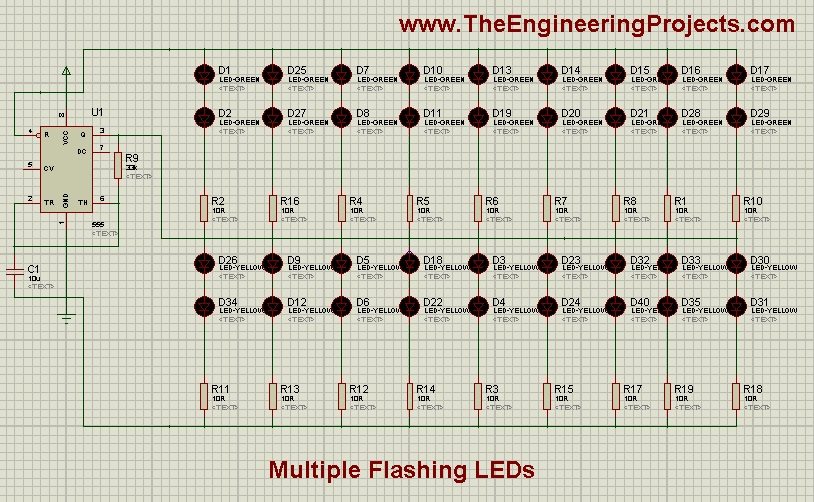

The original parts include a 555, a timing resistor and capacitor, green and yellow LEDs, and LED resistors. In the displayed circuit, each branch contains two LEDs in series, and several such branches are connected in parallel within each bank.

Notice the difference between LEDs in series and complete branches in parallel. Two series LEDs carry the same current. Parallel branches can carry different currents unless each has its own current-limiting component. The original arrangement already shows a resistor for each series pair, but its 10 Ω values are not appropriate as a general recommendation.

The original oscillator also feeds its timing capacitor from pin 3 through a resistor, leaving pin 7 unused. This output-feedback arrangement couples the timing behavior to the loaded output voltage. A large LED display makes that dependence especially important.

For the revised build, use the standard two-resistor astable described next. The old diagram is retained to explain the original project, not to imply that its output loading and component values have been validated for your hardware.

Build a Predictable 555 Clock

The TI NE555 datasheet describes the standard astable connection and output characteristics. Use that topology with R_A = 10 kΩ, R_B = 68 kΩ and C = 10 µF as a starting point for an approximately one-second cycle.

1. Connect pin 1 to ground and pins 8 and 4 to the positive supply.
2. Join pins 2 and 6 at the timing capacitor node.
3. Connect R_A from the supply to pin 7.
4. Connect R_B from pin 7 to pins 2 and 6.
5. Connect C from pins 2 and 6 to ground, with correct polarity if it is electrolytic.
6. Bypass the supply close to the IC with approximately 100 nF.
7. Add a typical 10 nF capacitor from the control pin, pin 5, to ground.

For the numerical LED example below, use a regulated 9 V supply within the selected NE555's operating range. Verify the actual voltage in Proteus. The timing calculation assumes the standard comparator thresholds; the LED calculations must separately use the loaded output levels.

Calculate the bank dwell times

The high interval is approximately 0.693 × (R_A + R_B) × C, and the low interval is 0.693 × R_B × C. With the stated components, these are about 0.541 s and 0.471 s respectively.

The total period is approximately 1.012 s, giving 0.989 cycles per second. The bank connected from output to ground is on for the high interval. The bank connected from supply to output is on for the low interval.

Changing the timing capacitor scales both intervals approximately together. Doubling it to 20 µF would roughly halve the frequency. Changing only R_A affects the high interval but not the nominal low interval, so it also changes the balance between the two banks.

Wire the Two LED Banks

Call the output-to-ground group Bank A and the supply-to-output group Bank B. Every branch needs its own resistor. For this example, each branch contains two visible LEDs in series; the resistor can be placed anywhere in that same uninterrupted series path.

All branches within Bank A share the output and ground nodes, but not one common resistor. Likewise, Bank B branches share the supply and output nodes while retaining individual resistors. This prevents one LED string's forward-voltage difference from directly determining the current in another string.

Check that the upper and lower groups are not accidentally joined around the output connection. In a crowded decorative drawing, it is easy to create a direct supply-to-ground path or bypass a resistor. Use net labels or a simpler electrical layout before arranging the final artwork.

Calculate Current Before Copying a Resistor Value

For Bank A, I ≈ (V_OH − V_F1 − V_F2) / R. For Bank B, I ≈ (VCC − V_F1 − V_F2 − V_OL) / R. The 555's loaded high and low voltages are not ideal supply rails.

As an initial upper-bound illustration, assume a 9 V branch supply and two LEDs each dropping approximately 2 V. A 1.8 kΩ resistor gives (9 − 4) / 1800 = 2.78 mA if output losses are neglected. This is a modest indicator current, not a universal value for every LED color.

Now compare the original 10 Ω resistor under those same assumptions: (9 − 4) / 10 = 0.5 A. The real timer cannot maintain an ideal output under that load, so the circuit may collapse, overheat or damage parts instead of delivering the calculated current. Output collapse is not a safe current-regulation method.

Choose the resistor from the LED's characteristics, intended current, supply tolerance and output voltage. For hardware, inspect the actual current with a suitable measurement. A simulator lighting an LED does not establish that the LED is operating within its rating.

Allow for different LED colors

Green and yellow LEDs do not necessarily have the same forward voltage or brightness at equal current. Even devices sold under the same color name can use different technologies. Read their specifications rather than treating color as an exact voltage rating.

Two higher-forward-voltage LEDs may leave too little voltage for a resistor on a low supply. That causes weak or unpredictable current. Use fewer LEDs per string or a suitably designed supply and driver; do not remove the resistor to compensate for insufficient voltage headroom.

Add the Branch Currents

The original pattern contains multiple series pairs in each bank. Count the branches actually connected to your output. For nine branches at 2.78 mA each, the idealized active-bank current is about 25 mA.

That is the current the timer must source or sink during that bank's active interval. It is not reduced to one branch current merely because each branch has its own resistor. Parallel currents add at the common output connection.

Use the selected part's output curves and thermal limits when deciding whether direct drive is suitable. A headline maximum current does not mean that the output remains close to the supply rails at that current or that every package can dissipate the resulting heat.

For example, if the loaded high output is 7 V rather than 9 V, Bank A's two 2 V LEDs and 1.8 kΩ resistor receive only about 1.67 mA. Bank B may receive more during the low state. Equal resistor values can therefore produce visibly unequal banks.

Check Resistor and Timer Dissipation

For the idealized 2.78 mA branch, resistor power is I²R, approximately 0.014 W with 1.8 kΩ. Verify the chosen resistor rating with margin for the actual operating conditions. Repeat the calculation whenever the branch voltage or current changes.

The timer also dissipates power because its output transistors have voltage drop. A sourcing output that loses 2 V at 25 mA dissipates approximately 50 mW in that output path during the high interval, in addition to other device consumption. This example explains why output voltage and heating are linked.

Supply current changes as the banks switch. Provide local decoupling and wiring that can carry the load without disturbing the timing circuit's reference. A long breadboard rail and a weak supply can make an otherwise reasonable oscillator behave erratically.

When to Use Separate LED Drivers

For a brighter or larger display, let the 555 control an appropriate transistor or MOSFET driver rather than directly carrying all LED current. The driver must be sized for the complete active bank, including expected voltage, current and dissipation.

Two identical low-side bank drivers require complementary control signals if the banks must alternate. Connecting both driver inputs directly to the same timer output makes both banks switch together. An inversion stage or another suitable complementary arrangement is needed.

A MOSFET choice requires checking its on-resistance at the available gate voltage, not only its threshold voltage. A bipolar transistor requires adequate base current and a base resistor. These decisions belong to the driver design, so an arbitrary transistor symbol is not a complete upgrade.

Keep individual branch resistors even after adding drivers. A switching transistor controls when a bank receives current; it does not automatically regulate how that current divides among parallel LED strings.

Simulate in Stages

1. Run the standard astable without the full LED display and measure its period.
2. Add one Bank A branch and measure its on-state current.
3. Add one Bank B branch and check that it conducts in the opposite state.
4. Measure the loaded output high and low voltages.
5. Add the remaining branches in small groups, watching total current and waveform changes.
6. Compare the final period with the original unloaded measurement.

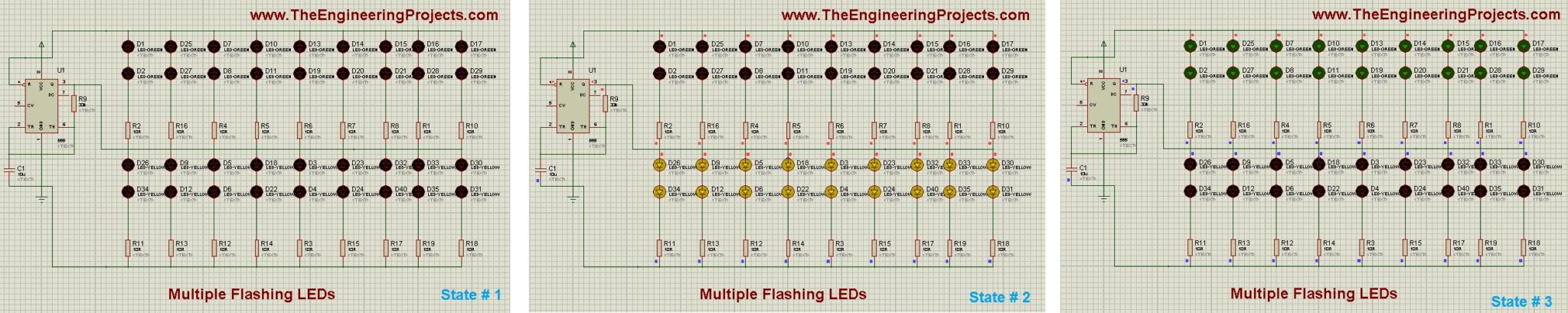

The historical montage shows the stopped or initial arrangement and the two alternating patterns. Those pictures communicate the intended appearance, but they do not provide measurements of branch current, output headroom or device temperature.

Measure time on the simulator's waveform display. Animation can run slowly when the computer is busy, and camera or screen refresh can make rapid flashing look different from its electrical frequency. The original output-feedback timing values should not be assumed to produce the one-second cycle calculated for our revised astable.

Observe the capacitor voltage as well as pin 3. In a correctly operating standard astable, the timing voltage crosses the lower and upper thresholds repeatedly. A stationary timing voltage helps identify a connection or threshold problem before you investigate LED polarity.

Download the Original Project

The original Proteus file is retained here so that you can inspect the decorative arrangement and compare it with this explanation. It remains the historical circuit; the revised resistor choices and standard astable wiring have not been substituted into that archive.

Download LED Flasher Project using 555 Timer

When adapting the download, update the electrical design before treating it as a hardware reference. Record your supply, LED part, resistor values and measured active-bank current. Those details are more useful than simply noting that all the LEDs appeared bright in the simulation.

Check Branch Faults and Average Current

An open LED in one series pair interrupts that entire branch. Other parallel branches should continue operating because each has its own path and resistor. If removing one LED turns off the whole bank, inspect whether the branches were accidentally wired in series.

A shorted LED has the opposite effect: the remaining branch has less forward-voltage drop, so its current increases. Under the simplified 9 V example, one remaining 2 V LED with 1.8 kΩ would draw about 3.89 mA rather than 2.78 mA, before output losses. Include plausible branch faults when reviewing the resistor and driver margins.

The average current in one bank is its on-state current multiplied by its duty cycle. A 25 mA bank active for 53.4 percent of the cycle averages approximately 13.4 mA. The opposite bank has its own on-state current and active fraction; add both contributions when estimating LED-related average supply demand.

Do not size the timer output from that average alone. It still carries the full instantaneous current of the active bank. Likewise, reducing duty cycle does not automatically permit an arbitrarily high LED pulse current; peak-current ratings depend on pulse duration and the particular LED.

For a battery-powered display, also include the timer and any driver consumption. A rough runtime estimate based only on the LEDs will be optimistic, and battery capacity depends on discharge conditions. Measure the assembled circuit's average and peak demand before making a runtime claim.

Troubleshooting and Design Review

Before moving to hardware, trace the complete current path through one branch in each output state. Then multiply by the number of branches and check the timer or driver. This simple review catches mistakes that are easy to miss in an attractive schematic layout.

The useful lesson is not merely that several LEDs can flash. It is that every added branch changes current demand, while every timing component changes the waveform. Treat those as separate design questions and the display becomes much easier to predict and expand.

Frequently Asked Questions

Is this a sequential LED chaser?

No. It alternates two groups. Individual sequential selection requires additional logic.

Can all parallel LED strings share one resistor?

Use a separate resistor for each series string so that forward-voltage differences do not leave branch current uncontrolled.

Why not retain the original 10 Ω values?

They can demand excessive current at ordinary supply voltages. Calculate the resistance from the actual branch voltage and desired current.

Will equal resistors make the banks equally bright?

Not necessarily. LED characteristics and the timer's different sourcing and sinking voltage drops affect current and brightness.

How can I slow the pattern?

Increase the timing capacitor or appropriately increase the timing resistances in the standard astable, then measure the resulting waveform.
