Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEWHello everyone! I hope you all will be absolutely fine and having fun. Today, I am going to share my knowledge with all of you guys, about Communication Signals Generation in LabVIEW. In the previous tutorial, we have seen the Introduction to LabView and after that we have designed our First Project using LabView Programming so if you haven’t read them yet then I would suggest you to read them so that you have the basic knowledge of LabView. In earlier days people used to convey their messages or some important notifications using a piece of paper and by delivering it to the other places with the help of the pigeons. It took a lot of time for the message conveying procedure because there are some notifications or messages in which such a huge delay could be dangerous e.g. someone’s death news or emergency. With the passage of time people started thinking to make this process faster. Graham Bell took the very first step to make this process faster.

Now a days the process has become much quicker as compared to the earlier days. Signals are very important to convey our messages, greetings and some other important notifications for the people who live far away from us. Even you use these signals in your daily lives but may be you are unaware of it. As you make a phone call, you are actually using these signals which help you to take your voice to longer distances. Television, Microwave, Internet e.g. are also working on this principle. In short, we do each and every communication with the help of these signals now a days. They play a vital role in our daily lives for the better and quicker communication with minimum delay and maximum accuracy level. So, let’s get started with Communication Signals Generation in LabView:

Note:

I would also recommend you to have a loook at these basic LabView Projects. Simulations are given in them for download.

Communication Signals Generation in NI LabVIEW 2015

Here, I am going to start and elaborate you that how to generate simple Communication Signals in LabVIEW and how to play with them in this software.

Step 1

  • First of all we start with the generation of a very simple communication signal which is usually known as “Sinusoidal” or an “Analog” signal.
  • Open your LabVIEW software.
  • Go to the “Block Diagram” window and press “Right Click” on it
  • Go to the Functions-> Programming-> Waveform-> Analog Waveform-> Generation-> Simulate signal.
  • The figures below illustrate all of the above steps

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • Put you cursor on “Waveform”.
  • You can see the following window on your screen.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

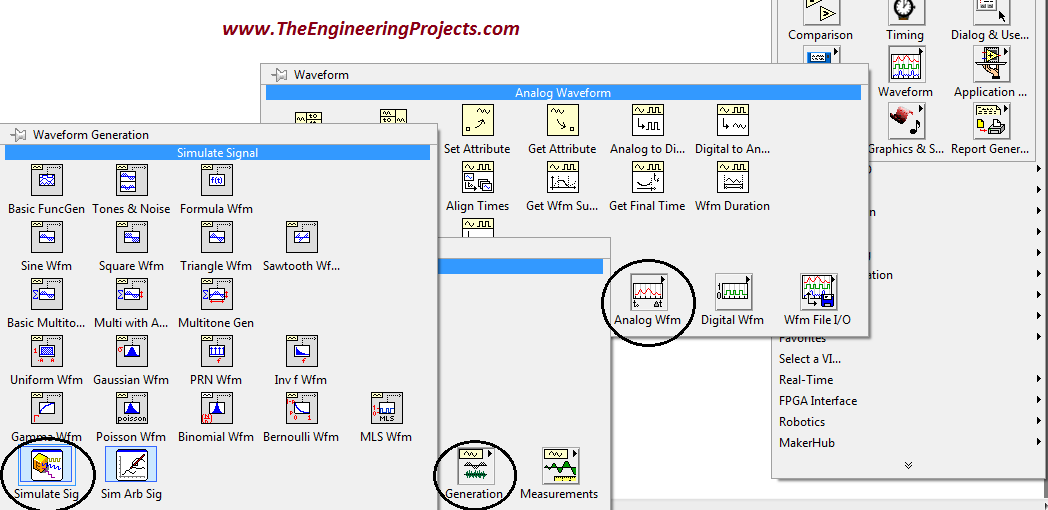

  • Now put your cursor on the encircled block.
  • You can see the window below on your screen.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • Now, select this “Simulate signal” and place it on the “Block Diagram” window.
  • You can see this in a figure below.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

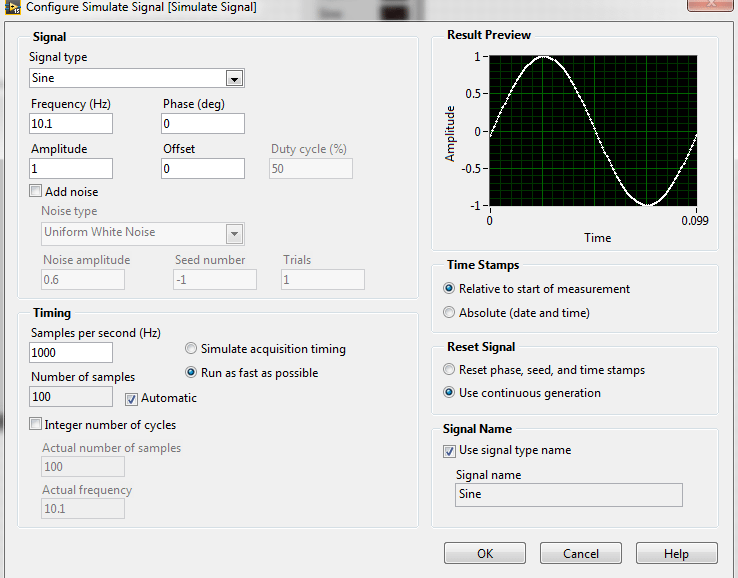

  • As you place this block on the “Block Diagram” window, you can see a new window on your screen
  • Here is the screen shot of that window.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • From this window we can set the properties of this window e.g. signal type, frequency, amplitude, duty cycle, offset etc.
  • Now, you do not need to change any of its properties.
  • Just press “OK” button.
  • Now, the signal is generated.
Step 2
  • We have now generated an analog signal by using “Simulate” signal block and by setting the signal type to “Sine”.
  • The above figure shows this step.
  • Now, we need to visualize the generated analog signal.
  • We can visualize the generated signal with the help of the “Graph”.
  • Go to the “Front Panel” and press “Right Click”.

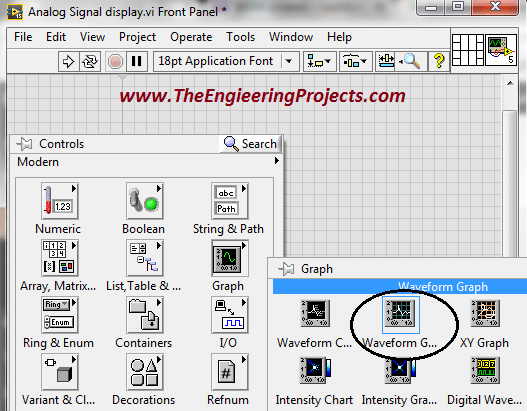

  • Go to Controls-> Modern-> Graph-> Waveform Graph.
  • The figure below shows the illustration of all of the above steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • Select this block and place it on the “Front Panel”.
  • You can see this figure on your window after selecting this block.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

Step 3

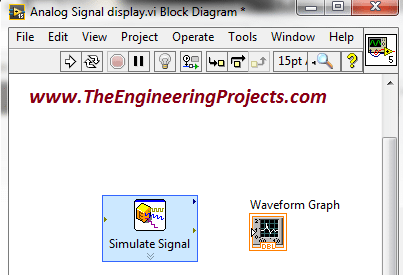

  • Now go to the “Block Diagram” window.
  • You can see it is looking like the window below.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

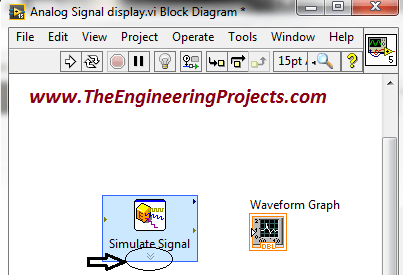

  • Now put your cursor on the bottom edge of the “Simulate Signal” block.



Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW



  • Press and stretch it towards downward the direction.
  • You can see that the block becomes like the figure below.



Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

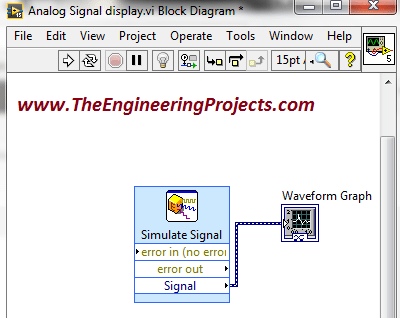

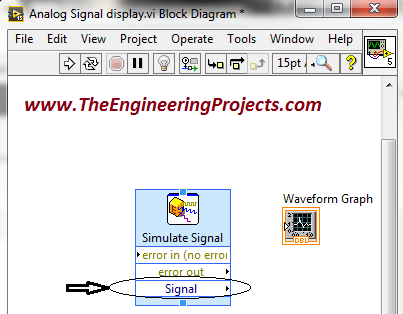

  • You can see, “Signal” is also appeared at the bottom of the “Simulate Signal” block.
  • Now, connect the output terminal (Signal) of the “Simulate Signal” block with the input terminal of the “Waveform Graph”.
  • The figure below displays the above steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

Step 4
  • Now, go to the “Front Panel” window.

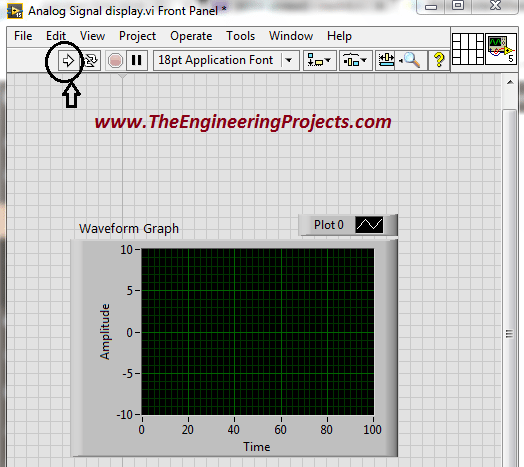

  • Press the run button as the the figure below displays it .

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

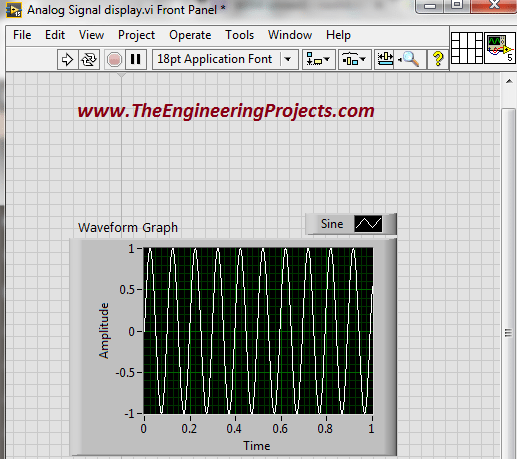

  • After running the program you can see the generated signal on the “Graph” placed on the “Front Panel”.
  • Here is the screenshot of the figure showing the generated analog signal.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

Step 5
  • You can also change properties of the “Graph” to make its look better.

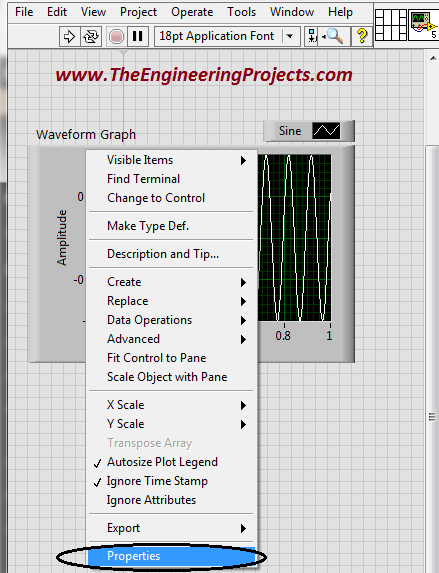

  • Press “Right Click” on the graph and go to the “Properties”.
  • The figure below illustrates the above steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

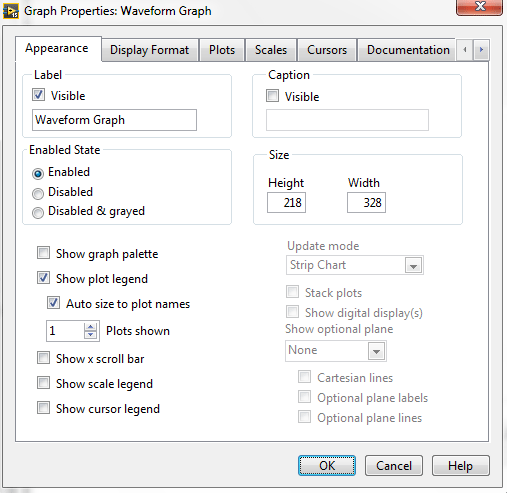

  • You can see the following window on you screen.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • The different properties of the “Graph” e.g. length, width etc. are also changeable via this window.
  • You can also the color of the plotted graph.

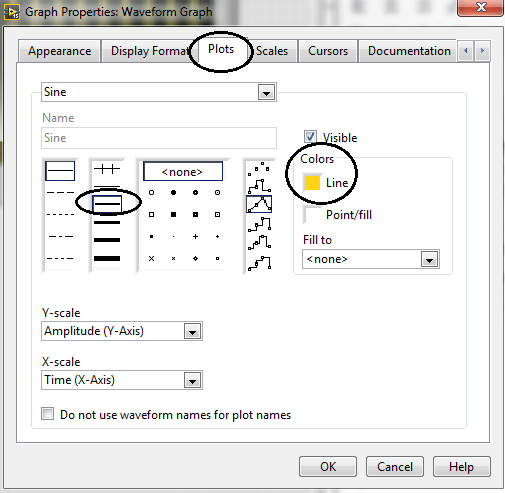

  • Go to the “Plots” option of the above figure.
  • The figure below shows some steps.
  • You can change the color of the “Graph” by following these steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • After performing these steps “Run” the program.
  • You can see the color of the graph is now changed.



Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

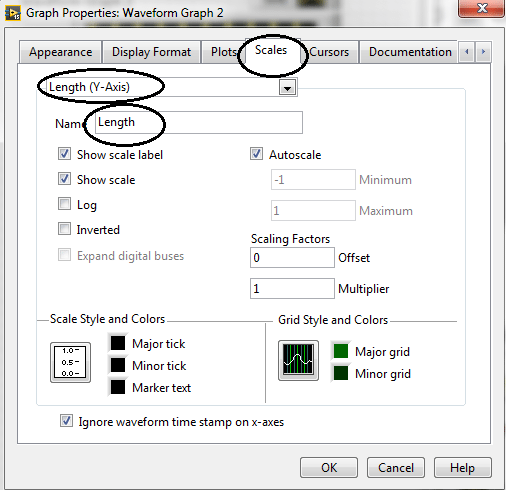

  • You can also change the label of “x” and “y” axis.
  • Go to the properties of the “Graph” and then go to “Scale”.
  • Set the properties according to the figure below.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

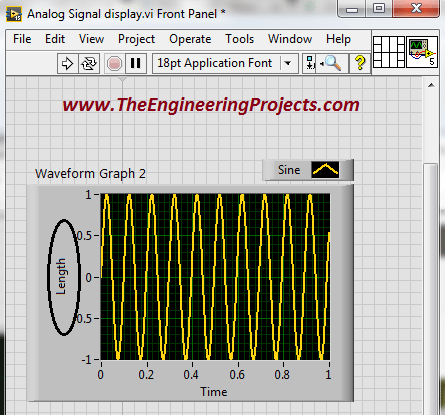

  • The figure below shows different label of “y” axis.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

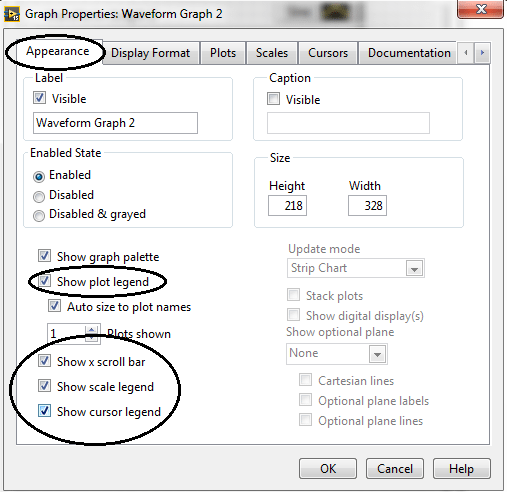

  • Now, go again to the properties and go to the “Appearance”.
  • The figure below shows some encircled options.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

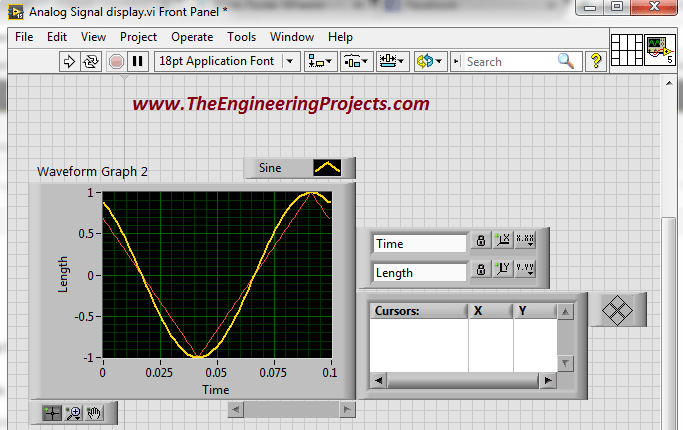

  • Now, go to the “Front Panel”.
  • You can see the “Graph” is looking exactly like the figure below.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

Step 6
  • You can also plot two different signals on the same “Graph”.

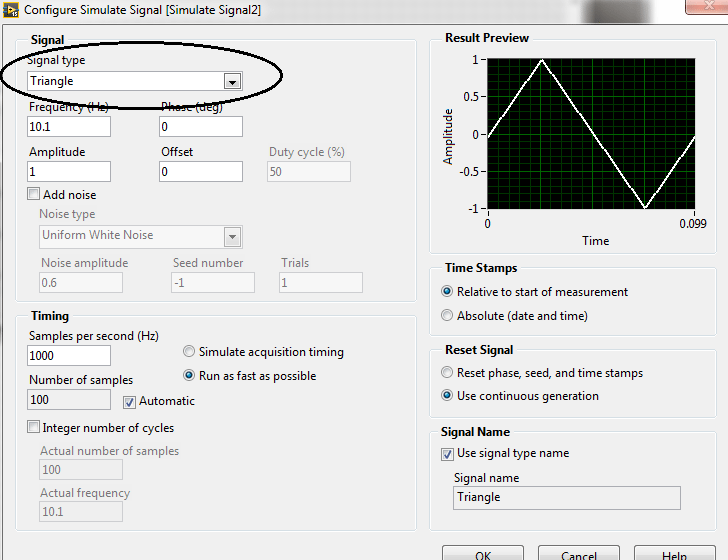

  • Go to the “Block Diagram” window and select another “Simulate Signal” block and place it on the window.
  • Change the signal type to “Triangle”
  • The figure below explains the above all steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

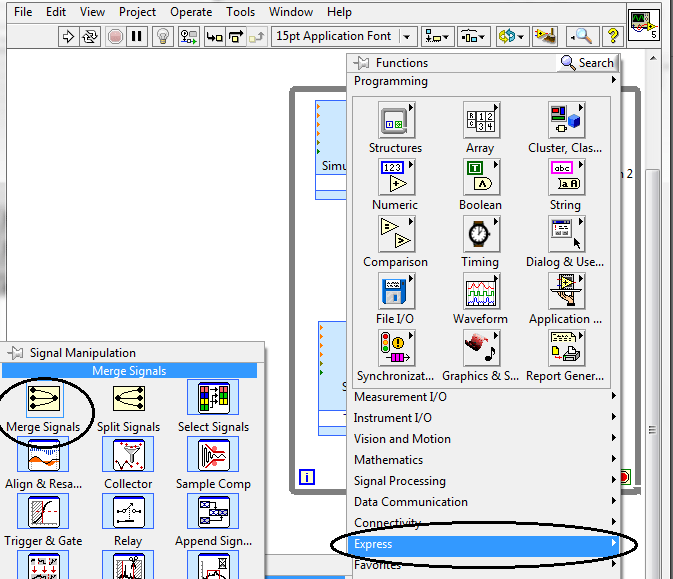

  • Now, go to Functions-> Express-> Signal Manipulation-> Merge Signals.
  • Select and place this block on the “Block Diagram” window.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

  • Select and place this block on the “Block Diagram” window.
  • Make a connection between “Merge Signals” and “Simulate Signals”.
  • The figure below shows the above steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

Step 7
  • Now, go to the “Front Panel” and run the program.
  • You can see both of the signals are generated on the same “Graph”.
  • The figure below shows the illustration of above steps.

Communication Signal generation in NI LabVIEW 2015, LabVIEW signal generation, How to generate an anlog signal in LabVIW, Generate an analog signal in LabVIEW, Generate signals in NI LabVIEW

That’s all from the tutorial named Communication Signals Generation in LabVIEW 2015. I hope you enjoyed this tutorial and now you can easily do the Communication Signals Generation in LabView. I will explain the further details in my later tutorials. Till then take care. 🙂
