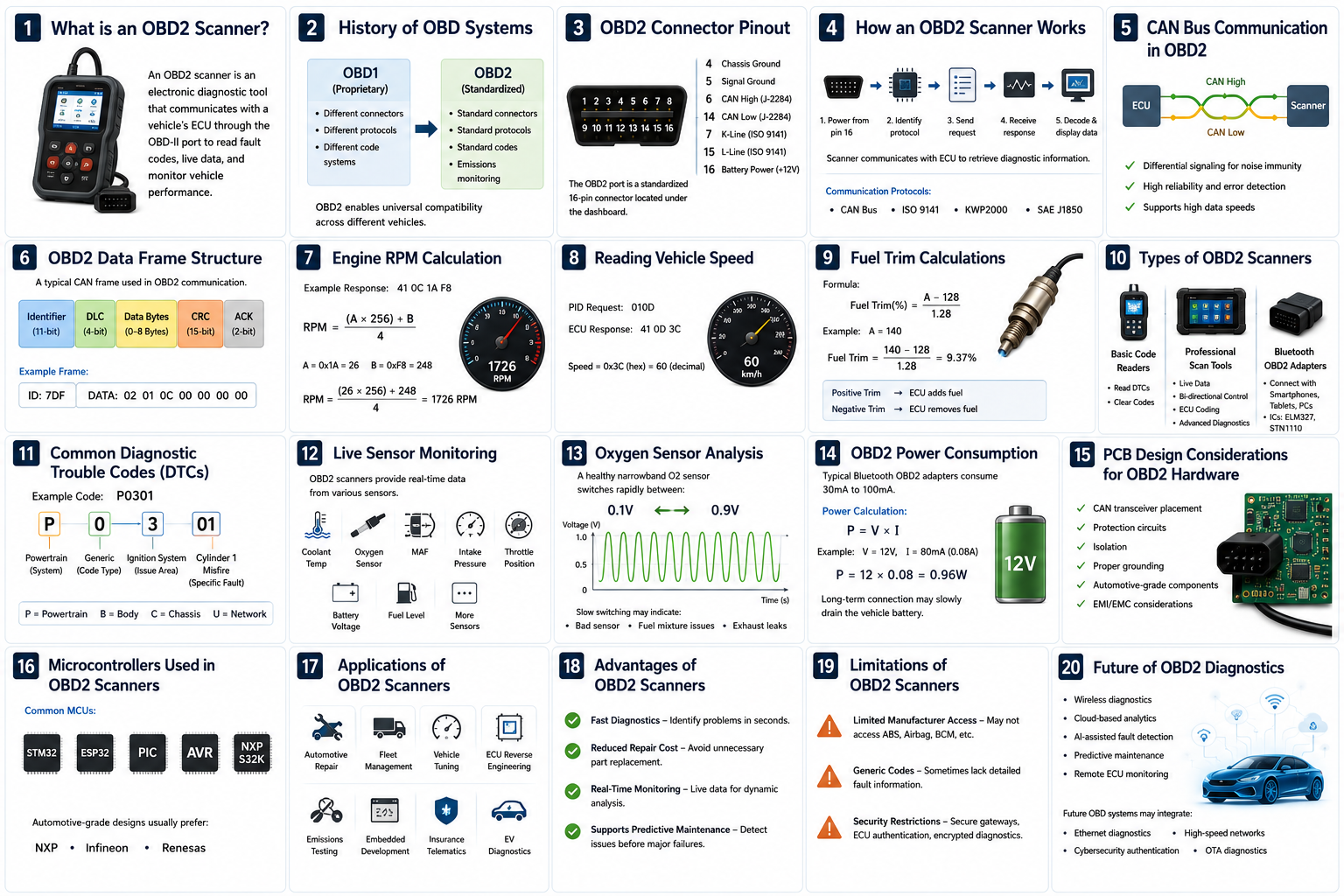

OBD2 Scanner: Complete Technical Guide for Vehicle Diagnostics

Modern vehicles are no longer just mechanical machines. Today’s cars contain dozens of Electronic Control Units (ECUs), sensors, communication buses, and embedded systems working together in real time. Whenever a fault occurs, these systems generate Diagnostic Trouble Codes (DTCs), and this is where an OBD2 scanner becomes an essential tool.

Whether you are an automotive engineer, embedded developer, mechanic, or electronics hobbyist, understanding how OBD2 scanners work gives you deep insight into vehicle diagnostics, CAN communication, and automotive electronics.

What is an OBD2 Scanner?

An OBD2 scanner is an electronic diagnostic tool used to communicate with a vehicle’s onboard computer system through the OBD-II (On-Board Diagnostics) port.

It allows us to:

• Read Diagnostic Trouble Codes (DTCs)

• Clear error codes

• Monitor live sensor data

• Read ECU parameters

• Analyze fuel efficiency

• Monitor emissions systems

• Access freeze-frame data

• Diagnose engine and electrical problems

OBD2 became mandatory in most gasoline vehicles in the United States after 1996, and today it is used globally in modern automobiles.

History of OBD Systems

OBD1

Early vehicles used proprietary diagnostic systems called OBD1. Each manufacturer used:

• Different connectors

• Different protocols

• Different code systems

This created compatibility issues.

OBD2

OBD2 standardized:

• Diagnostic connectors

• Communication protocols

• Fault code formats

• Emissions monitoring

This allowed universal scanners to communicate with different vehicles.

OBD2 Connector Pinout

The OBD2 connector uses a standardized 16-pin female port usually located under the dashboard.

Important OBD2 Pins

Modern vehicles mainly use CAN Bus communication through pins 6 and 14.

How an OBD2 Scanner Works

When we connect the scanner to the OBD2 port:

1. The scanner powers up from pin 16

2. It identifies the communication protocol

3. It sends request frames to the ECU

4. The ECU replies with sensor or fault data

5. The scanner decodes and displays the information

Communication usually occurs over:

• CAN Bus

• ISO 9141

• KWP2000

• SAE J1850

CAN Bus Communication in OBD2

Modern OBD2 systems primarily use CAN Bus.

CAN uses differential signaling:

• CAN High

• CAN Low

During communication:

• CAN High rises to approximately 3.5V

• CAN Low drops to approximately 1.5V

This improves:

• Noise immunity

• Reliability

• Long cable performance

OBD2 Data Frame Structure

A typical CAN frame contains:

Example:

ID: 7DF

DATA: 02 01 0C 00 00 00 00 00

Here:

• 01 = Show current data

• 0C = Engine RPM PID

Engine RPM Calculation

Suppose the ECU returns:

41 0C 1A F8

RPM is calculated using:

RPM=(A×256)+B4RPM = \frac{(A \times 256) + B}{4}RPM=4(A×256)+B​

Where:

• A = 0x1A = 26

• B = 0xF8 = 248

Calculation:

RPM=(26×256)+2484RPM = \frac{(26 \times 256) + 248}{4}RPM=4(26×256)+248​ RPM=69044RPM = \frac{6904}{4}RPM=46904​ RPM=1726RPM = 1726RPM=1726

So the engine speed is approximately:

1726RPM1726 RPM1726RPM

Reading Vehicle Speed

Vehicle speed PID:

010D

ECU response:

41 0D 3C

Here:

• 3C hexadecimal = 60 decimal

Therefore:

Speed=60 km/hSpeed = 60 \text{ km/h}Speed=60 km/h

Fuel Trim Calculations

OBD2 scanners can also read Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT).

Formula:

Fuel Trim(%)=A−1281.28Fuel\ Trim(\%) = \frac{A - 128}{1.28}Fuel Trim(%)=1.28A−128​

Suppose:

A=140A = 140A=140

Then:

Fuel Trim=140−1281.28Fuel\ Trim = \frac{140 - 128}{1.28}Fuel Trim=1.28140−128​ Fuel Trim≈9.37%Fuel\ Trim \approx 9.37\%Fuel Trim≈9.37%

Positive trim means:

• ECU adds fuel

Negative trim means:

• ECU removes fuel

Types of OBD2 Scanners

Basic Code Readers

These can:

• Read DTCs

• Clear fault codes

Suitable for beginners.

Professional Scan Tools

Advanced scanners support:

• Live data streaming

• ECU coding

• Bidirectional control

• ABS diagnostics

• Airbag systems

• Transmission modules

Bluetooth OBD2 Adapters

These adapters connect with:

• Smartphones

• Tablets

• PCs

Popular ICs include:

• ELM327

• STN1110

Common Diagnostic Trouble Codes (DTCs)

DTC format:

P0301

Breakdown:

Other categories:

• B = Body

• C = Chassis

• U = Network

Live Sensor Monitoring

OBD2 scanners can monitor:

• Coolant temperature

• Oxygen sensor voltage

• Mass Air Flow (MAF)

• Intake pressure

• Throttle position

• Battery voltage

This helps diagnose intermittent faults.

Oxygen Sensor Analysis

A healthy narrowband O2 sensor switches rapidly between:

0.1V to 0.9V0.1V \text{ to } 0.9V0.1V to 0.9V

Slow switching may indicate:

• Bad sensor

• Fuel mixture issues

• Exhaust leaks

OBD2 Power Consumption

Typical Bluetooth OBD2 adapters consume:

30mA to 100mA30mA \text{ to } 100mA30mA to 100mA

Power calculation:

P=VIP = VIP=VI

Suppose:

• Voltage = 12V

• Current = 80mA

Then:

P=12×0.08P = 12 \times 0.08P=12×0.08 P=0.96WP = 0.96WP=0.96W

Long-term connection may slowly drain the battery.

PCB Design Considerations for OBD2 Hardware

If we are designing our own OBD2 scanner PCB, several engineering considerations become important.

CAN Transceiver Placement

Keep CAN transceivers close to:

• OBD connector

• TVS diodes

This improves EMI protection.

Protection Circuits

Automotive systems are electrically noisy.

Add:

• TVS diodes

• Reverse polarity protection

• LC filters

• Automotive-grade regulators

Isolation

Professional scanners often use:

• Digital isolation

• Isolated DC-DC converters

This protects the microcontroller from voltage spikes.

Microcontrollers Used in OBD2 Scanners

Common MCUs include:

• STM32

• ESP32

• PIC

• AVR

• NXP S32K

Automotive-grade designs usually prefer:

• NXP

• Infineon

• Renesas

Applications of OBD2 Scanners

OBD2 scanners are used in:

• Automotive repair shops

• Fleet management

• Vehicle tuning

• ECU reverse engineering

• Embedded development

• Emissions testing

• Insurance telematics

• EV diagnostics

Advantages of OBD2 Scanners

Fast Diagnostics

Problems can be identified within seconds.

Reduced Repair Cost

Accurate diagnostics prevent unnecessary parts replacement.

Real-Time Monitoring

Live data allows dynamic analysis while driving.

Supports Predictive Maintenance

Faults can be detected before major failures occur.

Limitations of OBD2 Scanners

Despite their usefulness, OBD2 scanners also have limitations.

Limited Manufacturer Access

Cheap scanners may not access:

• ABS modules

• Airbags

• BCM systems

Generic Codes

Generic DTCs sometimes lack detailed fault information.

Security Restrictions

Modern vehicles implement:

• Secure gateways

• ECU authentication

• Encrypted diagnostics

Future of OBD2 Diagnostics

Automotive diagnostics is evolving rapidly toward:

• Wireless diagnostics

• Cloud-based analytics

• AI-assisted fault detection

• Predictive maintenance

• Remote ECU monitoring

Electric vehicles are also changing diagnostic architectures significantly.

Future OBD systems may integrate:

• Ethernet diagnostics

• High-speed automotive networks

• Cybersecurity authentication

• OTA diagnostics

Final Thoughts

OBD2 scanners have completely transformed vehicle diagnostics by allowing engineers and technicians to communicate directly with vehicle ECUs. From reading engine RPM to analyzing CAN frames and fuel trims, these tools provide deep visibility into modern automotive systems.

If you are interested in:

• Embedded systems

• Automotive electronics

• CAN Bus communication

• ECU reverse engineering

• Vehicle diagnostics

then learning how OBD2 scanners work is an excellent starting point.

As vehicles become smarter, more connected, and increasingly software-driven, OBD2 technology will continue to play a critical role in diagnostics, maintenance, and automotive innovation.
