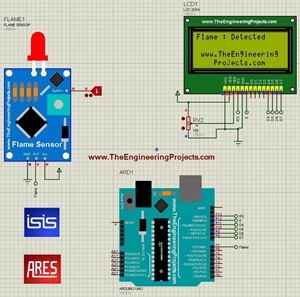

Complete Guide on Proteus ISIS & ARES

Hello friends! In this guide, we will learn how to use Proteus ISIS and ARES, starting with a simple circuit and gradually moving toward microcontroller simulations and PCB design. I have kept the original tutorial collection so that you can follow a lesson in detail whenever you reach that stage.

Our goal is to understand the complete development process. We will draw a circuit, calculate what it should do, simulate its behavior, examine signals with instruments and then prepare a physical board layout. Each stage answers a different question, so a successful simulation is one step in the process rather than the final proof of a finished product.

If you are new to Proteus, follow the sections in order. If you already use it, choose the topic you need from the linked lessons. Some screenshots in those older tutorials show earlier releases; use the documentation for your installed version when menu names or available tools differ.

What Are Proteus ISIS, ARES and VSM?

ISIS and ARES are names familiar from the original Proteus workflow. ISIS refers to schematic capture and the circuit-development environment, while ARES refers to PCB layout. In current documentation, you will often see the broader terms Schematic Capture, PCB Design and Proteus VSM.

Labcenter's schematic-capture overview describes the circuit-entry side, while its PCB-design overview covers the board-layout workflow. VSM adds supported microcontroller and peripheral simulation so that firmware can interact with a circuit model.

Check the functions included in your licence. A PCB package, a particular processor simulation model and advanced analysis features are not automatically the same entitlement. A component may be available as a schematic symbol or footprint without having a usable simulation model.

Section 1: Build a Strong Foundation in Schematic Capture

Create a project in a dedicated folder and give it a meaningful name. Keep firmware outputs, custom libraries and notes organized alongside it. A project that depends on an unnamed HEX file in a temporary compiler folder is difficult to reopen or share reliably.

Begin with a DC source, resistor and LED. Learn to select a part, place it, rotate it and edit its value. Then connect the circuit with wires and establish its ground reference. Inspect the endpoints: a wire that visually passes near a pin is not necessarily connected to it.

Use labels and terminals to keep larger circuits readable, but treat matching net names as electrical connections. A copied label with the wrong name can connect two unrelated parts of a design. Show signal direction and connector function with clear text rather than relying on drawing position alone.

Calculate the First Circuit Before Running It

Suppose the source is 5 V, the LED's assumed forward voltage is 2 V and we want approximately 10 mA. The series resistance is R = (5 V - 2 V) / 0.010 A = 300 ohms. A 330-ohm value gives approximately 9.1 mA under that simple constant-voltage assumption.

The resistor dissipation is approximately I squared times R: (0.0091 A) squared times 330 ohms is about 0.027 W. This is an illustrative operating point. For a real circuit, consider supply variation, the actual LED characteristic and component ratings rather than treating the nominal calculation as a guarantee.

Now run the simulation and compare the measured current with your estimate. A difference should lead you to inspect assumptions and model behavior. This is a much stronger learning exercise than accepting an illuminated LED as the only result.

Foundation Tutorials

• Introduction to Proteus
• Simulate First Electronics Project in Proteus ISIS
• How to Increase Workspace in Proteus
• Voltmeter & Ammeter in Proteus ISIS
• How To Use Virtual Terminal in Proteus ISIS
• How To Use Oscilloscope in Proteus ISIS
• How to Install and Download Proteus Software ?
• Knowing About Components Available in Proteus ISIS
• Component Designing in Proteus ISIS
• Top 10 PCB Design Software

Section 2: Learn Components and Measurement Tools

Once your first circuit works, change one feature at a time. Adjust a resistance, operate a switch or replace an input source. Predict the effect before running the model. This habit connects a simulator's visual output with the underlying circuit theory.

Use a voltmeter across the two nodes whose voltage difference you want. Put an ammeter in the current path you are measuring. Connecting an ideal current meter across a supply can create an unintended low-resistance path, so instrument placement deserves the same care as component placement.

An oscilloscope is useful when timing matters. Choose a time scale appropriate to the signal, select the relevant channels and establish a useful trigger. For a periodic signal, frequency is f = 1 / T. A measured period of 20 ms corresponds to 50 Hz; check the units before drawing a conclusion.

For a digital output, duty cycle is the high-time divided by the period, multiplied by 100 percent. A pulse that remains high for 2 ms in a 10 ms period has a 20 percent duty cycle. Frequency and duty cycle describe different features, so do not use one as a substitute for the other.

Labcenter documents the available virtual instruments, including tools for inspecting signals and communications. Availability and presentation vary by product configuration. Select the instrument that answers your question rather than adding every instrument to the schematic.

Component and Driver Lessons

• How to Design a DC Power Supply in Proteus ?
• Variable Voltage Modulation Using LM317 in Proteus ISIS
• DC Motor Drive Circuit in Proteus ISIS
• Stepper Motor Drive Circuit in Proteus ISIS
• Servo Motor Drive Circuit in Proteus ISIS
• Relay simulation in Proteus ISIS
• Design a Buzzer in Proteus

When studying motors or relays, pay attention to the driver circuit and power source, not just the animated load. A microcontroller output is a logic signal with electrical limits. A simulator model that moves a motor does not establish that a real output pin can supply the motor current.

Section 3: Simulate Microcontrollers and Sensors

Embedded simulation introduces a second source of behavior: firmware. The selected processor, clock configuration and compiled program must agree with each other. Establish a simple observable output before adding a display, communication link or sensor algorithm.

1. Select a processor or board model that your installation supports.
2. Draw its required circuit connections and check the pin functions.
3. Compile the firmware for the corresponding target.
4. Attach the supported compiled output to the model.
5. Set the relevant clock properties consistently.
6. Run a simple input/output exercise and inspect its timing.
7. Add one peripheral at a time.

The Proteus VSM overview describes firmware and circuit co-simulation for supported devices. Support is model-specific. Do not assume that every peripheral feature, external module or physical effect is represented simply because the component has a convincing drawing.

Use Serial Output to Understand Firmware

A Virtual Terminal can show diagnostic messages from a simulated UART. Match baud rate and framing on both sides, and connect the transmitter to the receiver. Garbled text often points to mismatched serial settings or clock assumptions, while a blank terminal can also mean the firmware never reaches its transmit code.

Report useful state changes rather than printing indiscriminately in a tight loop. For an 8N1 serial frame, one data byte uses ten bit times including its start and stop bits. At 9,600 bits per second, the theoretical line capacity is approximately 960 bytes per second before accounting for the application's own formatting and timing.

Arduino Project Lessons

The original guide grouped these Arduino exercises together. Availability of board models has changed across Proteus releases and licences, so check your installation before assuming that a third-party board library is always required.

• Arduino Library For Proteus
• Arduino Lilypad / Nano Library For Proteus
• Arduino Lilypad Simulation in Proteus
• Circuit Designing of LCD with Arduino in Proteus ISIS
• Interfacing of Seven Segment Display with Arduino in Proteus
• Display ADC value on LCD using Arduino in Proteus ISIS
• Control Servo Motor with Arduino in Proteus
• Traffic Signal Control Project using Arduino in Proteus
• Intelligent Energy Saving System
• Power Factor Measurement Using Microcontroller in Proteus
• DS1307 Arduino based Digital Clock in Proteus
• Interfacing of Multiple Temperature Sensor with Arduino
• DC Motor Direction Control with Arduino in Proteus ISIS
• DC Motor Speed Control with Arduino in Proteus ISIS
• Arduino Bluetooth Communication using HC05

PIC Microcontroller Lessons

• Circuit Designing of LCD with PIC on Proteus ISIS
• Display ADC value on LCD using PIC Microcontroller in Proteus ISIS
• Electronic Door Lock using PIC Microcontroller

8051 Microcontroller Lessons

• LED Blinking Project using 8051 Microcontroller
• Serial Communication with 8051 Microcontroller
• Interfacing of LCD with 8051 Microcontroller
• Interfacing of Keypad with 8051 Microcontroller
• Design a Simple Calculator with 8051 Microcontroller

Sensor Simulation Lessons

When a sensor model provides a slider or an editable input, that control defines the simulation stimulus. It does not prove that the model reproduces optical noise, thermal response, drift, mechanical movement or every device command. Read the library's description and distinguish the modeled interface from the real sensor's full behavior.

• Ultrasonic Sensor Library for Proteus
• Ultrasonic Sensor Simulation in Proteus
• How to Use LDR Sensor in Proteus
• Capacitive Touch Sensor in Proteus
• LM35 Sensor in Proteus
• 18B20 Sensor in Proteus ISIS
• Send SMS with SIM900D Module in Proteus ISIS

555 Timer Exercises

These lessons provide a useful bridge between basic components and timed behavior. Compare the expected timing with the waveform, then investigate which components or control inputs change the period and duty cycle.

• LED Flashing Project with 555 Timer in Proteus ISIS
• Multiple LED Flasher Project using 555 Timer in Proteus ISIS
• LED Dimming Project Using 555 Timer in Proteus ISIS
• Angle Control of Servo Motor using 555 Timer in Proteus ISIS
• Sequential LED Blinking using 555 Timer in Proteus ISIS
• Seven Segment Display Using 555 Timer in Proteus ISIS
• Relay Control Using 555 Timer in Proteus ISIS
• Traffic Signal Control using 555 Timer in Proteus ISIS

Install Additional Libraries Carefully

A downloaded library can contain several different things: device definitions, package data, an optional simulation model and example projects. Read the package's installation notes because file types and locations vary. Do not assume a universal directory path copied from an older Windows installation.

1. Check the library's intended Proteus version and supported architecture.
2. Locate the active library and model directories for your installation.
3. Preserve any existing files before intentionally replacing a library version.
4. Install each file in the location specified by its package.
5. Restart or refresh Proteus as required by that release.
6. Search for the exact device name supplied by the author.
7. Open the included example before integrating it into a larger project.

A device appearing in the component picker only confirms that its definition was found. If it also needs a simulation model, that model must be available and compatible. Likewise, a graphical symbol does not automatically provide a PCB footprint.

Original Library Collection

• Arduino Library for Proteus
• Genuino Library for Proteus
• GPS Library for Proteus
• GSM Library for Proteus
• XBee Library for Proteus
• Arduino UNO Library for Proteus
• Arduino Mega Library for Proteus
• Arduino Nano Library for Proteus
• Arduino Pro Mini Library for Proteus
• Ultrasonic Sensor Library for Proteus
• PIR Sensor Library for Proteus
• Bluetooth Library for Proteus
• DS1307 Library for Proteus
• Gas Sensor Library for Proteus

Keep downloaded libraries in a project record with their version information. If two computers produce different results, compare the actual library and firmware files before assuming the circuit editor is at fault.

Section 4: Move from the Schematic to PCB Layout

Before laying out a board, assign and check the physical package for each fitted part. The package must match the actual component you will buy or assemble. A correct circuit symbol paired with the wrong pad numbering can produce a manufactured board that connects the right nets to the wrong leads.

Choose the board outline and practical constraints early. Connector access, mounting holes and component height affect placement. Arrange major connectors and mechanical features before spending time routing every signal.

1. Review the schematic connections and component references.
2. Check footprint names, dimensions, polarity and pin mapping.
3. Define the board outline and intended layer structure.
4. Set design rules according to the intended fabrication process.
5. Place components with their electrical and mechanical relationships in mind.
6. Route critical connections, power paths and remaining signals.
7. Run the available checks and inspect every unresolved issue.
8. Generate and review the required manufacturing outputs.

Trace width and clearance are design decisions, not decoration. The needed width depends on current, copper construction and acceptable temperature rise, while spacing depends on electrical requirements and manufacturing capability. Avoid applying one arbitrary width to every net.

Consider return-current paths as well as outgoing signals. A visually short signal can still have an awkward return path if the ground arrangement is interrupted. Place decoupling capacitors near the supply connections they serve and keep switching-current loops compact where the circuit requires it.

PCB Tutorials from the Original Guide

• PCB Designing in Proteus ARES
• Arduino UNO PCB Design for Proteus ARES

A completed autoroute is not the same as an approved board. Review placement, current paths, connector polarity, clearances and mechanical fit. Automated tools assist the design process; they do not know every application requirement unless those requirements have been represented in rules and constraints.

Section 5: Create a Component and Its Footprint

When the required part is missing, first decide what you actually need to create. For schematic entry, you need a meaningful symbol with correctly named and numbered pins. For PCB layout, you also need a physical footprint and a reliable mapping between symbol pins and pads.

Use the manufacturer's package drawing to determine pad positions, dimensions, pitch and orientation. Check the units before entering dimensions. A drawing in millimetres copied as though it were in inches can produce a dramatically wrong package even when the on-screen shape looks plausible.

Simulation is a separate requirement. Drawing a component or assigning a footprint does not create its electrical behavior. A suitable model may already exist, or a specialized model may need development. Creating every custom component does not require a new C++ DLL; that depends on what behavior and modeling interface are needed.

Review a new footprint at a known scale and compare it against the physical part or its verified drawing. Check pin 1, polarity marks, drill sizes and pad numbering. A useful library entry should help another designer select the right part and understand its limitations.

Section 6: Assemble a Complete Project in Stages

Choose a project with a clear input, processing step and output. For example, a temperature monitor can begin with a controlled test value, then add display formatting, then a sensor interface and finally an alarm condition. Keep an observable result at each stage.

Write a small behavior table before expanding the circuit. State what should happen during startup, normal operation, a boundary value and missing input. Include at least one fault case, because a model that behaves correctly only with perfect inputs reveals little about error handling.

Keep calculations, screenshots, firmware and library versions with the project. A saved schematic alone may not explain why a previous run produced a particular result. The record becomes especially valuable when an older tutorial uses a library that has since changed.

Common Problems and What They Usually Mean

Practical Review of Proteus as a Learning Tool

Proteus is particularly useful when you want to connect circuit behavior with firmware and inspect signals before building a prototype. The schematic, simulation instruments and PCB workflow can support a coherent learning sequence.

Its usefulness depends on the available models, your licence and the assumptions represented in the design. A simulation does not establish thermal performance, electromagnetic compatibility or manufacturing quality merely because it runs without an error message. Use it to answer defined questions, then validate the real hardware where the project requires it.

For release-specific demonstrations, compare the older lessons here with Labcenter's official tutorials. Keep the educational sequence consistent even when individual buttons, menus or library packages change.

Frequently Asked Questions

Should I learn ISIS or ARES first?

Start with the schematic workflow and basic circuit measurements. Once the connections and behavior are understood, move to PCB layout and learn how the logical circuit maps to physical pads and copper.

Can every component in the library be simulated?

No. A component can provide a symbol or footprint without a simulation model. Check the part's intended use and the model support in your installation.

Do all Arduino projects need an extra library?

No universal answer applies to every release and package. Check which board or processor models are already present, then install a compatible additional library only when the project requires it.

Does a successful simulation guarantee a working PCB?

No. Footprints, layout, power integrity, real components and mechanical constraints add requirements beyond the simulated circuit. Review and test those separately.

Why does a project work on one computer but not another?

Compare Proteus versions, licences, library files, firmware paths and configuration. A missing external dependency can make two copies of the same schematic behave differently.

What is the best next exercise for a beginner?

Build the LED circuit described above, calculate its expected current and measure it in simulation. Then change one component value and explain the result before progressing to a timed or microcontroller-based circuit.
