74HC14 PCB Footprint

Libraries Code Projects Simulation

tep://download-terminal TEP_SO14.kicad_mod KiCad footprintVerifiedFree

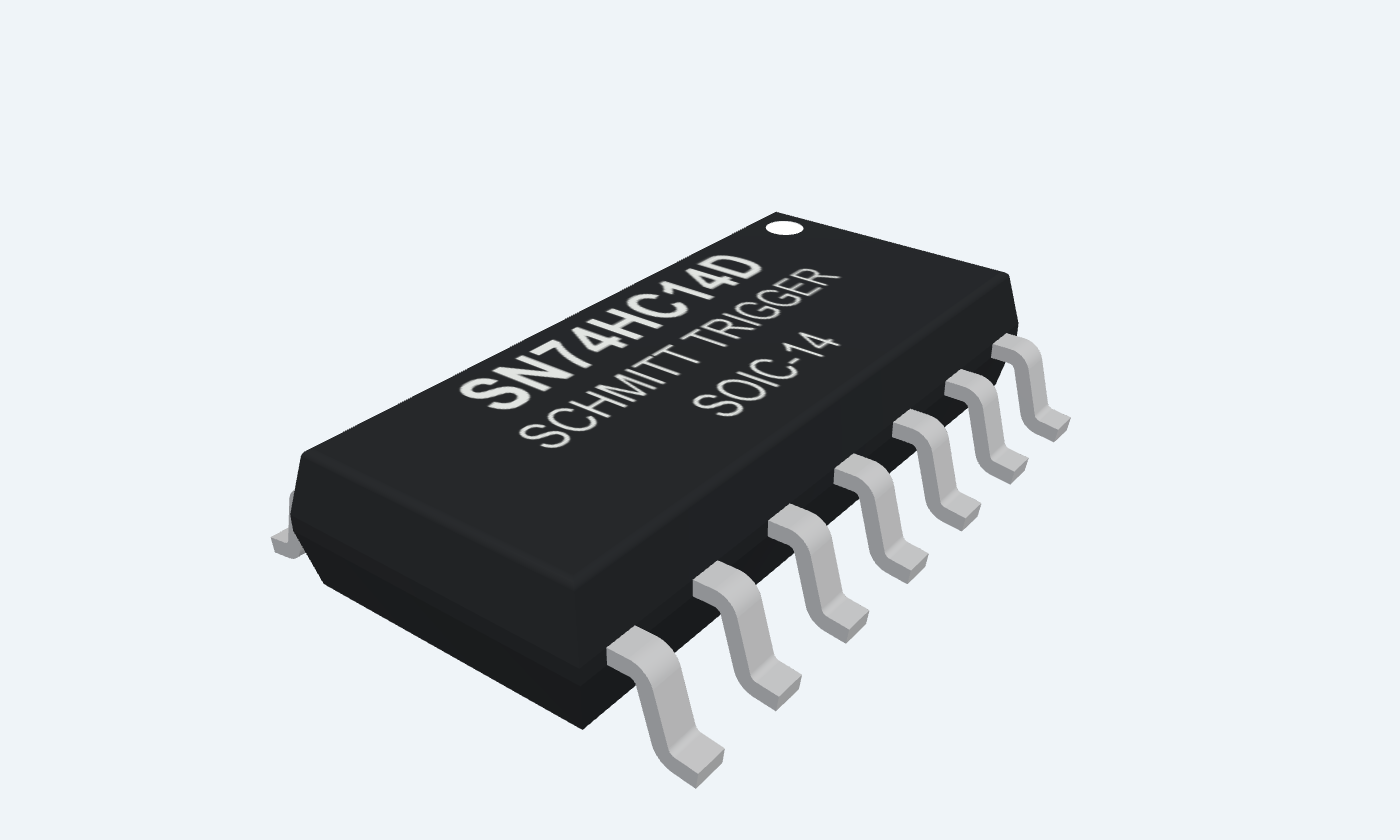

SN74HC14D black package with silver leads and readable markings.

PCB / schematic · File 1 of 1

SO14 KiCad PCB Footprint

74HC14 · SN74HC14D · SOIC-14: an editable KiCad footprint with 14 numbered pads at 1.27 mm pitch.

PCBPCB / schematic

Description

Editable KiCad footprint with numbered copper pads, drill dimensions and package outlines.

Use in KiCad

Download the .kicad_mod file.
Create a folder named TEP.pretty and put the file inside.
In KiCad, open Preferences → Manage Footprint Libraries and add that folder.
Select the footprint in the Footprint Editor or assign it to your schematic symbol.

Dimensions are in millimeters. Confirm the package and pin mapping against your chosen part before fabrication. This is a footprint, not a complete PCB or 3D model.

Read 74HC14

File Structure

TEP_SO14.kicad_modKiCad footprint · 4.3 KB. A single file: nothing to extract, open it as described in the Install tab.

Installation4 steps

From the download to a working project, in order. The steps follow what the package contains.

You will need

KiCadAdd the .kicad_mod file to a .pretty footprint library.

Steps

1
Create a footprint library
Create a folder named TEP.pretty and put the downloaded .kicad_mod file inside.
2
Add it to KiCad
Open Preferences → Manage Footprint Libraries and add the TEP.pretty folder. Open the footprint in the Footprint Editor or assign it to a schematic symbol.
3
Check your chosen package
Verify the pin mapping, pad dimensions and drill sizes against your component before fabricating the PCB. Dimensions are in millimeters.
4
Check the component datasheet
Use the 74HC14 package drawing and pinout to confirm pad numbers and dimensions before manufacturing.

FAQs5 questionsContact TEP

How do I download the 74HC14 footprint?

Select the matching package, wait for the countdown and press Download. Guests wait 30 seconds and signed-in members wait 10 seconds.

What if the download does not start?

Check your browser's downloads, then try the button again. Expired links renew automatically. For help, use Bug report below and include your browser and KiCad version.

Which package should I choose?

This selection is SN74HC14D in SOIC-14. Match your actual component's package and pad numbering; through-hole and surface-mount footprints are not interchangeable.

Does this include a complete PCB or 3D model?

This .kicad_mod file is an editable footprint. The interactive datasheet separately provides schematic, pinout and 3D previews.

How can I verify the file?

Compare its SHA-256 against the checksum on this page. In PowerShell run Get-FileHash TEP_SO14.kicad_mod.
