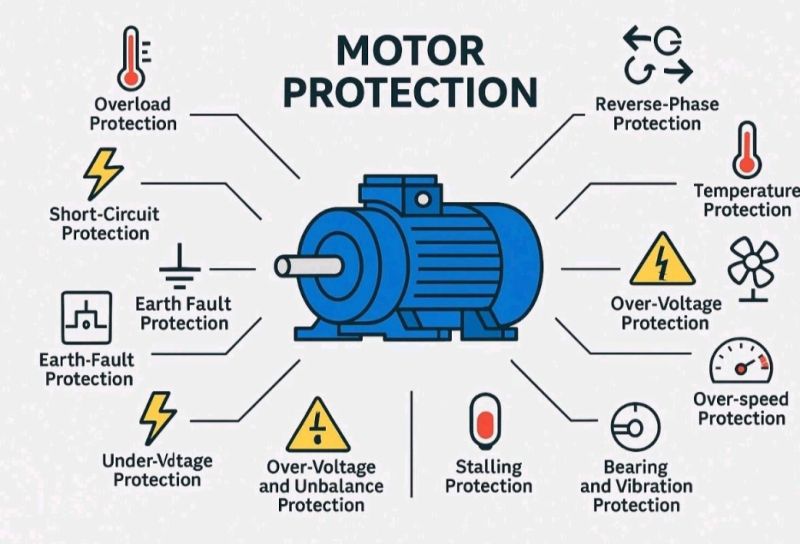

Motor Protection Techniques in Industrial Automation Systems

Electric motors are used in almost every industrial automation system. They run machines like pumps, conveyors, compressors, and CNC equipment that keep production moving. These motors work under heavy load for long hours, which makes them both important and vulnerable parts of any system.

Problems like electrical faults, overheating, and sudden mechanical stress can quickly damage them and stop operations. This article explains the main protection techniques used in modern industrial systems to keep motors safe and reliable. Instead of depending on one solution, engineers use multiple layers of protection. Each layer works together to reduce risk, improve performance, and extend motor life.

Why Motor Protection is Critical in Industrial Automation

Industrial automation systems depend heavily on electric motors, but these motors face many risks during operation. Electrical faults such as overcurrent, voltage imbalance, and short circuits can quickly damage internal components.

Mechanical stress also occurs when motors face sudden load changes or jerks, which puts extra pressure on moving parts. In addition, thermal overload can happen when motors run under continuous high load for long periods, leading to overheating.

The results are serious when motor protection is weak. Motors wear out faster, production stops unexpectedly, and companies face high repair and replacement costs.

In automation environments, motors often run nonstop or under changing loads, which increases the risk even more. This is why industrial systems need a clear and systematic approach to motor protection to ensure stable performance and long-term reliability.

Overload Protection Systems

Overload protection systems protect electric motors from sustained overcurrent conditions that can damage windings over time. These systems come in two main types: thermal overload relays and electronic overload protection devices.

Thermal relays use heat response to detect rising current, while electronic devices measure current more precisely and respond faster. They work by continuously monitoring the motor’s current and temperature rise. When values go beyond safe limits, the system trips the circuit and stops the motor to prevent damage.

In industrial systems, overload protection is essential, as it protects motor windings and helps avoid insulation breakdown. These systems are widely used in motor control centers (MCCs) and are often connected to PLCs for real-time alerts and automatic shutdown control.

However, overload protection has a limitation. It does not protect against sudden mechanical shocks or high inrush current during startup.

Short Circuit and Fault Current Protection

Short circuit and fault current protection systems protect electric motors from serious electrical failures. Their main purpose is to prevent damage caused by sudden and extreme current spikes.

The most common devices used are fuses and circuit breakers such as MCBs and MCCBs. Fuses provide fast-acting protection by melting when current exceeds safe limits, while circuit breakers automatically disconnect the circuit when a fault is detected.

These devices work on a simple principle: they instantly cut power when abnormal current flows through the system. In industrial environments, this helps prevent fire hazards and protects other electrical equipment in the system.

Selective coordination between breakers is also used so that only the faulty section shuts down instead of the entire system. However, this protection does not handle mechanical stress or issues that occur during motor startup.

Voltage Protection and Phase Monitoring

Voltage protection and phase monitoring systems protect motors from unstable power conditions. Common issues include under-voltage, over-voltage, phase loss, and phase imbalance. These problems can seriously affect motor performance and safety if not controlled.

To manage these risks, industrial systems use voltage monitoring relays along with phase sequence and phase failure relays. These devices constantly check the power supply and stop the motor if abnormal conditions are detected.

When voltage is unbalanced, motors produce uneven torque, which leads to overheating and reduced efficiency. Over time, this can shorten motor life and increase maintenance needs.

In industrial automation, these protection methods are essential for three-phase motors and are commonly built into control panels. As a result, they ensure that motors only start and run under stable electrical conditions, improving reliability and system safety.

Thermal Protection and Temperature Monitoring

Temperature control is one of the most important parts of motor protection because heat directly affects the lifespan of winding insulation. When a motor runs at high temperature for long periods, its internal insulation slowly breaks down, which can eventually lead to complete failure. To manage this risk, industrial systems use different thermal protection techniques:

• Built-in thermal sensors such as PTC and RTD sensors placed inside or near motor windings
• External temperature monitoring systems used for additional safety and redundancy

These systems continuously track the motor’s temperature during operation. If the temperature rises beyond safe limits, they trigger an alarm or automatically shut down the motor.

This type of protection is especially important in heavy-duty industrial applications where motors operate under continuous or high-load conditions. Thermal protection reduces gradual wear, helping motors last longer and maintain stable performance over time.

Controlled Motor Starting Techniques

Controlled motor starting techniques are important in industrial systems because starting a motor directly from the supply can create very high inrush current and sudden mechanical stress on connected equipment.

Solutions include:

• Star-delta starters
• Variable frequency drives (VFDs)
• Reduced voltage starters

These methods allow motors to accelerate smoothly, which reduces torque stress on mechanical parts. It also helps extend the life of components such as belts, gears, and pumps by avoiding sudden load impact. This improves overall system reliability.

These controlled starting methods are commonly used in conveyors, compressors, and industrial pump systems where smooth operation is critical. They are essential in continuous production lines where downtime is costly.

In cost-sensitive installations, a soft starter for industrial motors provides an effective balance between performance and protection by limiting starting current without the complexity of full-speed control systems.

Among these solutions, controlled voltage-based starting is widely used where full VFD control is not required.

Integrated Protection in PLC-Based Automation Systems

Integrated PLC-based protection systems control motor safety through centralized monitoring instead of separate standalone devices. PLCs continuously track current, voltage, and temperature to detect abnormal conditions in real time. Some key functions include:

• Real-time monitoring of motor operating parameters
• Automatic fault detection and shutdown logic

These systems improve maintenance through remote diagnostics and support predictive maintenance by identifying issues early. They also reduce manual inspection needs and improve response speed during faults.

PLCs communicate with field devices using industrial protocols such as Modbus, Profibus, and Ethernet/IP, ensuring fast and reliable data exchange. This integration improves system response time, reduces unplanned downtime, and increases overall reliability in industrial automation environments.

Endnote

No single device can fully protect a motor on its own. Motor protection in industrial automation is a multi-layer system, with each layer addressing a different type of risk. When combined, these protection methods improve reliability, extend motor life, and reduce unexpected failures. This directly supports better industrial efficiency and lower maintenance costs.
