How to Choose DC-DC Converters for Electric Forklifts and Golf Carts

Electric forklifts and golf carts have quietly become two of the most demanding environments for power electronics. Unlike a desktop computer or a home solar setup, these vehicles combine high-voltage drive systems with sensitive low-voltage accessories — all while operating in conditions that most electronics were never designed to handle. Choosing the right DC-DC converter for these machines is less about chasing specs on a datasheet and more about understanding what the vehicle actually goes through every day.

Why These Vehicles Are Different

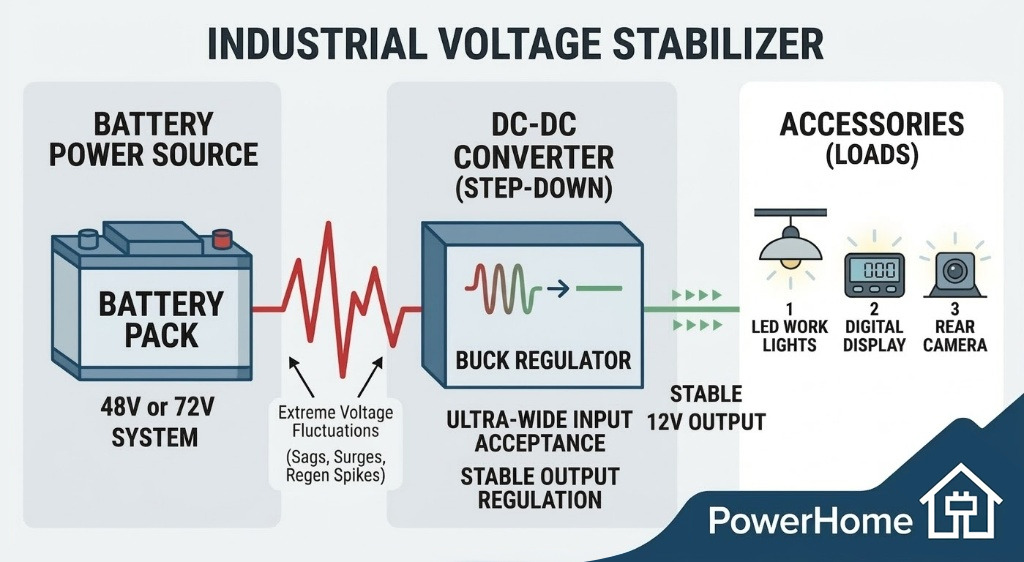

Most electric forklifts run on 48V or 72V battery packs. Golf carts typically use 36V or 48V systems. But the lights, displays, horns, backup cameras, and USB charging ports on these vehicles all run on 12V. That gap between the drive voltage and the accessory voltage is exactly where a Step-Down DC-DC Converter (Buck Converter) earns its place.

What makes this challenging is that the battery voltage doesn't stay constant. A 48V lithium pack might sit at 54V when fully charged and drop to 42V when nearly depleted. That's a 12V swing, and the converter must be a Wide Input Range Buck Regulator to handle the full range without letting the output voltage drift. If it lacks a Tight Voltage Regulation or High Transient Response, accessories flicker, sensors reset, and drivers get frustrated — or worse, safety systems fail at the wrong moment.

The Environment Is the Real Test

Specs on paper are one thing. The actual working environment is another.

A warehouse forklift deals with concrete dust, occasional water from floor cleaning, and constant vibration from uneven surfaces. An outdoor golf cart faces rain, humidity, and summer temperatures that can push internal component temperatures well past 60°C when the cart sits in direct sunlight.

This is why the physical construction of a converter matters as much as its electrical ratings. A unit with a sealed aluminum housing and a proper waterproof rating will outlast a cheaper plastic-housed alternative by years in these conditions. When evaluating options, look for converters rated at IP67 or IP68 — these are tested for dust ingress and water submersion, not just splashing.

Vibration resistance is equally important and often overlooked. Forklifts hit bumps, dock plates, and floor joints hundreds of times a day. A converter with poorly secured internal components will develop loose connections over time. That shows up as intermittent failures that are difficult to diagnose and expensive to chase down.

Matching the Converter Type to the Application

Not all DC-DC converters work the same way, and the right type depends on what the system needs to do.

For stepping voltage down — like converting a 48V or 72V battery system to 12V for accessories — a buck converter is the standard choice. These are efficient, widely available, and well-suited to fixed output voltage applications where the input voltage range is known.

For stepping voltage up — less common in forklifts but relevant in golf carts where a 12V auxiliary battery needs to power a 24V accessory or communication device — a boost converter handles the job.

When the input voltage fluctuates significantly, a boost-buck converter (also called a buck-boost) is worth considering. These automatically switch between stepping up and stepping down depending on the input, which is useful in systems where battery voltage swings are wide or unpredictable.

For powering sensitive electronics — control boards, GPS units, safety sensors — an isolated converter provides an electrical barrier between the high-voltage system and the low-voltage load. This separation protects delicate components from voltage spikes and electrical noise generated by the drive motor, which can be significant in industrial vehicles.

A Practical Sizing Example

Consider a 48V electric forklift with the following accessories: two LED work lights drawing 40W each, a digital display at 15W, a horn at 10W, and a rear camera at 8W. That totals 113W of continuous load at 12V output — roughly 9.5 amps.

A converter rated at 15A output provides a reasonable safety margin without oversizing to the point of unnecessary cost. Running a converter at 60–70% of its rated capacity also tends to extend its lifespan compared to pushing it close to the limit continuously.

For a load profile like this, a 15A or 20A industrial-grade buck converter — such as those in the PowerHome range — fits the requirement well. PowerHome converters are built with sufficient power headroom to absorb startup current surges without tripping offline, which matters when a display panel or camera initializes and briefly draws two to three times its steady-state current. The built-in overcurrent protection responds to these spikes without cutting power to the rest of the system, keeping sensitive accessories stable through every ignition cycle.

Protection Features That Actually Matter

In mobile and industrial applications, protection features aren't marketing checkboxes — they're what keeps a converter running after something goes wrong.

Overcurrent protection prevents damage when a short circuit or unexpected load spike occurs. Overvoltage protection guards the output side from delivering too much voltage if something changes on the input. Thermal shutdown kicks in if internal temperatures climb too high, protecting the unit from permanent damage rather than letting it burn out.

For vehicles that operate in cold climates or refrigerated warehouses, checking the low-temperature operating range matters too. Some converters derate significantly below 0°C, which creates real problems in cold storage facilities where forklifts run around the clock.

Installation and Long-Term Reliability

Even a well-chosen converter can underperform if it's installed poorly. Mounting location makes a bigger difference than most people expect. Placing a converter near a heat source — such as a motor controller or battery management system — raises its ambient temperature and reduces efficiency. Where possible, mount it in a location with airflow, even passive airflow from vehicle movement helps.

Cable length and gauge also matter. Undersized wiring between the battery and the converter introduces resistance, which causes voltage drop and generates heat. Following the manufacturer's recommended wire gauge for the rated current keeps losses low and prevents premature failure at the connection points.

For fleet operators running multiple vehicles, standardizing on a single converter model across the fleet simplifies spare parts inventory and makes troubleshooting faster. When one unit fails, a technician already familiar with the product can replace it quickly without consulting documentation from scratch.

What to Check Before Buying

Rather than comparing datasheets in isolation, it helps to work through a short checklist based on the actual application:

• Does the input voltage range fully cover the battery's charge and discharge swing?
• Is the output current rating sufficient with a safety margin of at least 25–30%?
• Is the waterproof rating appropriate for the operating environment?
• Does the operating temperature range match the expected conditions?
• Are overcurrent, overvoltage, and thermal protection included?
• Is electrical isolation needed for sensitive loads?

These questions eliminate most of the guesswork and narrow the field to converters that will genuinely work in the application rather than just meeting minimum specs.

Final Thought

Electric forklifts and golf carts aren't glamorous applications, but they're honest ones. They run long hours, in difficult conditions, and they need components that simply keep working. A DC-DC converter chosen with the operating environment in mind — rather than just the voltage numbers — is one of the quieter investments that pays off every day without drawing attention to itself. That's usually the mark of a good engineering decision.
