Project Files of Arduino GIGA R1 WiFi Library for Proteus: M7 + M4 Cores, RPC

ARDUINO GIGA R1 WIFI LIBRARY FOR PROTEUS - V1.0 (YOUR M7 AND M4 SKETCHES, RPC, WIFI, A DOOR STATION)
Designed by The Engineering Projects
www.TheEngineeringProjects.com

IMPORTANT LINKS
Article (read it first - pictures, step by step, every feature explained):
  https://www.theengineeringprojects.com/2026/10/arduino-giga-r1-wifi-library-for-proteus.html
Report a bug or suggest a feature (our forum):
  https://www.theengineeringprojects.com/forum/category/arduino-giga-r1-wifi-proteus-library
The demo's parts are our libraries (included) - their articles:
  PN532 NFC reader:
    https://www.theengineeringprojects.com/2026/09/pn532-nfc-proteus-library.html
  R307 fingerprint sensor:
    https://www.theengineeringprojects.com/2026/10/fingerprint-sensor-library-for-proteus-v1-0.html
  DFPlayer Mini:
    https://www.theengineeringprojects.com/2026/10/dfplayer-mini-library-for-proteus-v1-0.html
  Laptop and phone:
    https://www.theengineeringprojects.com/2026/10/laptop-wifi-monitor-library-for-proteus.html
    https://www.theengineeringprojects.com/2026/10/mobile-wifi-monitor-library-for-proteus.html
The GIGA's sister board with the same headers, our Arduino Due:
  https://www.theengineeringprojects.com/2026/10/arduino-due-library-for-proteus.html
Support us (the libraries are free):
  https://www.theengineeringprojects.com/donate

FILE STRUCTURE
Arduino-GIGA-R1-WiFi-TEP-v1.0/
|-- Proteus Library Files/
|   |-- TEPDFPLAYER.LIB                                  82.9 KB   the DFPlayer Mini (demo), to LIBRARY
|   |-- TEPFINGER.LIB                                   264.2 KB   the R307 fingerprint sensor (demo), to LIBRARY
|   |-- TEPGIGA.LIB                                      57.3 KB   the Arduino GIGA R1 WiFi, to LIBRARY
|   |-- TEPLAPTOP.LIB                                    39.5 KB   the laptop (demo), to LIBRARY
|   |-- TEPMOBILE.LIB                                    13.1 KB   the phone (demo), to LIBRARY
|   |-- TEPPN532.LIB                                    109.9 KB   the PN532 NFC reader (demo), to LIBRARY
|-- Proteus Model Files/
|   |-- TEPDFPLAYER.DLL                                 298.0 KB   the DFPlayer Mini, to MODELS
|   |-- TEPFINGER.DLL                                   321.5 KB   the R307 fingerprint sensor, to MODELS
|   |-- TEPNET.DLL                                       2.65 MB   the board + monitors + network, to MODELS
|   |-- TEPPN532.DLL                                    365.0 KB   the PN532 NFC reader, to MODELS
|-- Arduino Code/
|   |-- GIGA_Door_Light/GIGA_Door_Light.ino               2.2 KB   the demo sketch
|   |-- GIGA_Door_Station/GIGA_Door_Station.ino          11.3 KB   the demo sketch
|   |-- TEP Boards for Proteus/hardware/                921.3 KB   the Arduino IDE add-on 1.38.0 (215 files)
|-- Proteus Simulation/
|   |-- GIGA_Door_Light.hex                              22.6 KB   the M4 core sketch (PROGRAMM4)
|   |-- GIGA_Door_Station.hex                            72.9 KB   the demo sketch (U1)
|   |-- GIGA-R1-WiFi-Door-Station.pdsprj                 43.9 KB   the demo: a door station
|   |-- TEPDFPLAYER.DLL                                 298.0 KB   copy of the model
|   |-- TEPFINGER.DLL                                   321.5 KB   copy of the model
|   |-- TEPNET.DLL                                       2.65 MB   copy of the model
|   |-- TEPPN532.DLL                                    365.0 KB   copy of the model
|-- README.txt                                          ~16.3 KB   this file
Total: 8.84 MB (unzipped). The source code of the models is not included.

WHAT IS IT?
Proteus 8 has no STM32H747 (or any Arm Cortex-M7) model, so this is NOT a real STM32H747. It is the Arduino GIGA R1
WiFi - the Mega's 101.6 x 53.3 mm board and headers, the dual-core STM32H747XI, 8 MB of SDRAM, 16 MB of QSPI flash, the
Murata 1DX Wi-Fi / Bluetooth module with its antenna socket, USB-C, the USB-A host port, the audio jack, the camera and
JTAG connectors, the RGB LED, RESET and BOOT0 - that runs YOUR two GIGA sketches in Proteus, one per core:
  * You write normal GIGA sketches - the M7 one (D0 .. D53, A0 .. A11, DAC0 / DAC1, Serial, Serial1 .. Serial3, Wire,
    SPI, WiFi with WiFiServer / WiFiClient / WiFiUDP, RPC) and, if you like, an M4 one (the RGB LED, RPC) - and compile
    them in the Arduino IDE with our board package "TEP Boards for Proteus" 1.38.0 (in Arduino Code - see INSTALLATION):
    board "Arduino GIGA R1 WiFi (TEP Proteus)" for the M7, "Arduino GIGA R1 WiFi M4 core (TEP Proteus)" for the M4.
  * Inside the board, Proteus's own ATmega2560 model runs the M7 sketch at 16 MHz; a SECOND hidden ATmega2560 runs the
    M4 sketch next to it. Our model (TEPNET.DLL) wraps both: the GIGA's pins, 3.3 V logic, A0 .. A11 (0 .. 1023 for
    0 .. 3.3 V), the DAC, RESET, the ON LED, the RGB LED (both cores can light it), the built-in serial monitor on the
    USB-C (Serial), RPC between the cores and the Wi-Fi radio (the Murata 1DX's job on the real board).
  * RPC: RPC.begin() on the M7 boots the M4 (until then the M4 waits, as on the real board); RPC.print / println / write
    on one core arrive at RPC.available / read / peek on the other - text lines in both directions.
  * Wi-Fi: a virtual router (TEP-WiFi, password 12345678) with DHCP (192.168.1.101 for U1), TCP and UDP between all the
    TEP Wi-Fi parts in the design (boards, modules, the Laptop and Mobile WiFi Monitors).
TEP additions: the antenna colours (green on Wi-Fi, orange sending, cyan receiving), the PANEL pad (or the Murata
module) opens the board's panel, the USB-C opens the serial monitor.
Limits (say them before you start): 16 MHz, 8 KB of RAM per core (the real board: 480 MHz and 240 MHz, 1 MB of RAM plus
8 MB of SDRAM), int is 16 bits (the real board: 32 bits - use long for big numbers), the M4 core has no header pins
(only the RGB LED and RPC), RPC is a byte stream (RPC.bind / RPC.call are not modelled), no Serial4, no Wire1 / Wire2
(SDA1 / SCL1), no CAN, no Bluetooth, no USB host, no audio jack, no camera. See MODEL SCOPE AND LIMITS.

ONE DEVICE (search "GIGA" in Pick Devices):
  ARDUINO GIGA R1 WIFI  "Arduino GIGA R1 WiFi" V1.0 (Microprocessor ICs > Arduino Wi-Fi Boards), prefix U, model
  TEPNET.DLL. The panel (a TEP pop-up window; the PANEL pad opens it): Wi-Fi (a phone: OPEN GIGA PAGE, the router's
  list), Pins (every pin live), Test, Settings, Help. The serial monitor (115200 baud) has Monitor, Plotter and Board
  tabs (the Board tab: the ON LED, the RGB LED, the RESET key, every pin). Like every TEP window it has no Windows title
  bar.
The same TEPNET.DLL also runs our other Wi-Fi boards and the Laptop / Mobile WiFi Monitors; it replaces any older
TEPNET.DLL (keep only this newest one in MODELS).

TEST STATUS
V1.0: verified in Proteus 8.5 on 27 Oct 2026 with the demo project as shipped. What the Proteus run showed:
* GIGA-R1-WiFi-Door-Station: the monitor printed "M4 core started (RPC)", "PN532 ready, firmware 1.6", "R307 ready, 2
  fingerprints", "Connecting to TEP-WiFi", "Door page: http://192.168.1.101/" and "DFPlayer Mini ready"; the M4 core
  answered "M4 core: door light ready" and lit the RGB LED blue; the ON LED lit, the antenna green on Wi-Fi.
* The laptop (192.168.1.21) and the phone (192.168.1.41) opened http://192.168.1.101/ (HTTP 200): Door LOCKED, no
  events.
* Card 1 tapped on the PN532's pop-up: "OPEN  - Sana by card (open 1)", WELCOME HOME on the DFPlayer (BUSY LOW), the
  RGB LED green; 5 s later "Door locked" and blue again. Card 3 (the NTAG213): "DENY  - 04112233445566 by card", BEEP,
  the RGB LED flashing red for 3 s.
* Finger A on the R307's pop-up: found as ID 1, score 130 - "OPEN  - Sana by finger (open 2)"; finger C: "DENY  -
  unknown by finger".
* OPEN DOOR on the phone: "OPEN  - remote by web page (open 3)", DOOR OPEN played; LOCKDOWN ON: "Lockdown ON (the web
  page)", the RGB LED red; card 1 in the lockdown: "DENY  - Sana by card (lockdown)". STATUS: "Door LOCKDOWN, opened 3,
  refused 3, fingerprints 2, sound idle"; LOG listed the six events; the laptop's page showed them, newest first.
* About 40 s of simulation in about 14 minutes, no errors, with the monitor, the three pop-ups and both tools open.

INSTALLATION (about 3 minutes)
1. Close Proteus. Extract the WHOLE ZIP to a normal folder (e.g. Desktop).
2. Copy everything in "Proteus Library Files" to the LIBRARY folder of Proteus, for example:
     C:\Program Files (x86)\Labcenter Electronics\Proteus 8 Professional\LIBRARY
   (on some PCs: C:\ProgramData\Labcenter Electronics\Proteus 8 Professional\LIBRARY). TEPGIGA.LIB is the board; the
   others are the demo's parts: TEPPN532.LIB, TEPFINGER.LIB, TEPDFPLAYER.LIB, TEPLAPTOP.LIB and TEPMOBILE.LIB.
3. Copy the DLLs from "Proteus Model Files" (TEPNET.DLL, TEPPN532.DLL, TEPFINGER.DLL, TEPDFPLAYER.DLL) to the MODELS
   folder (...\Proteus 8 Professional\MODELS) - replace an older TEPNET.DLL (this one is the first that knows the GIGA).
4. Delete TEPGIGA.IDX from the LIBRARY folder if it is there.
5. The Arduino IDE (only to compile your own sketches - the demo has its HEX files): copy the folder
   "Arduino Code\TEP Boards for Proteus\hardware" into your sketchbook folder (normally Documents\Arduino), so that
   Documents\Arduino\hardware\tep\avr\boards.txt exists (replace an older copy); restart the IDE. The Arduino AVR Boards
   platform must be installed (it comes with IDE 1.8.x; in IDE 2.x install "Arduino AVR Boards" from the Boards Manager
   once). Tools > Board > TEP Boards for Proteus > Arduino GIGA R1 WiFi (TEP Proteus), or ... M4 core (TEP Proteus).
6. Start Proteus. In Pick Devices (P) search "GIGA".

RUN THE DEMO
Keep the .hex files and the DLLs beside the project in "Proteus Simulation".

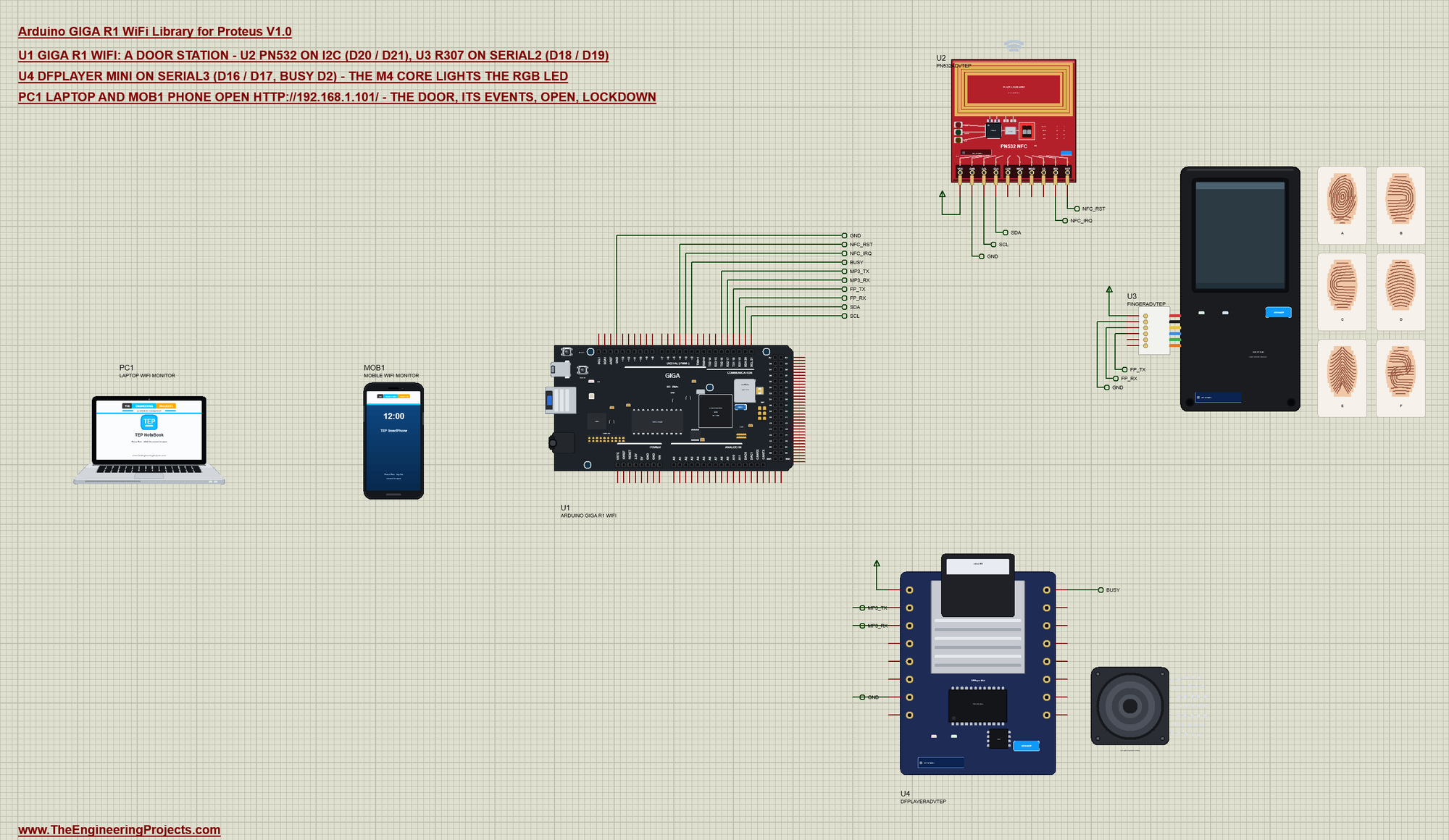

GIGA-R1-WiFi-Door-Station.pdsprj - U1 the GIGA R1 WiFi is a door station: the M7 runs GIGA_Door_Station.hex (PROGRAM),
the M4 runs GIGA_Door_Light.hex (PROGRAMM4). U2 = the PN532 NFC reader on I2C (SDA D20, SCL D21, IRQ D3, RST D4), U3 =

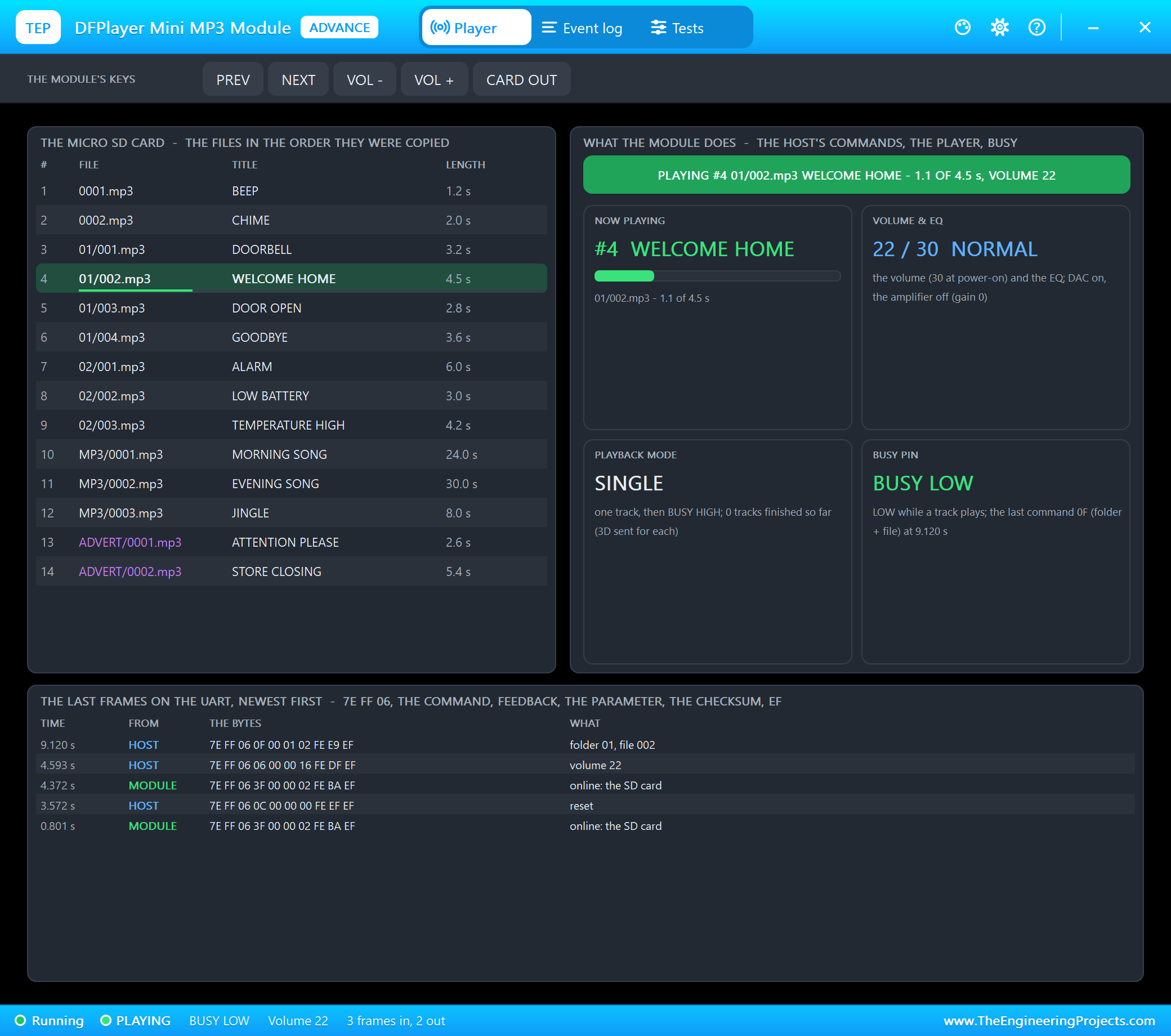

the R307 fingerprint sensor on Serial2 (D18 TX, D19 RX, 57600 baud), U4 = the DFPlayer Mini on Serial3 (D16 TX, D17 RX,
9600 baud) with its BUSY on D2. PC1 the Laptop WiFi Monitor and MOB1 the Mobile WiFi Monitor open http://192.168.1.101/.
The three modules are the Advance versions: each opens its pop-up window at Run.
Press Run. The M7 starts the M4 (RPC.begin), finds the PN532 (firmware 1.6) and the R307 (2 fingerprints), joins
TEP-WiFi and starts the DFPlayer; the M4 lights the RGB LED blue (locked).

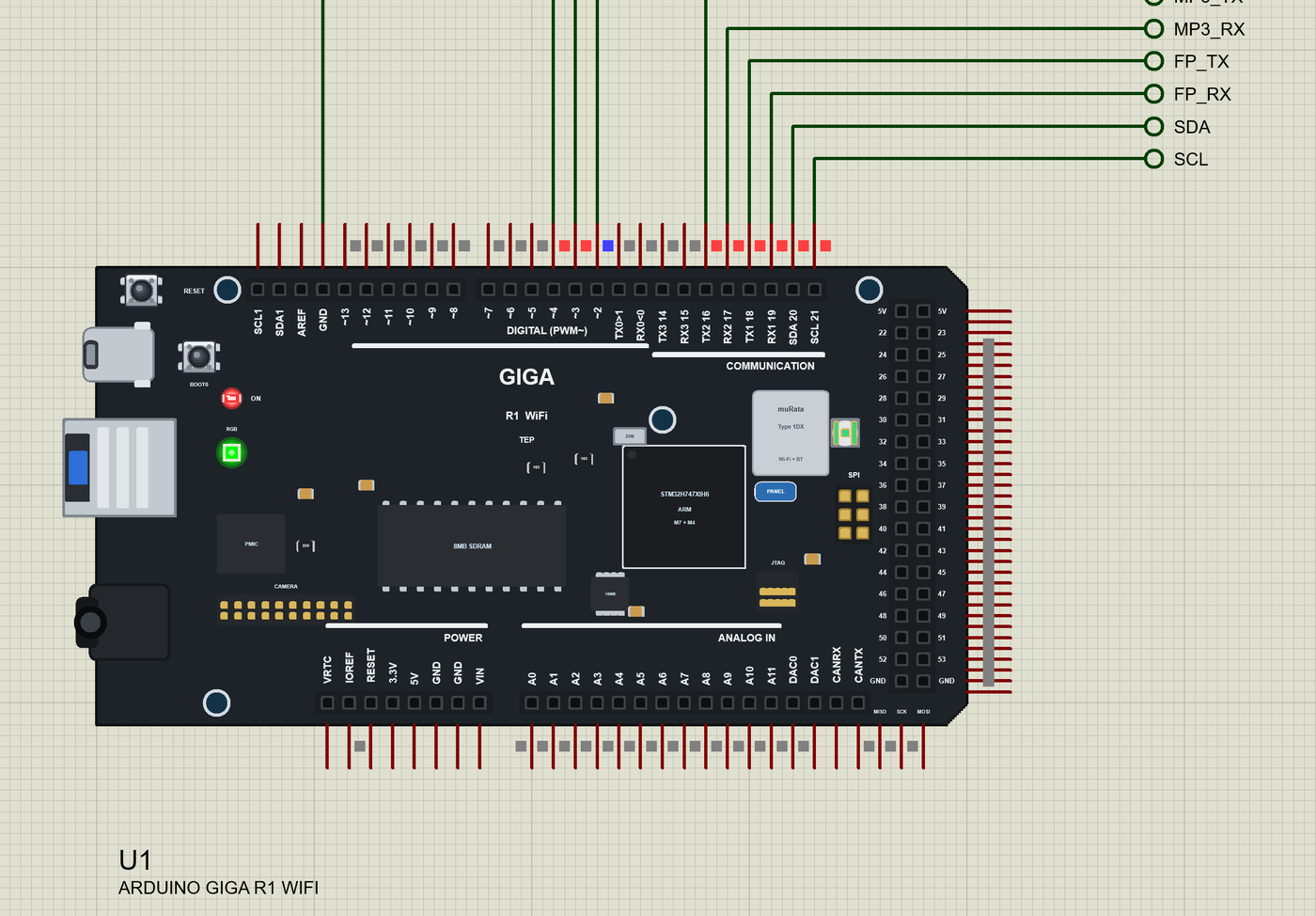

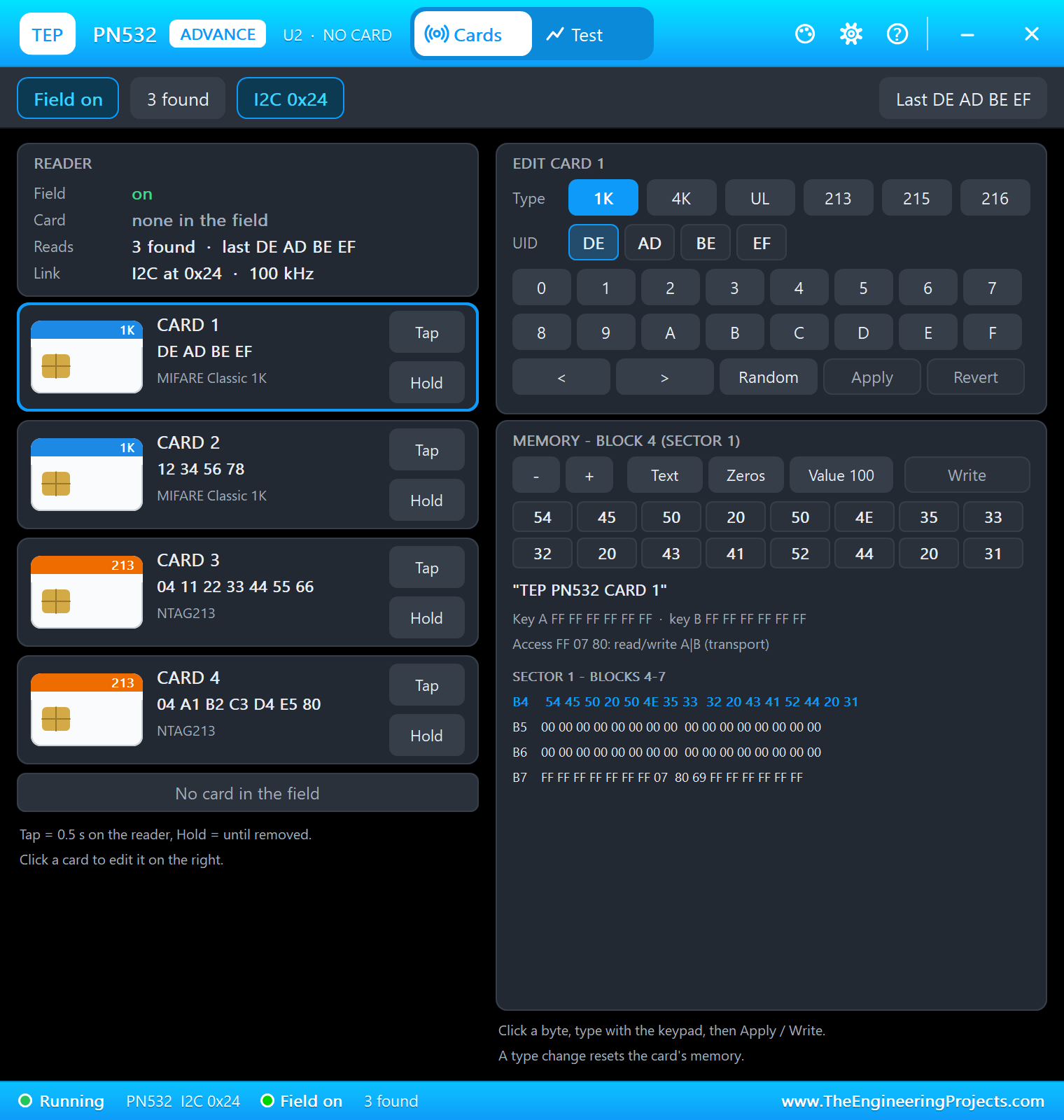

  * The PN532's pop-up: Tap card 1 (DE AD BE EF, Sana) - OPEN: the door opens for 5 s, WELCOME HOME plays, the RGB LED

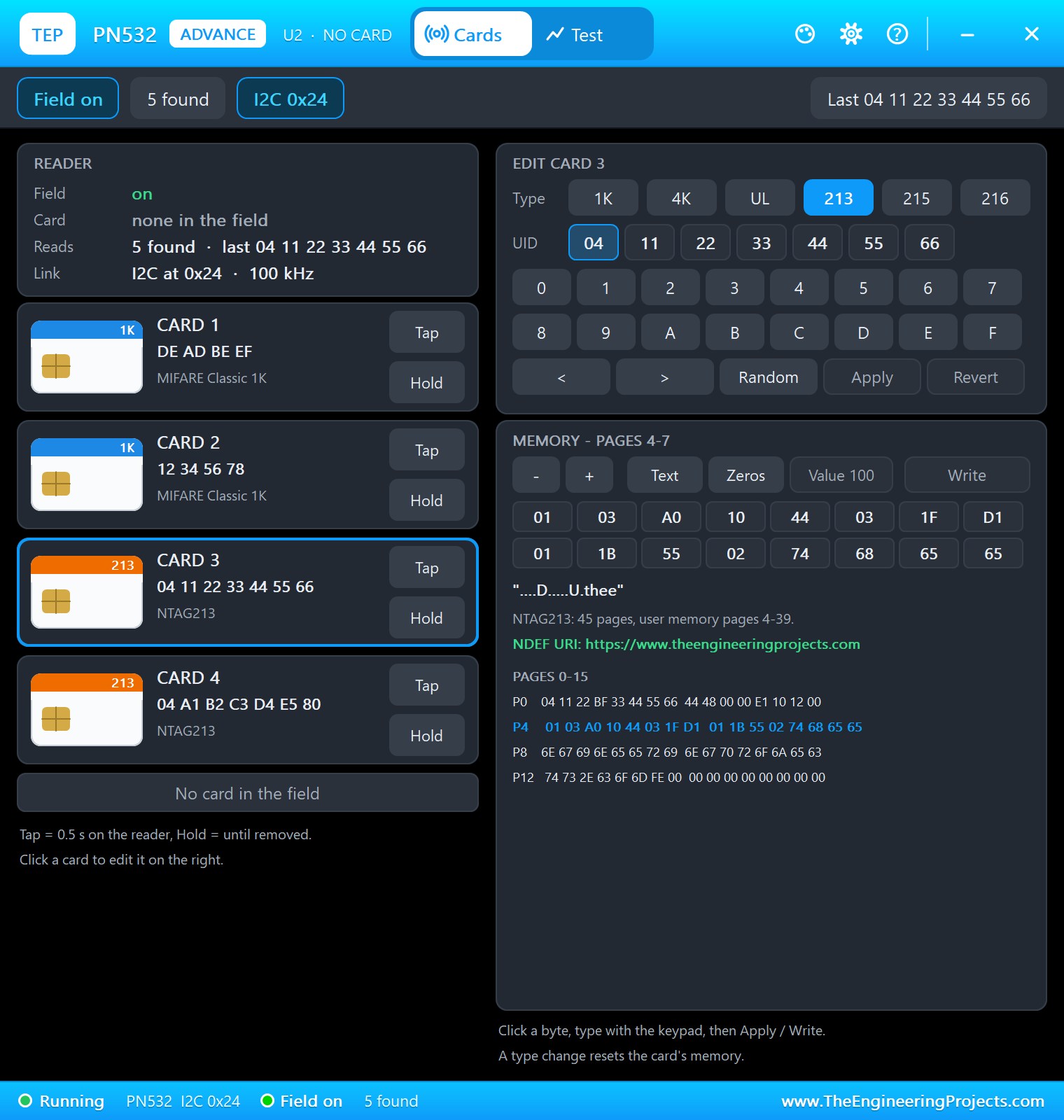

    turns green. Tap card 3 (04 11 22 33 44 55 66, not on the list) - DENY: BEEP, the RGB LED flashes red for 3 s.

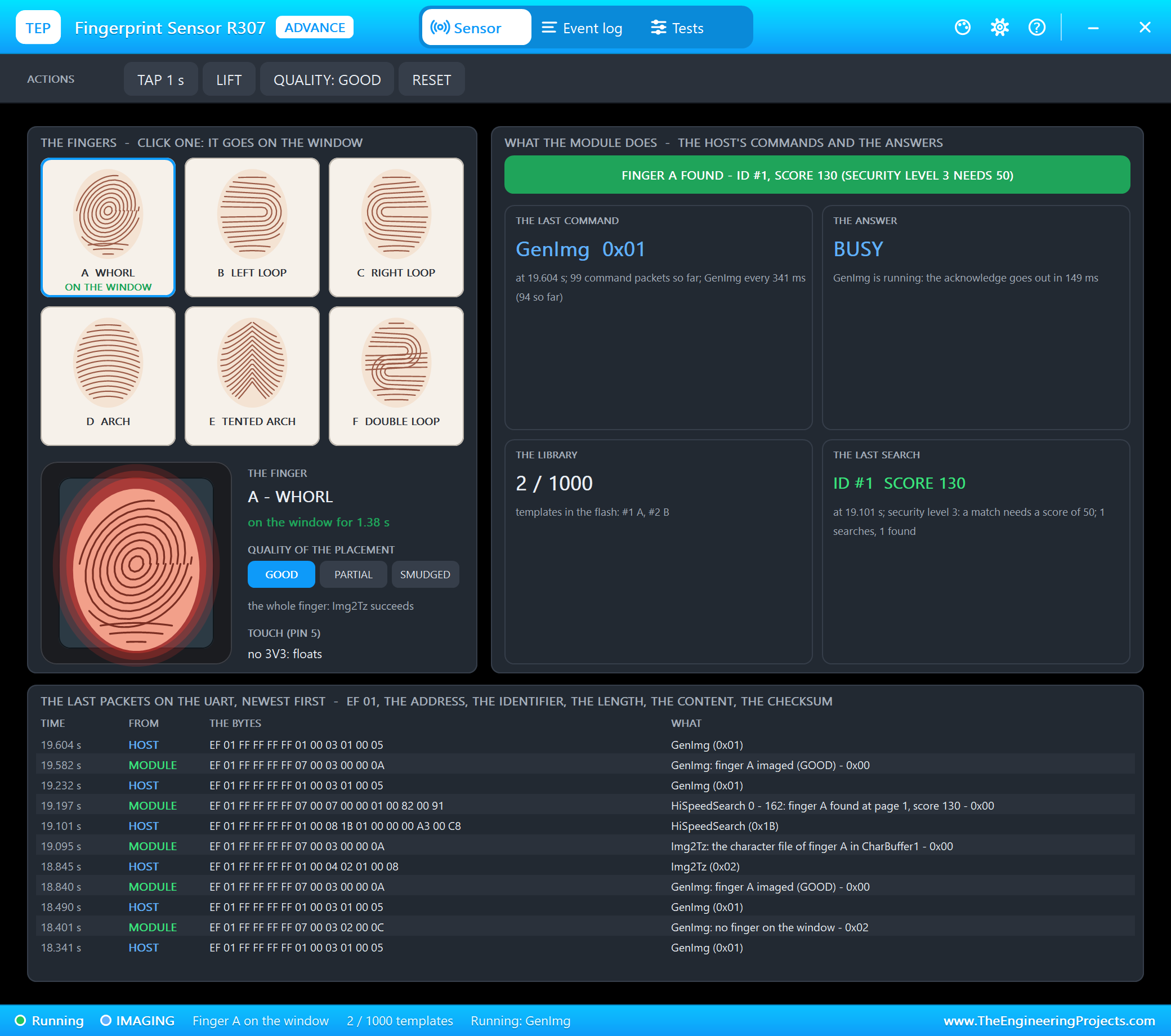

  * The R307's pop-up: click finger A - found as ID 1 (Sana), OPEN; click it again to lift it. Finger C is not in the
    sensor's library - DENY.

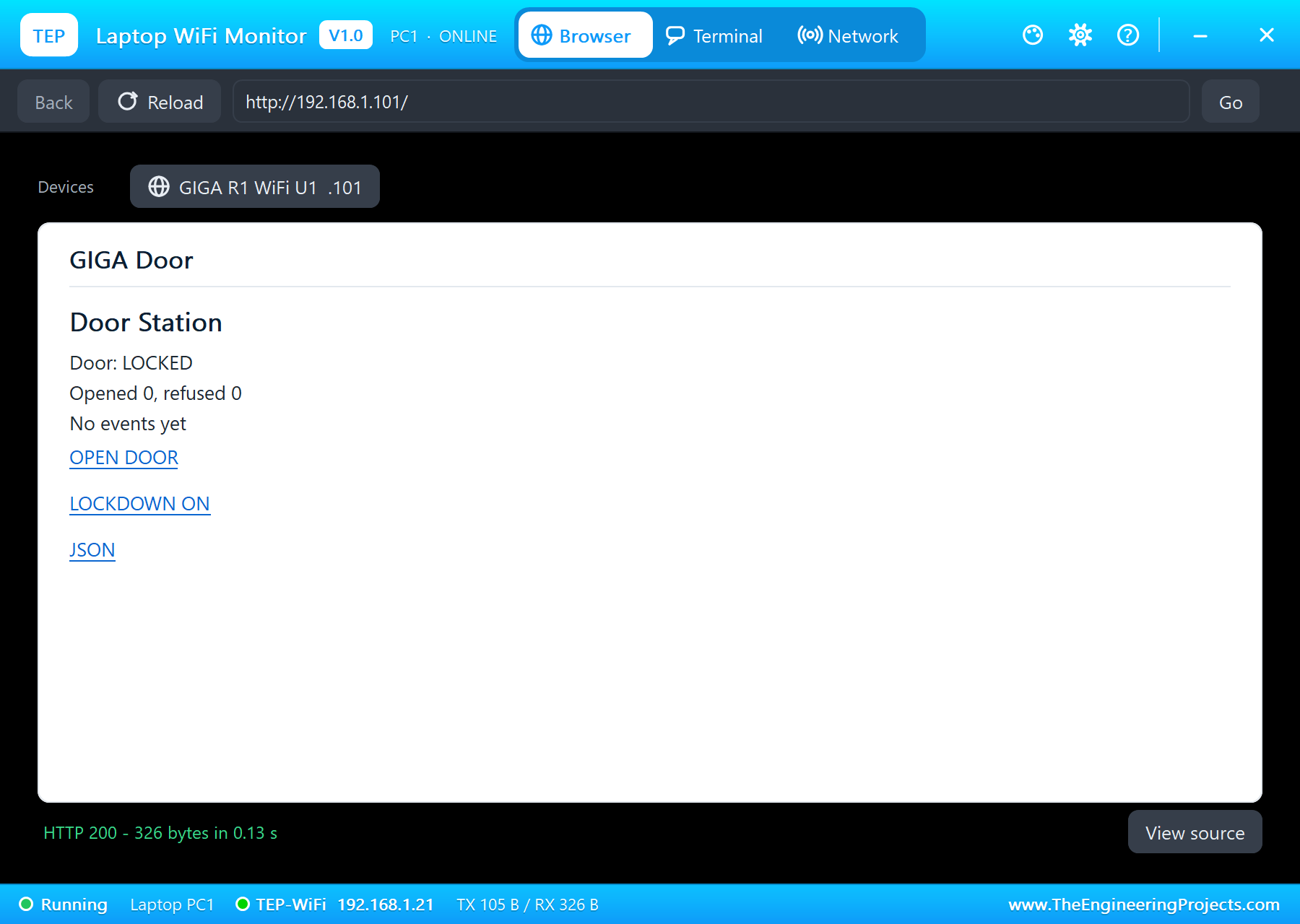

  * The phone or the laptop: the door, the opened / refused counts and the last 8 events (newest first); OPEN DOOR opens
    it from the page (DOOR OPEN plays), LOCKDOWN ON refuses every card and finger (the RGB LED red) until LOCKDOWN OFF;
    JSON gives the same as /json.
  * The monitor (115200): one line per event, the M4's answers ("M4 core: RGB LED green (open)"); type STATUS, OPEN,
    LOCK (lockdown on / off), LOG or HELP.
The supplies: in the demo each module's VCC / 5V is on a power terminal (Proteus' power rail); their models read the
supply as a digital level, which the board's 3.3V / 5V pins (analog sources) do not give them. On a real board the PN532
sits on 3.3 V or 5 V, the R307 and the DFPlayer on 5 V.
Closed a window? The USB-C of the board opens the monitor, the PANEL pad the panel.

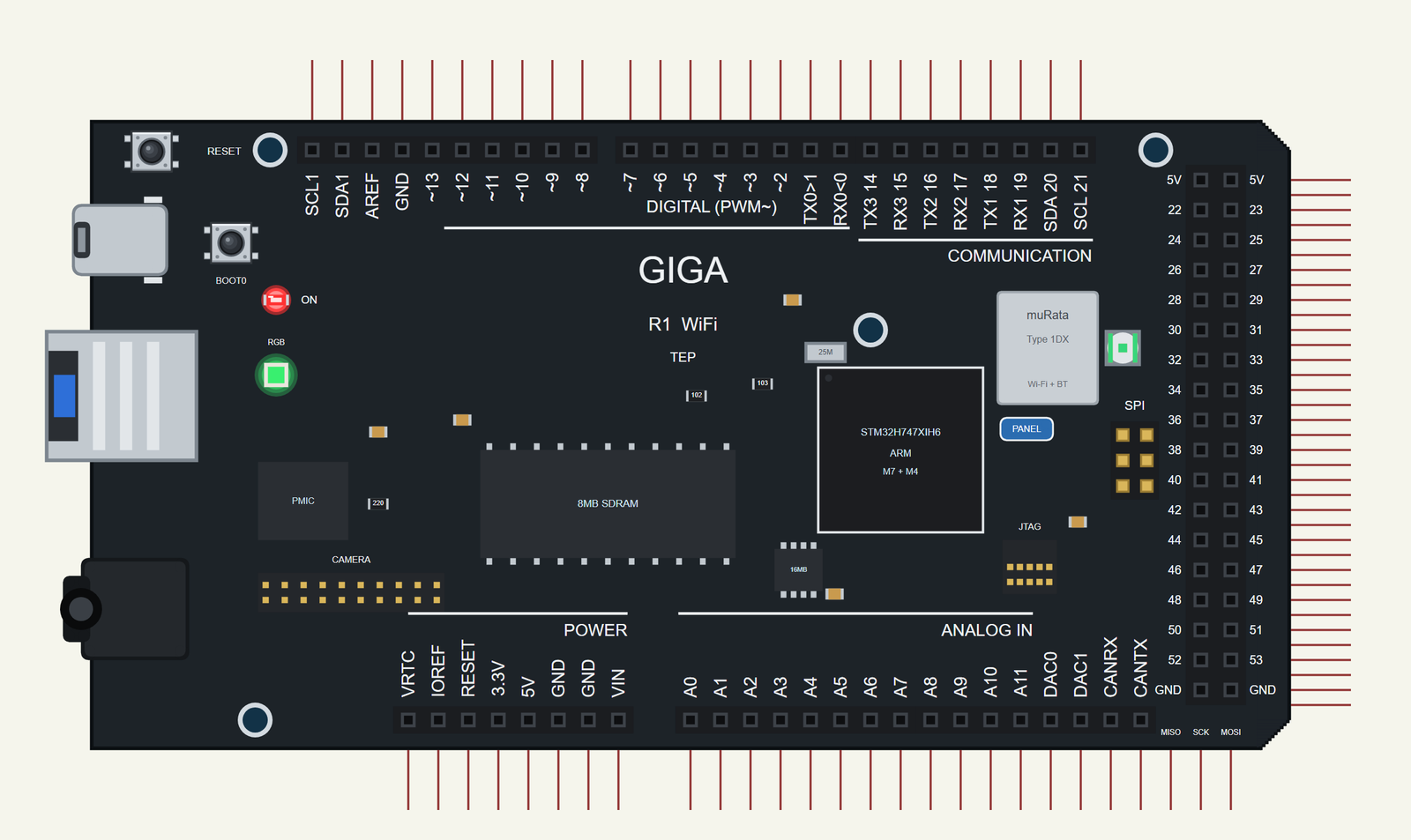

THE PINS (the label on the board, what it can do in the simulation)
  RX0 / TX0          D0 / D1: Serial1 (not the USB), GPIO
  D2 .. D13          GPIO, interrupt, analogWrite (PWM on any pin through the board model)
  D14 / D15          GPIO (Serial4 on the real board - not modelled)
  D16 / D17          Serial3 TX / RX;  D18 / D19  Serial2 TX / RX
  D20 / D21          Wire SDA / SCL (I2C)
  D22 .. D53         GPIO (the 2 x 18 header)
  A0 .. A11          analogRead 0 .. 1023 for 0 .. 3.3 V (analogReadResolution(12): 0 .. 4095)
  DAC0 / DAC1        analogWrite: 0 .. 3.3 V
  MISO / SCK / MOSI  SPI on the 6-pin SPI header (74 / 76 / 75)
  LEDR / LEDG / LEDB the RGB LED (lit when LOW); LED_BUILTIN = LEDB - both cores can drive it
  3.3V / 5V, GND     3.3 V (the board's logic) and 5 V; ground
  RESET              LOW holds the board in reset (both cores)
  SDA1 / SCL1, AREF, IOREF, VRTC, VIN, CANRX / CANTX   drawn, not modelled
Serial is the USB-C (the board's monitor), not D0 / D1. The pins are 3.3 V logic.

PROPERTIES (double-click the board > Edit Properties)
  PROGRAM    the M7 sketch's HEX (Arduino IDE: Sketch > Export Compiled Binary with Arduino GIGA R1 WiFi (TEP Proteus))
  PROGRAMM4  the M4 sketch's HEX (board Arduino GIGA R1 WiFi M4 core (TEP Proteus)); empty = the M4 stays off
  WIFISSID   the router in range (default TEP-WiFi);  WIFIPASS  its password (default 12345678)
  MONITOR    YES = the built-in serial monitor on the USB-C (Serial);  BAUD  its speed (115200, or AUTO)
  AUTOOPEN   YES = the monitor window opens at Run (the demo: YES)
  TIME       the clock the sketch reads: PC (the PC's clock) or YYYY-MM-DD HH:MM:SS in UTC
The IP address follows the part's number: U1 192.168.1.101, U2 .102 ... One GIGA R1 WiFi per design (its USB serial
lines are hidden pins, and Proteus joins hidden pins of the same name across parts).

TROUBLESHOOTING
* Nothing happens at Run: the HEX was not built with TEP Boards for Proteus - select Arduino GIGA R1 WiFi (TEP Proteus)
  and export the binary again.
* "M4 core: no program": PROGRAMM4 is empty - or the M4 HEX was built for the M7 board; use the M4 core board.
* The RGB LED stays dark: the M4 sketch only runs after the M7 calls RPC.begin().
* "PN532 NOT FOUND": SDA on D20, SCL on D21; the PN532's VCC on the power rail.
* "R307 NOT FOUND": the sensor's RXD on D18, TXD on D19, finger.begin(57600).
* "DFPlayer Mini NOT FOUND": the module's RX on D16, TX on D17; the sketch waits 1.5 s for the card first.
* The board stays on "Connecting": the sketch's SSID / password differ from WIFISSID / WIFIPASS.
* A library will not compile with "SoftwareSerial.h": update the add-on to 1.38.0 (it brings SoftwareSerial; in Proteus
  SoftwareSerial sends but cannot receive - use Serial1 .. Serial3).
* An integer goes wrong above 32767: int is 16 bits on the hidden AVR - use long.
* The page shows old values: tap Reload (the monitors do not reload by themselves).

BUG REPORTS AND FEATURE REQUESTS
Please post them in our forum with a screenshot and the Serial Monitor text:
  https://www.theengineeringprojects.com/forum/category/arduino-giga-r1-wifi-proteus-library

LICENCES AND THIRD-PARTY NOTES
* The board model and the Wi-Fi network (TEPNET.DLL), the symbols and artwork (TEPGIGA.LIB, TEPLAPTOP.LIB,
  TEPMOBILE.LIB) and the part models (TEPPN532, TEPFINGER, TEPDFPLAYER .LIB / .DLL) are made by The Engineering
  Projects. The board's processors are Proteus's own ATmega2560 model. The source code of the models is not included.
* TEP Boards for Proteus (Arduino Code): its core, the variants and the EEPROM, SPI and Wire libraries are modified
  copies of the Arduino AVR core 1.8.6, SoftwareSerial is that core's - GNU Lesser General Public License 2.1 (LGPL 2.1,
  the text: LICENSE-LGPL-2.1.txt); its WiFi, RPC and the other libraries and our core files are MIT (LICENSE-MIT.txt).
* The demo sketch uses Adafruit's PN532 (BSD) with BusIO (MIT), Adafruit's Fingerprint Sensor Library (BSD) and
  DFRobot's DFRobotDFPlayerMini (LGPL) - install them in the Arduino IDE (Library Manager) to compile it; the .hex files
  are included.
* Proteus is a product of Labcenter Electronics and is not included. Arduino and GIGA are trademarks of Arduino S.r.l.;
  STM32 is a name of STMicroelectronics, the 1DX module a product of Murata, the PN532 of NXP, the R307 of Hangzhou
  Grow, the DFPlayer Mini of DFRobot. This library is not made or endorsed by them or by Labcenter.

REBUILDING THE FIRMWARE (OPTIONAL)
The HEX files are supplied. Install TEP Boards for Proteus (INSTALLATION step 5) and the libraries above. Open Arduino
Code\GIGA_Door_Station, select Arduino GIGA R1 WiFi (TEP Proteus) and use Sketch > Export Compiled Binary (PROGRAM);
open Arduino Code\GIGA_Door_Light, select Arduino GIGA R1 WiFi M4 core (TEP Proteus) and export it too (PROGRAMM4). For
a real GIGA R1 WiFi install "Arduino Mbed OS GIGA Boards" in the Boards Manager, select "Arduino GIGA R1", upload the M7
sketch with Target core "Main Core", then the M4 sketch with "M4 Co-processor" (Flash split 1 MB M7 + 1 MB M4) - the
same sketches.

MODEL SCOPE AND LIMITS
Modelled: the GIGA R1 WiFi's header pins on a hidden ATmega2560 (Proteus's AVR model, 16 MHz, 3.3 V) for the M7 sketch
and a second one for the M4 sketch; digital I/O, analogRead (A0 .. A11) 0 .. 1023 for 0 .. 3.3 V, the DAC (DAC0 / DAC1),
PWM (analogWrite) and attachInterrupt on any pin through the board model; RESET, the ON LED, the RGB LED (both cores);
Serial (the USB-C, the board's monitor), Serial1 .. Serial3, Wire on D20 / D21 and SPI on the SPI header (the AVR's
hardware); RPC between the cores (a byte stream); WiFi station mode, DHCP, TCP and UDP; the other TEP Wi-Fi parts on the
same network.
Not modelled: the STM32H747 itself (Cortex-M7 at 480 MHz, Cortex-M4 at 240 MHz, 1 MB of RAM, 32-bit int), the M4's own
pins, RPC.bind / RPC.call (MessagePack), the SDRAM and QSPI flash, Serial4, Wire1 / Wire2, CAN, Bluetooth, the USB-A
host, the audio jack, the camera connector, AREF, VRTC and the OFF pin. The simulation runs below real time.

VERSION
TEP Arduino GIGA R1 WiFi library V1.0 (Oct 2026). Device ARDUINO GIGA R1 WIFI (TEPGIGA.LIB / TEPNET.DLL), TEP Boards for
Proteus 1.38.0 (adds the GIGA R1 WiFi, its M4 core, RPC and SoftwareSerial). Demo sketches GIGA_Door_Station V1.0 (M7)
and GIGA_Door_Light V1.0 (M4). Demo parts: PN532 NFC (the Advance version), R307 fingerprint sensor (Advance), DFPlayer
Mini (Advance), LAPTOP WIFI MONITOR and MOBILE WIFI MONITOR.
