Hi Friends! Happy to see you around. In this post today, I’ll explain Arduino NANO Library for Proteus V2.0. This library is the advanced version of Arduino Nano Library for Proteus(V1.0). The new version of the Arduino Nano board is more compact, robust, small-sized, and powerful compared to its predecessor. I have already shared Arduino Uno Library for Proteus V2.0 and Arduino Mini Library for Proteus V2.0.
I’ve started designing proteus libraries for new versions of Arduino boards as I’ve received a lot of messages requesting to improve the designs. Stay connected, as I’ll design more proteus libraries for Arduino boards in the coming days.
In this tutorial, we’ll simulate Arduino Nano Library in Proteus. First, we’ll download this library and then will use it in our Proteus software to simulate Arduino Nano.
Before we read further, let’s have a look at what is Arduino Nano?
What is Arduino Nano?
Developed by Arduino.cc, Arduino Nano is a small, flexible, powerful and breadboard-friendly Microcontroller board, based on ATmega328p/Atmega168.
In terms of functionality, it is similar to Arduino Uno but compared to it comes in small size.
Arduino Nano module carries 14 digital I/O pins, 8 analog pins, 2 reset pins & 6 power pins.
The crystal oscillator frequency of this board is 16MHz and it comes with a mini USB port that is mainly used to transfer code from the computer to the module.
This was the little insight into Arduino Nano. Now we’ll make its Proteus simulation.
Let’s get started.
Arduino Nano Library for Proteus V2.0
First of all, you need to download the Arduino Nano Library for Proteus V2.0 by clicking the below button:
You can see from the panel that the clock frequency of the Arduino board is 16MHz by default.
Comparison with Old Proteus Library (V2.0 vs V1.0)
The following figure shows the comparison between version 1 Arduino Nano Board (V1) and version 2 Arduino Nano Board (V2).
You can see in the above figure, V2 board is more compact and small-sized as compared to the V1 board.
Now we’ll design a simulation using this Arduino Nano board so that you can get a clear idea about how to use it in proteus.
Arduino Nano LCD Interfacing
The simulation that you have downloaded at the start is enough to get you started. However, it’s better to design your own simulation that will help you learn the nitty-gritty of simulation along the process.
Next, we’ll interface 20x4 LCD with the Arduino board.
You’ll get the following circuit as you interface LCD with the Arduino Nano board:
Data pins of LCD are attached with 8,9,10 & 11 pins of Arduino Nano, while 12 & 13 Pins of Arduino board are attached to Enable & Reset of LCD.
Next, compile the Arduino code available in the zip format and get the Hex file to upload the code.
You’ll use the Arduino Nano properties panel to upload the hex file as we’ve exercised in the previous section.
LCD has been successfully interfaced with the Arduino Nano board.
Now click the RUN button to see the following result:
First of all, you have to download the Arduino Nano Library Files.
Next, copy these files from “Proteus Library Files” (Folder) and place them to the Library folder of Proteus software.

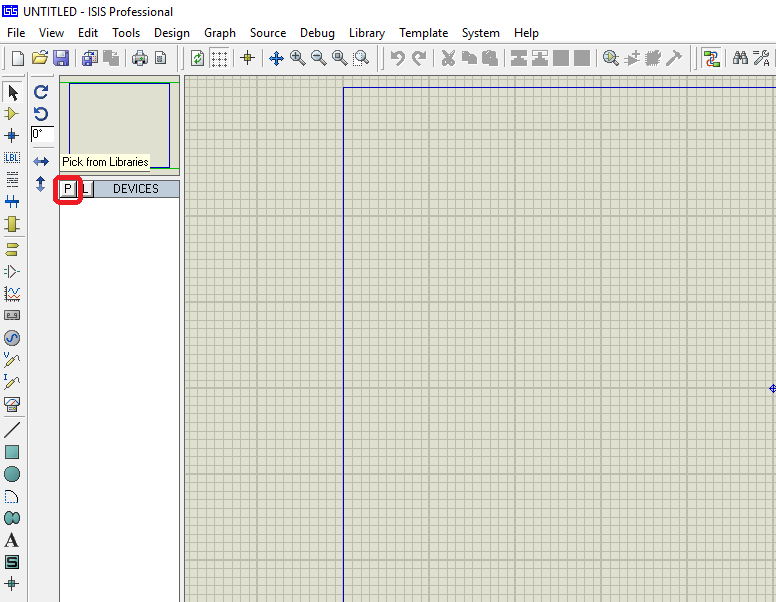

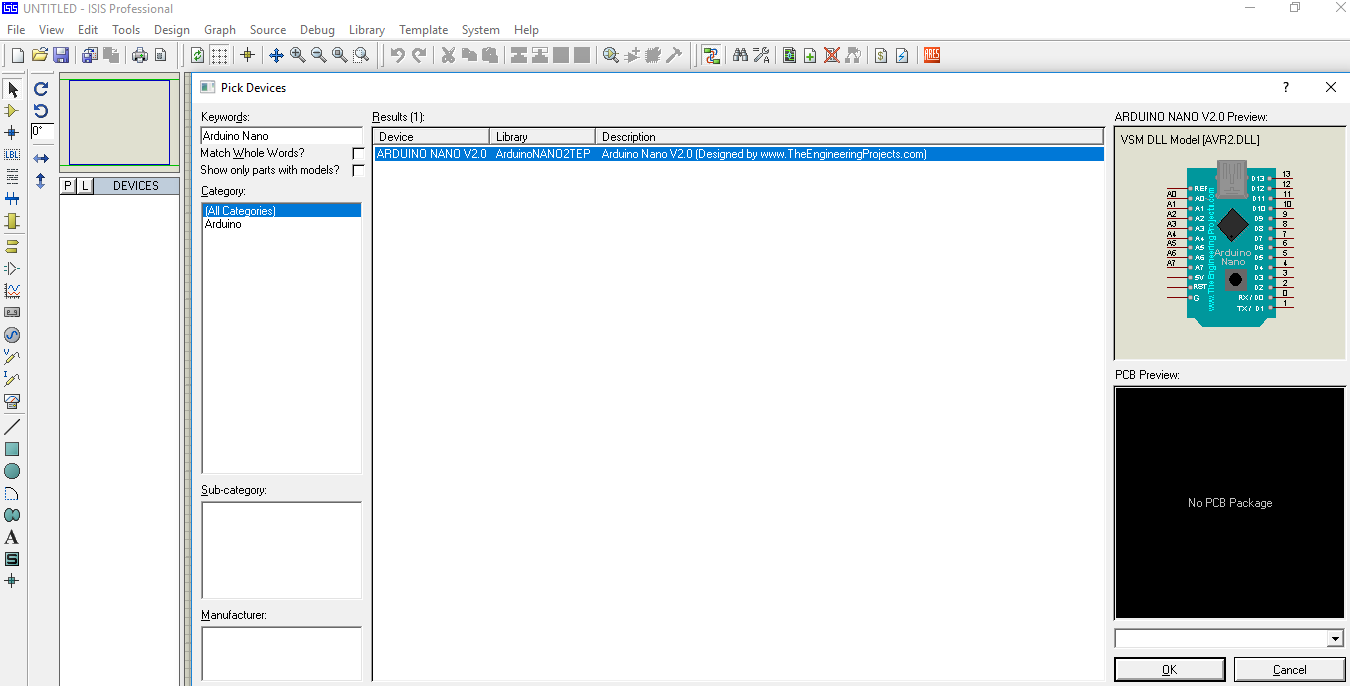

Now, look for the Arduino Nano in Proteus software.
Place that Arduino Nano board in the proteus workspace.

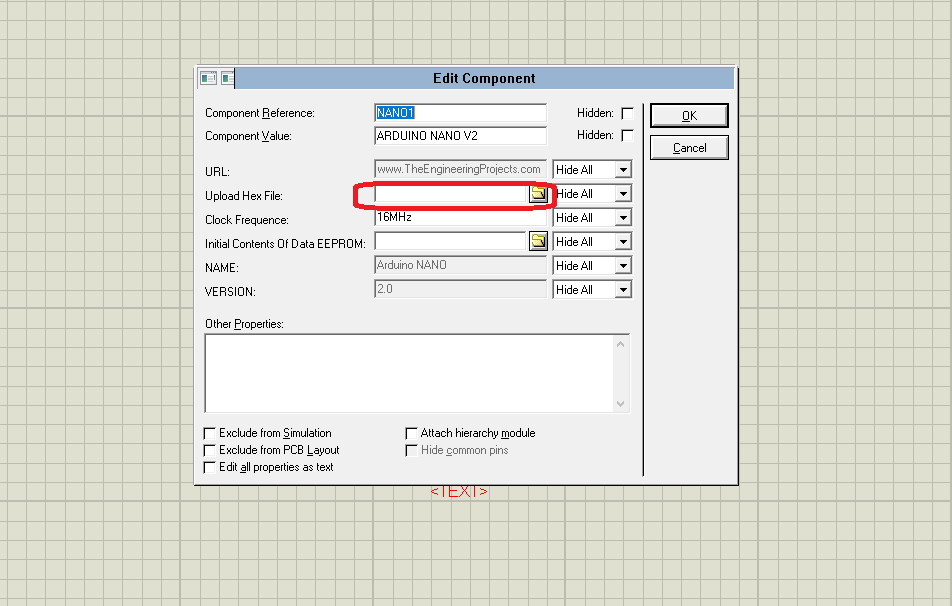

Next, double click the board to get the properties panel and upload the HEX File.
Interface LCD with the Arduino board & run the simulation.
That’s all for today. Hope you’ve enjoyed reading this article. If you have any questions, you can approach me in the section below. I’d love to assist you the best way I can. Feel free to share your valuable feedback and suggestions around the content we share. They help us produce quality content customized to your needs and requirements. Thank you for reading the article.
