Interfacing of EasyVR with Arduino
Hello friends! We have prepared our spoken commands in EasyVR Commander, and now we will interface the EasyVR Shield with Arduino Uno. In this tutorial, we will read the recognized command, display its result in Serial Monitor, and select an indicator output for FORWARD, REVERSE, LEFT, RIGHT, or STOP.
This is the controller stage of our voice-recognition project. We will preserve the original command order and character codes, while making the program easier to follow and correcting two important problems: listening to the wrong group at startup and leaving previous direction outputs active after a new command.
Begin with LEDs or Serial Monitor. The output pins in this example are indicators, not a complete motor-control circuit. Once you can explain every recognized number and output transition, you can connect the command decisions to a properly designed motor controller.
What We Need Before Uploading the Sketch

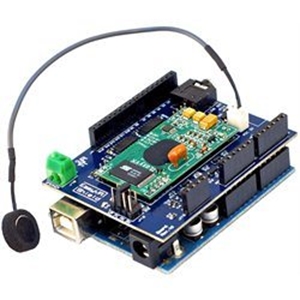

Use an Arduino Uno, the original EasyVR Shield, its compatible microphone, and a USB data cable. Install the Arduino IDE and the manufacturer's EasyVR Arduino library. The code below uses its EasyVR.h interface and the Arduino AVR core's SoftwareSerial.h library.
Complete the command training before starting this article. The sketch does not create or train the spoken vocabulary; it expects the five custom commands to exist in the selected group. First establish that Commander recognizes them correctly, then use this program to inspect how Arduino handles their results.
The example targets the Uno and older shield arrangement used in the original project. A Mega, Leonardo, or newer shield can have different serial routing and supported software-serial pins. Check the board documentation before transferring the same pin numbers to another combination.
Set the Shield to Arduino Operation
- Disconnect EasyVR Commander so that it releases the serial port.
- Remove USB and external power before changing the shield jumper.
- Set the original shield's J12 jumper to SW.
- Check that the shield headers and microphone connector are secure.
- Reconnect USB and select Arduino Uno and its serial port in the IDE.
In this setup, the speech module communicates through software serial on Arduino pins 12 and 13. The hardware serial connection remains available for USB diagnostics. PC mode was useful during direct Commander access, but it is not the operating mode for this standalone sketch. Later hardware should be checked against the manufacturer's shield pin assignments.
| Arduino connection | Purpose | Note |
|---|---|---|
| D12 | Software-serial receive | Receives data from EasyVR |
| D13 | Software-serial transmit | Sends commands to EasyVR |
| D2 | FORWARD indicator | LED with its own series resistor |
| D3 | REVERSE indicator | LED with its own series resistor |
| D4 | LEFT indicator | LED with its own series resistor |
| D5 | RIGHT indicator | LED with its own series resistor |
| D6 | STOP indicator | Shows the default or cleared state |
| GND | Common reference | Connect indicator returns to ground |
With each LED connected from an output through a resistor to ground, a HIGH output lights it. Check LED polarity. For an illustrative red LED with a 2 V forward drop and a 5 V output, a 1 kΩ resistor gives approximately (5 − 2) / 1000 = 0.003 A, or 3 mA. Actual LED voltage varies; the calculation explains the resistor's purpose rather than specifying every possible LED.
Match the Trained Group and Command Indexes
Our refreshed series uses Group 1. Its entries must have the following indexes. If your Commander list is different, edit the mapping before testing. Labels are convenient to read, but this sketch selects its action from the returned numeric index.
| Index | Command | Output | Character code |
|---|---|---|---|
| 0 | FORWARD | D2 | 9 |
| 1 | REVERSE | D3 | Q |
| 2 | LEFT | D4 | X |
| 3 | RIGHT | D5 | Y |
| 4 | STOP | D6 | Z |
The historical Commander screenshots include a Group 2 example. That is not a reason to make the application switch groups after a timeout. Set COMMAND_GROUP to the actual trained group and listen to it from the beginning. This demonstration does not require a separate wake word or trigger group.
Arduino Code for the EasyVR Shield
The example below polls for recognition completion instead of waiting inside an empty loop. It keeps only one indicator active, clears direction indications on an unsuccessful result, and expires a direction indication after two seconds. The indicator timer is a teaching aid; it is not a validated motor-safety mechanism.
#include <Arduino.h>
#include <SoftwareSerial.h>
#include <EasyVR.h>
SoftwareSerial easyvrPort(12, 13); // Arduino RX, TX
EasyVR easyvr(easyvrPort);
const int8_t COMMAND_GROUP = 1;
const uint8_t indicatorPins[] = {2, 3, 4, 5, 6};
const char commandCodes[] = {'9', 'Q', 'X', 'Y', 'Z'};
const unsigned long INDICATION_MS = 2000UL;
const unsigned long RESPONSE_LIMIT_MS = 7000UL;
bool moduleReady = false;
bool listening = false;
bool directionActive = false;
unsigned long directionStarted = 0;
unsigned long listeningStarted = 0;
void selectIndicator(uint8_t index)
{
for (uint8_t i = 0; i < 5; ++i)
digitalWrite(indicatorPins[i], LOW);
digitalWrite(indicatorPins[index], HIGH);
directionActive = index < 4;
directionStarted = millis();
}
void setup()
{
for (uint8_t i = 0; i < 5; ++i) {
pinMode(indicatorPins[i], OUTPUT);
digitalWrite(indicatorPins[i], LOW);
}
selectIndicator(4);
Serial.begin(9600);
easyvrPort.begin(9600);
if (!easyvr.detect()) {
Serial.println(F("EasyVR not detected. Check mode and wiring."));
return;
}
if (!easyvr.setTimeout(5)) {
Serial.println(F("Cannot configure EasyVR. Reset after checking it."));
return;
}
moduleReady = true;
Serial.println(F("EasyVR detected. Listening to custom Group 1."));
}
void loop()
{
if (directionActive &&
millis() - directionStarted >= INDICATION_MS) {
selectIndicator(4);
Serial.println(F("Direction indication expired; STOP selected."));
}
if (!moduleReady)
return;
if (!listening) {
easyvr.recognizeCommand(COMMAND_GROUP);
listeningStarted = millis();
listening = true;
return;
}
if (!easyvr.hasFinished()) {
if (millis() - listeningStarted >= RESPONSE_LIMIT_MS) {
selectIndicator(4);
moduleReady = false;
listening = false;
Serial.println(F("No completed response. Check module, then reset."));
}
return;
}
listening = false;
const int8_t index = easyvr.getCommand();
if (index >= 0 && index < 5) {
selectIndicator(static_cast<uint8_t>(index));
Serial.print(F("Command index: "));
Serial.print(index);
Serial.print(F(" | Code: "));
Serial.println(commandCodes[index]);
} else {
selectIndicator(4);
if (easyvr.isTimeout()) {
Serial.println(F("Recognition timed out; no command accepted."));
} else {
Serial.print(F("No valid project command. Error: "));
Serial.println(easyvr.getError());
}
}
}The methods used here are documented in the EasyVR library reference. The code is an updated example for the stated hardware arrangement; compile it with your installed library and test it on indicators before adapting it to another board or application.
Understand the Program Step by Step
Initialize Outputs Before Detecting the Module
The sketch configures D2 through D6 and selects STOP before attempting communication. If module detection fails, the program prints a diagnostic and leaves the direction indicators off. This avoids making successful speech-module initialization a prerequisite for clearing the outputs.
Both serial connections start at 9600 baud in this example. Serial Monitor must use 9600 to display the diagnostic text. That setting is separate from the EasyVR link, even though we use the same numerical rate. If the module has been configured differently, reconcile its configuration with the library setup before expecting detection to succeed.
Start Recognition, Then Poll for Completion
When no recognition request is outstanding, the program starts one for COMMAND_GROUP and records the start time. Subsequent calls to loop() check whether the result is ready. This structure leaves room to service the indicator timer while speech recognition is in progress.
The example requests a five-second recognition timeout. A separate seven-second application deadline detects the absence of a completed response and stops further requests until the board is reset. These are deliberately different checks: the speech module's normal timeout is not the same thing as losing communication with it.
Library calls still take time to communicate, so this is not a hard real-time control loop. Adding a motor, network stack, or long display update requires another timing review. Avoid inserting long delays into the listening loop and assuming that the indication timeout will remain precise.
Validate the Returned Index
The accepted range is zero through four because our table contains five commands. A negative result or an unexpected positive index is rejected before array access. This prevents an unrecognized result from being used as an output-array position.
The selectIndicator() function first clears every indicator and then selects one. FORWARD followed by REVERSE therefore changes the indication instead of accumulating two active directions. STOP selects D6 after clearing D2 through D5. The function is called only with validated indexes or the known STOP index.
Keep the Two Timers Separate
The direction timer uses elapsed time from millis() and returns the indicators to STOP after two seconds. It operates even while another recognition attempt is pending. Subtracting the saved timestamp from the current unsigned timestamp is the usual elapsed-time pattern for intervals of this size.
Changing INDICATION_MS changes only the duration of the visual direction indication. Changing the recognition timeout changes how long EasyVR listens. Neither value describes motor braking time, and neither guarantees that a spoken stop request will be recognized before a moving object reaches an obstacle.
Upload and Run the First Test
- Compile the sketch with Arduino Uno selected.
- Upload it with the shield in the documented SW arrangement.
- Open Serial Monitor at 9600 baud.
- Look for the module-detection message.
- Say a command that was trained in Group 1.
- Compare the reported index and code with the command table.
- Observe that the selected direction indication returns to STOP.
For a recognized FORWARD entry at index zero, the diagnostic line should identify index 0 and code 9. A recognized STOP entry should identify index 4 and code Z. These are expected examples of the program's formatting, not a record of a new hardware test performed for this refresh.
Next, say FORWARD and then REVERSE. Check that the old direction indicator turns off. Wait without speaking and observe the timeout behavior. Say an unrelated word and inspect the result. These tests exercise the control decisions that a simple “hello world” recognition demonstration often leaves unexplained.
Run a Repeatable Bench Test
Use the same short sequence whenever you change the program. Start by resetting the Uno and checking that only STOP is selected. Say LEFT, observe D4, and wait for the indication to expire. Say RIGHT next, then STOP before the two-second interval ends. Finally, remain silent through a complete recognition window. Write down any result that differs from the expected state.
This sequence checks startup, a valid direction, automatic clearing, a second direction, an explicit stop, and silence. It is more informative than repeatedly speaking one word. If a result is wrong, inspect the printed index first. A correct index with the wrong LED points toward wiring or output mapping; an incorrect index points toward the trained vocabulary or recognition conditions.
Keep the module powered and its connections undisturbed during normal testing. To inspect startup failure, disconnect power before changing the hardware, then restart with the intended connection absent. The purpose is to observe a controlled fault, not to pull live shield connections and introduce an unrelated electrical problem.
Understand Serial Timing
A conventional asynchronous serial frame with one start bit, eight data bits, and one stop bit uses ten transmitted bits per byte. At 9600 baud, sending a 40-byte diagnostic message therefore occupies approximately 40 × 10 / 9600 = 0.0417 seconds, or 42 milliseconds, on that serial connection.
Buffering affects when the program waits, and this calculation does not describe the EasyVR recognition time. It does show why printing hundreds of characters inside every pass through a fast loop can change application behavior. Print meaningful events, such as a completed recognition or timeout, instead of continuously printing “waiting” while nothing has changed.
Keep a Known Working Configuration
Record the Arduino board package, EasyVR library version, shield revision, trained group, and command table with the sketch. When replacing a library or moving to another board, compile and repeat the indicator test before reconnecting additional hardware. A library update and a wiring change performed together make a new failure harder to explain.
If the compiler reports several errors, begin with the first one. A missing library can produce many later messages that disappear once the include is resolved. If compilation succeeds but detection fails, move to the communication checks; rewriting the command actions will not repair a serial route that never reaches the module.
What the Character Codes Mean
The original project assigned 9, Q, X, Y, and Z to its five actions. We preserve that mapping so existing project notes remain understandable. In this sketch, the character is embedded in a readable diagnostic line alongside its index.
If another controller expects a stream containing only those individual characters, do not connect it to this diagnostic stream unchanged. Messages such as “EasyVR detected” and timeout explanations are not part of that machine protocol. Provide a dedicated output channel or define an explicit framed message format, then keep diagnostic text separate.
A receiving controller should also reject incomplete or unknown messages and have its own timeout. Otherwise a broken connection can leave it acting on an old command indefinitely. Reliable command recognition and reliable command delivery are separate parts of the design.
From Indicators to a Robot
A direction indicator is an abstract request. A motor driver needs specific combinations of direction and enable signals, and different drivers implement stopping differently. For example, disabling a bridge can let a motor coast rather than brake. Read the driver's truth table before deciding what your STOP function should write.
Do not connect a motor to D2, D3, D4, D5, or D6 directly. Choose a power stage that matches the motor's supply voltage and current, provide the required protection and grounding, and keep motor disturbances away from the microphone and logic supply. Test the driver independently before combining it with speech recognition.
For a moving robot, a separate physical stop and a controller-enforced movement limit are necessary design considerations. The first tests should use raised wheels or another restrained setup. Speech recognition can miss a word or identify the wrong one, so it should not be the sole means of preventing unwanted movement.
Troubleshooting the Interface
| Symptom | Check | Reason |
|---|---|---|
| EasyVR.h is missing | Library installation and include path | The compiler cannot find the EasyVR interface |
| Unreadable Serial Monitor output | Monitor baud rate | The USB diagnostic connection uses 9600 baud |
| Module is not detected | Power, SW mode, serial routing, configured rate | Speech training cannot fix a communication failure |
| Recognition works only in Commander | Selected custom group and command indexes | The sketch may be listening to a different vocabulary |
| Wrong indicator lights | Index table and LED wiring | The recognized number may be mapped incorrectly |
| Training or recognition fails repeatedly | Microphone, environment, training consistency | The input conditions may differ from training |
For microphone and training issues, return to Training Error: Recognition Failed in EasyVR. For a compilation problem, note the first compiler error and the installed library version. Changing recognition settings will not resolve a missing header or an unsupported serial-pin assignment.
Project Review
We now have a clear route from a trained command to an Arduino decision. The program listens to the documented group, checks the returned index, clears the previous indication, and reports the selected result. It also separates ordinary recognition timeouts from a missing response and avoids treating an old direction as a permanent instruction.
Keep the next improvement small. You could add an LCD showing the last accepted command or log a sequence of recognition results. Before adding motors or another communications link, document the new pin assignments and timing requirements so that the speech interface remains understandable.
Frequently Asked Questions
Why does the program start with Group 1 instead of a trigger word?
It directly tests the five trained custom commands. A wake-word workflow needs an additional state transition and its own trained or built-in trigger configuration. Add that only after the direct command example works.
Do I need the old NewSoftSerial code branch?
This Uno example uses SoftwareSerial with the Arduino AVR core. The old branch served much older Arduino releases. Use the library and board package appropriate to your installed environment instead of retaining obsolete compatibility code automatically.
Why does a direction indicator turn off without saying STOP?
The example deliberately expires direction indications after two seconds. This makes output lifetime visible during testing. The recognition timeout is separate and does not control that indication period.
Can I use the code without LEDs?
Yes. Serial Monitor still shows accepted indexes and their character codes. The output pins will change as programmed, so keep them disconnected from actuators until you have designed and tested the required interface.
Will the sketch automatically retrain a failed command?
No. Training remains a deliberate Commander operation. The running sketch reports unsuccessful recognition and returns its indicators to STOP. Review and retrain the relevant command separately when necessary.
