measure frequency, measure frequency using arduino, frequency measurement, frequency measure arduinoHello friends, hope you all are fine and having fun with your lives. Today, I am going to share on How to measure Frequency using Arduino board. Its quite a simple tutorial but is an essential one especially when you are working on some power related project. Because in Power projects, you have to measure the frequency of AC voltages. I was working on a project in which I have to do dimming of AC Lamp so in that project I have to measure the frequency of AC signal.

I have designed this project using Arduino UNO and have simulated in the Proteus software, which you all know is my favorite simulating software. 🙂 The code is also quite simple which I have given below for download. The simulation is also included in download package but again I suggest you to design it on your own. If you got into any trouble then ask in comments and I will try to resolve them. Anyways let’s get started with How to measure frequency using Arduino.

How to Measure Frequency using Arduino ???

  • You can download the simulation for this frequency measuring by clicking the below button:

Download Project Files

  • Now let’s design this project in Proteus. So, first of all, design a simulation as shown in below figure:

measure frequency, measure frequency using arduino, frequency measurement, frequency measure arduino

  • The small block attached with the pin # 2 of Arduino is a frequency meter.
  • We can create any kind of frequency signal using this component.

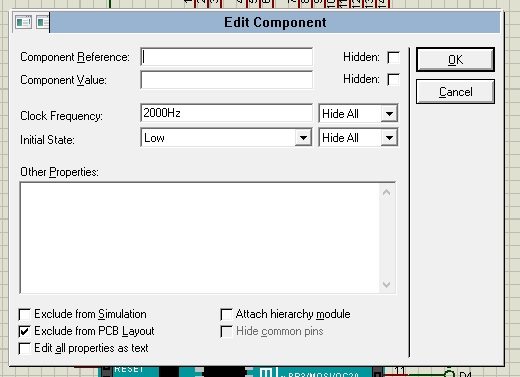

  • If you double click it then its properties will open up where you can change the frequency as shown in below figure:

measure frequency, measure frequency using arduino, frequency measurement, frequency measure arduino

  • You can see in the above figure that I have setted the Clock Frequency to 2000 Hz.
  • Now, let’s design the programming code for this project. So, paste the below code in your Arduino software:
#include <LiquidCrystal.h>

LiquidCrystal lcd(13,12,11,10,9,8);

long freq, tempo;
int pulsos;
boolean pulso;
void setup() {
  pulso=HIGH;
  pinMode(2,INPUT);
  lcd.begin(20, 4);
  lcd.setCursor(0,0);
  lcd.print("Frequency =");
  lcd.setCursor(1,2);
  lcd.print("www.TheEngineering");
  lcd.setCursor(4,3);
  lcd.print("Projects.com");
}

void loop() {
  tempo = millis();
  if(digitalRead(2)==HIGH)
  {
    if(pulso==HIGH)
    {
      pulsos = pulsos + 1;
    }

    pulso=LOW;

  }
  else{
    pulso=HIGH;
  }

  if(tempo%2000==0){
    freq = pulsos/2;
    lcd.setCursor(12,0);
    lcd.print(freq);
    lcd.print("Hz");
    pulsos=0;
  }
}
  • Now using the above code, get your hex file from Arduino software and upload it in your Proteus software.
  • Now once you are done then run your simulation and if everything goes fine then you will get results as shown in below figure:

measure frequency, measure frequency using arduino, frequency measurement, frequency measure arduino

  • Now you can see the LCD is showing the same frequency as we set in the properties of the frequency meter.
  • The code is quite simple, I don’t think it needs any explanation but if you get into sme trouble then ask in comments.
  • The below video will show you this project in detail:


So, that’s all for today. I hope now you know How to measure frequency using Arduino. So, will meet you guys in the next tutorial. Till then take care !!! 🙂

2 Comments

  1. Hi
    I wish to measure duration of frequency, say 9khz, using uno. I have connected the frequency input to pin 8, and used pulseIn function to measure high and low time, inverse of the addition of these two time will lead to frequency. But this take around 4 full Cycles to Estimate the frequency.

    Kindly help me with another faster method.
    Further, for example, if I receive 9KHz frequency, I want to make pin 12 high, and as long as I receive 9KHz, pin 12 should be high, other wise low.
    And if I receive 11 KHz, make pin 13 high otherwise low.
    So two frequencies will be isolated by respective pin, 12 and 13.
    Kindly provide me a example code for my problem.
