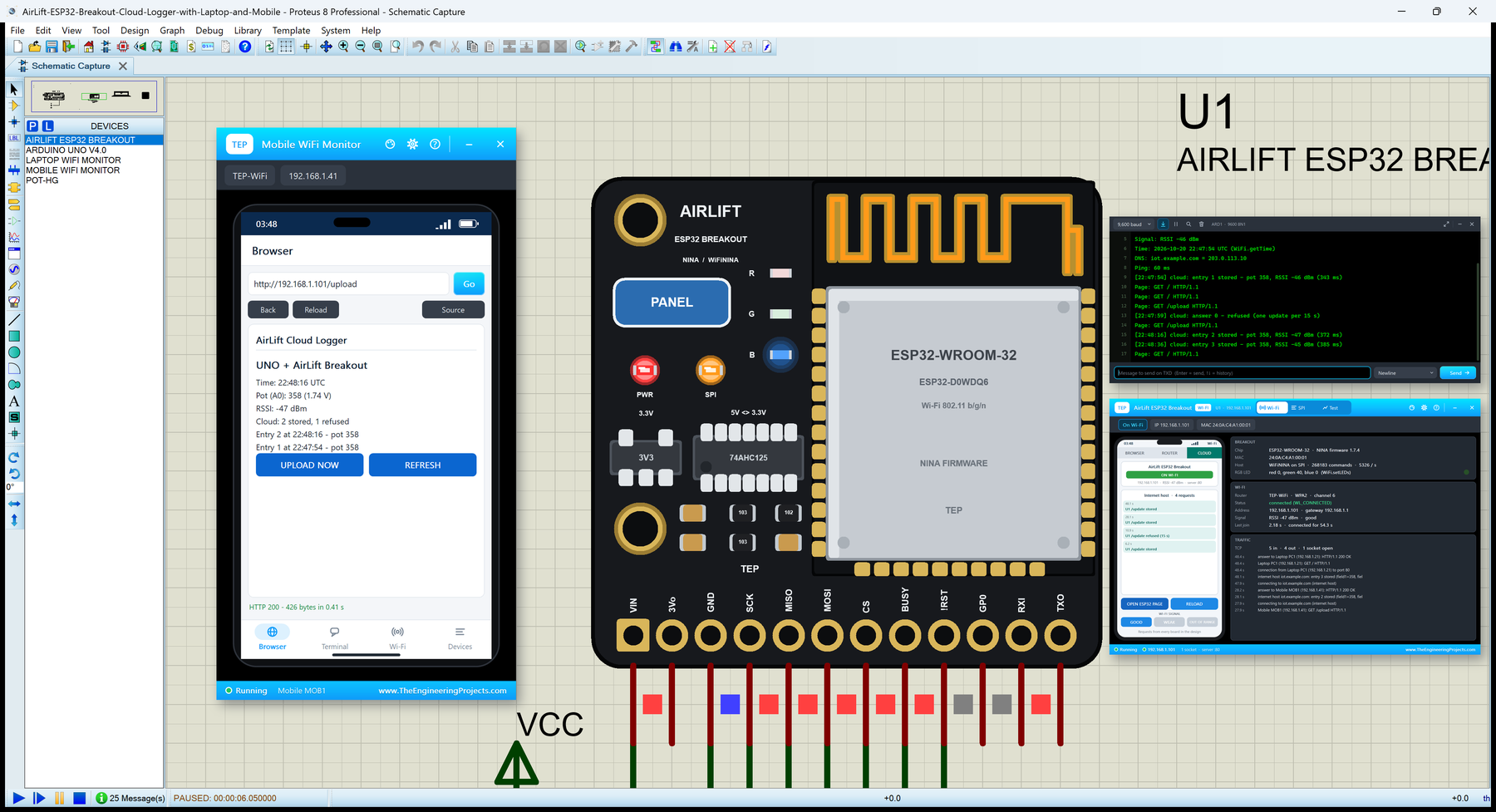

AirLift ESP32 Breakout Library for Proteus: WiFiNINA Co-processor

Hello friends, I hope you all are doing great. Today, I am going to share the AirLift ESP32 Breakout Library for Proteus. The AirLift breakout is a small board with an ESP32 Wi-Fi co-processor that any microcontroller can use over SPI. The ESP32 runs the NINA firmware, and your Arduino sketch talks to it with the WiFiNINA library: WiFi.begin(), WiFiClient, WiFiSSLClient, WiFi.getTime() and the rest. With this library you can place the breakout in Proteus, wire it to our UNO with six signal wires and run a WiFiNINA sketch as it is.

This is the fifteenth library of our Wi-Fi series and the little brother of our AirLift WiFi Shield Library for Proteus: the same ESP32 and the same firmware, but on a 33 x 32 mm breakout that you wire yourself. Its demo shows the internet side of WiFiNINA - the time from the internet, a DNS look-up, a ping and an HTTPS upload to a cloud server every 20 seconds - with a status page for our Laptop WiFi Monitor and Mobile WiFi Monitor. The breakout's own pins are modelled too: GP0 as the ESP32's boot strap and TXO with the ESP32's boot text.

NOTICE: the PWR and SPI LEDs and the PANEL pad of our breakout are TEP additions; the access point mode, real TLS and Bluetooth are not simulated (see the limits at the end). Use the Adafruit version of WiFiNINA with WiFi.setPins(). Your feedback is the fuel that keeps us going, so please tell us what you think in the comments below or in the AirLift ESP32 Breakout board of our forum. And if our free libraries help you, you can buy us a coffee. So, let's get started with the AirLift ESP32 Breakout Library for Proteus:

What is the AirLift ESP32 Breakout?

The AirLift boards (made by Adafruit) carry an ESP32-WROOM-32 module flashed with a version of the NINA firmware - the firmware of the u-blox NINA-W102 module on Arduino's own Wi-Fi boards. The ESP32 does not run your sketch: it is a Wi-Fi modem that your microcontroller controls over SPI. The breakout adds a 3.3 V regulator, level shifting for 5 V boards, a tri-state buffer on MISO so the SPI bus can be shared, three tiny LEDs and a 12-pin header.

NINA: a Wi-Fi Co-processor on SPI

Our AT modules - the ESP32-WROOM-32 Library for Proteus, for example - take text commands on a serial port. NINA is different: every WiFiNINA function becomes a short binary command frame on SPI (start byte, command, parameters, end byte) and the ESP32 answers with a reply frame. WiFi.status() is one command, an HTTPS request is a handful (open the socket, send the request, read the answer, close), and the library asks "is there data?" in every pass of loop(). In our demo the UNO sends about 5000 commands a second.

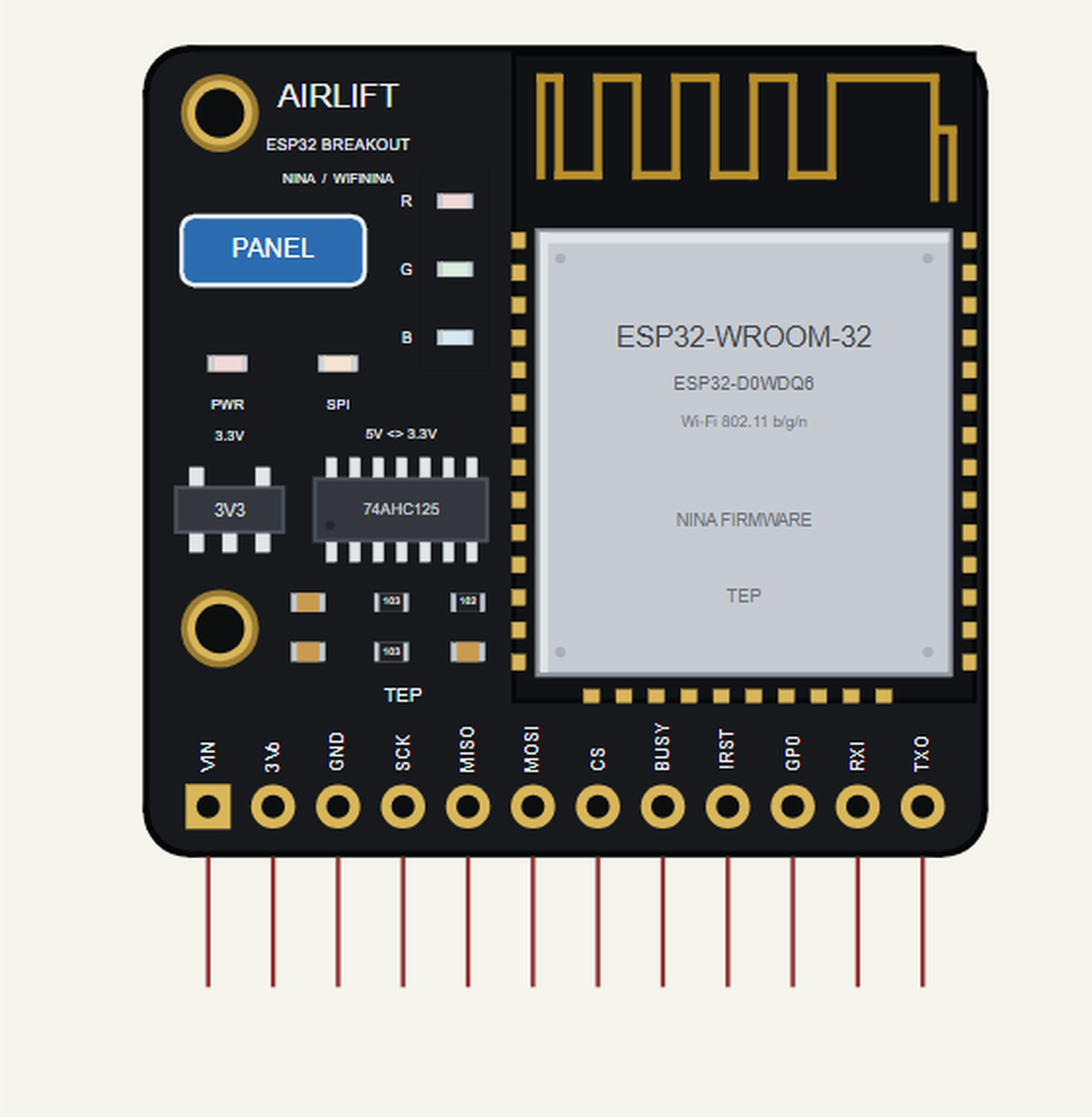

The Pins of the Breakout

All twelve pins are on one edge: VIN, 3Vo, GND, the SPI pins SCK, MISO, MOSI, the ESP32's chip select CS, its BUSY line and its reset !RST, then GP0, RXI and TXO. Adafruit's guide wires an UNO this way: SCK, MISO and MOSI to the SPI pins (D13, D12, D11 on the UNO), CS to D10, BUSY to D7, !RST to D5 and GP0 not connected - and so does our demo. BUSY is the handshake: the ESP32 pulls it LOW when it is ready for the next frame and HIGH while it is selected or working. WiFiNINA waits for LOW before every frame, forever if it has to.

GP0 and TXO: the ESP32's Boot

GP0 is the ESP32's GPIO0, a boot strap. Left open, the ESP32 starts its firmware. Held LOW when the reset ends, the ESP32's ROM enters its download mode and waits for new firmware on its UART - no NINA, no answers on SPI. TXO is that UART's output: after every reset the ROM prints a few lines at 115200 baud. Our model does both, so you can see why a breakout with GP0 tied low never answers.

Features of the AirLift ESP32 Breakout Library for Proteus

• The AirLift breakout as it looks: the black board at its real size with the ESP32-WROOM-32 module, its antenna, the three small LEDs, the regulator, the level shifter, two mounting holes and the 12-pin header with its names.
• The real WiFiNINA library: our model answers the NINA commands exactly as the library expects - we ran the library and the demo sketch unchanged against the model on the PC (29 checks) and in Proteus.
• The BUSY handshake, reset and boot as on the real breakout, and GP0 as the boot strap: LOW at reset gives the ROM's download mode.
• TXO with the ROM's boot text at 115200 baud, and 3Vo HIGH while the breakout is powered.
• Wi-Fi and sockets: join, status, IP, RSSI, scan, DNS, ping and the time; ten sockets for WiFiClient, WiFiSSLClient, WiFiServer and WiFiUDP.
• The red, green and blue LEDs, each as bright as WiFi.setLEDs() says, and an antenna that turns green on Wi-Fi and orange while it sends.
• Wi-Fi in Proteus: a virtual router with DHCP and two neighbours for scans, a phone in the panel, an internet host with a small cloud for updates, and TCP / UDP to every TEP Wi-Fi part in the design.
• Our Laptop and Mobile WiFi Monitors: a laptop and a phone on the same network, with a browser, TCP terminals and ping - included in the package.
• Our pop-up panel: the phone, the breakout card, an SPI page with every WiFiNINA command, the sockets and the boot state, a Test page, Settings and Help.
• A compact package: about 2.70 MB, without the C++ source code of the models.

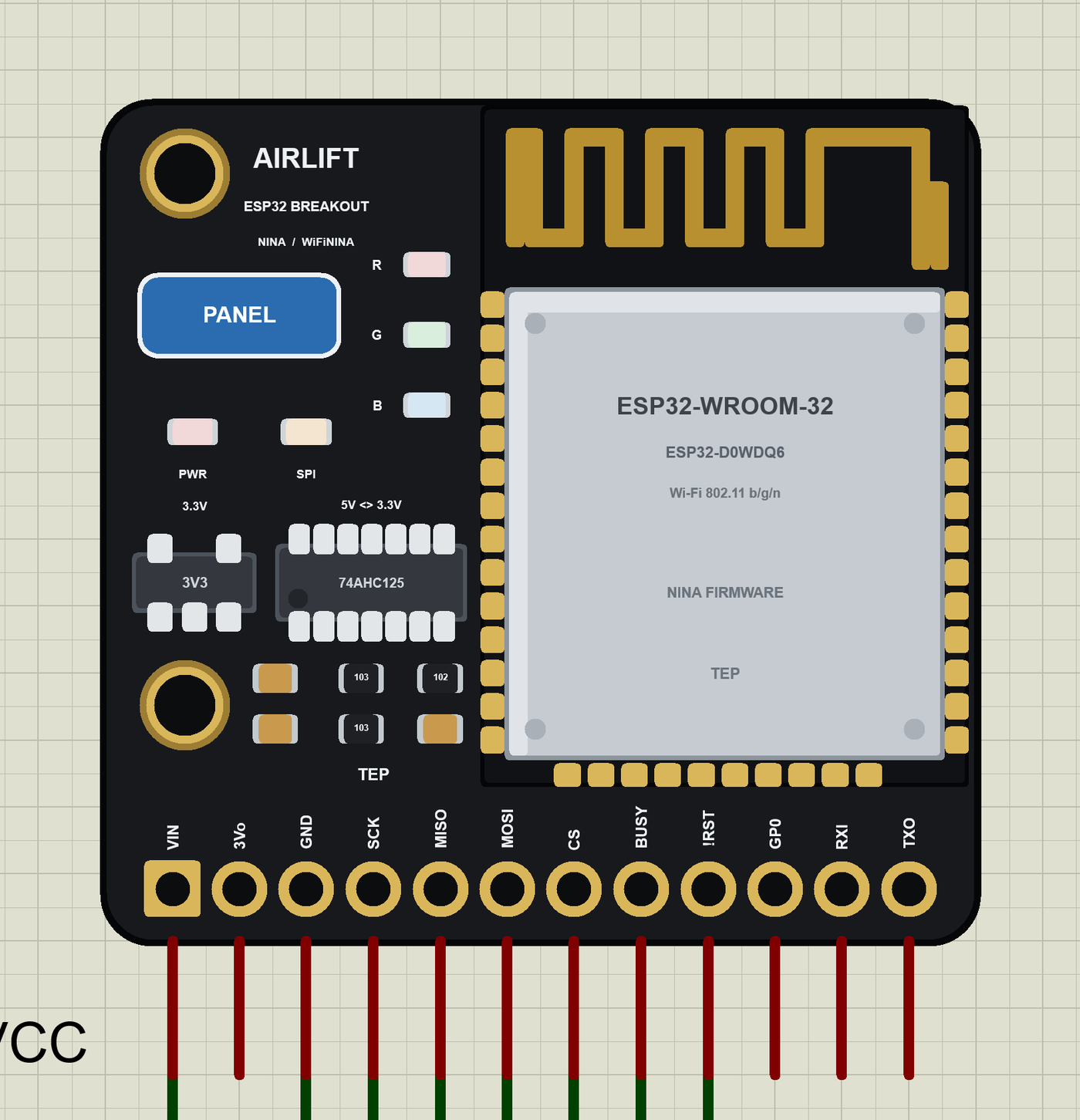

The AirLift ESP32 Breakout in Proteus

Search AIRLIFT in Pick Devices; the device AIRLIFT ESP32 BREAKOUT is in TEPAIRLIFTBO.LIB. Its pins point down from the header like the pins of the real board. In Proteus the !RST pin is named RST. Click the PANEL pad or the ESP32 module to open the panel.

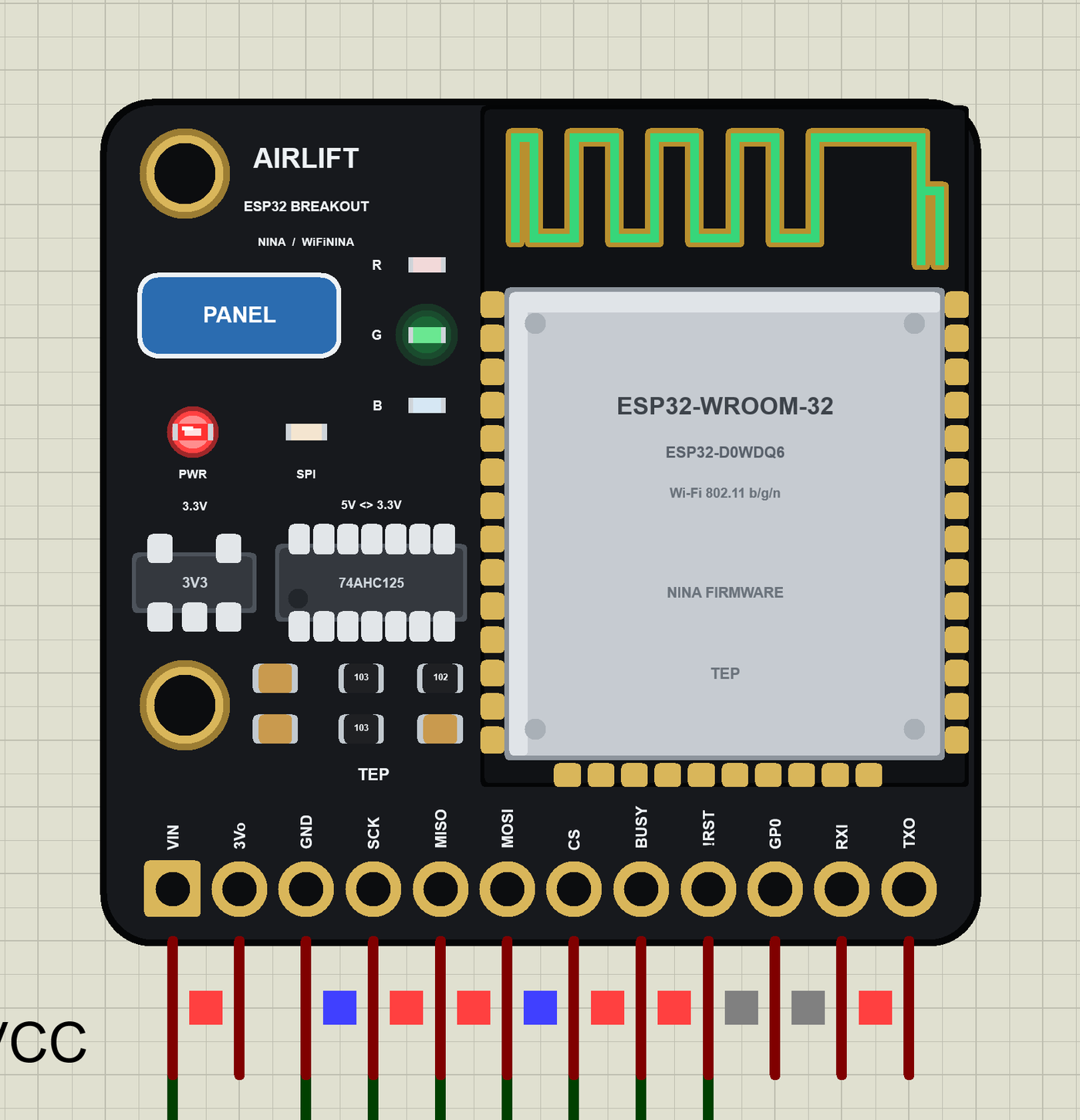

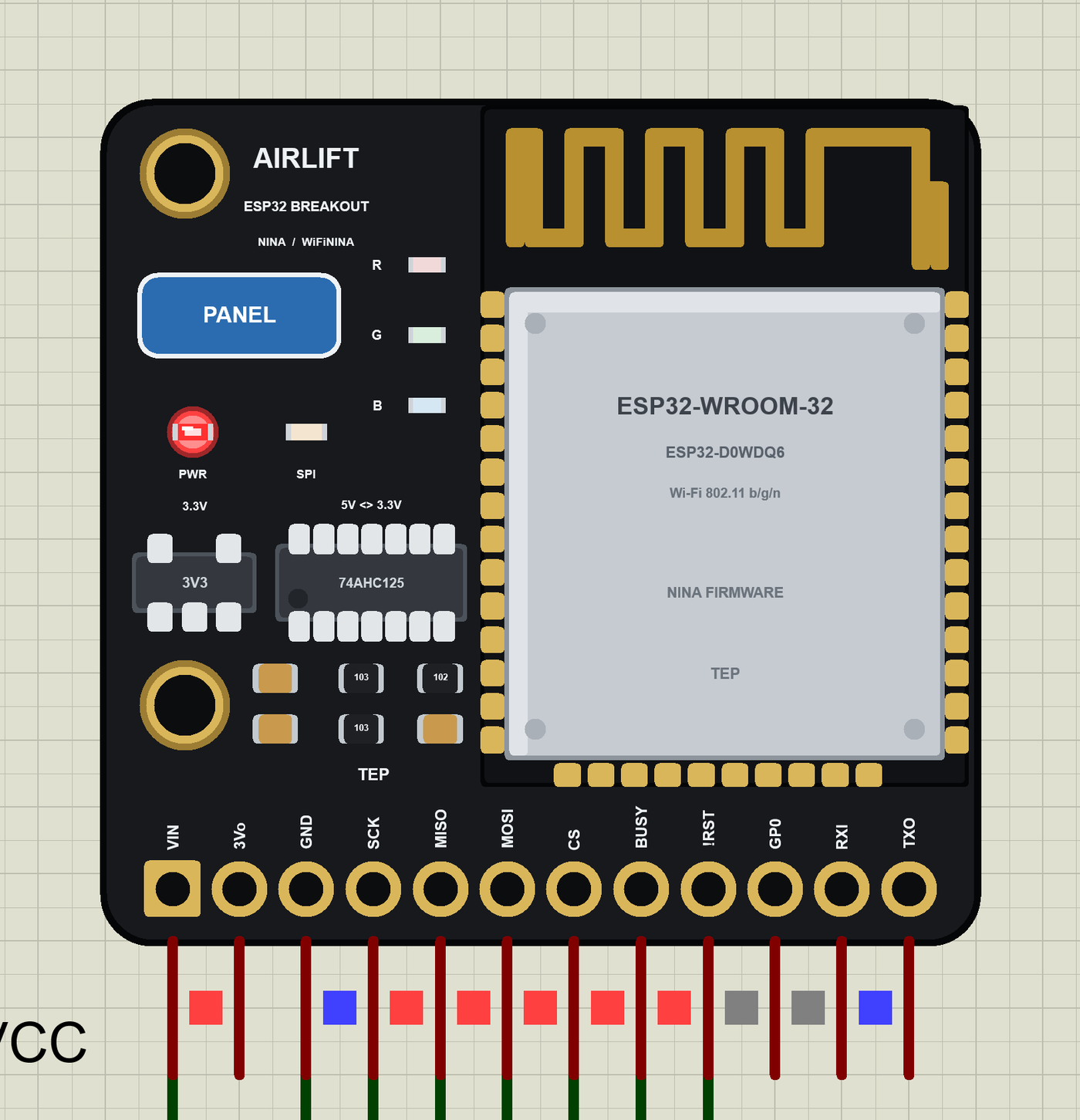

Every State of the AirLift ESP32 Breakout

We ran the demo and paused the simulation for each picture. At Run the breakout gets its supply and the ESP32 starts; the UNO's first WiFiNINA call resets it with D5 and waits for BUSY to go LOW:

Download AirLift ESP32 Breakout Library for Proteus

Click the button below to download AirLift-ESP32-Breakout-Library-for-Proteus-v1.0.zip (about 2.70 MB, without the C++ source code of the models):

• README.txt: the device, installation, the demo, the pins, the properties, troubleshooting and the limits.
• Proteus Library Files: TEPAIRLIFTBO.LIB (the breakout), ArduinoV4TEP.LIB (our Arduino boards V4.0 - the UNO of the demo), TEPLAPTOP.LIB and TEPMOBILE.LIB (our Laptop and Mobile WiFi Monitors).
• Proteus Model Files: TEPNET.DLL (the breakout, the two monitors and the Wi-Fi network) and TEPARDUINO.DLL (the Arduino boards).
• Proteus Simulation: the demo project, its HEX file and copies of the DLLs.
• Arduino Code: the demo sketch. WiFiNINA is not included - install "WiFiNINA - Adafruit Fork" from the Library Manager.

No Proteus yet? Read How to Download and Install Proteus 7 and 8. New to libraries? Follow How to Install a New Library in Proteus.

How to Install AirLift ESP32 Breakout Library for Proteus

1. Close Proteus and extract the whole zip file, for example to your Desktop.
2. Copy the four files from Proteus Library Files into the LIBRARY folder of Proteus (usually C:\Program Files (x86)\Labcenter Electronics\Proteus 8 Professional\LIBRARY).
3. Copy TEPNET.DLL and TEPARDUINO.DLL from Proteus Model Files into the MODELS folder - replace older copies (this TEPNET.DLL is the first one that knows the breakout, and it still runs the AirLift shield, all our ESP32 boards, the ESP8266 and ESP32 modules and the two monitors).
4. Delete TEPAIRLIFTBO.IDX, ArduinoV4TEP.IDX, TEPLAPTOP.IDX and TEPMOBILE.IDX from the LIBRARY folder if they are there.
5. Start Proteus, press P and search for AIRLIFT.

The sketch is a normal UNO sketch: select Arduino Uno in the Arduino IDE, install the Adafruit WiFiNINA, write your sketch and use Sketch > Export Compiled Binary; then double-click the UNO in Proteus and set its Program File to the HEX (see How to get the HEX file from Arduino).

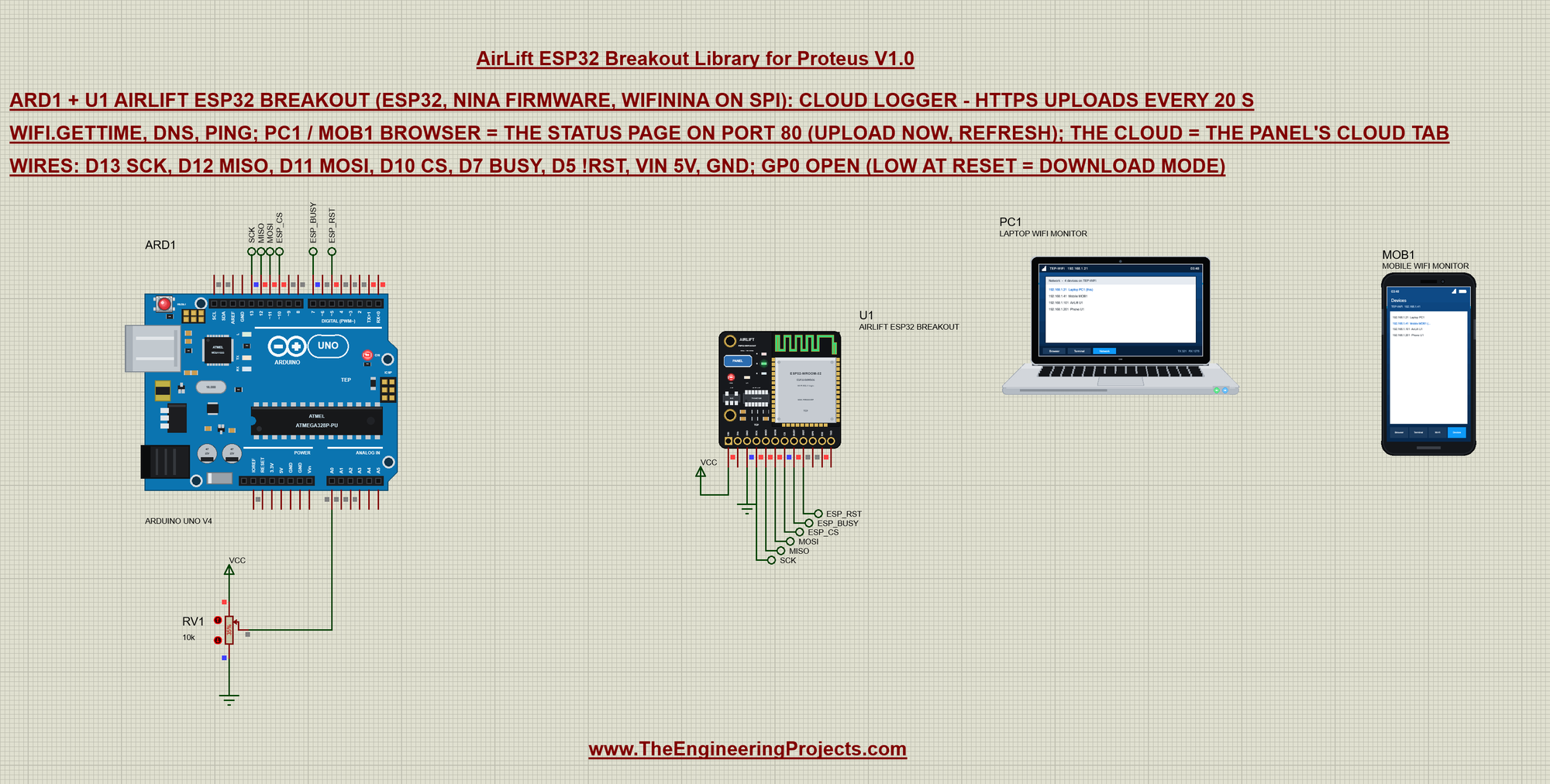

Demo: A Cloud Logger with the Laptop and the Phone

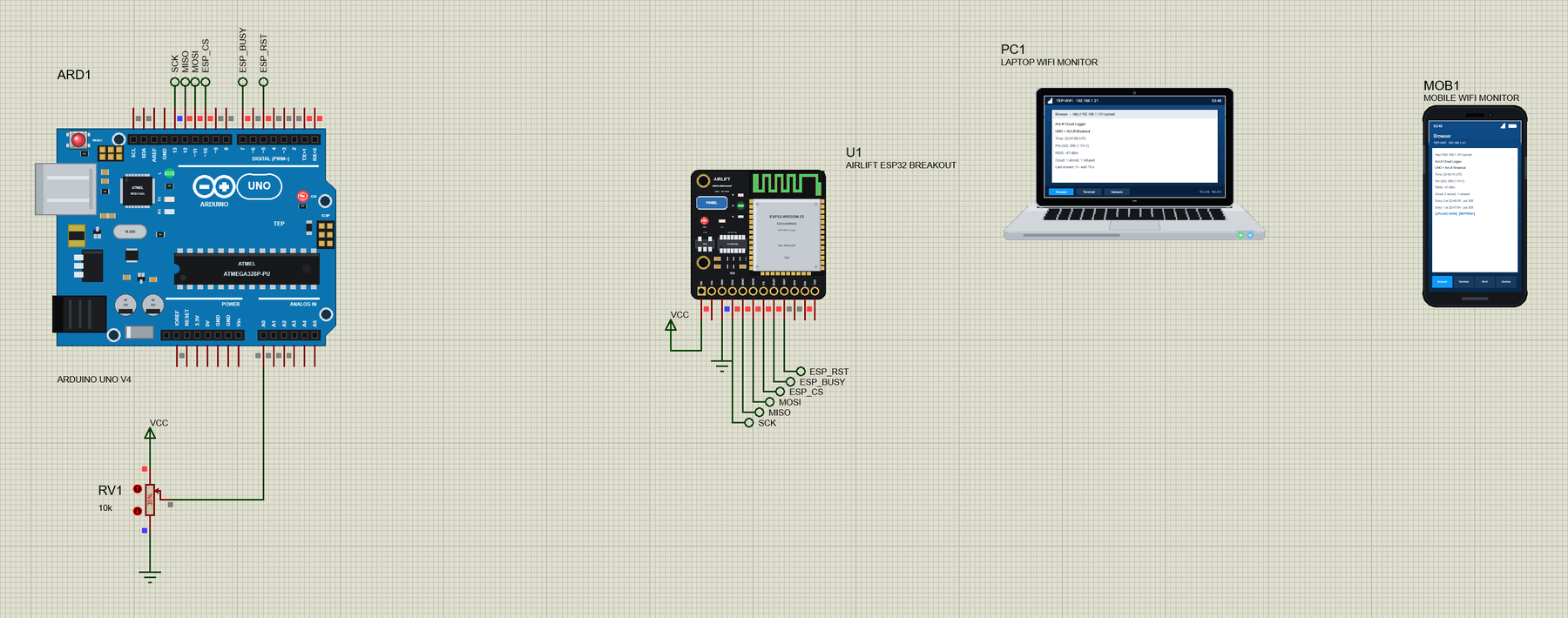

Open AirLift-ESP32-Breakout-Cloud-Logger-with-Laptop-and-Mobile.pdsprj. On the left is our Arduino UNO Library for Proteus V4.0 (ARD1) with its built-in serial monitor and a pot on A0, in the middle the AirLift breakout (U1), and on the right the laptop (PC1) and the phone (MOB1) - no wires to them, they are on the TEP-WiFi network like the real ones.

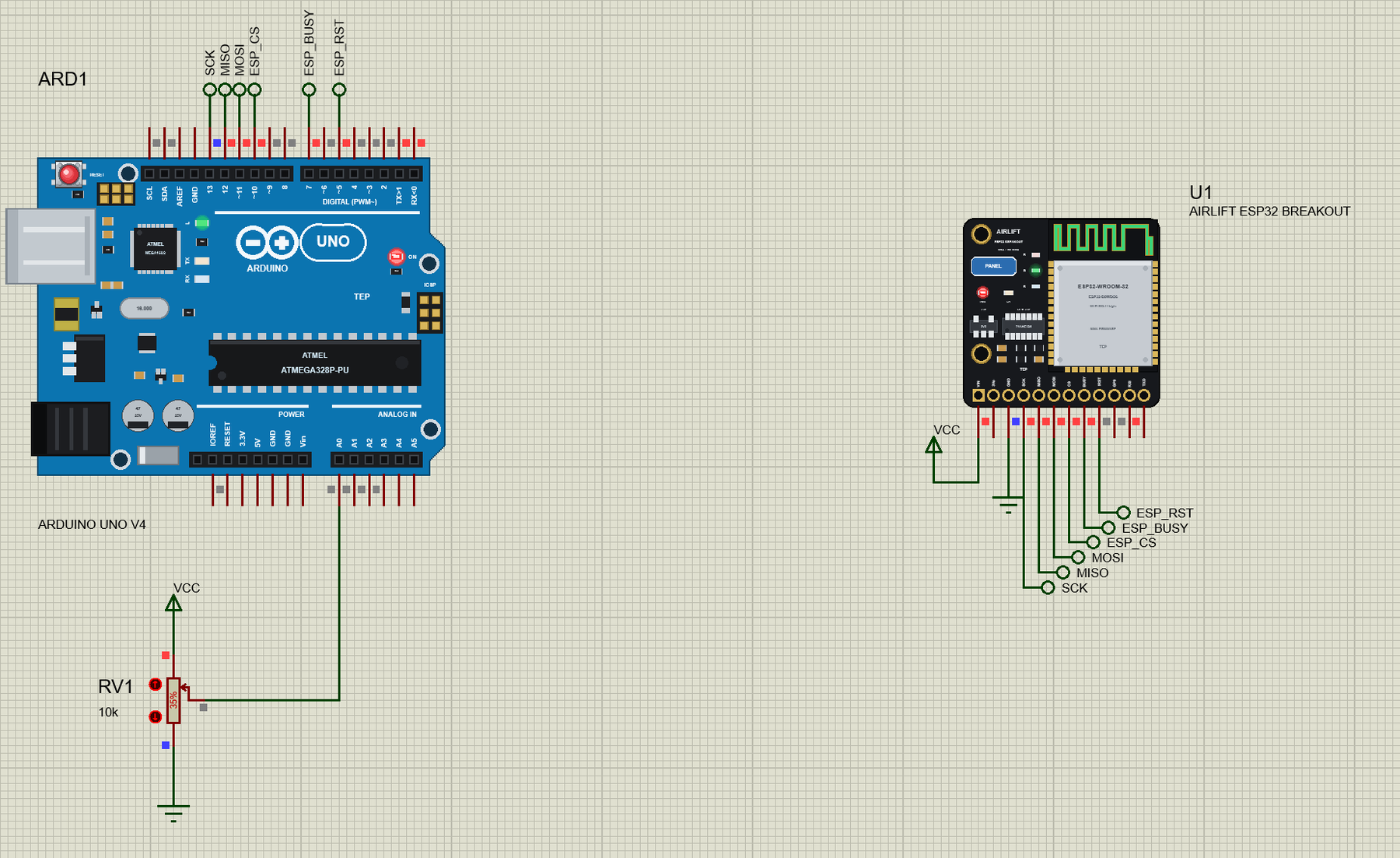

Six net labels join the UNO and the breakout: SCK, MISO, MOSI (D13, D12, D11), ESP_CS (D10), ESP_BUSY (D7) and ESP_RST (D5). VIN goes to VCC and GND to ground; GP0, 3Vo, RXI and TXO stay open. RV1 (10k, at 35 %) on A0 gives the value the sketch uploads:

The two tools come from our Laptop WiFi Monitor Library for Proteus and Mobile WiFi Monitor Library for Proteus. In this project their browsers open http://192.168.1.101/; you only press Go. The laptop is 192.168.1.21 and the phone 192.168.1.41:

The Sketch: WiFiNINA on the AirLift Breakout

Adafruit's WiFiNINA needs to know where the breakout is wired. The sketch names the pins and passes them to WiFi.setPins() before any other WiFi call; GP0 is -1 (not connected). WL_NO_MODULE means the ESP32 did not answer:

#define SPIWIFI       SPI                                          // the breakout's wires (WiFi.setPins)
#define SPIWIFI_SS    10
#define SPIWIFI_ACK   7
#define ESP32_RESETN  5
#define ESP32_GPIO0   -1

  WiFi.setPins(SPIWIFI_SS, SPIWIFI_ACK, ESP32_RESETN, ESP32_GPIO0, &SPIWIFI);
  if (WiFi.status() == WL_NO_MODULE) {
    Serial.println(F("No AirLift found - check CS D10, BUSY D7, !RST D5, SPI and GP0 (open)"));
    while (true) delay(1000);
  }

WiFi.begin() waits five seconds before it asks for the status - on the real breakout too - so the join takes a little over five seconds. Then the sketch asks the ESP32 for the time. WiFi.getTime() gives the seconds since 1970 once the ESP32 has heard from a time server (0 before that), so the sketch tries a few times and keeps the answer with millis():

void syncTime() {
  unsigned long t = 0;
  for (int i = 0; i < 10 && !t; i++) { t = WiFi.getTime(); if (!t) delay(500); }
  if (!t) { Serial.println(F("Time: not yet (WiFi.getTime() = 0)")); return; }
  epochAt = t; millisAt = millis();

DNS and ping are one call each; both block until the ESP32 has the answer, and BUSY stays HIGH meanwhile:

void pingCloud() {
  IPAddress ip;
  if (!WiFi.hostByName(host, ip)) { Serial.println(F("DNS: no answer")); return; }
  Serial.print(F("DNS: ")); Serial.print(host); Serial.print(F(" = ")); Serial.println(ip);
  const int ms = WiFi.ping(ip);
  Serial.print(F("Ping: ")); Serial.print(ms); Serial.println(ms >= 0 ? F(" ms") : F(" (no answer)"));
}

The HTTPS Upload

Every 20 seconds the sketch sends the pot and the RSSI to iot.example.com, the cloud of our virtual internet host. WiFiSSLClient is a WiFiClient that asks the ESP32 for a TLS socket; the request is a plain HTTP GET with an api_key and two fields:

  if (!cloud.connect(host, 443)) {

  snprintf(msg, sizeof msg, "GET /update?api_key=%s&field1=%d&field2=%ld HTTP/1.1\r\n", apiKey, pot, rssi);
  cloud.print(msg);
  sendP(cloud, F("Host: iot.example.com\r\nConnection: close\r\n\r\n"));

The answer is an HTTP header and a number: the stored entry, or 0 when the same key sent an update less than 15 seconds ago. The sketch skips the header up to the blank line and reads the number:

  while ((cloud.connected() || cloud.available()) && millis() - t0 < 5000) {   // skip the headers, read the number
    if (!cloud.available()) continue;
    const char ch = cloud.read();
    if (!body) { if (ch == '\n') { if (++blank == 2) body = true; } else if (ch != '\r') blank = 0; continue; }
    if (ch >= '0' && ch <= '9') answer = (answer < 0 ? 0 : answer * 10) + (ch - '0');
  }

  if (answer > 0) {
    stored++;
    memmove(&recent[1], &recent[0], 2 * sizeof(Upload));
    recent[0].at = now(); recent[0].entry = answer; recent[0].pot = pot;
    snprintf(msg, sizeof msg, "entry %ld stored - pot %d, RSSI %ld dBm (%lu ms)", answer, pot, rssi, ms);
  } else if (answer == 0) {
    refused++;
    snprintf(msg, sizeof msg, "answer 0 - refused (one update per 15 s)");
  } else {
    failed++;
    snprintf(msg, sizeof msg, "no answer");
  }

The breakout's LEDs belong to the ESP32, and the sketch uses them for its state: red while it joins, green on Wi-Fi and blue while an upload runs:

  WiFi.setLEDs(0, 0, 80);                                          // blue: uploading

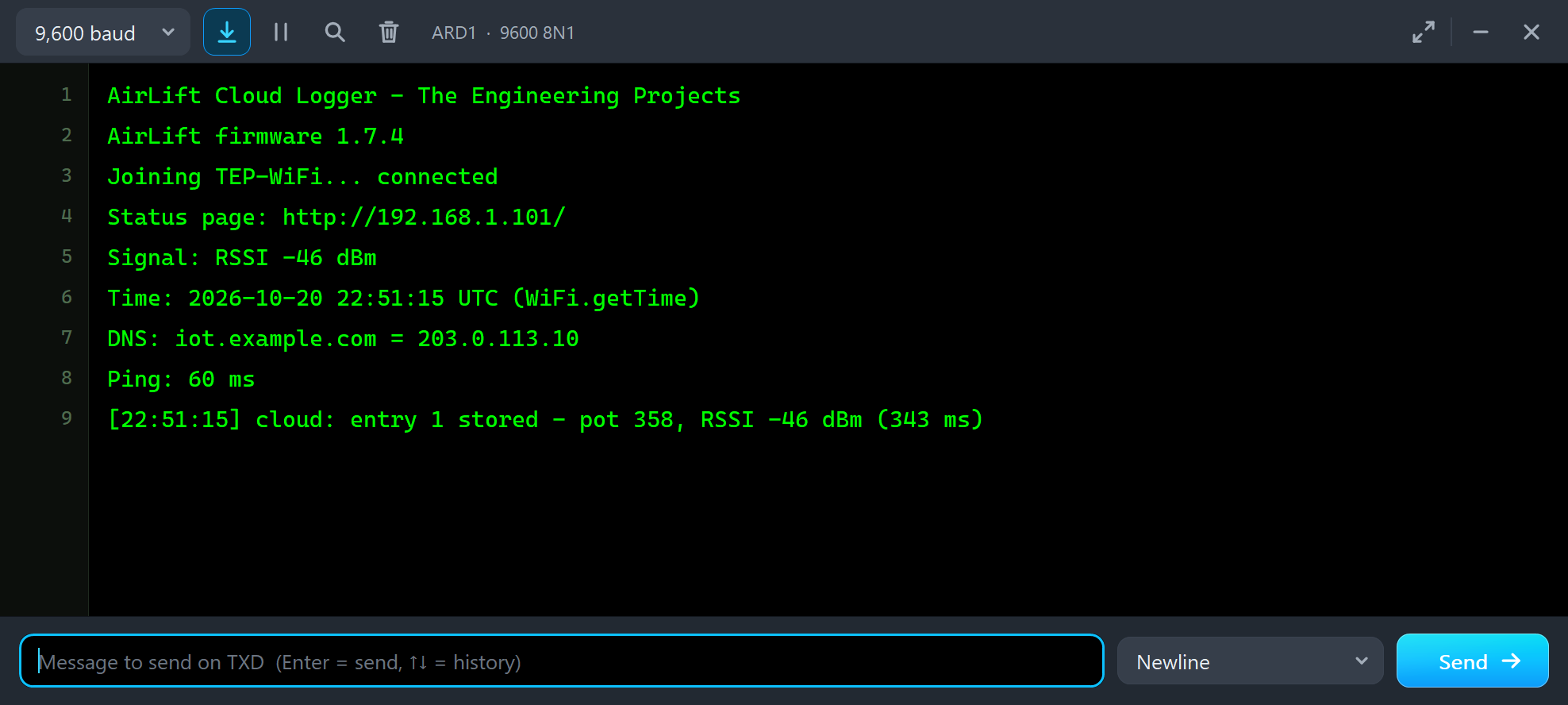

Press Run and watch the UNO's monitor: the firmware version, the join, the page address, the time, the cloud's address, a ping and the first upload:

AirLift Cloud Logger - The Engineering Projects
AirLift firmware 1.7.4
Joining TEP-WiFi... connected
Status page: http://192.168.1.101/
Signal: RSSI -46 dBm
Time: 2026-10-20 22:51:15 UTC (WiFi.getTime)
DNS: iot.example.com = 203.0.113.10
Ping: 60 ms
[22:51:15] cloud: entry 1 stored - pot 358, RSSI -46 dBm (343 ms)

The request on port 443 takes about a third of a second: the connection to the internet host, the request, the answer and the close. The time is UTC; the panel's phone shows the same clock in your PC's time zone.

The Status Page

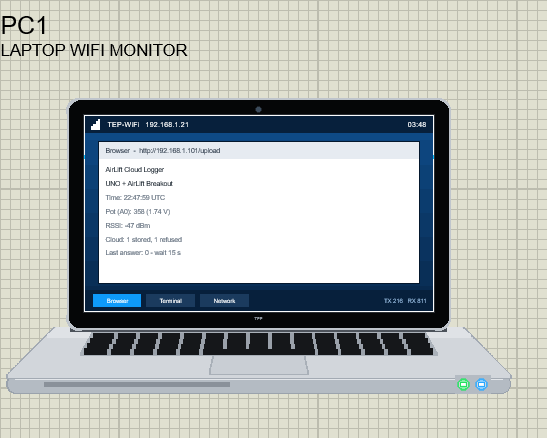

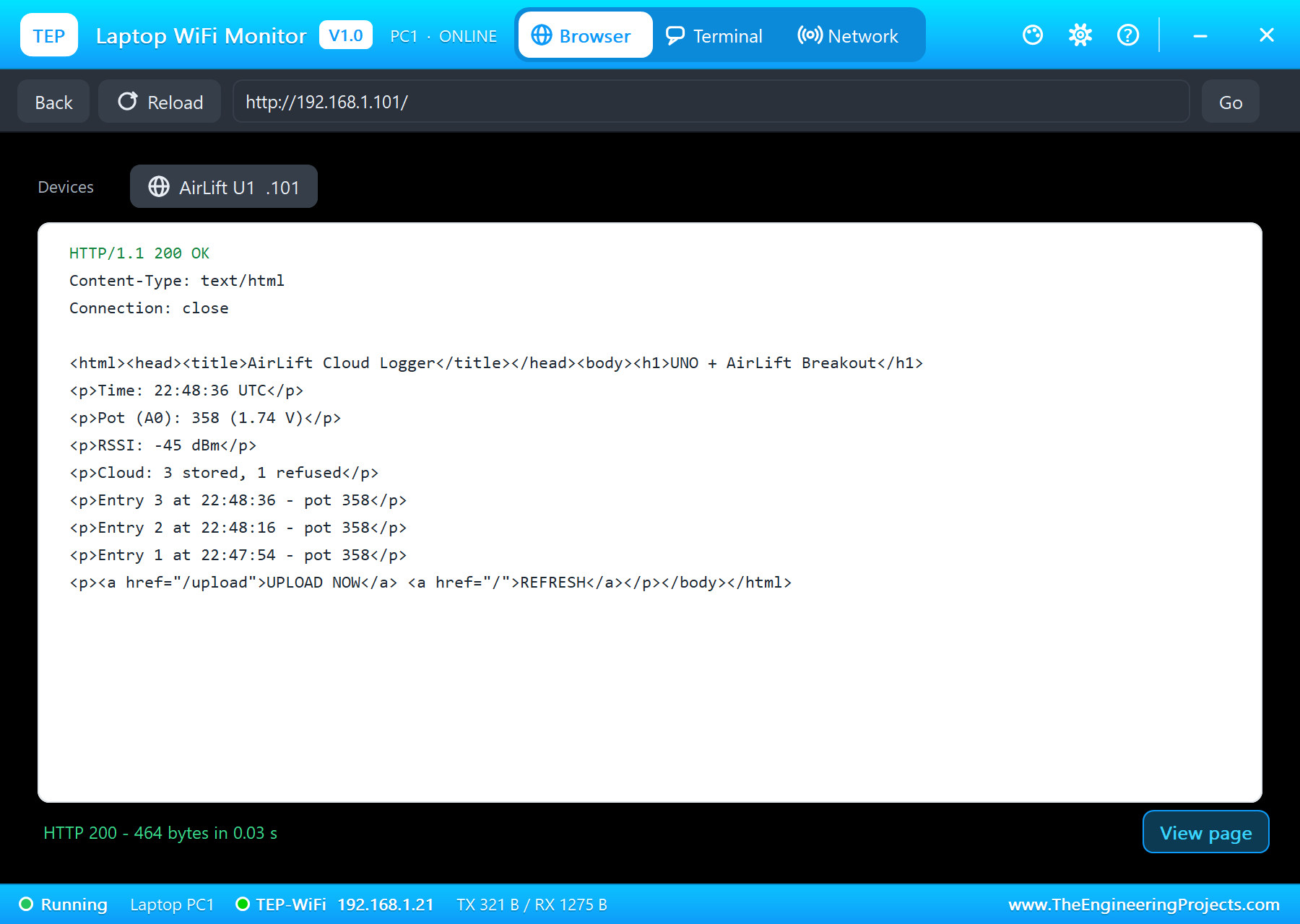

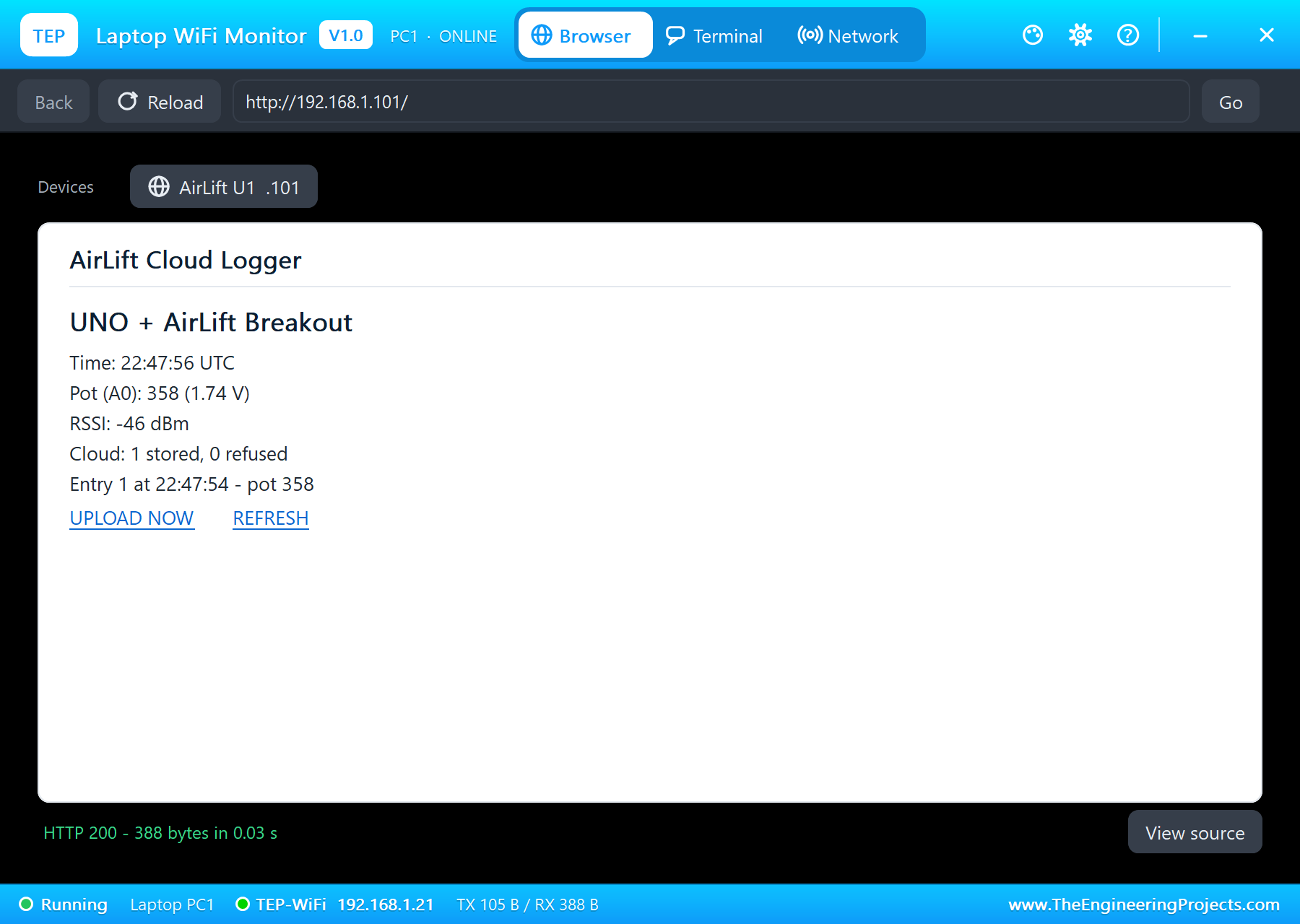

In the laptop's Browser the address bar already holds http://192.168.1.101/ - click Go. The page shows the time, the pot, the RSSI, the uploads so far and the last three entries, with two links:

The page is built line by line from RAM. A short line per value matters on the phone, whose screen is narrow:

  if (lastAnswer == 0) sendP(c, F("<p>Last answer: 0 - wait 15 s</p>\r\n"));

  for (uint8_t i = 0; i < 3 && i < stored; i++) {
    snprintf(msg, sizeof msg, "<p>Entry %ld at %s - pot %d</p>\r\n", recent[i].entry, clockText(t, recent[i].at), recent[i].pot);
    c.print(msg);
  }

UPLOAD NOW asks for /upload, and the sketch uploads before it sends the page back:

  if (!strncmp(req, "GET /upload", 11)) upload();

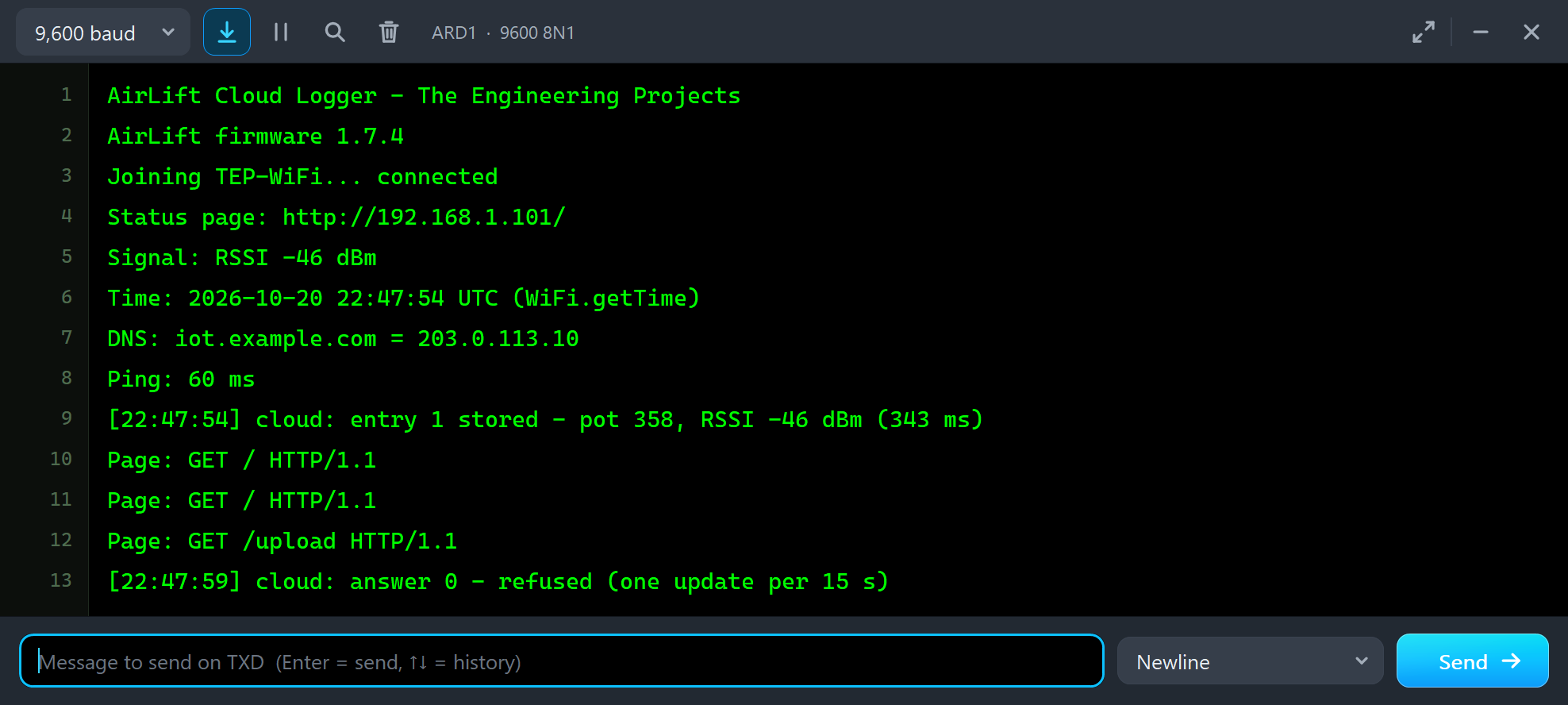

We clicked it five seconds after an automatic upload, so the cloud refused it - one update per 15 seconds for each key, as many real IoT clouds do. The page says so, and so does the monitor:

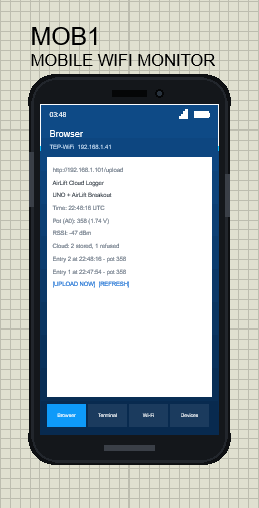

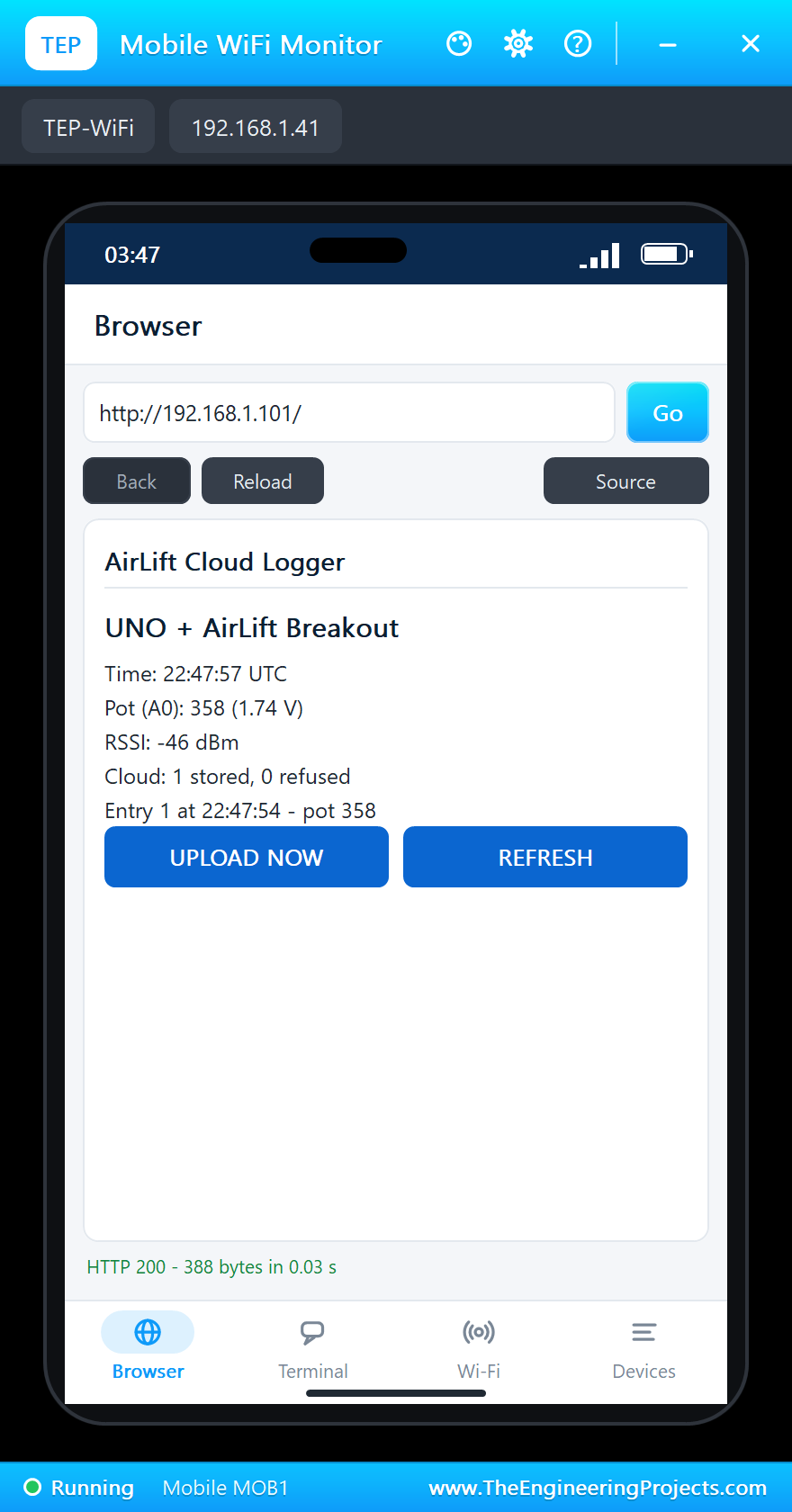

On the phone, the same page:

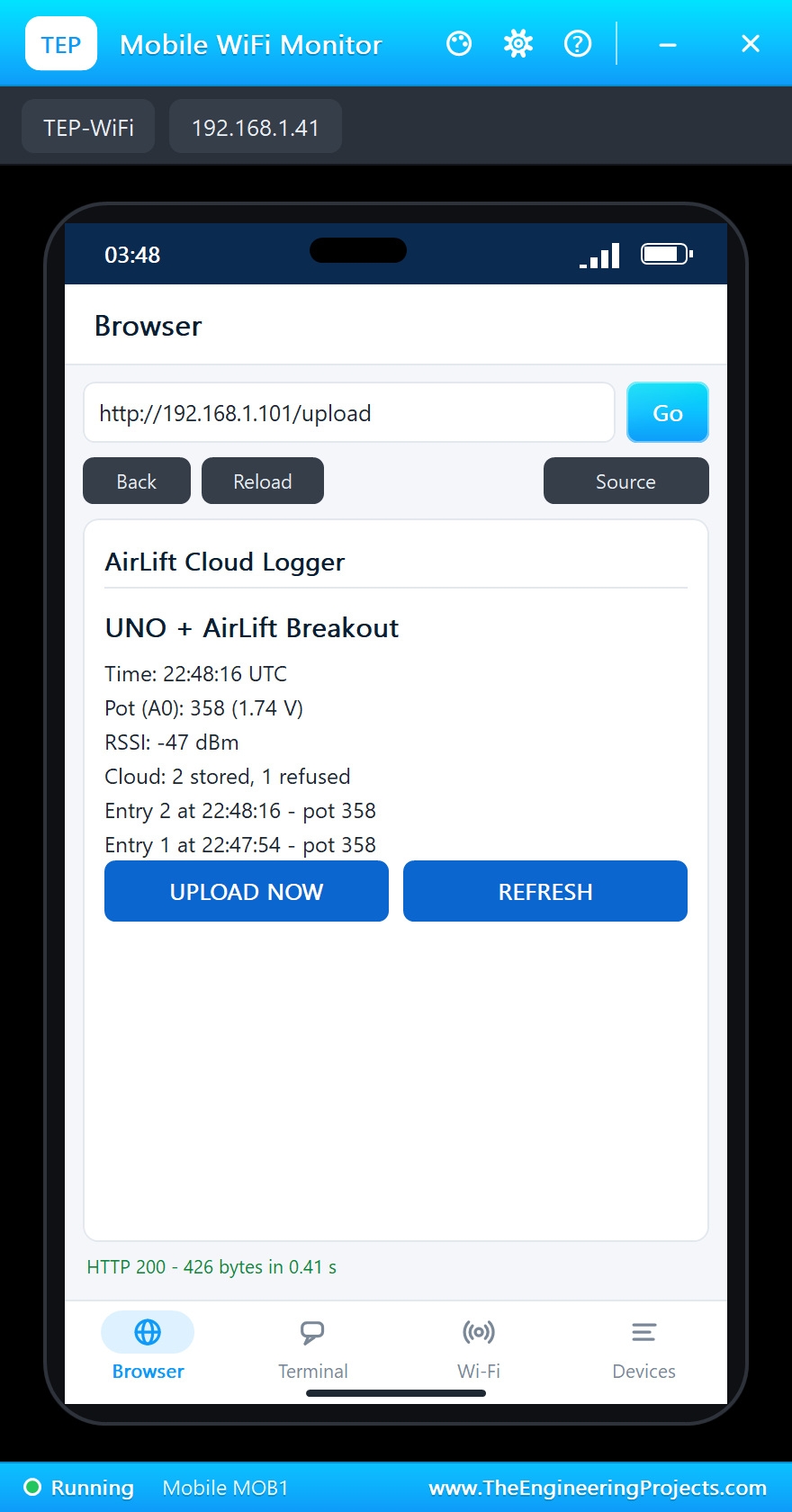

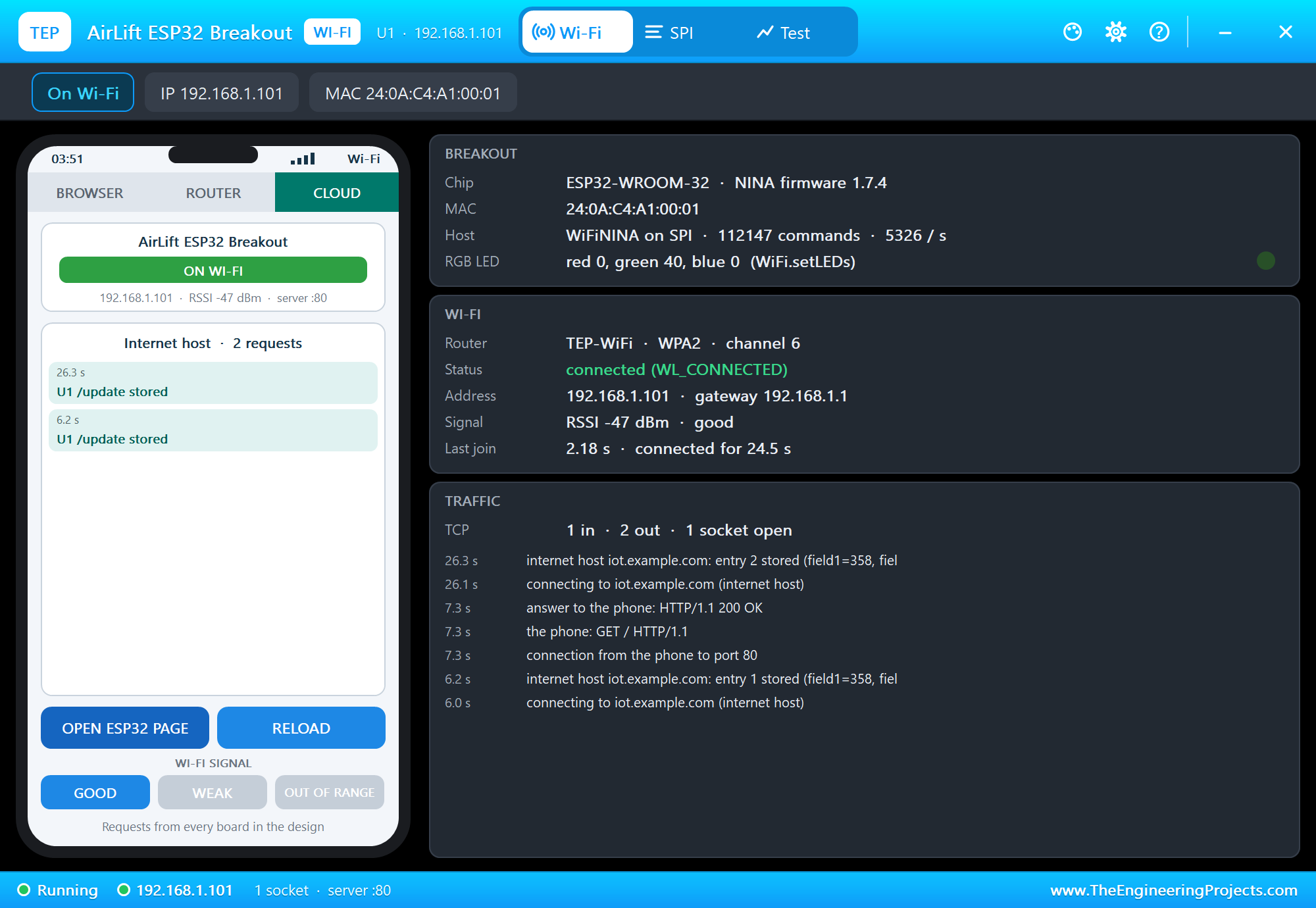

Seventeen seconds later we tapped UPLOAD NOW on the phone - stored as entry 2:

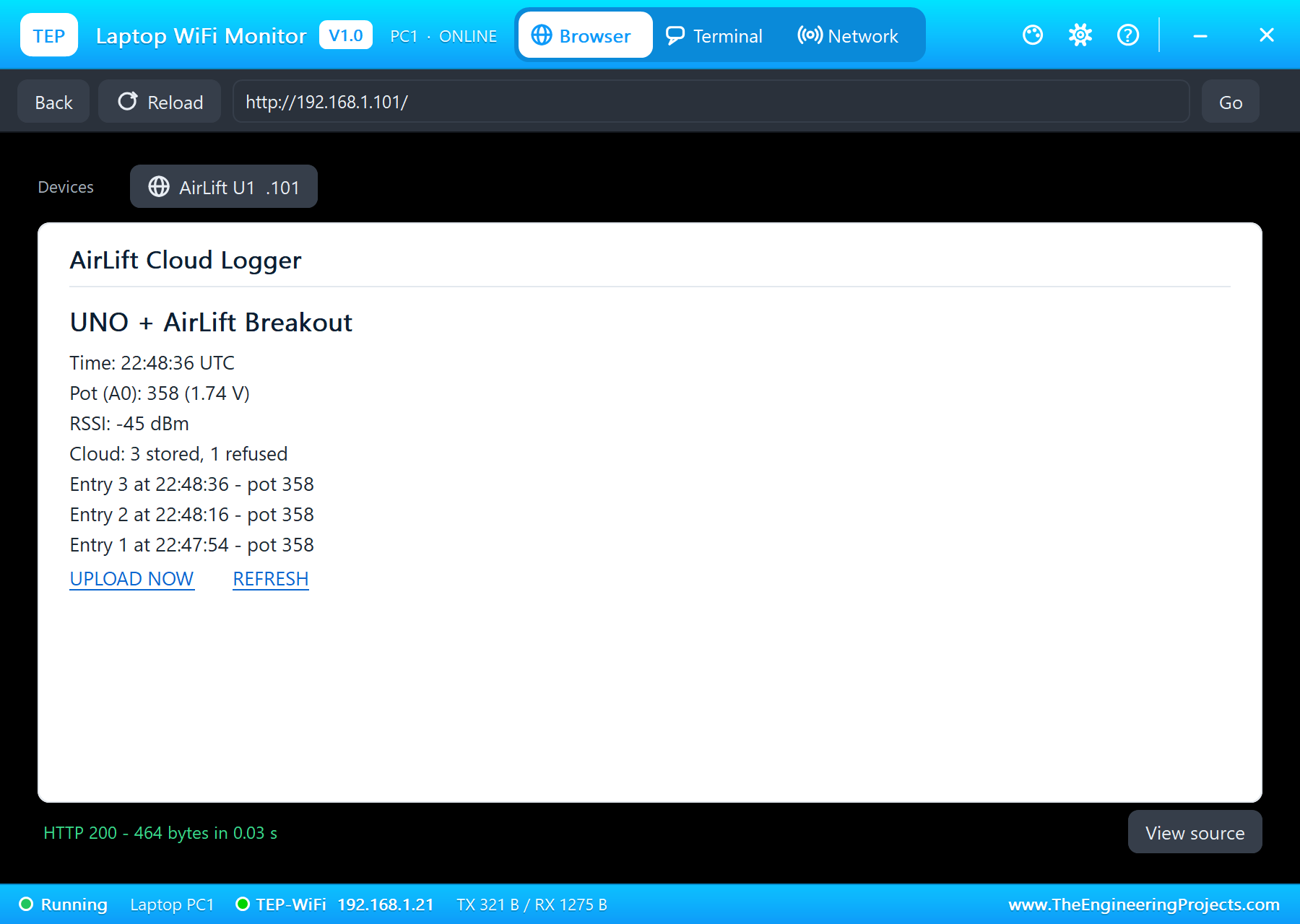

A little later the automatic upload stored entry 3, and the laptop's REFRESH shows all three:

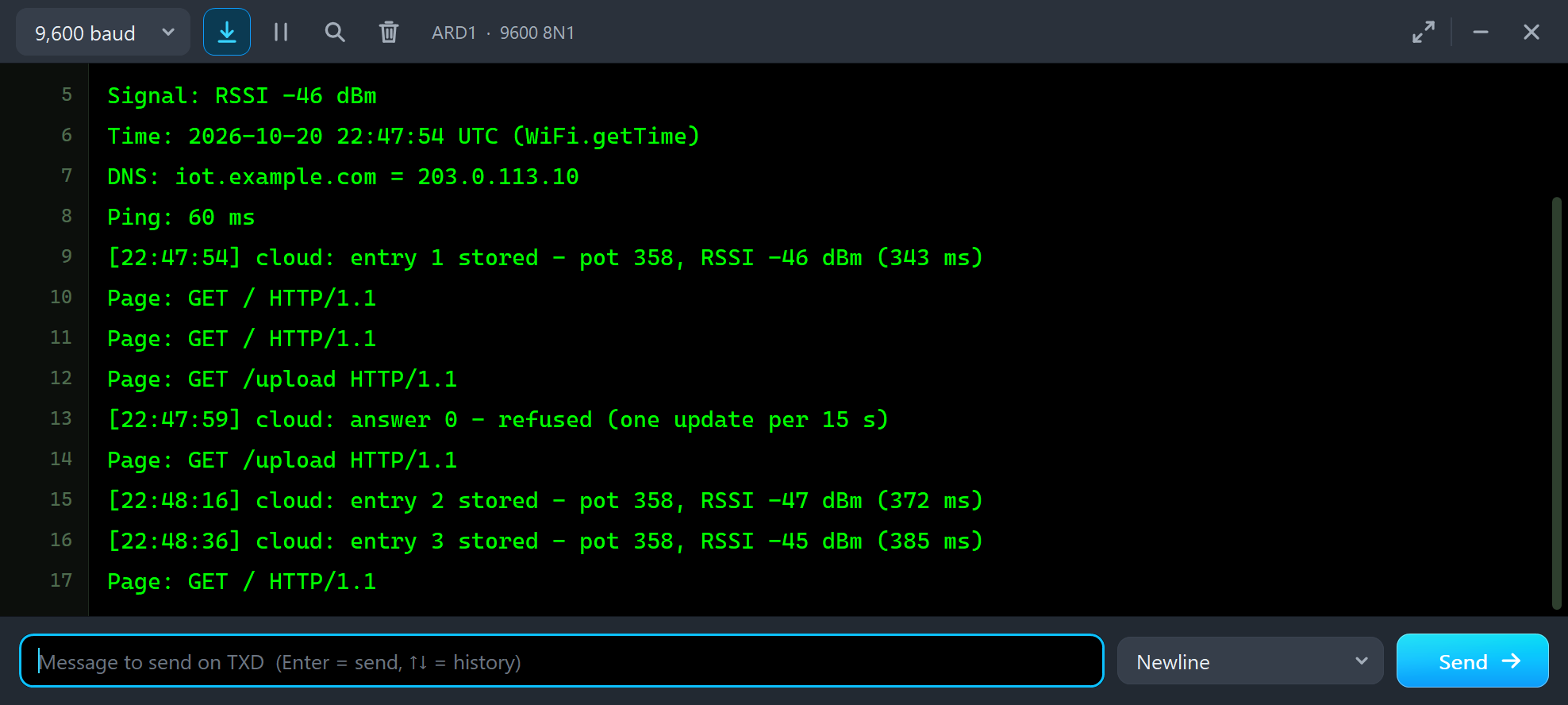

The UNO's monitor keeps the whole story - the pages, the refused upload, the phone's upload and the automatic ones:

[22:47:54] cloud: entry 1 stored - pot 358, RSSI -46 dBm (343 ms)
Page: GET / HTTP/1.1
Page: GET / HTTP/1.1
Page: GET /upload HTTP/1.1
[22:47:59] cloud: answer 0 - refused (one update per 15 s)
Page: GET /upload HTTP/1.1
[22:48:16] cloud: entry 2 stored - pot 358, RSSI -47 dBm (372 ms)
[22:48:36] cloud: entry 3 stored - pot 358, RSSI -45 dBm (385 ms)
Page: GET / HTTP/1.1

The loop that does it is short:

  if (millis() - lastUpload >= UPLOAD_EVERY) upload();

The Serial Monitor

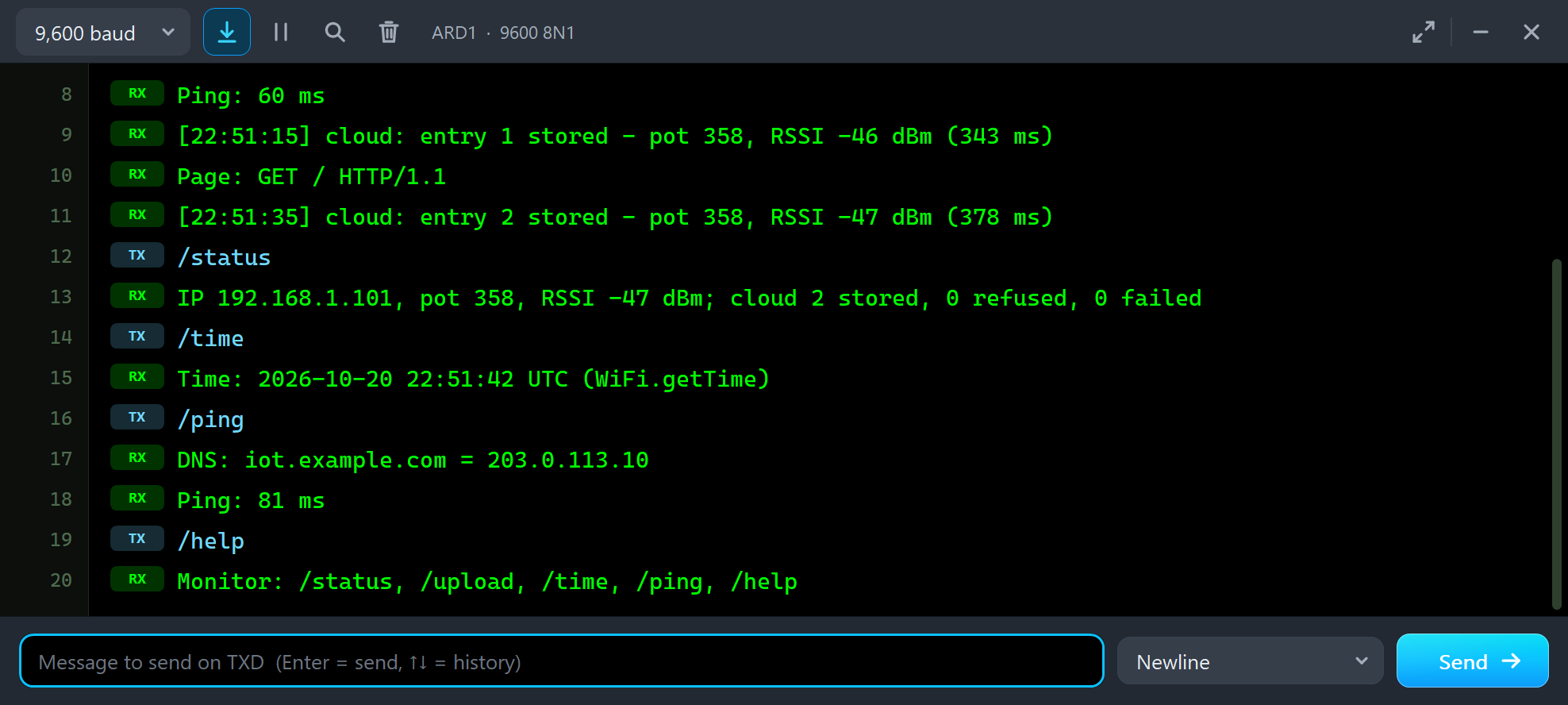

The monitor takes commands too: /status, /upload, /time (WiFi.getTime again), /ping (DNS and ping) and /help:

/status
IP 192.168.1.101, pot 358, RSSI -47 dBm; cloud 2 stored, 0 refused, 0 failed
/time
Time: 2026-10-20 22:51:42 UTC (WiFi.getTime)
/ping
DNS: iot.example.com = 203.0.113.10
Ping: 81 ms
/help
Monitor: /status, /upload, /time, /ping, /help

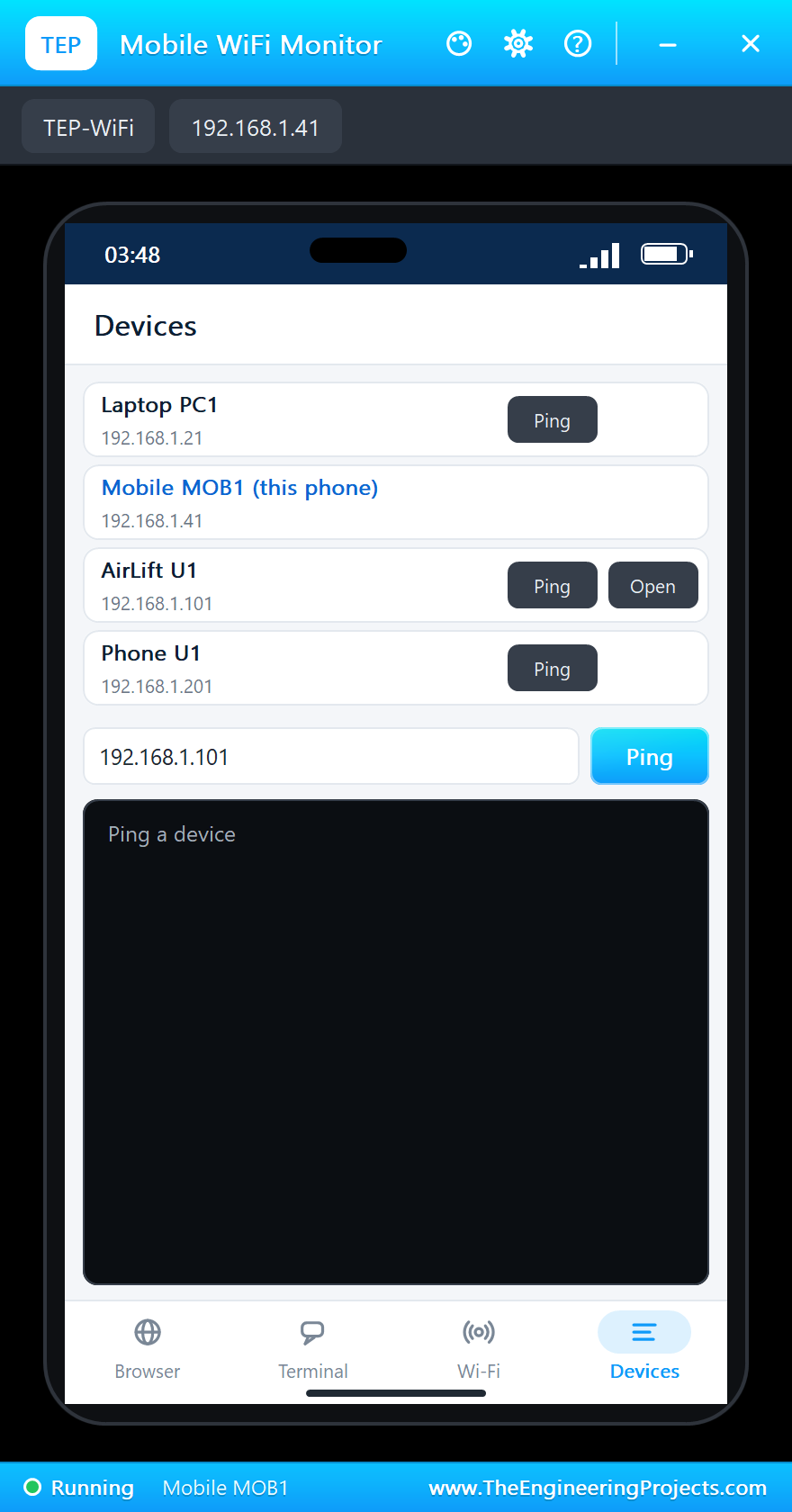

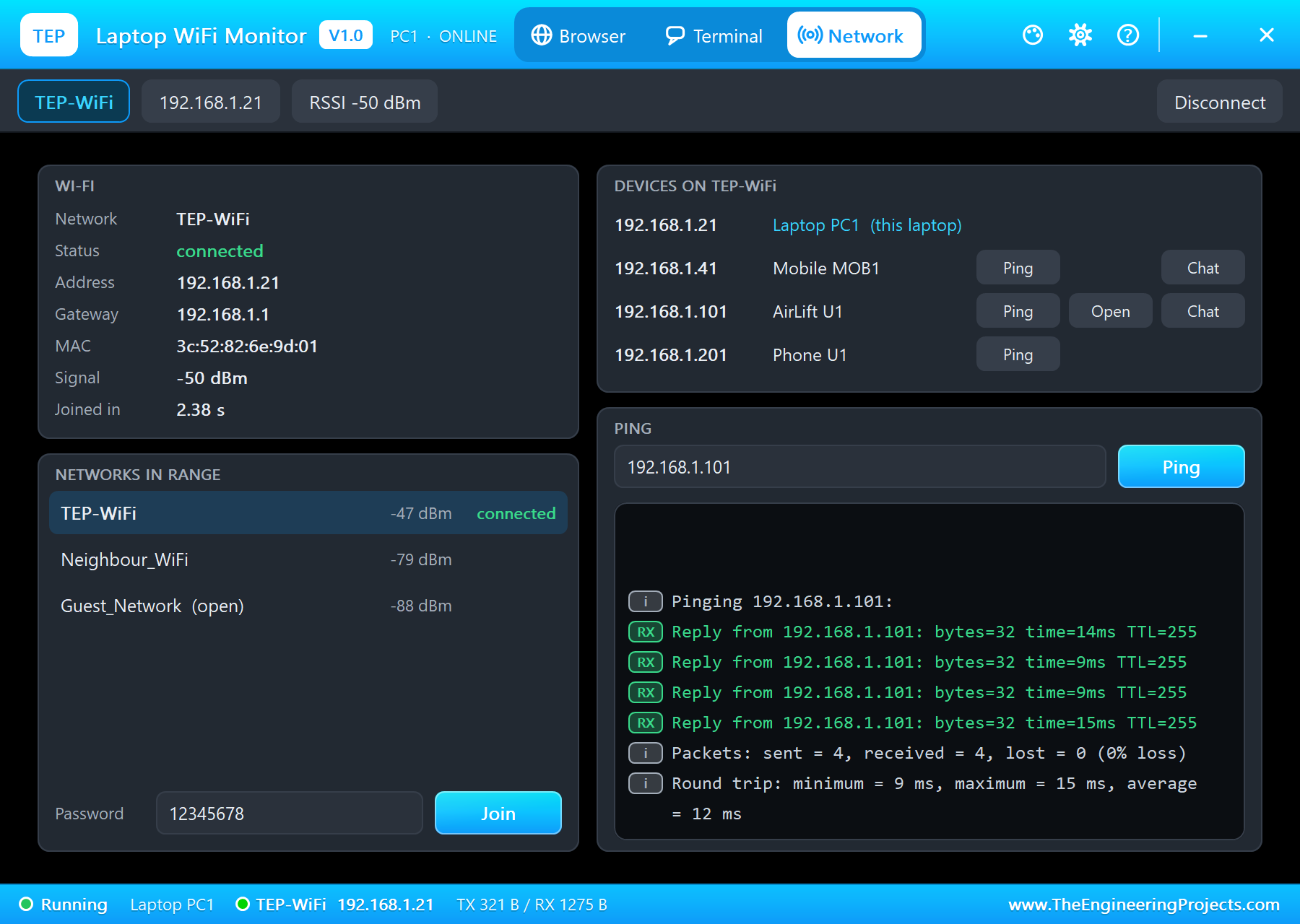

The laptop's Network tab can ping the breakout while it works, and the phone's Devices app lists everything on TEP-WiFi:

Pinging 192.168.1.101:
Reply from 192.168.1.101: bytes=32 time=14ms TTL=255
Reply from 192.168.1.101: bytes=32 time=9ms TTL=255
Reply from 192.168.1.101: bytes=32 time=9ms TTL=255
Reply from 192.168.1.101: bytes=32 time=15ms TTL=255
Packets: sent = 4, received = 4, lost = 0 (0% loss)

And the whole demo running:

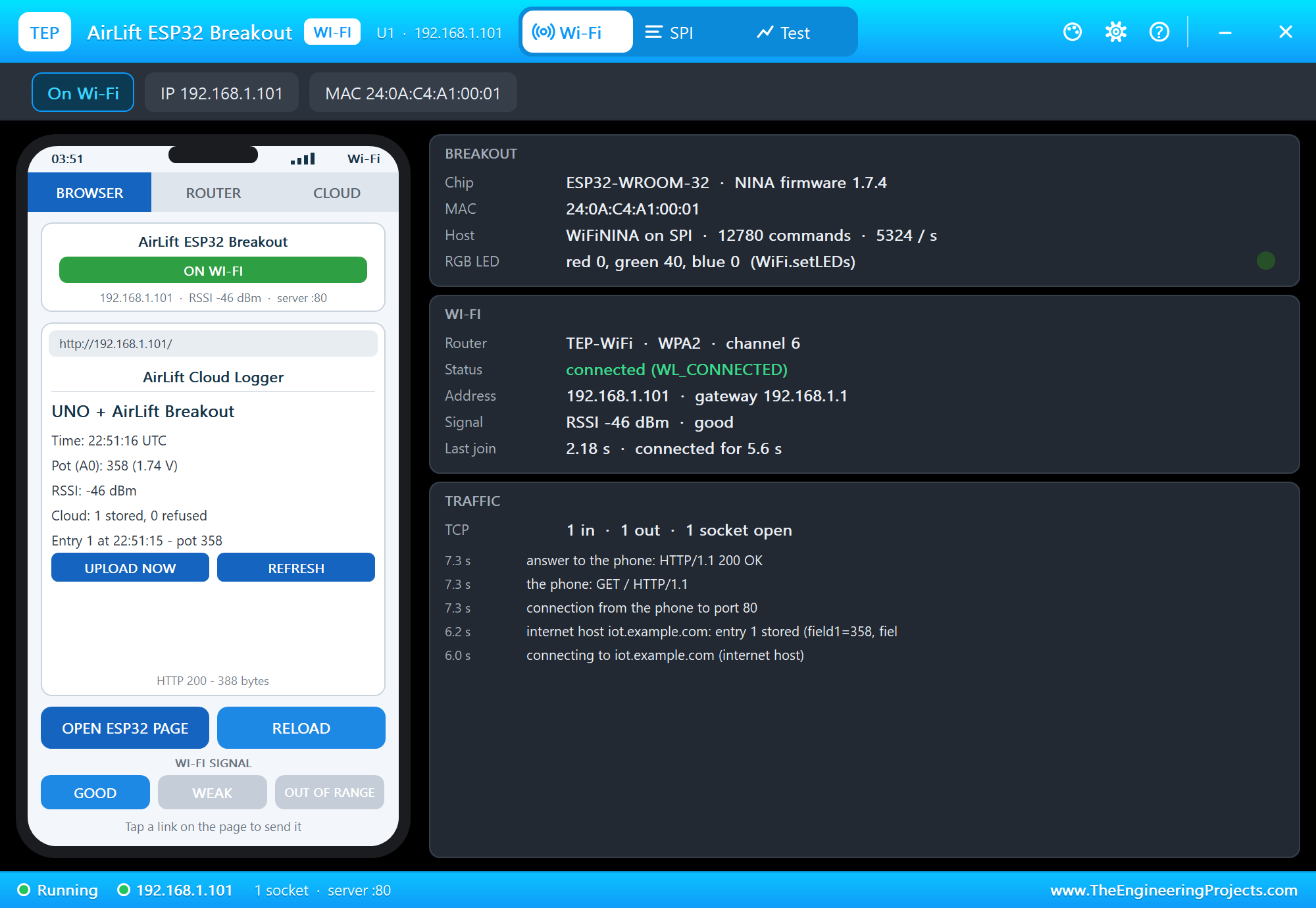

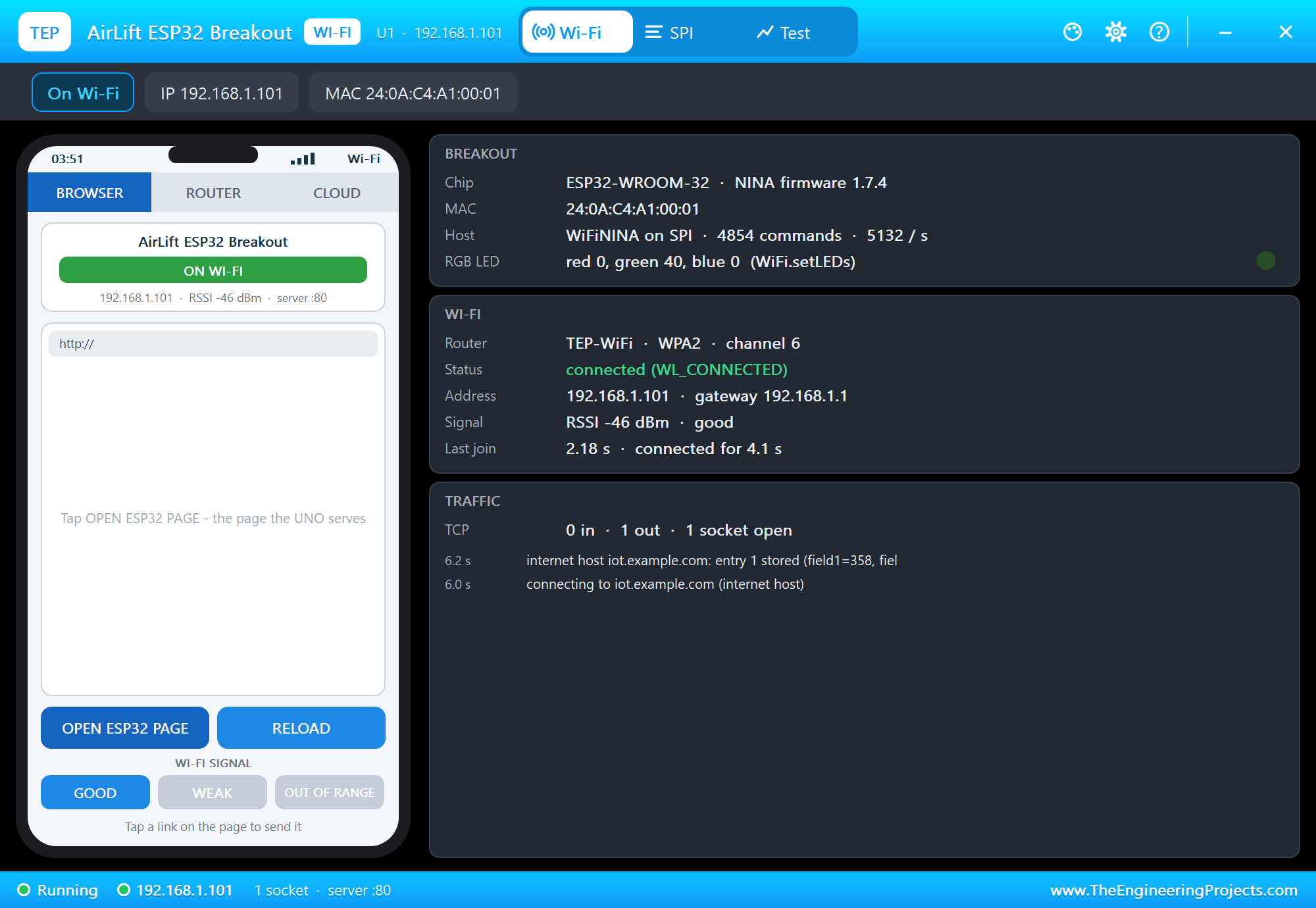

The AirLift ESP32 Breakout Panel

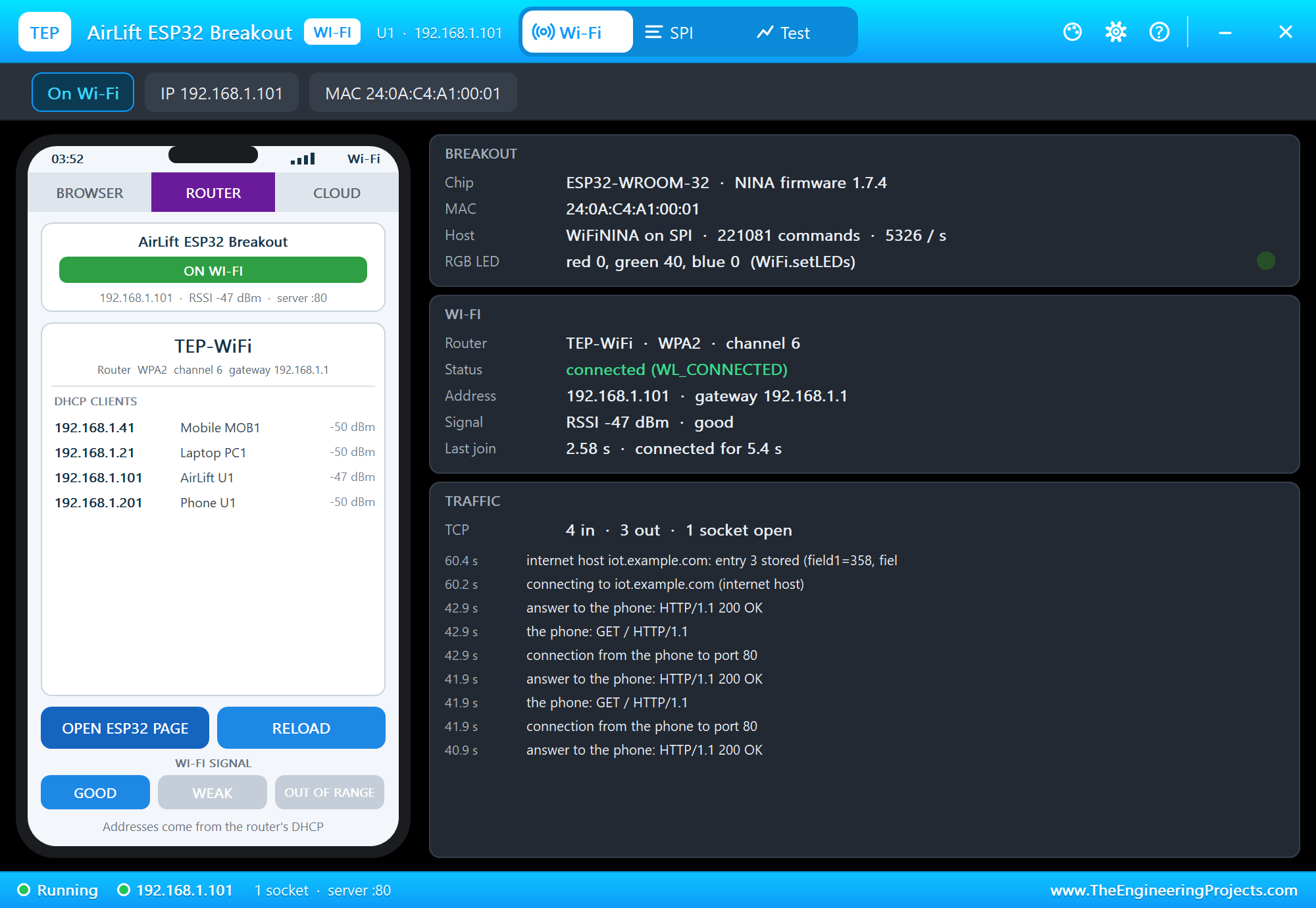

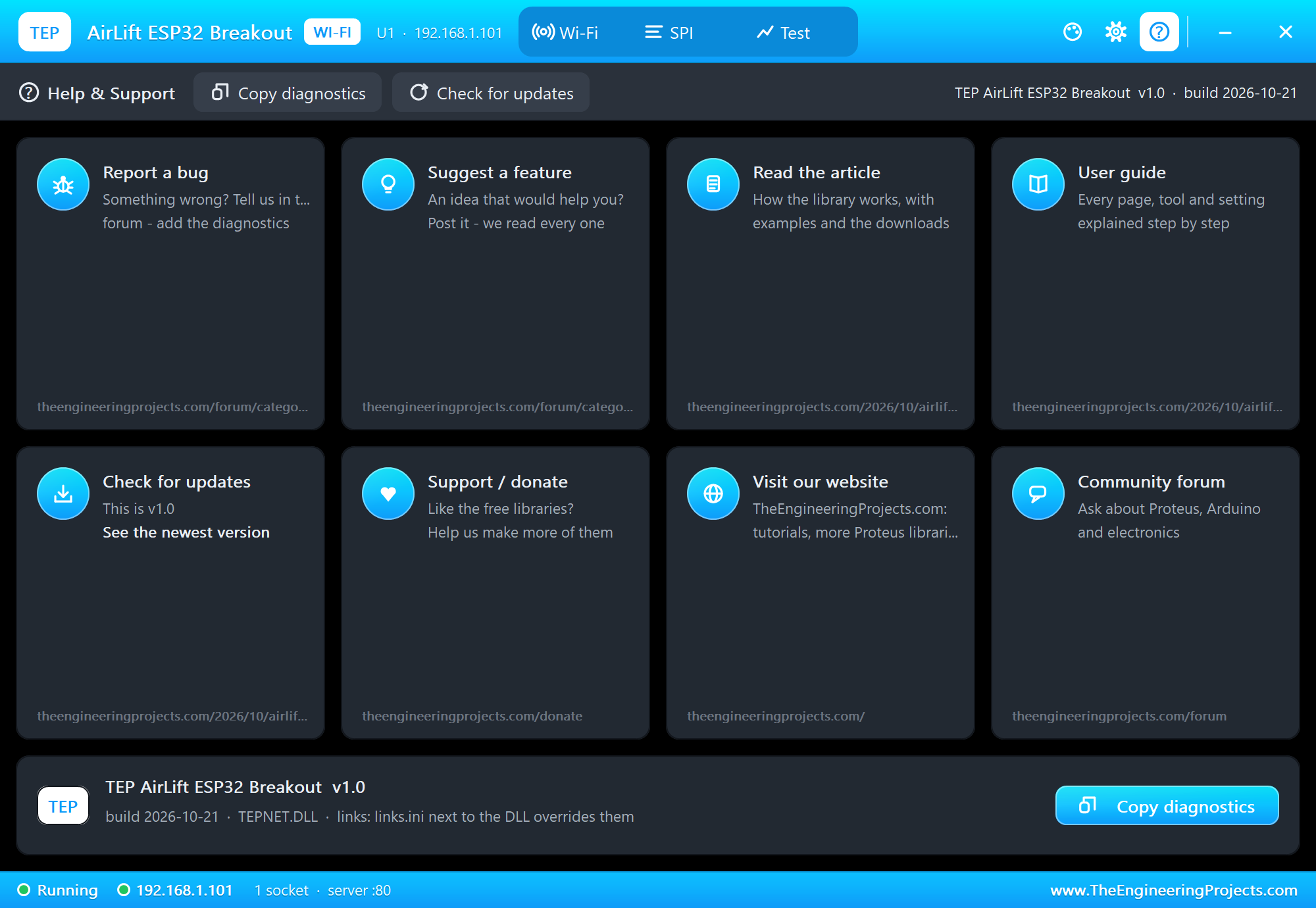

The panel opens at Run, in the look of our TEP Serial Monitor Advance for Proteus. Its Wi-Fi page has a small phone of its own and three cards: the BREAKOUT card with the firmware, the MAC address, the host link with its command rate and the LEDs, the WI-FI card and the TRAFFIC card:

OPEN ESP32 PAGE asks the breakout for the page the UNO serves; its links work on the phone too. The phone's CLOUD tab lists what the internet host received:

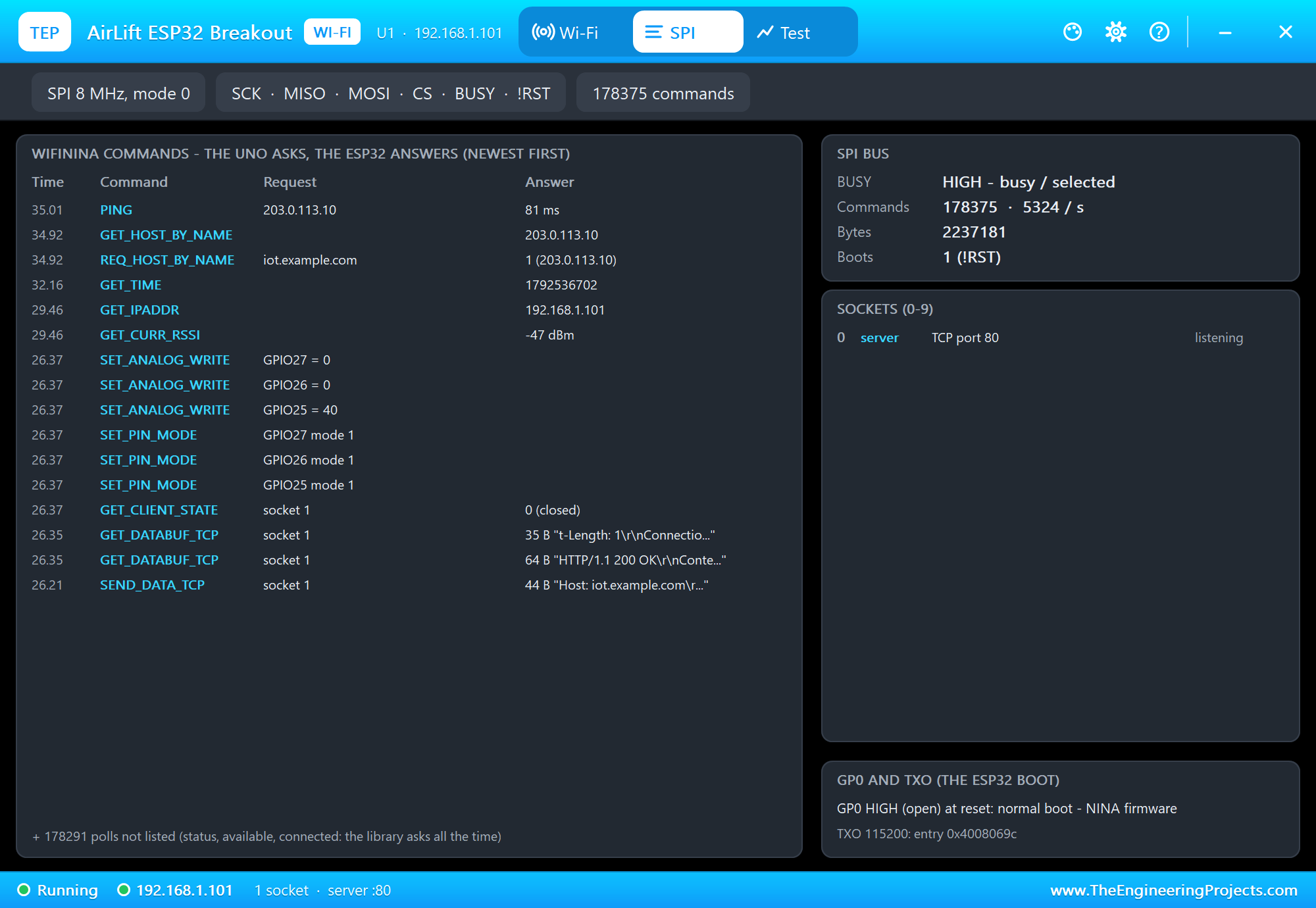

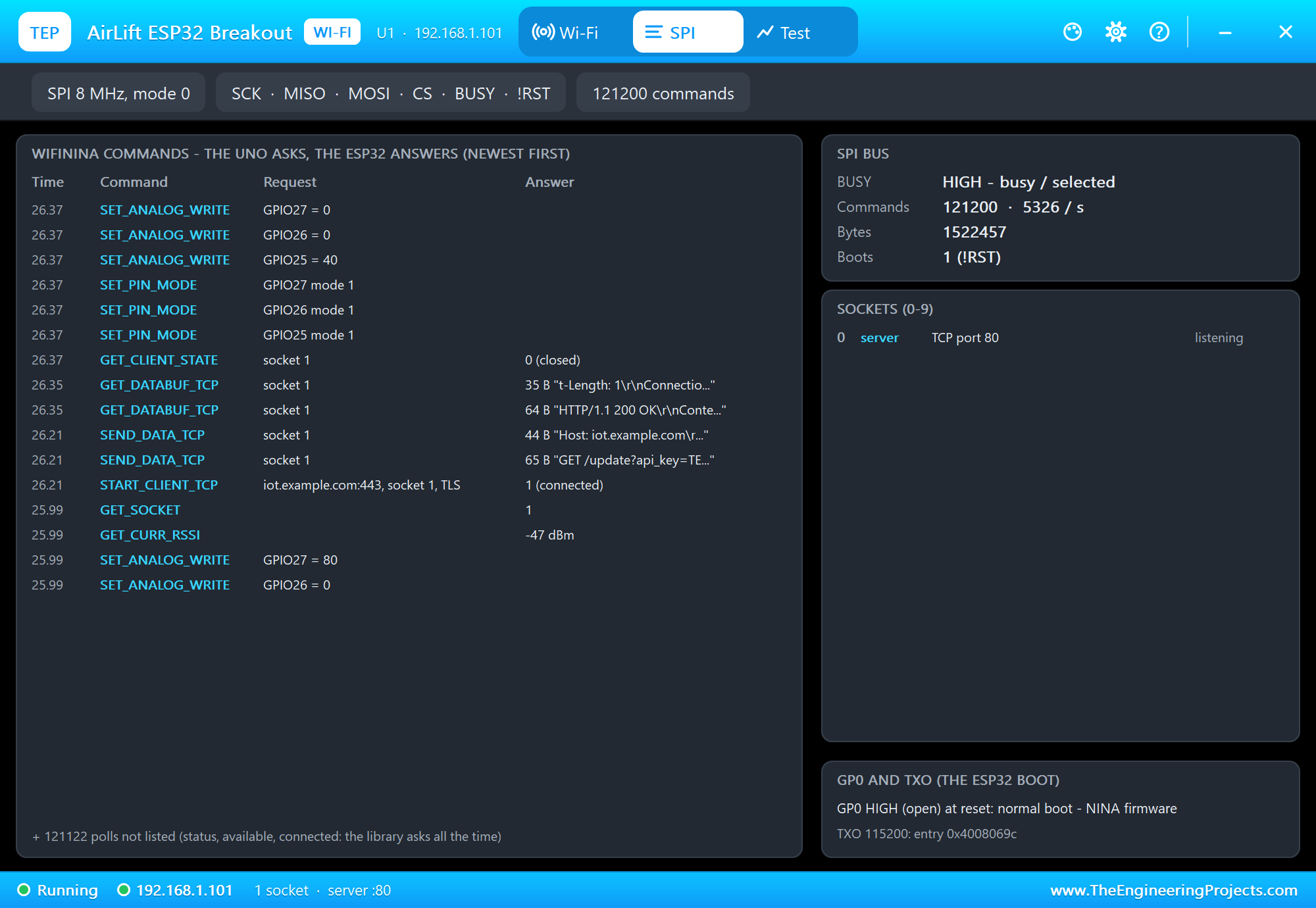

The SPI page is the place to learn the NINA protocol. It lists the WiFiNINA commands with their requests and answers, newest first - the polls (status, available, connected) are only counted. On the right are the bus, the sockets 0 - 9 and the boot card with GP0 and the last line on TXO:

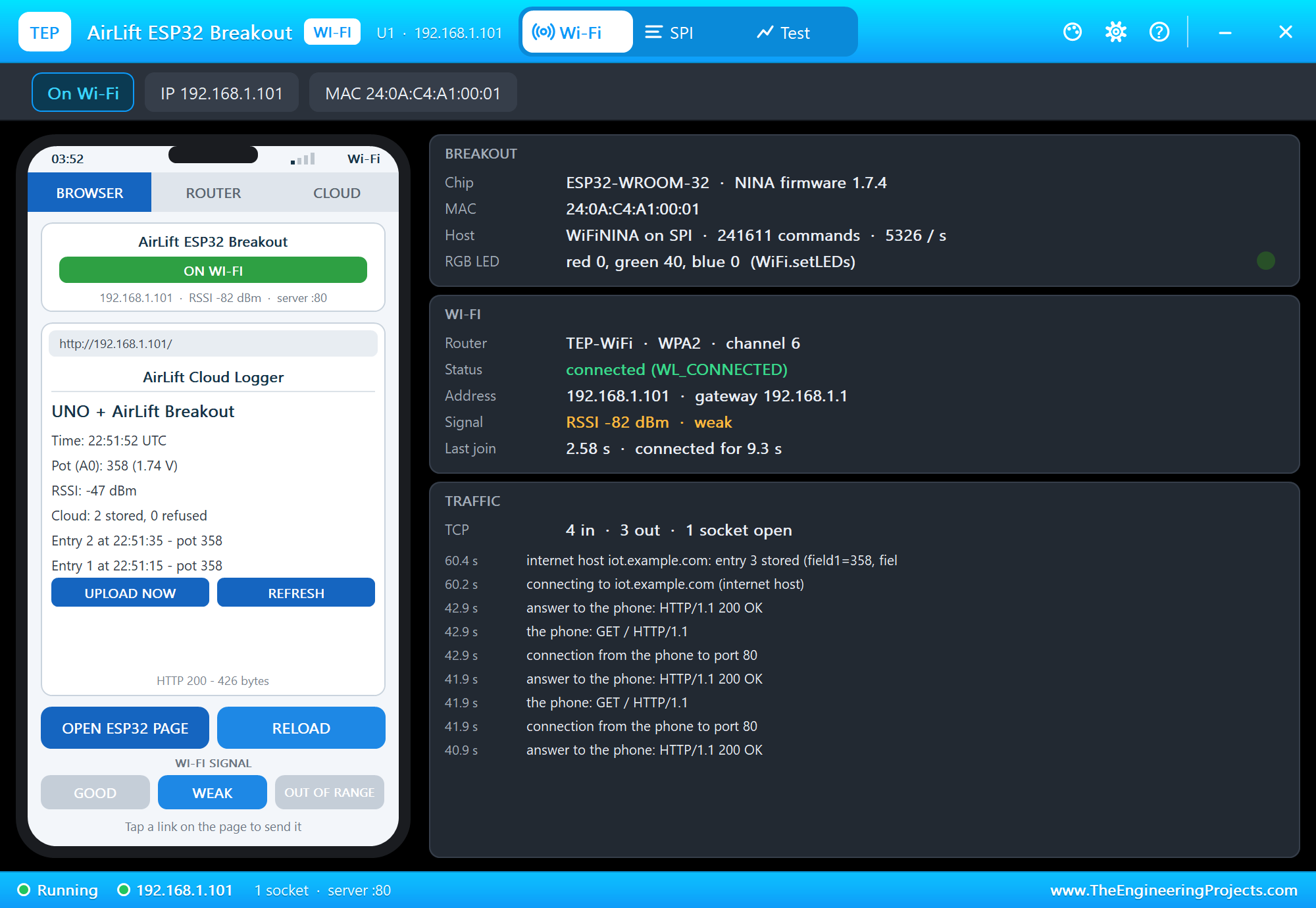

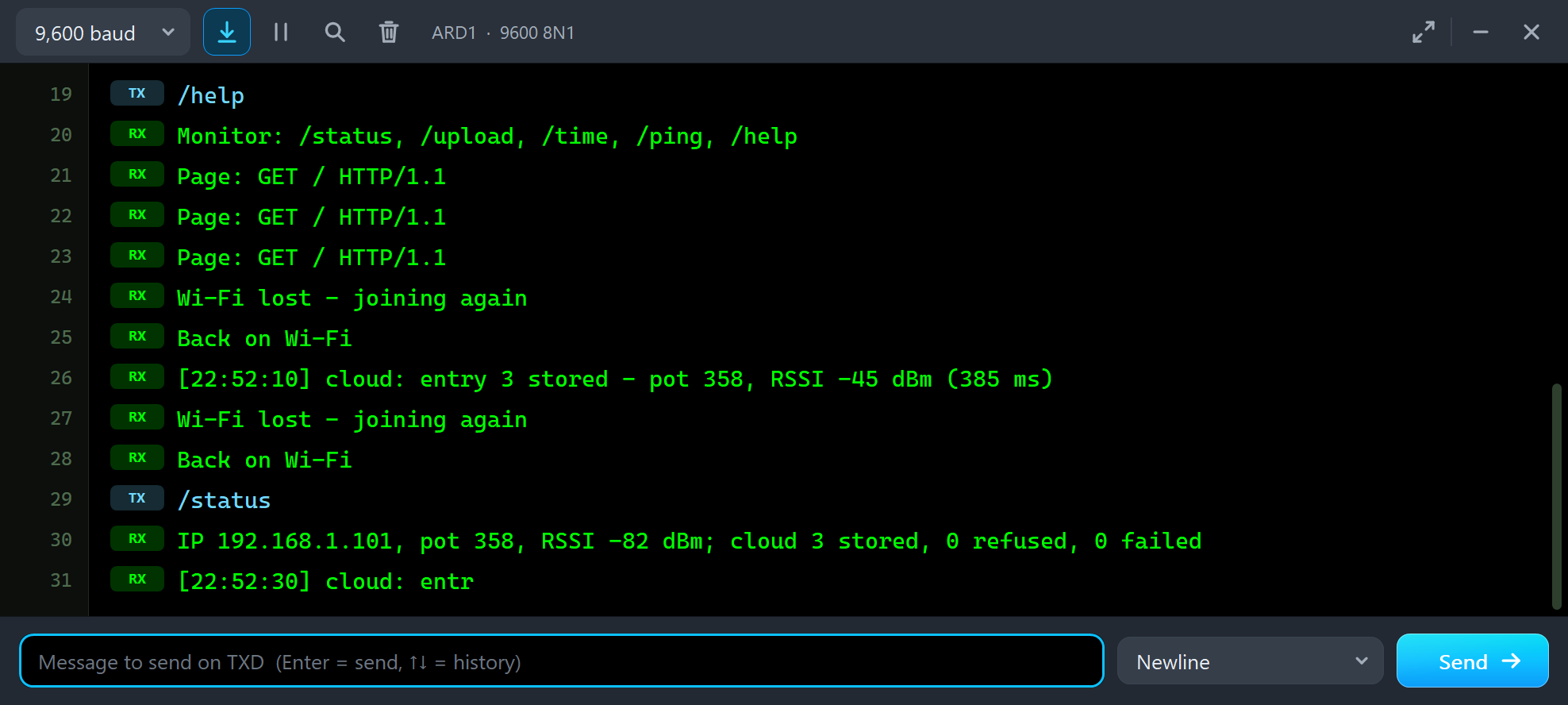

WEAK moves the router far away; the breakout stays connected with a weaker signal:

OUT OF RANGE takes the router away; WiFi.status() stops saying WL_CONNECTED, so the sketch joins again and is back once GOOD returns the router:

  if (WiFi.status() != WL_CONNECTED) {                              // lost the router: join again
    Serial.println(F("Wi-Fi lost - joining again"));
    WiFi.setLEDs(40, 0, 0);
    while (WiFi.begin(ssid, pass) != WL_CONNECTED) delay(2000);
    WiFi.setLEDs(0, 40, 0);
    Serial.println(F("Back on Wi-Fi"));
  }

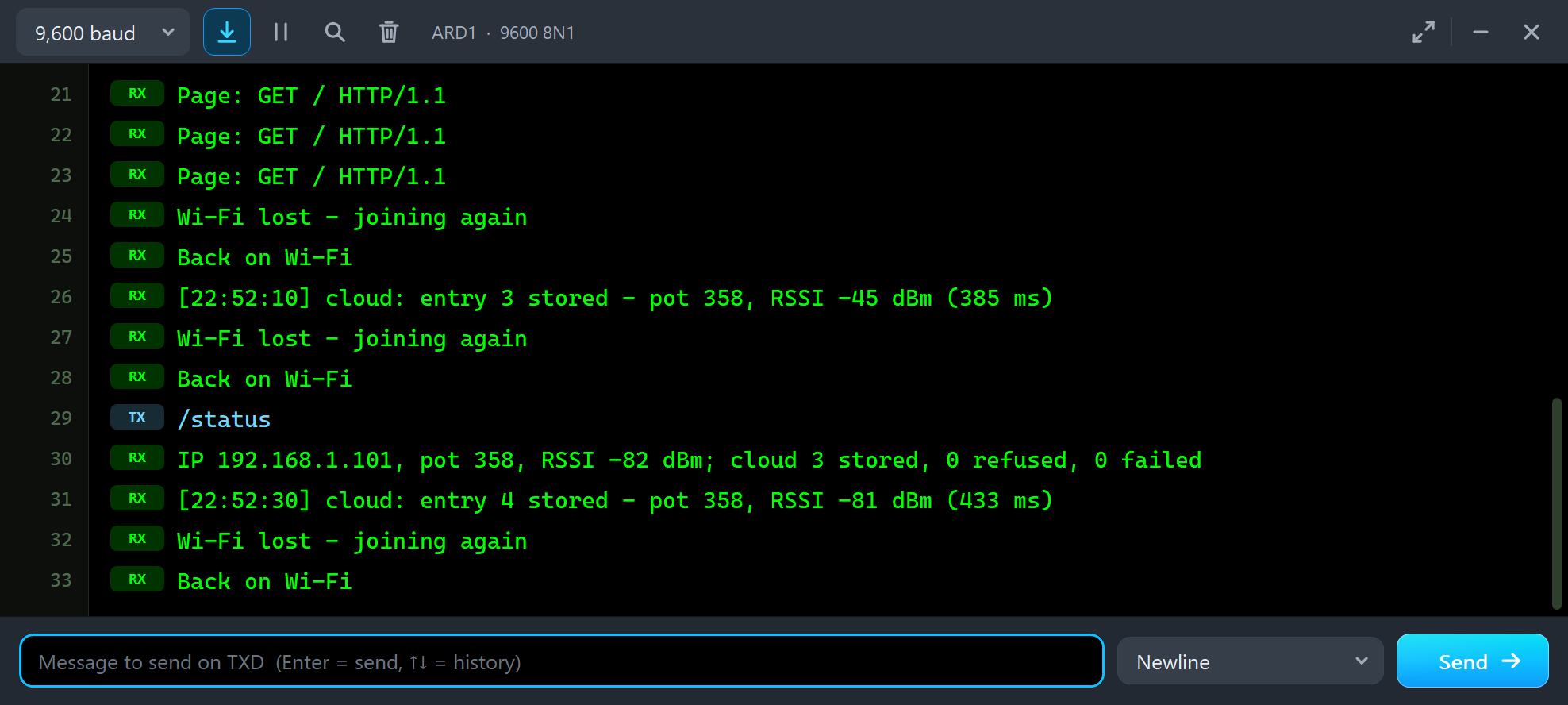

[22:52:30] cloud: entry 4 stored - pot 358, RSSI -81 dBm (433 ms)
Wi-Fi lost - joining again
Back on Wi-Fi

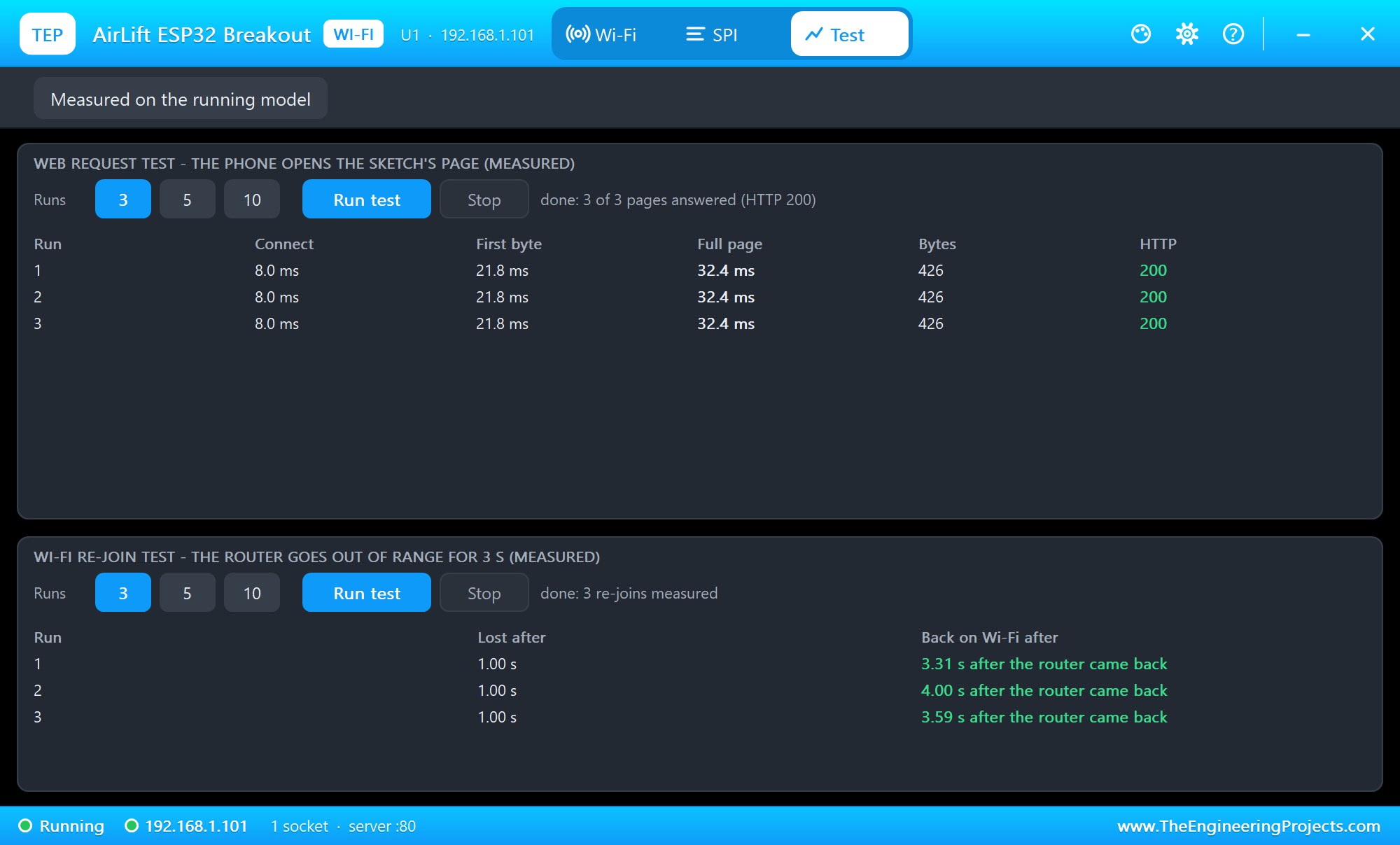

The Test page measures the running model: the phone opens the page several times, and the router goes out of range for 3 seconds to time the re-join. Then Settings and Help:

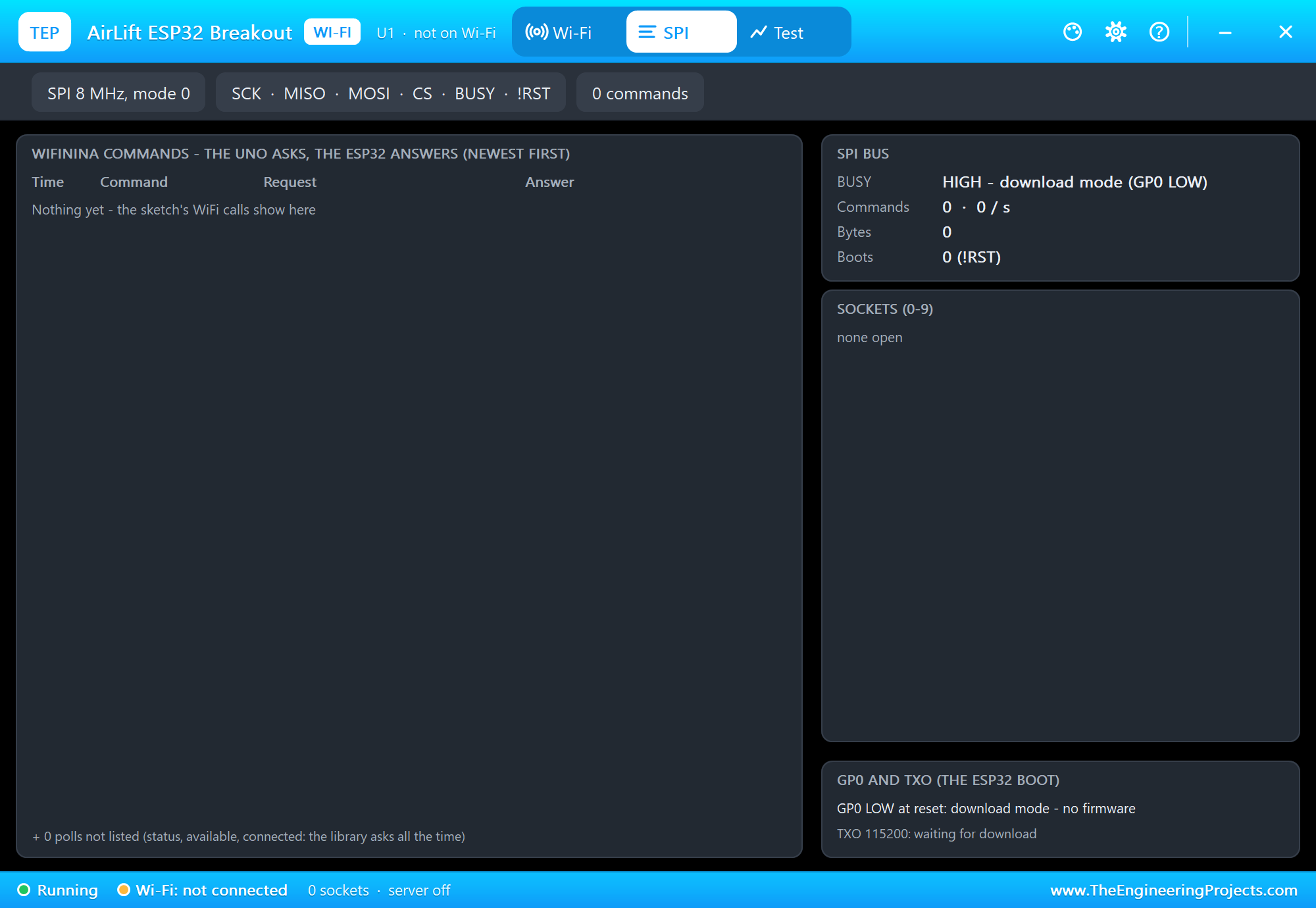

GP0 LOW: the Download Mode

To see what GP0 does, wire it to ground and press Run again. The ESP32 reads GP0 when its reset ends; LOW means "wait for new firmware", so the NINA firmware never starts. BUSY stays HIGH, and WiFiNINA waits for it in the very first call - the monitor stops after the sketch's first line:

The panel explains it: no command, BUSY HIGH in the download mode, and on TXO the ROM's last line. The ROM prints this text at 115200 baud; a Proteus Virtual Terminal on TXO shows it:

ets Jun  8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x3 (DOWNLOAD_BOOT(UART0/UART1/SDIO_REI_REO_V2))
waiting for download

Leave GP0 open (Adafruit's guide does) and the ESP32 boots normally; its ROM prints the normal boot lines on TXO and the NINA firmware starts. GP0 matters on the real board only for Bluetooth and firmware updates.

Pins of the AirLift ESP32 Breakout

Properties of the AirLift ESP32 Breakout

The IP address follows the part's number: U1 gets 192.168.1.101, U2 .102 and so on, so give every Wi-Fi part its own number. The laptop is always 192.168.1.21 and the phone 192.168.1.41.

Troubleshooting

• "No AirLift found" (WL_NO_MODULE): check CS, BUSY, !RST, SCK / MISO / MOSI and VIN / GND, and call WiFi.setPins() with your pins before anything else.
• The sketch hangs at the first WiFi call: BUSY never goes LOW - no power, !RST held LOW, or GP0 LOW (the panel's SPI page says which).
• WiFi.begin() takes five seconds or more: WiFiNINA waits five seconds before it asks for the status.
• "answer 0" from the cloud: the internet host keeps one update per 15 seconds for each api_key.
• Slow pages: send whole lines from RAM, not print(F("...")) - see sendP() in the demo.

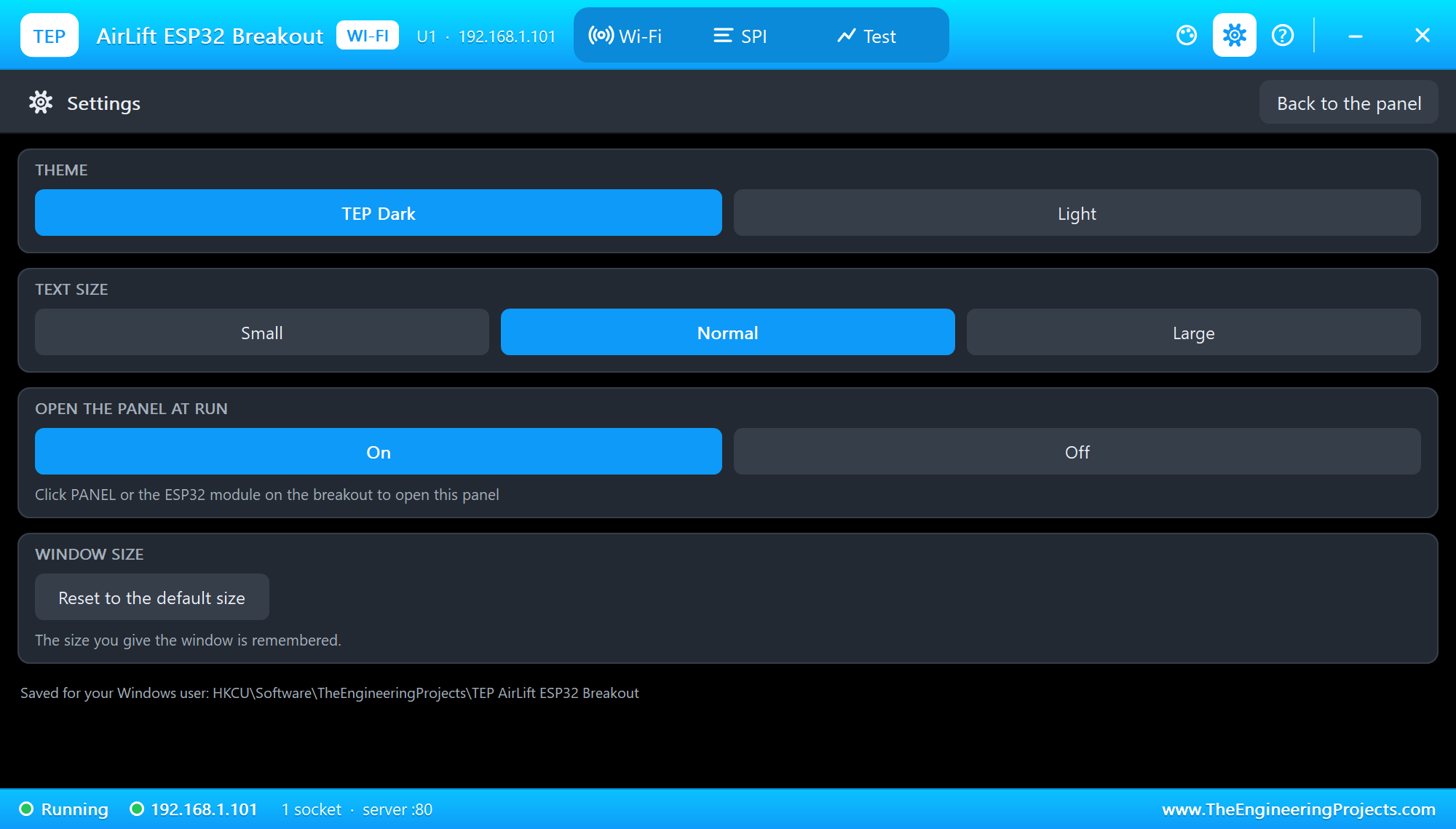

• No panel: click the PANEL pad or the ESP32 module, or turn "Open the panel at Run" back on in Settings.

Things to Know Before Using a Real AirLift Breakout

• The library: install "WiFiNINA - Adafruit Fork"; Arduino's own WiFiNINA does not have setPins() and setLEDs().
• The supply: feed VIN from 5 V even on a 3.3 V board - Wi-Fi needs up to 250 mA peaks.
• Any SPI board: the breakout is level-shifted, so it works with 3.3 V and 5 V boards; use the board's hardware SPI pins and any free pins for CS, BUSY and !RST.
• A shared bus: MISO is tri-stated while CS is HIGH, so other SPI devices can share the bus.
• RAM: an UNO has 2 KB; WiFiNINA, its socket buffers and a few strings fill it quickly - keep text in flash.
• TLS: the real NINA firmware checks the server's certificate; a server whose certificate it does not trust fails to connect.

Limitations of the Simulation

• The ESP32 runs our model of the NINA firmware as WiFiNINA (Adafruit 1.6.x) uses it - not the real firmware.
• Not modelled: the access point mode (WiFi.beginAP() answers WL_AP_FAILED), WEP and WPA2-Enterprise (joined as WPA2), real TLS (WiFiSSLClient connects as plain TCP to the internet host on port 443), Bluetooth and firmware updates on RXI, the ESP32's other GPIOs, the supply's voltage and current, the radio itself - the join and network times are realistic values, not a radio simulation.
• The internet host is a stand-in for the internet: every internet name is 203.0.113.10, and its small cloud stores updates with an api_key and fields.
• The PWR and SPI LEDs, the antenna colours, the PANEL pad, the panel, its phone, the router, the two neighbour networks, the internet host and the two monitors are TEP additions.
• Adafruit and AirLift are names of Adafruit Industries, ESP32 and ESP32-WROOM-32 of Espressif Systems; this library is not made or endorsed by Adafruit, Espressif, Arduino or Labcenter.
• Tested in Proteus 8.5 in October 2026 (the demo as shipped, the UNO, the breakout, the laptop and the phone together at about 0.4 to 0.5 x real time on our PC). Proteus 7 is not supported.

So, that was all about the AirLift ESP32 Breakout Library for Proteus. I hope it helps you try WiFiNINA sketches in Proteus before you wire the real breakout - the time, DNS, HTTPS and the boot pins included - and watch every SPI command on the panel while you do. The Laptop and Mobile WiFi Monitors talk to every one of our Wi-Fi boards and modules. If you use the AirLift ESP32 Breakout Library for Proteus in a project, please share it in the comments or in our forum, and if you have any questions, ask in the comments and I will help you out. Till the next tutorial, take care and have fun!
